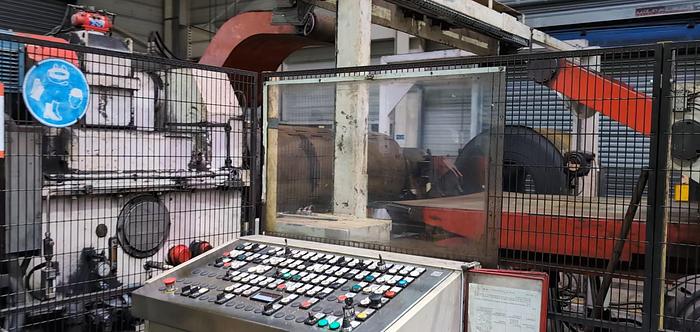

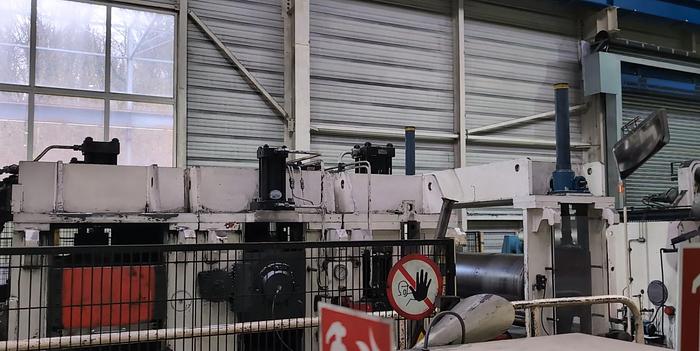

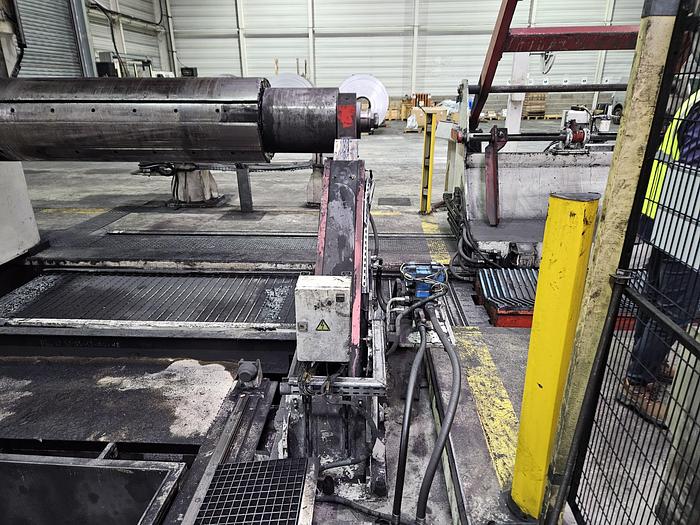

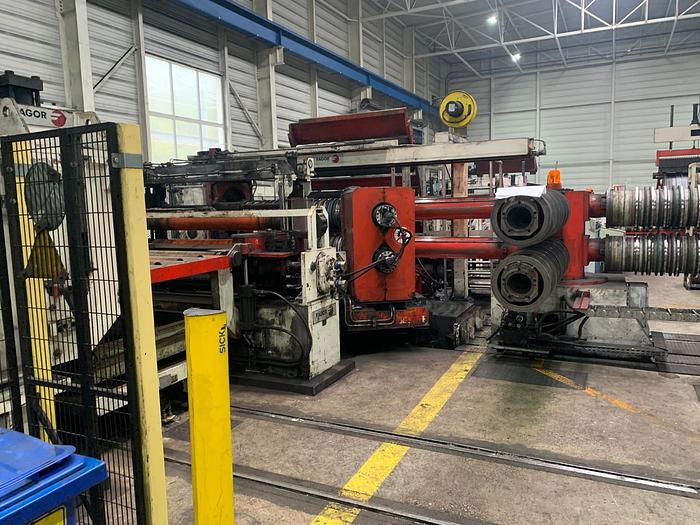

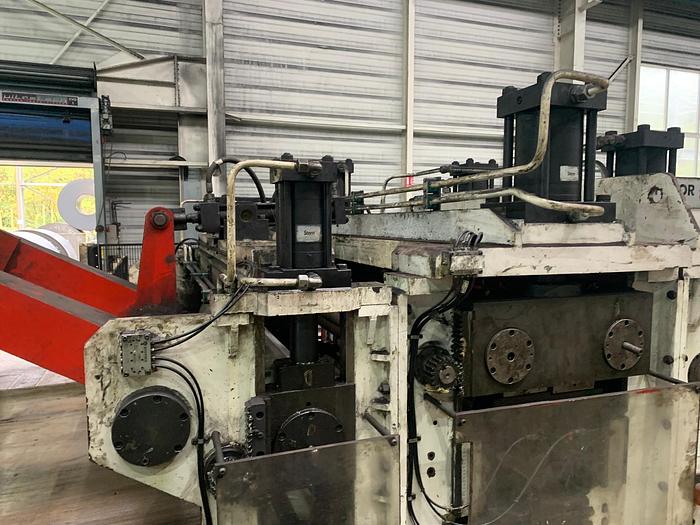

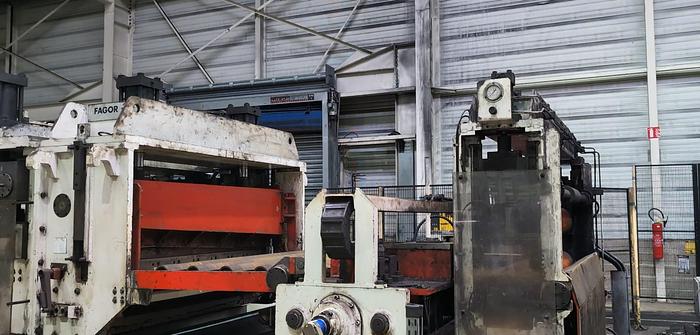

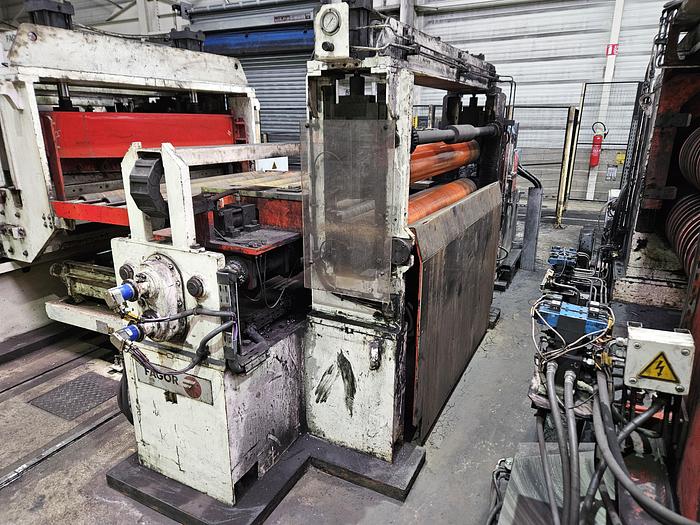

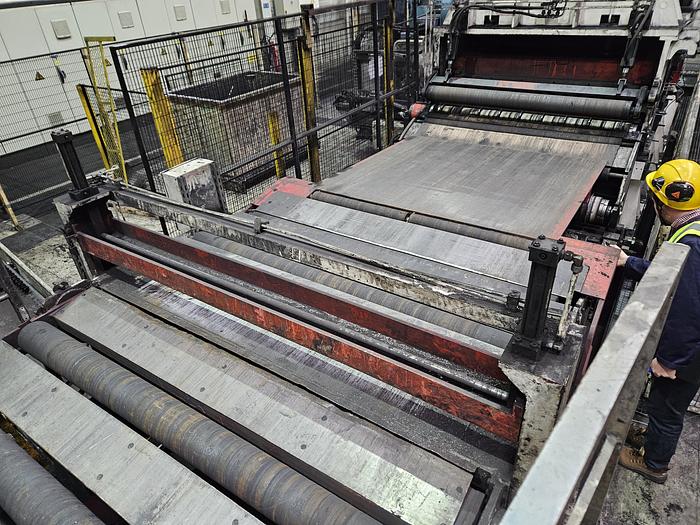

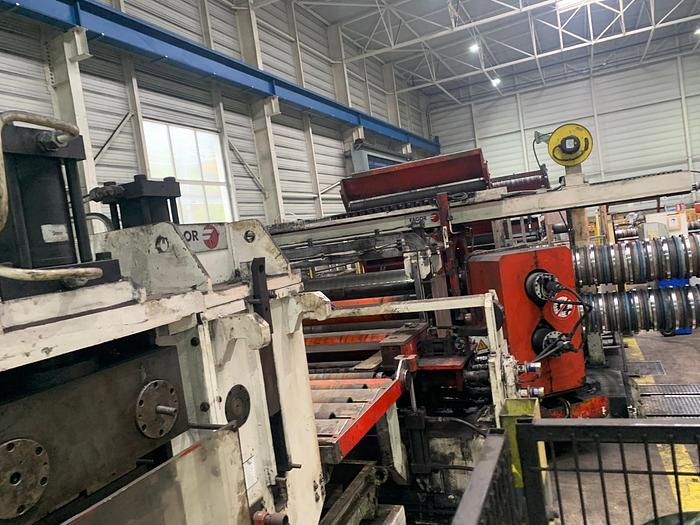

FAGOR Slitting line 1600x6

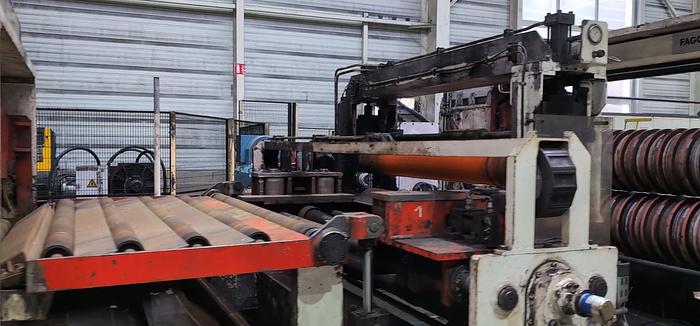

Slitter 1600x6, manufactured by FAGOR with Quick Change System

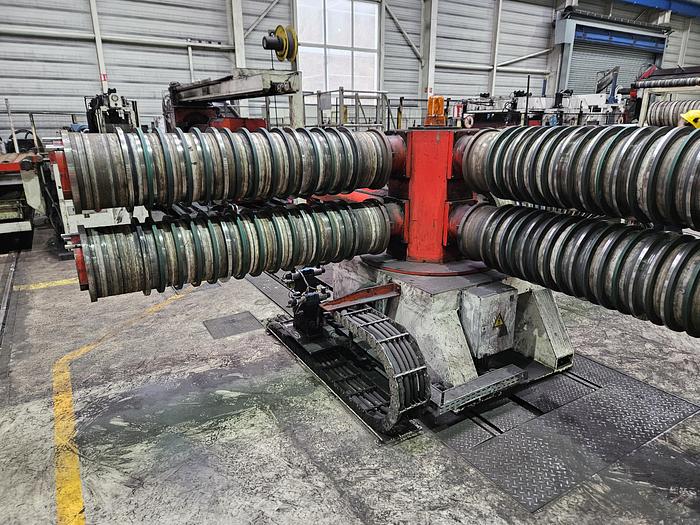

Quick change system: This slitting line is equipped with a quick change system for off-line preparation, significantly reducing changeover time.

Condition: The slitter is in excellent working condition.

Scope of supply:

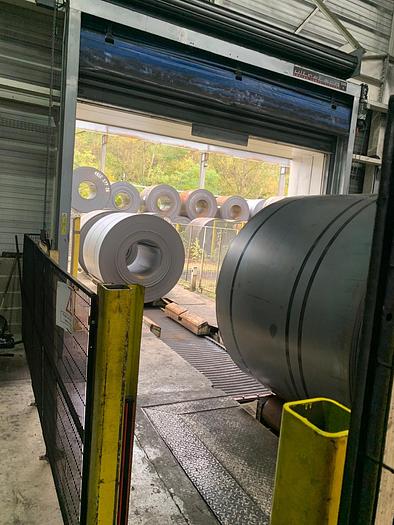

• Coil Car
• Motorized uncoiler
• Introduction group

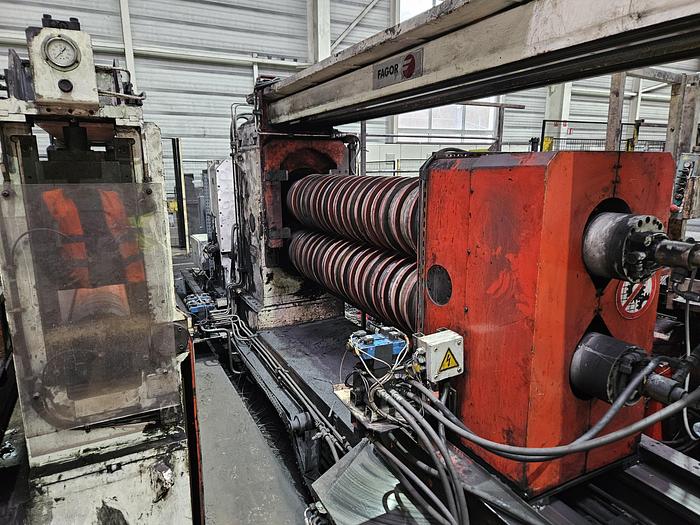

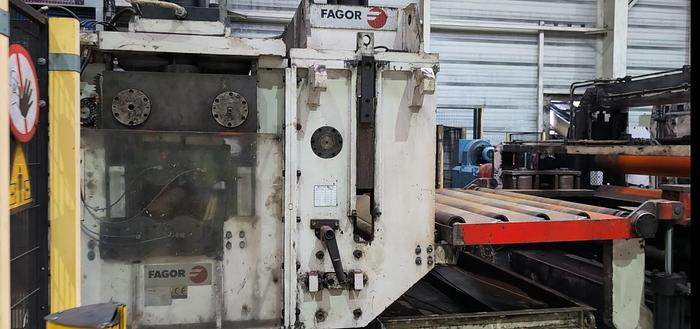

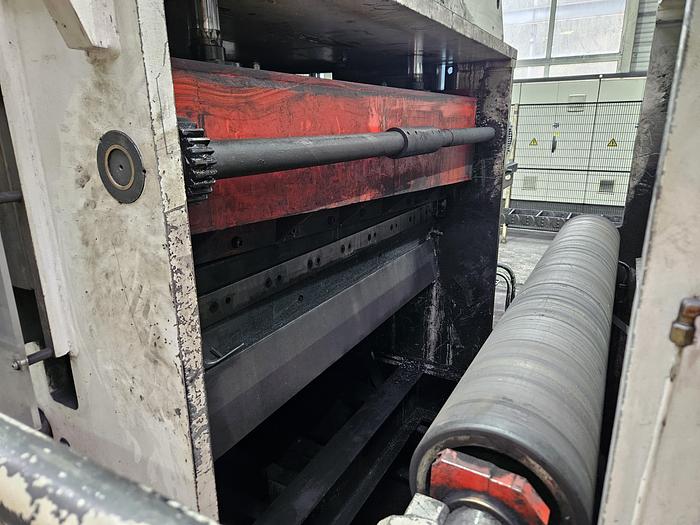

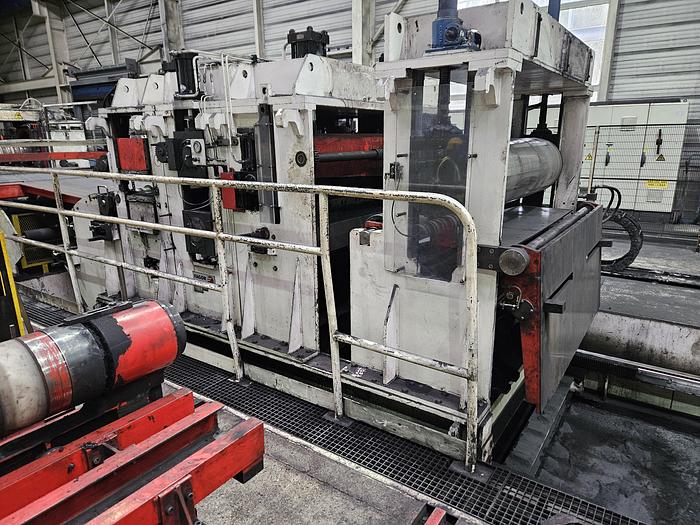

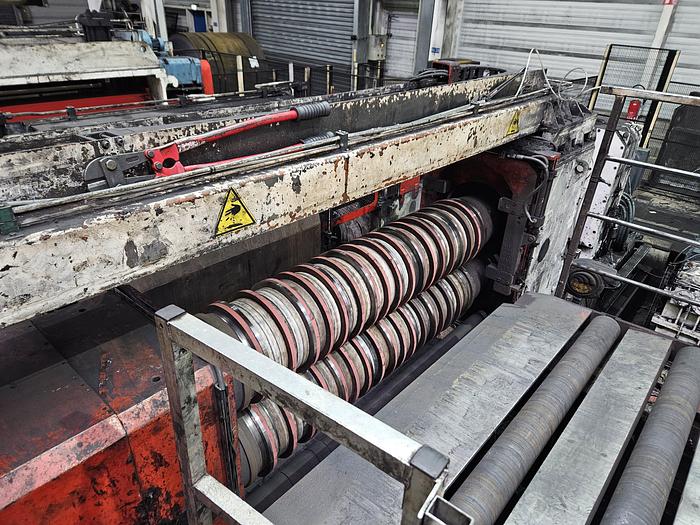

• Slitting shear

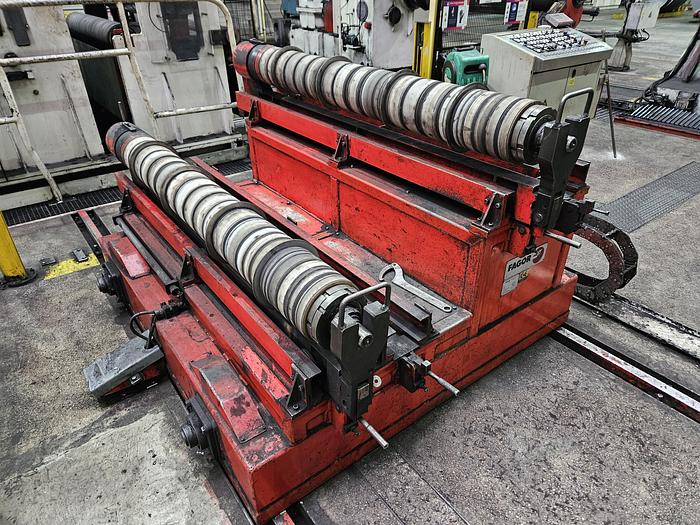

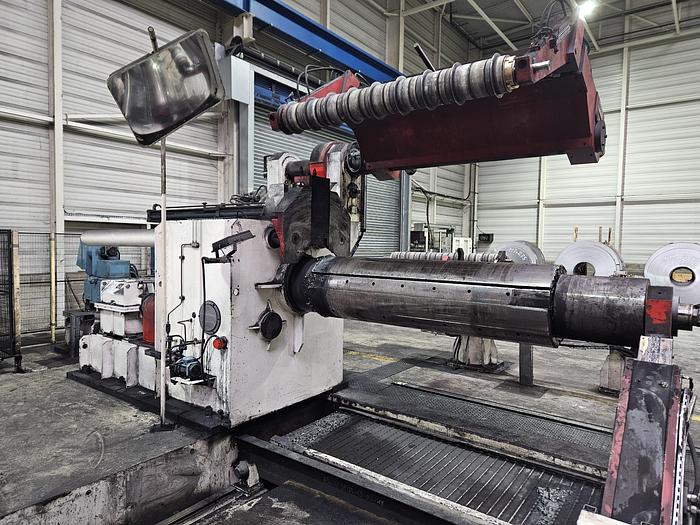

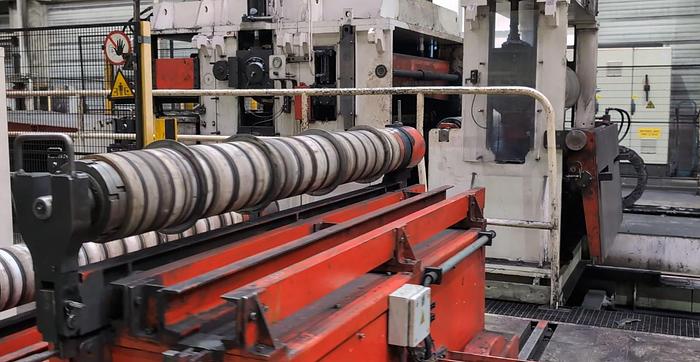

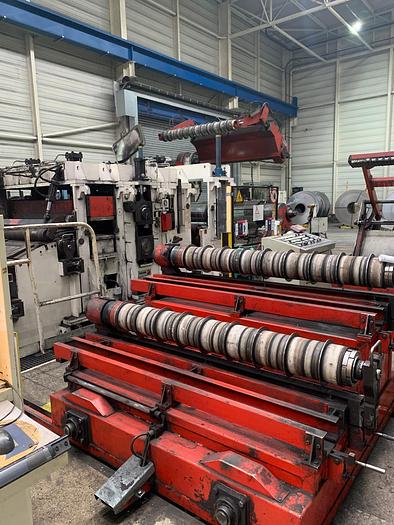

• Quick change system

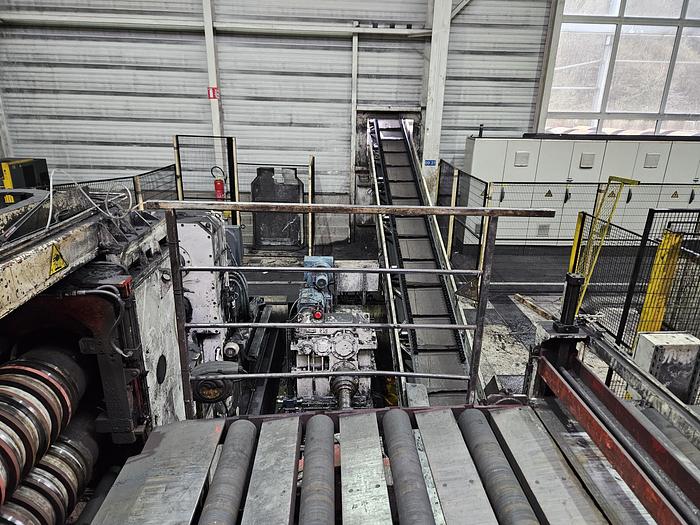

• Scrap chopper with conveyor

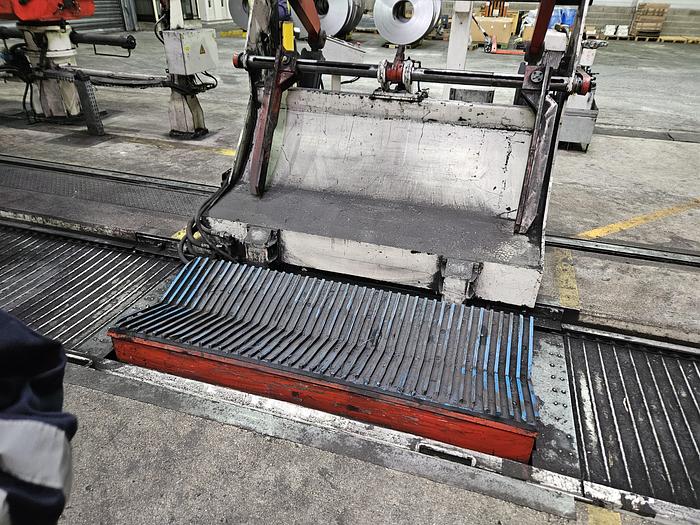

• Pit cover
• Press brake

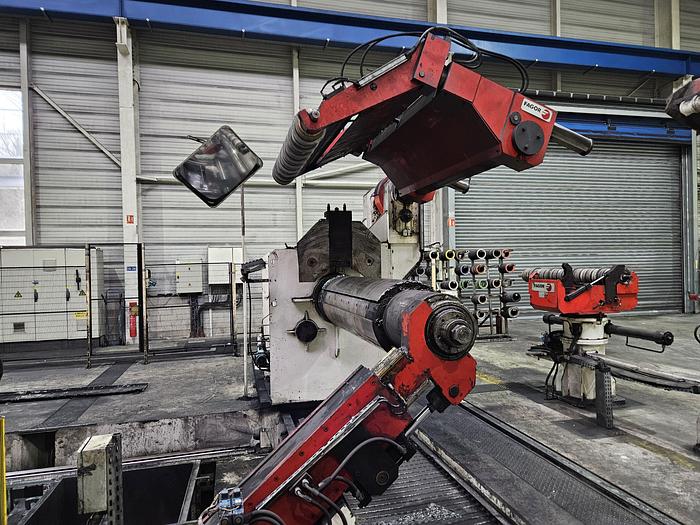

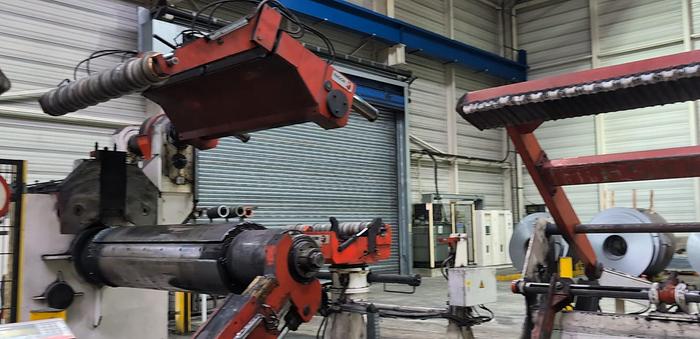

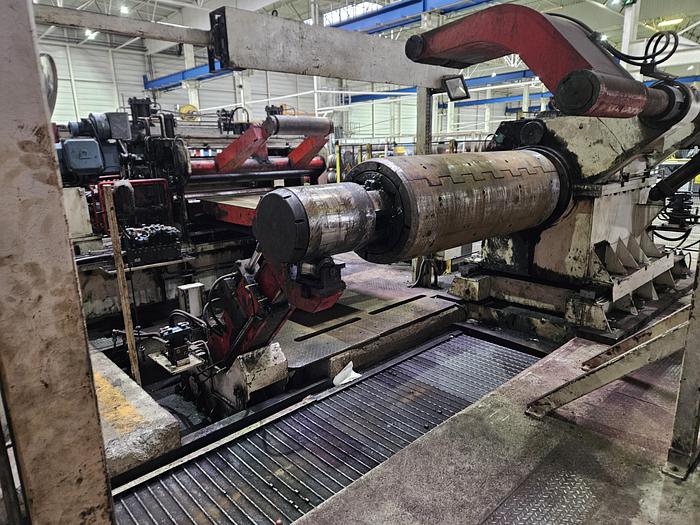

• Recoiler
• Exit coil car with holding system

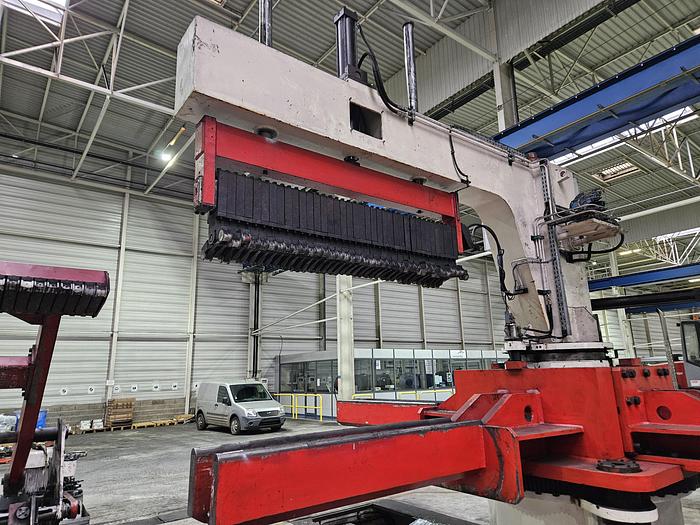

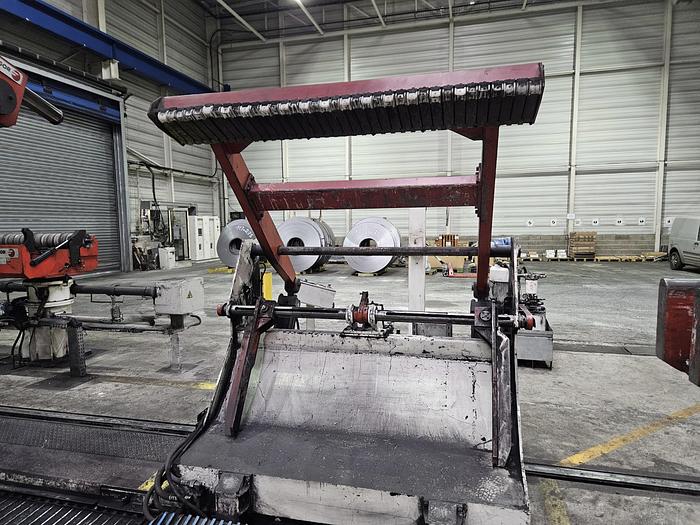

• Strapping bridge with “piano” system

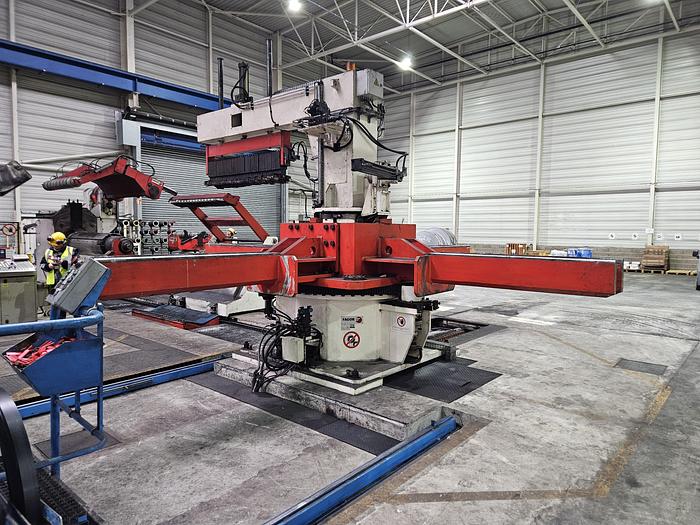

• 4 arms turnstyle

Main technical data of the FAGOR SLITTING LINE 1600x6:

• Coil Width: 500 - 1600 mm
• Coil thickness: 0.8mm – 6mm
• Coil weight: 32 Tn
• Working direction: Left to Right

Cuts / thickness :

• Thickness 1,5 mm: Up to 24 cuts
• Thickness 2,0 mm: Up to 20 cuts
• Thickness 2,5 mm: Up to 17 cuts
• Thickness 3,0 mm: Up to 14 cuts
• Thickness 4,0 mm: Up to 12 cuts
• Thickness 5,0 mm: Up to 10 cuts
• Thickness 6,0 mm: Up to 8 cuts
