MAIR MULTIHEAD TUBE CUTTING MACHINE TRA3000/7/7/CAR + RA1

MULTIHEAD TUBE CUTTING MACHINE MAIR TRA3000/7/7/CAR + RA1

SCOPE OF SUPPLY

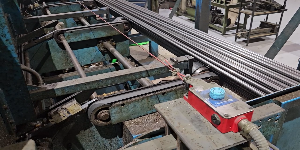

1 Loading table with:

- Motorised slings loader, to load the complete bundle

- Lateral chain transport conveyor, to introduce the tube 1 by 1

- Top support with vertical adjustment (to avoid loading of 2 tubes when working with small diameters)

- Length stop and tube loader

2 Cutting machine TRA3000 with:

- 7 independent cutting heads

- All cutting heads can be lifted independently

- Linear guide with scale for positioning of the cutting heads

- Centralised tube transport system with production cycle adjustment

3 Single collecting cradle RA1, with:

- Independent cradles, to collect the cut tubes

- Lateral separators between cradles, to adapt the cradle length to the tube length

- Motorised endless slings for soft tube collection.

4 Main electrical cabinet and operator control panel

5 Safety barriers around the machine & photelectric barriers & emergency line.

Note: Safety barriers were installed by owner to have the machine under “safety conformity”

TECHNICAL SPECIFICATIONS

Manufacturer: MAIR

Model: TRA 3000/7/7/CAR +RA1

Yearly maintenance: made by MAIR Spain

Max. input tube length: 7000 mm

Bundle Loader: 3 Tn

Max. loading capacity: 3000 Kg

Round tubes (outer Ø): 12-60 mm

Square tubes (HxW): 12x12-50x50 mm (see note)

Rectangular tubes (HxW): 12x16-60x40 mm (see note)

Thickness Min-Max.: 0.8 - 4.0 mm (depending on yield)

Cutting lengths: 330-6900 mm

Max. straightness tolerance: 1 mm/m

Number of cutting heads: 7

Motors power: 2.2 kW

Cutting disc diameter: 300 mm

Voltage: 380 / 50 V/HZ, 3 phases

Compressed air: It must be supplied filtered and lubricated 6 bar

Total installed power: Aprox. 21kW – 50Amp
