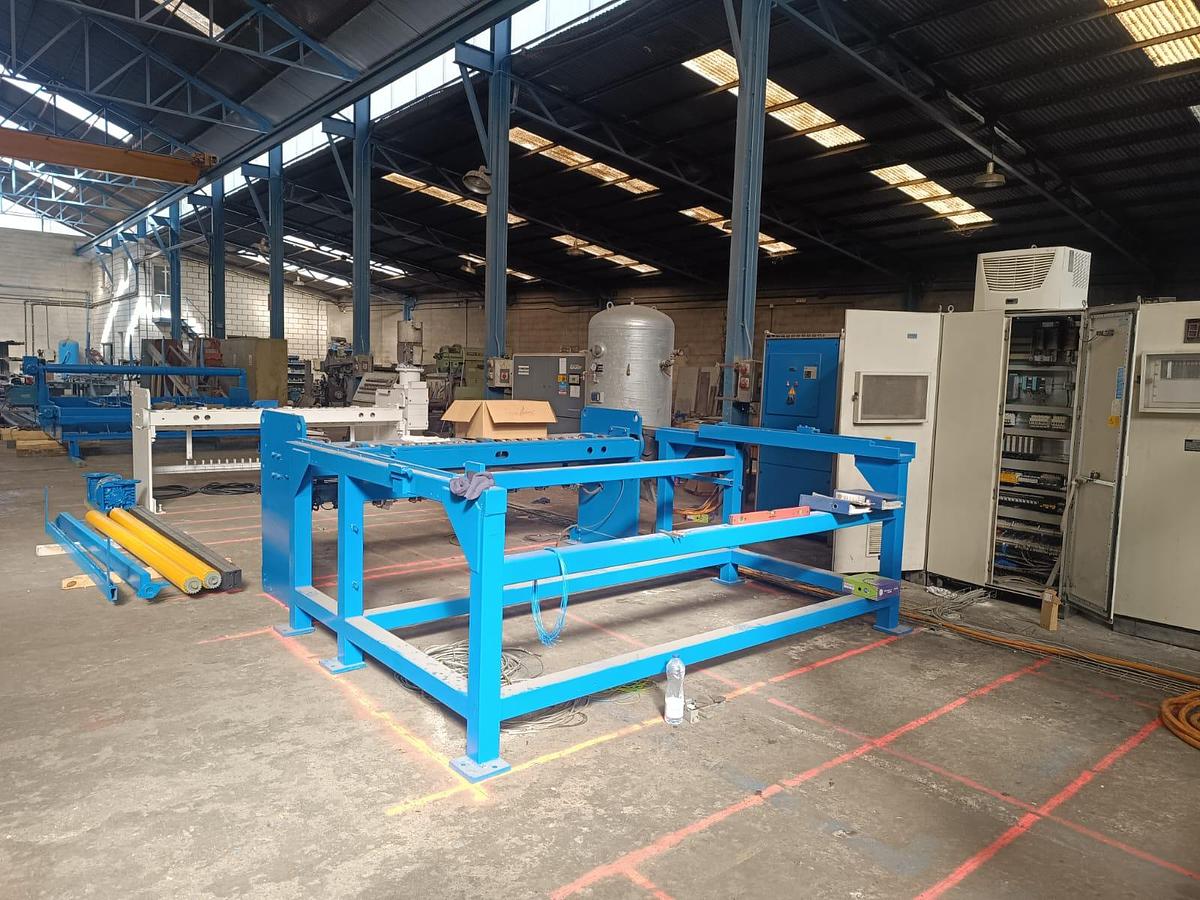

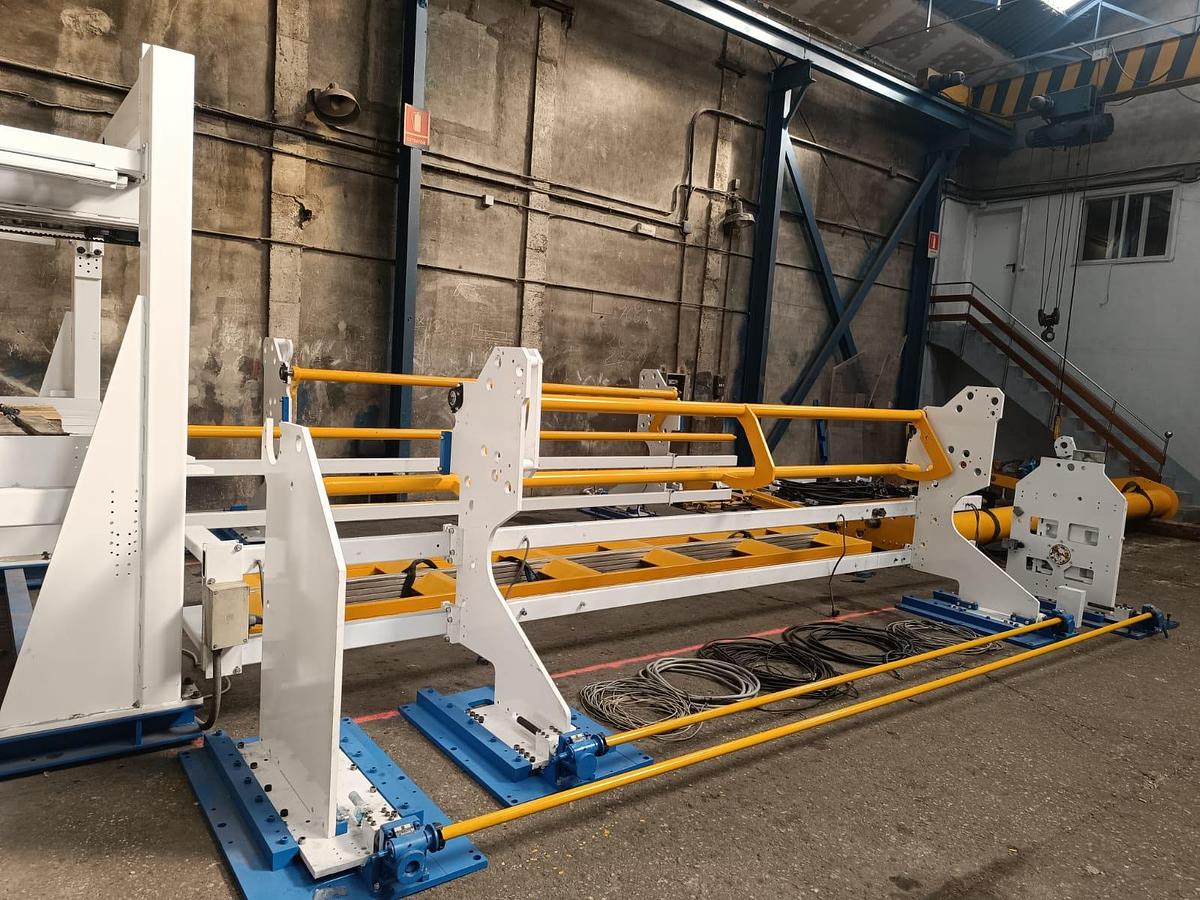

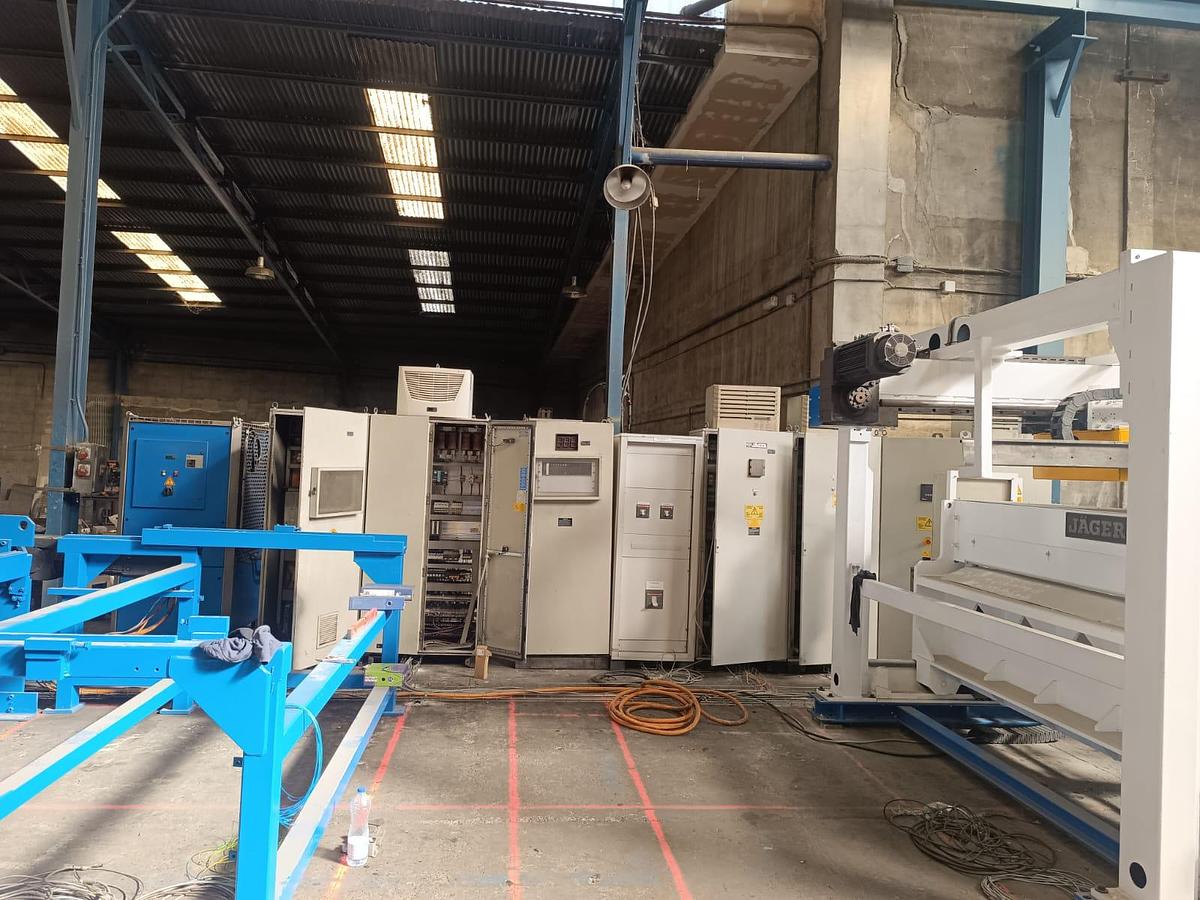

JAGER Mesh Welding Line U-Gsa-st
JAGER Mesh Welding Line U-Gsa-st
or
Call (+34) 916 587 260
Description
JAGER welded mesh line U-Gsa-st
Full revamped "as new"
Technical data
24 pay off for longitudinal wire spools, longitudinal wire straightening equipment
Line wire pull off system
Longitudinal wire loop
Longitudinal wire straightening equipment
Cross wire magazine
Number of installer line wires : 24 up to 10 mm
Diameter of lines wires : 4 to 10mm
Diameter of cross wires : 4 to 10mm
Separation between line wires : 100, 150, 200, and 300 mm
Separation between cross wires : min 30 mm , steplessly programmable
Max. length of cross wire (mesh width) 2500 mm , max welding width : 2400 mm
Mesh length : min 3000 mm and max . 6000 mm
Trafos : 8 x 160 Kva
Specifications
| Manufacturer | JAGER |
| Model | Mesh Welding Line U-Gsa-st |
| Year | 2025 |
| Condition | Refurbished |
| Stock Number | 4055 |
| Number of installer line wires | Number of installer line wires : 24 up to 10 mm |
| Diameter of lines wires | 4 to 10mm |
| Diameter of cross wires | 4 to 10mm |
| Separation between line wires | 100, 150, 200, and 300 mm |
| Separation between cross wires | min 30 mm , steplessly programmable |
| Max. length of cross wire (mesh width) | 2500 mm |
| Max welding width | 2400 mm |
| Mesh length | 3000 - 6000 mm |
| Trafos | 8 x 160 Kva |
