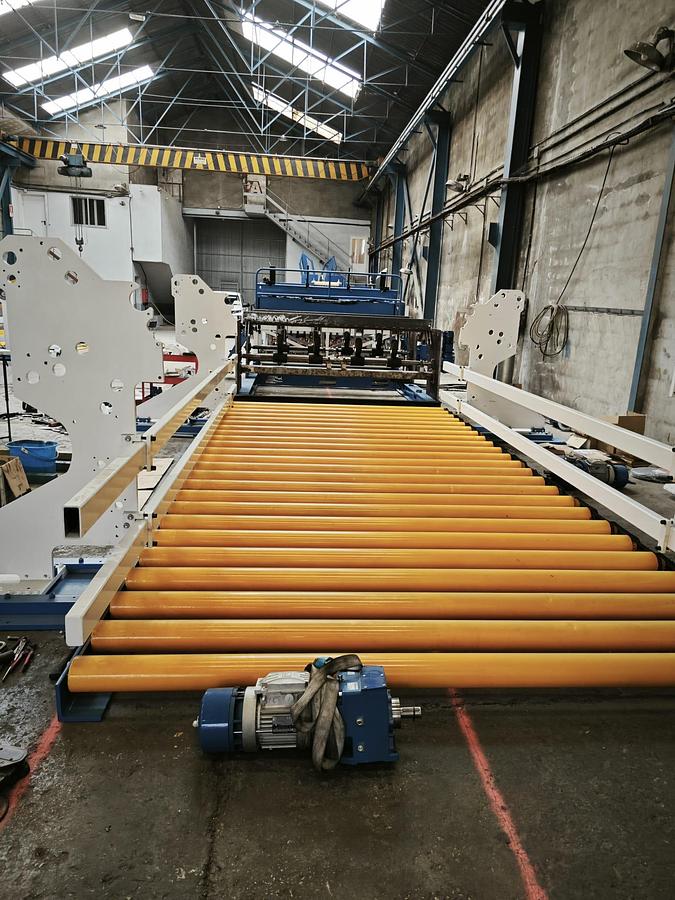

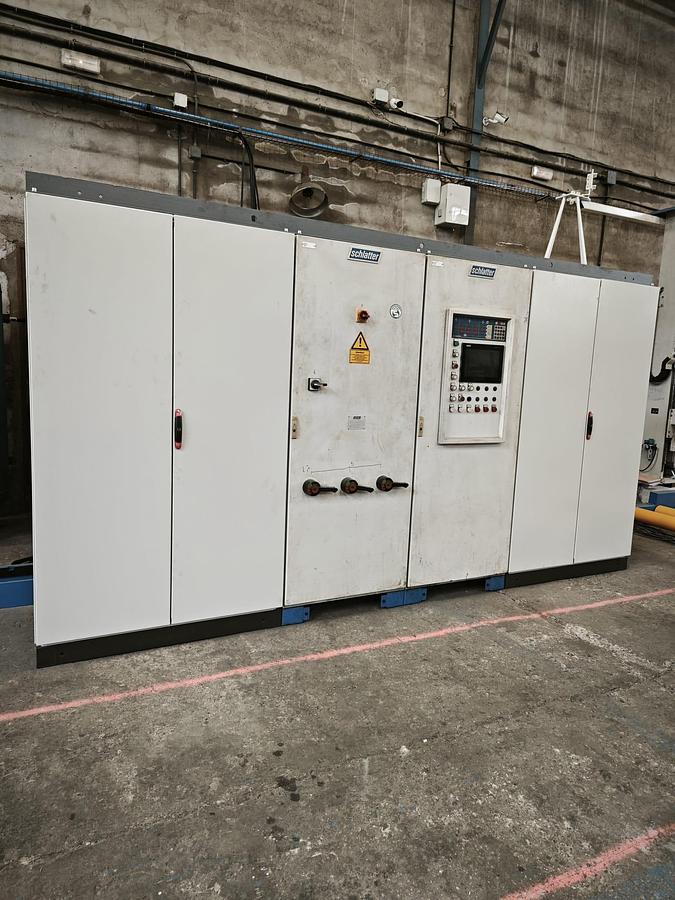

SCHLATTER MESH WELDING LINE MG 24.1/8C

SCHLATTER Welded wire mesh production line MG24

Full revamped

WORKING RANGE

Panel width: max. 2500 mm

Weft wire length: min. 900 mm

Weft wire length with QF5 dispenser: min. 300 - 1600 mm

Spacing between extreme warp wires: max. 2400 mm

Mesh length (warp wire length): max. 2500 - 6000 mm

Spacing between warp wires: min. 100 mm

Spacing between weft wires: 25-250 mm

Adjustable by cutting device (0-1)

Warp wire diameter: 4.0 - 12.0 mm

Weft wire diameter: 4.0 - 12.0 mm

Number of warp wires: max. 24

WELDING MESH MACHINE MG 24.1/8C, Basic equipment including:

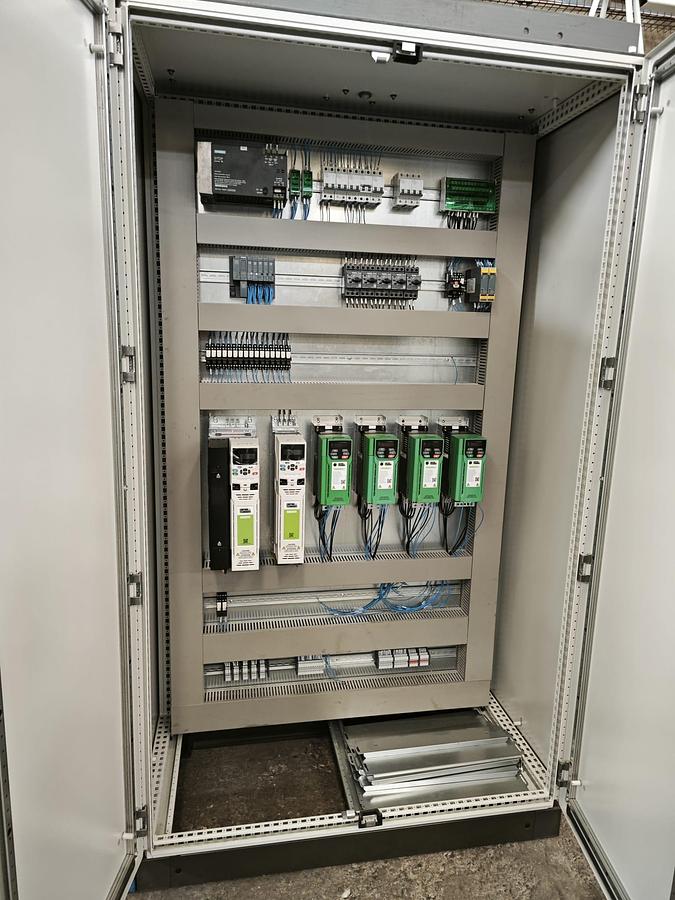

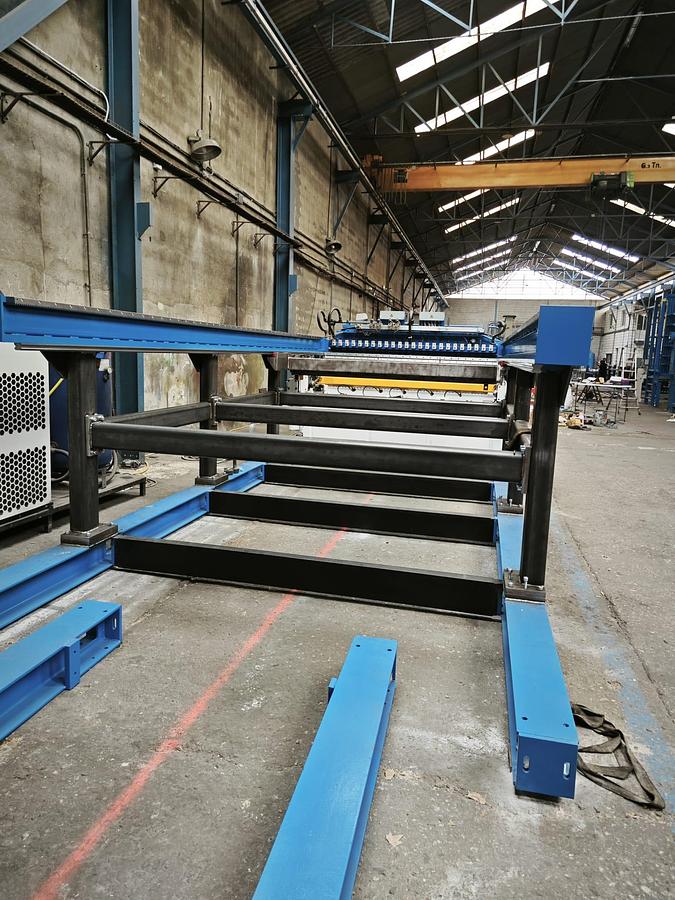

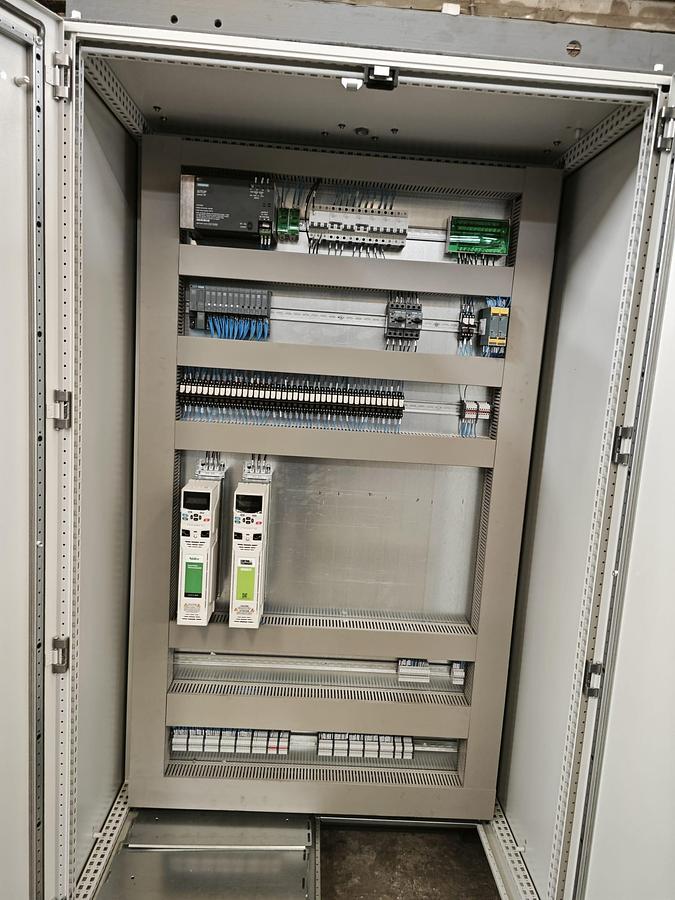

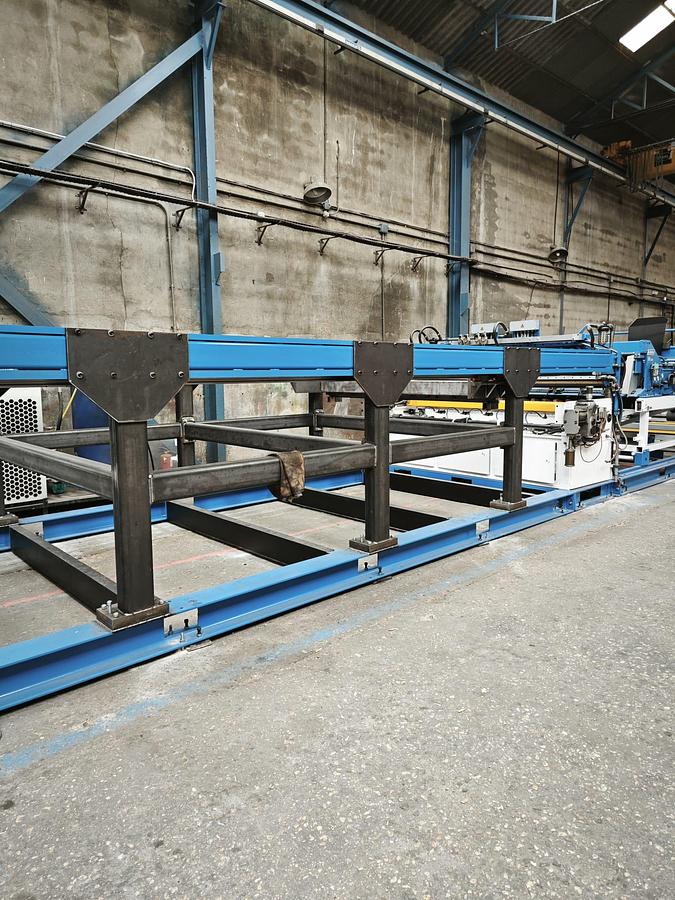

• 1 Machine frame
• 1 Upper support for press reception, continuously adjustable by hand crank
• 1 Magnet supports with retaining magnets and weft wire monitoring.
• 1 Row of pneumatic solenoid valves for press actuation.
• 1 Installation for air and water.
• 2 Pneumatic rotary drives with oil damping
• Static motor torque with 5 bar compressed air: 480 Nm
• Front continuously adjustable from: 25 - 250 mm adjustable by cutting device (0-1)
• 1 Advance carriage with panel lifting device
• 1 Set of tools for machine adjustment

WELDING SECTION

8 Type C Transformers

Rated power of each transformer: 100 kVA

No-load secondary voltage: 7.1 V

Rated secondary current: 14 kA

8 Thyristor contactors ES 130

12 Welding presses: 5.0 kN

12 Chain current bridge for spacing of warp wires: 50-100 mm

12 Chain current bridge for spacing of warp wires (for offset warp wires): 100 mm

10 Chain current bridge for spacing of warp wires: 100-150 mm

8 Chain current bridge for spacing of warp wires (for offset warp wires): 150 mm

6 Chain current bridge for spacing of warp wires: 150 - 200 mm

6 Chain current bridge for spacing of warp wires (for offset warp wires): 200 mm

24 Lower electrode holders Cu with standard angled electrodes and each with a water-cooled current cable, width: 58 mm

24 Wire clamping pliers
