GUIDA Slitter 1150x2

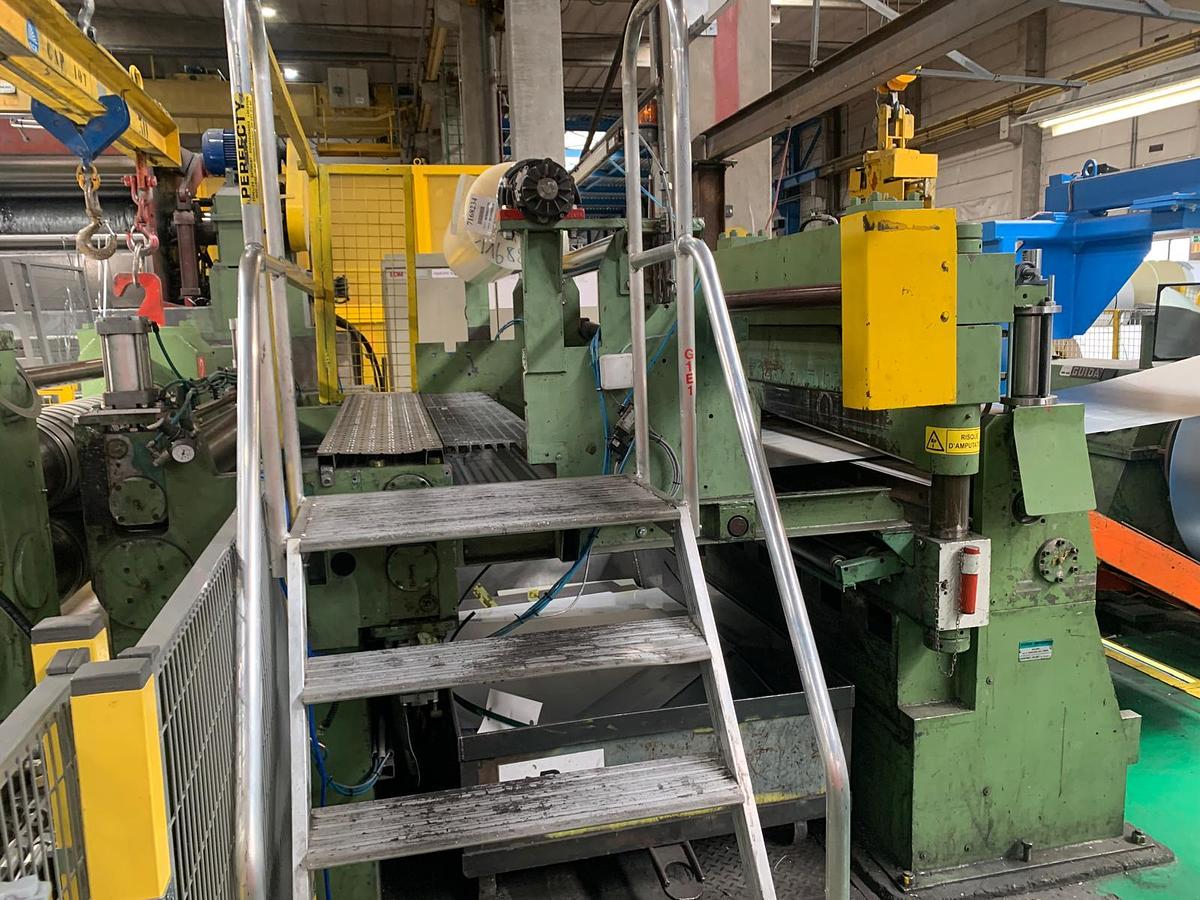

Slitting line 1150x1.5(2), manufactured by GUIDA

Main characteritics

Coil width: 200 - 1150 mm

Coil weight: 13Tn

Coil thickness: 0.17 - 2 mm (produced) | 0.2 - 1.5 mm (theorical)

Pit depth: 12m

Speed: 260 m/min

Average productivity per shift: 12.5 Tn/h

Quick change system with spare shafts for off-line tools preparation

Packaging line with PLC Allen Bradley 1747 & radial strapping machine Fromm / plastic

Number of cuts according to thickness

34 for minimum thickness

28 for transition thickness

20 for maximum thickness

Scope of supply

1. Coil Car

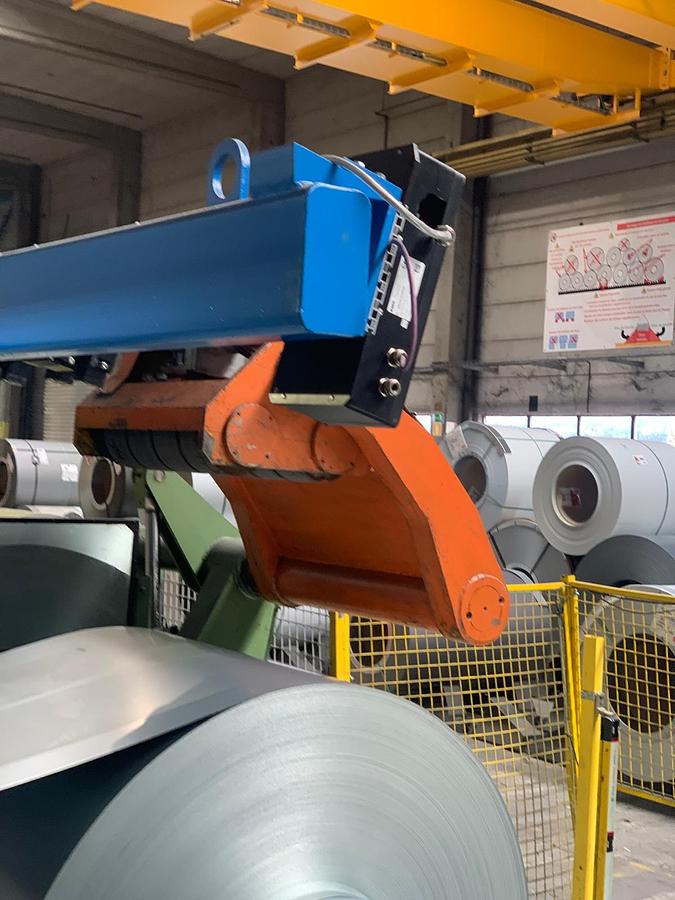

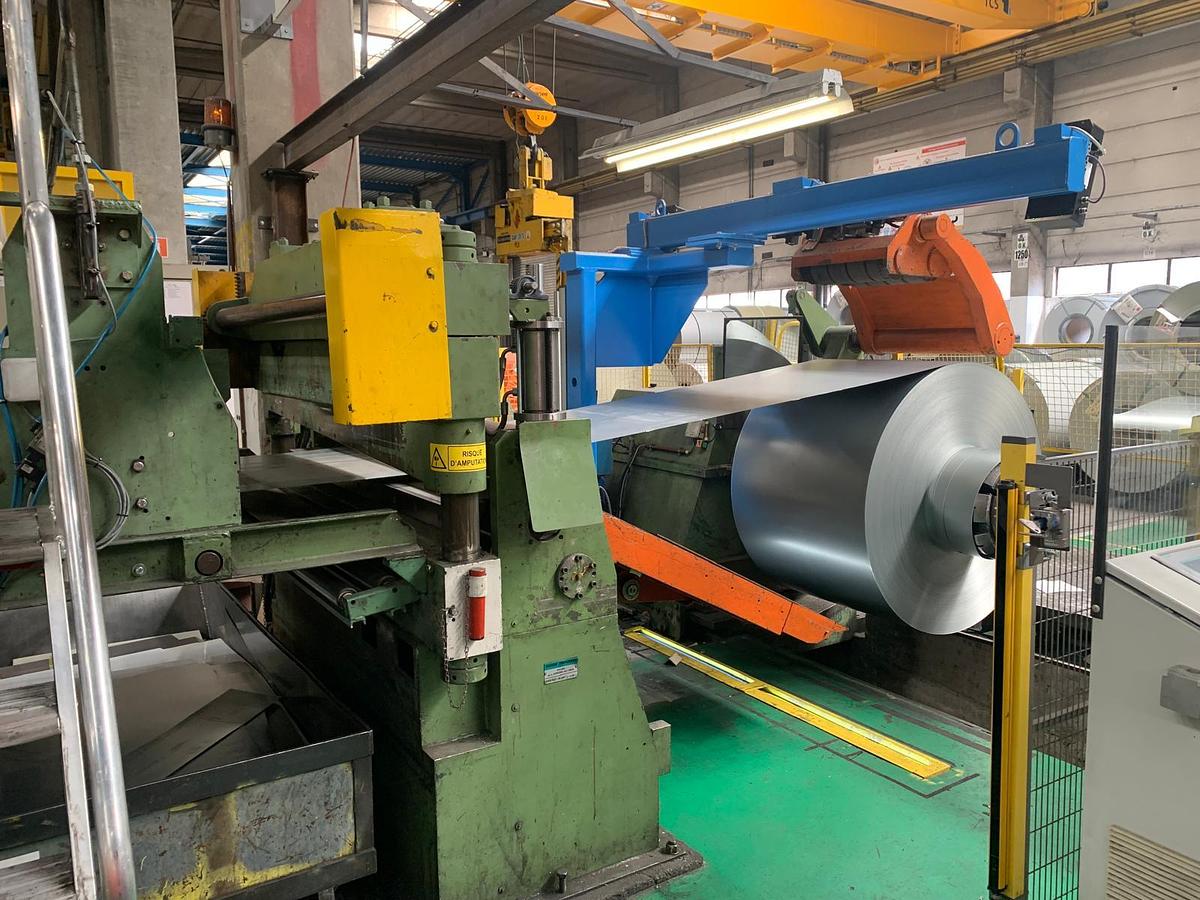

2. Motorized cantilevered uncoiler with snubber roll

3. Threading and levelling Pinch roll

4. Lateral guiding/centering guides

5. Crop shear

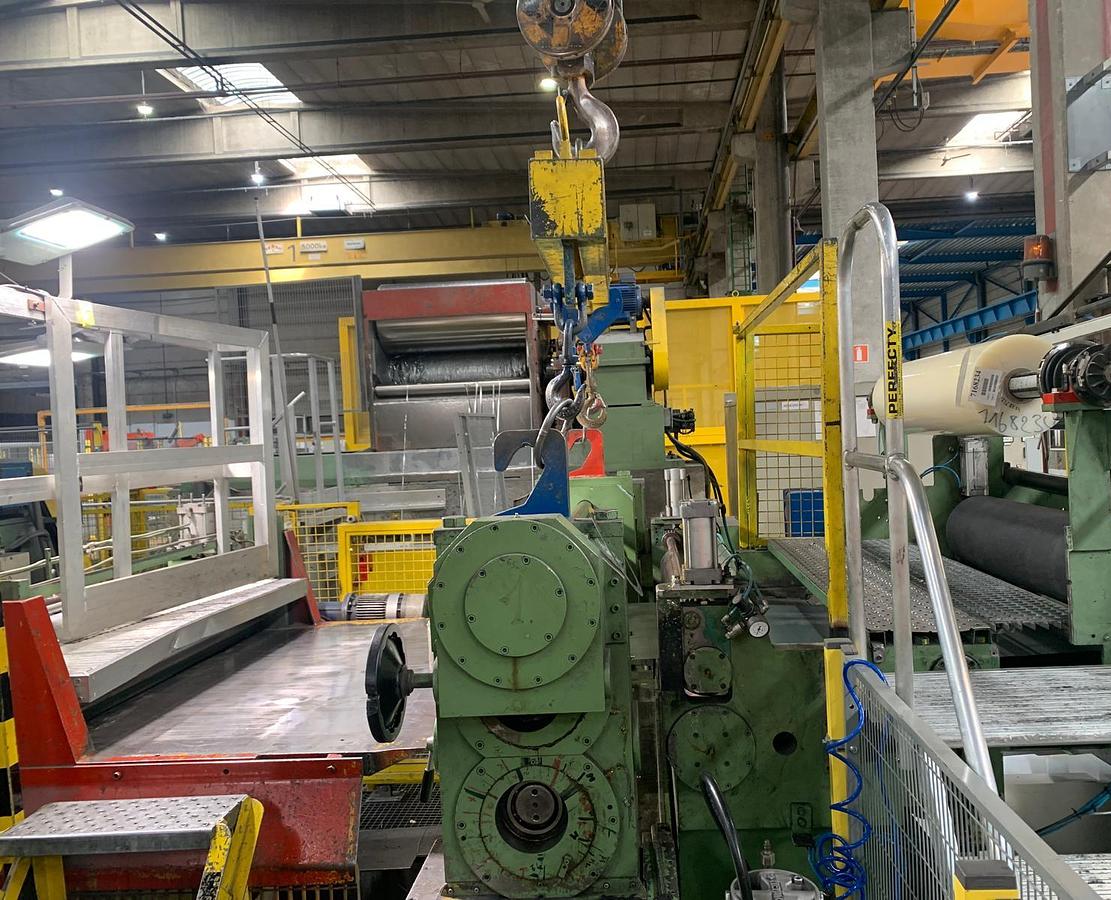

6. Supporting arm for protective film roll

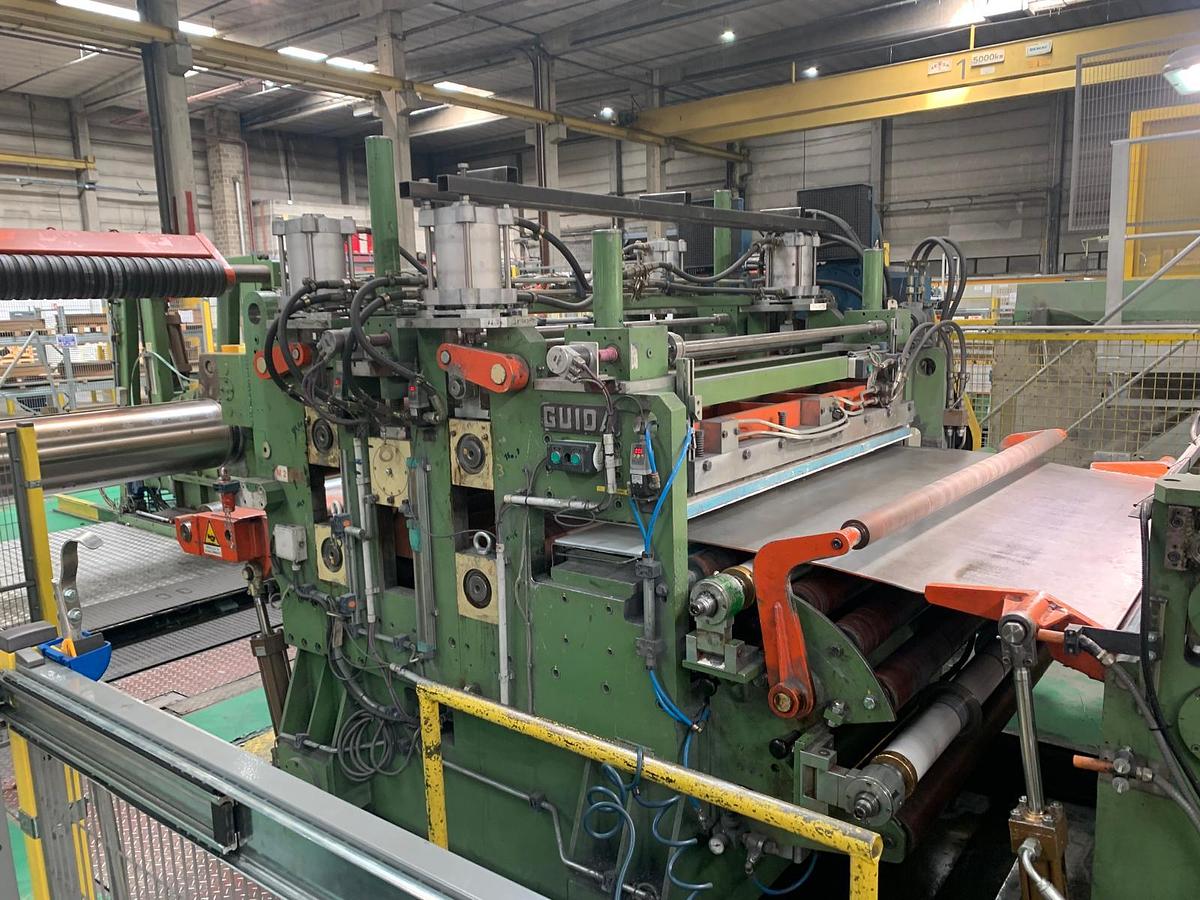

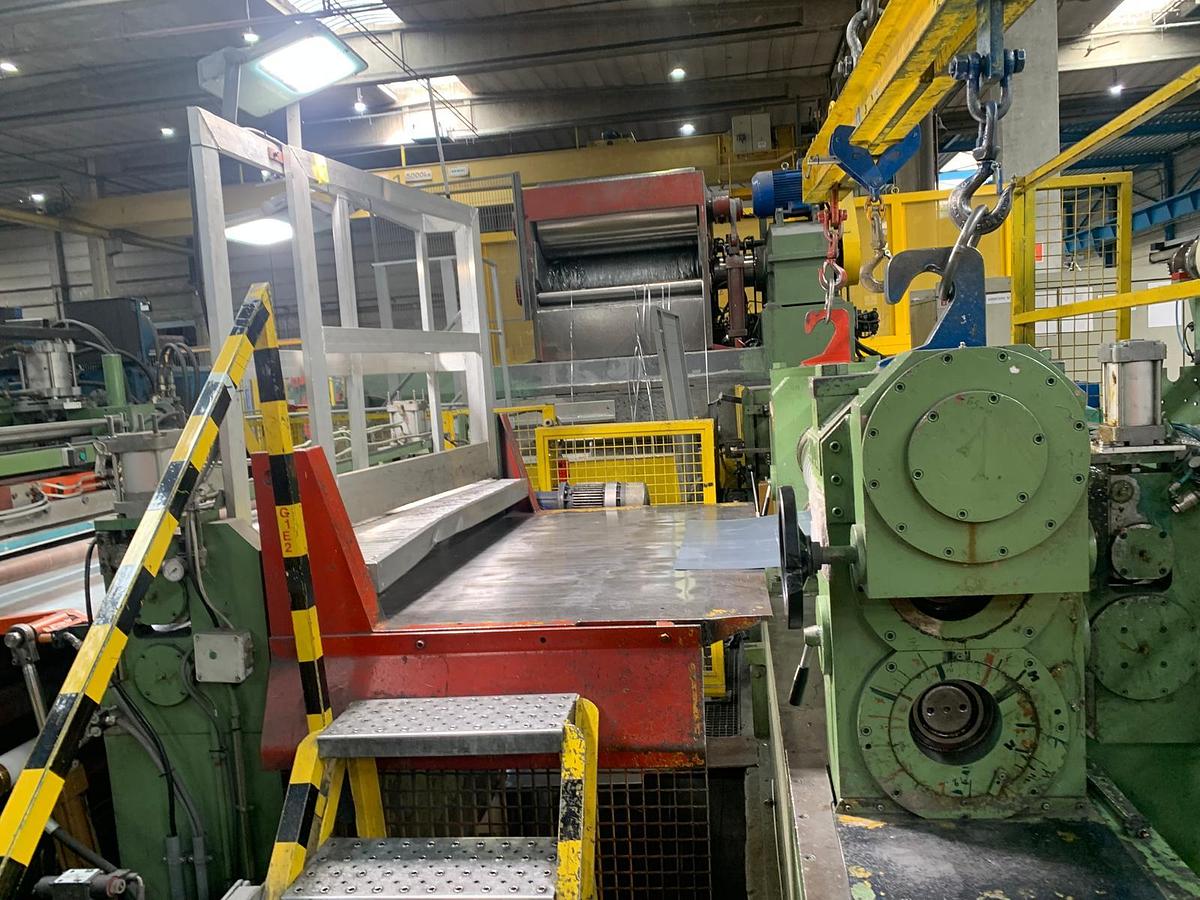

7. Slitting shear

8. Quick change system with spare shafts for off-line tools preparation

9. Scrap press and conveyor

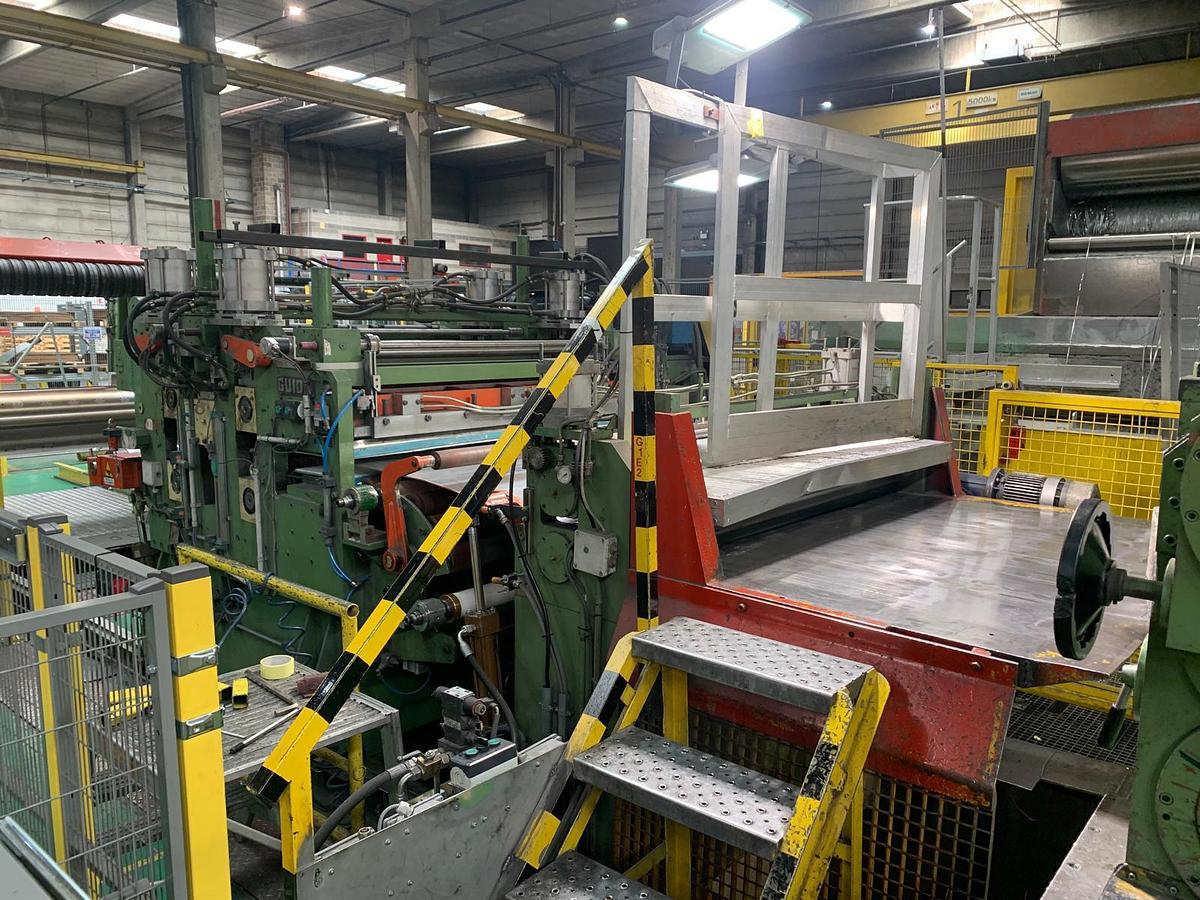

10. Intermediate coil table

11. Loop Pit and covering tables

12. Strips Braking Unit

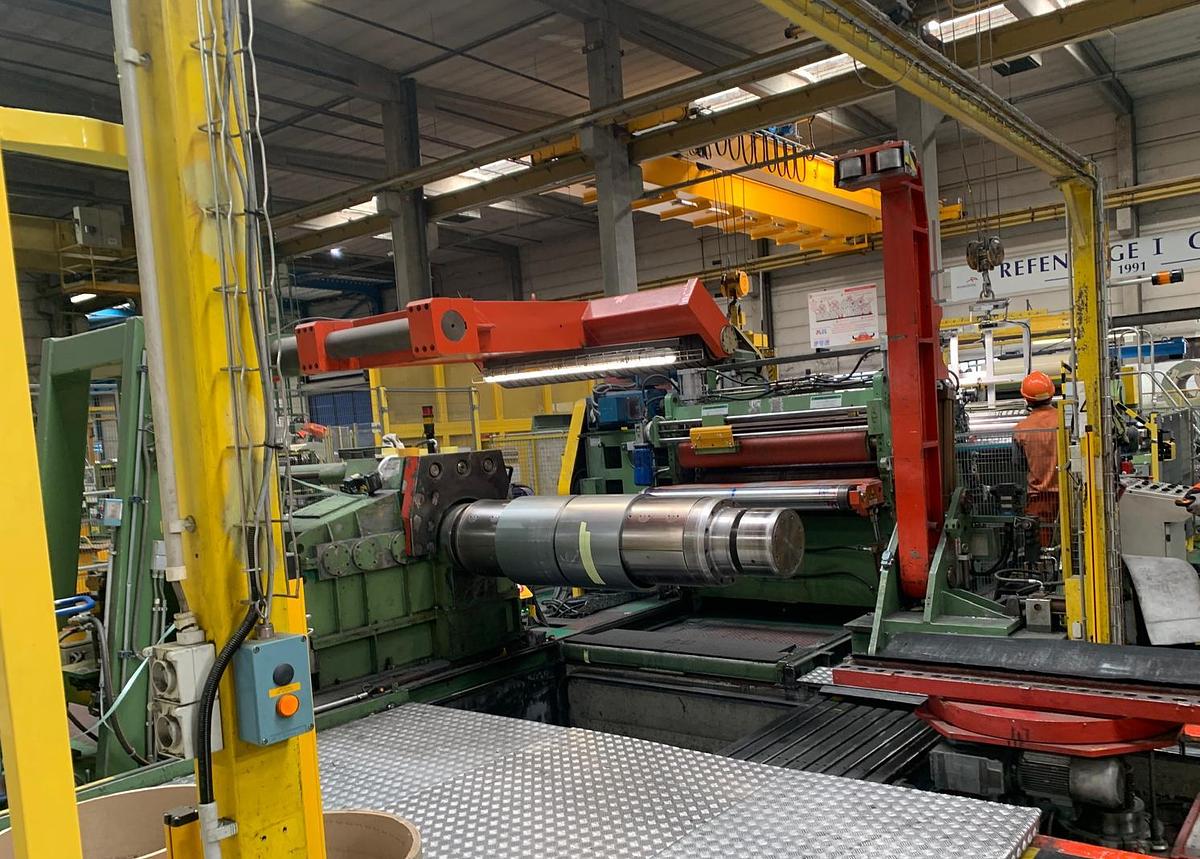

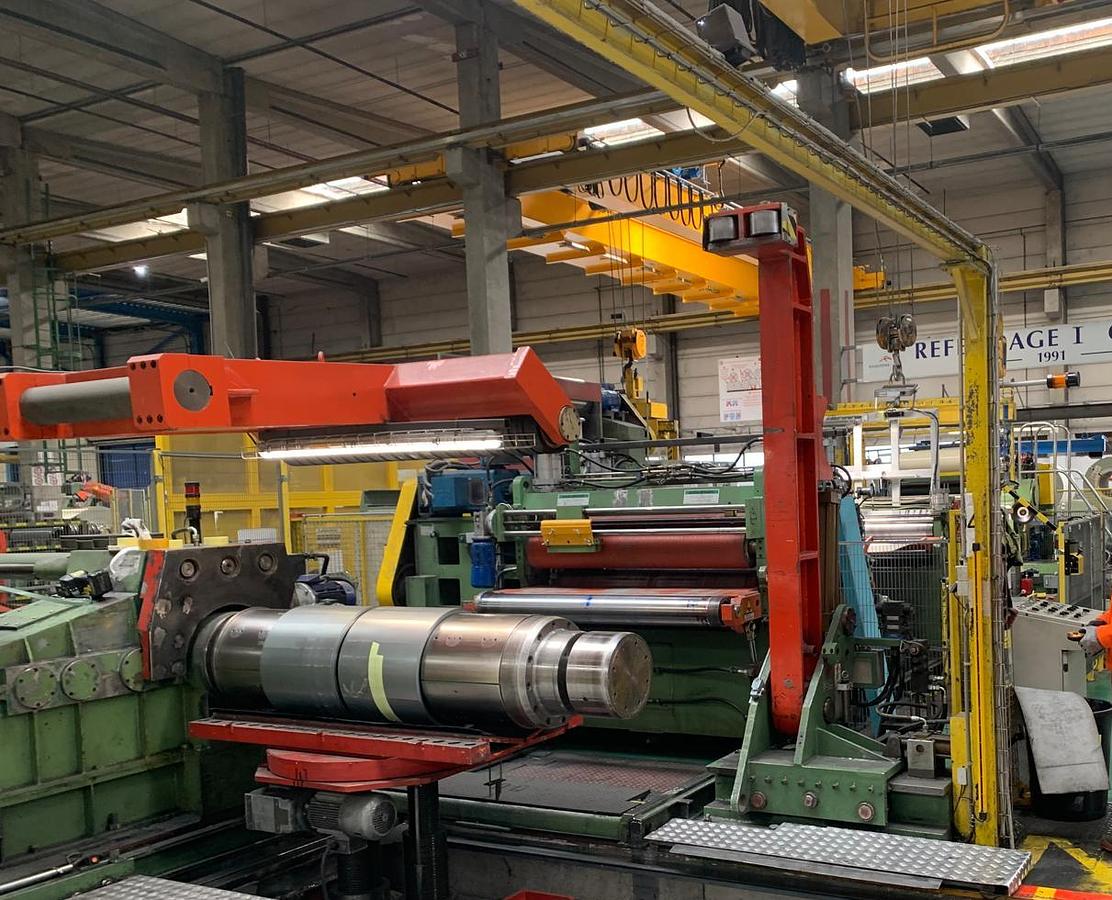

13. Motorised recoiler with hold down arm

14. Unloading Coil Car

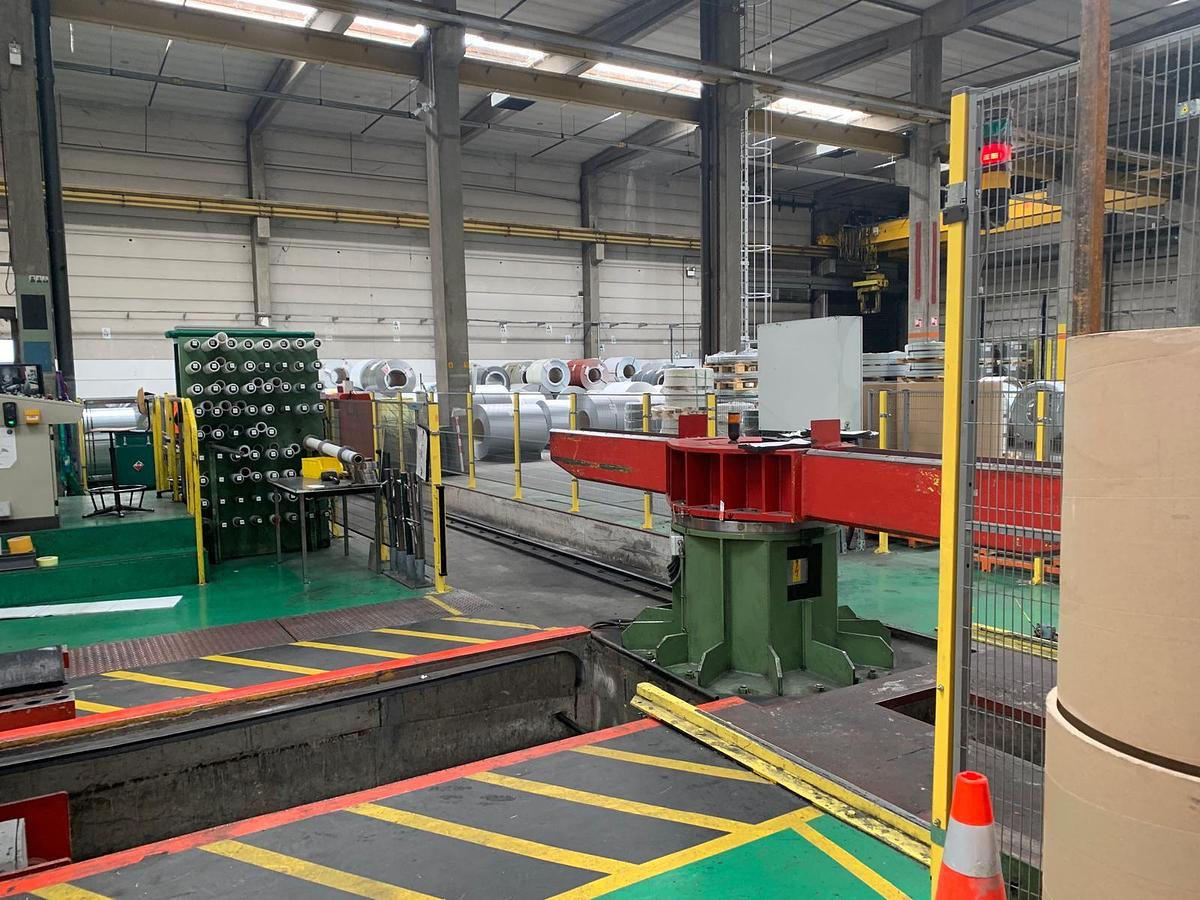

15. 2 arms unloading turnstile

16. Packaging line with PLC Allen Bradley 1747 & radial strapping machine Fromm / plastic

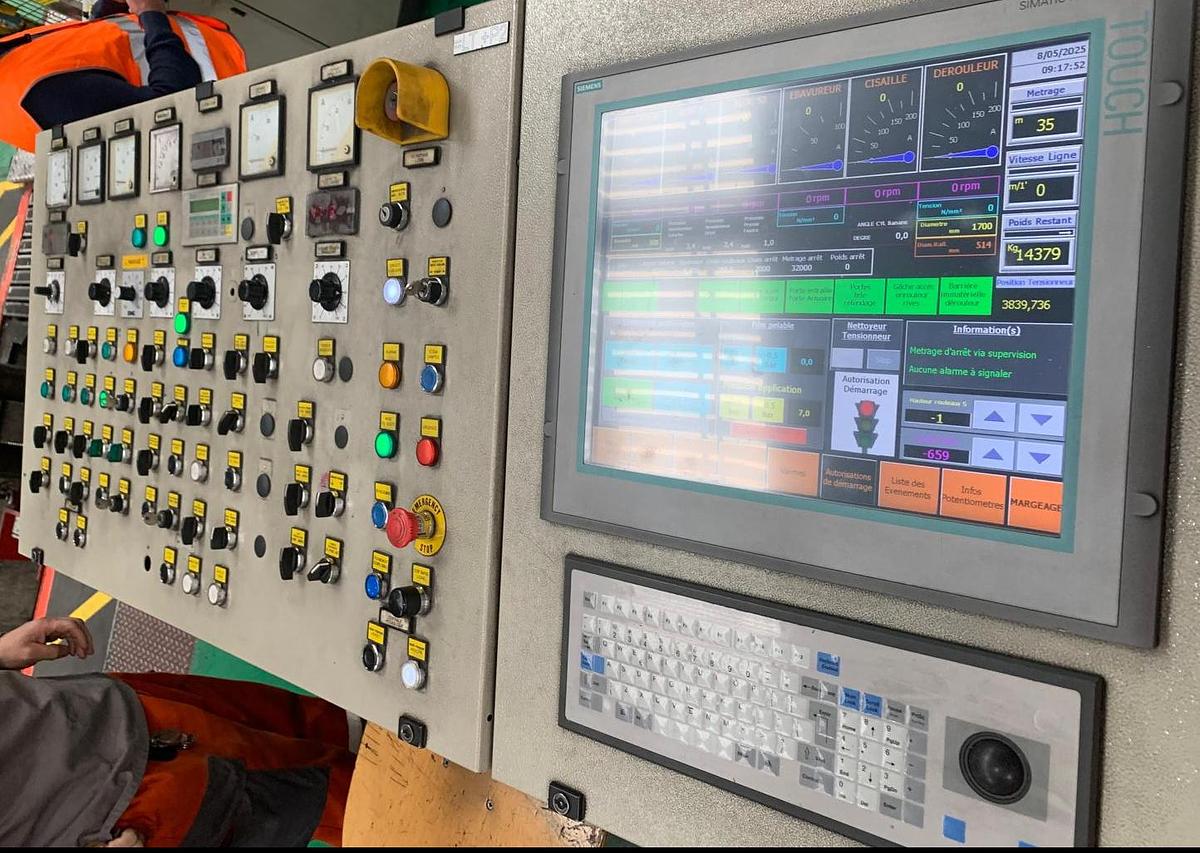

17. Electrical cabinets & Control panels

18. Existing tooling

19. Existing documentation

Main revampings & modifications

2017: Safety update

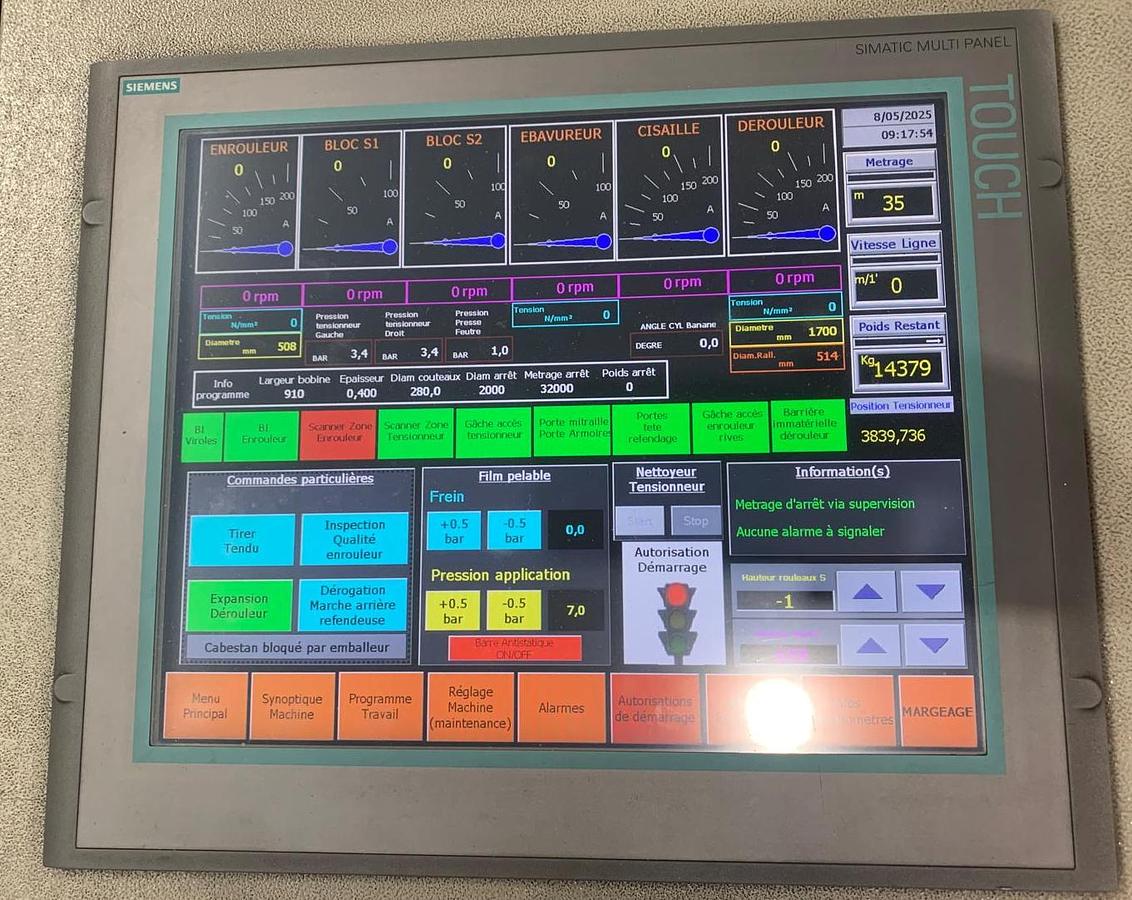

1999: PLC & electronic control: Siemens S7 412-2 PLC + Siemens 6RA70 drives

1990: Mobile brake-press
