GUIDA Slitter 1150x2

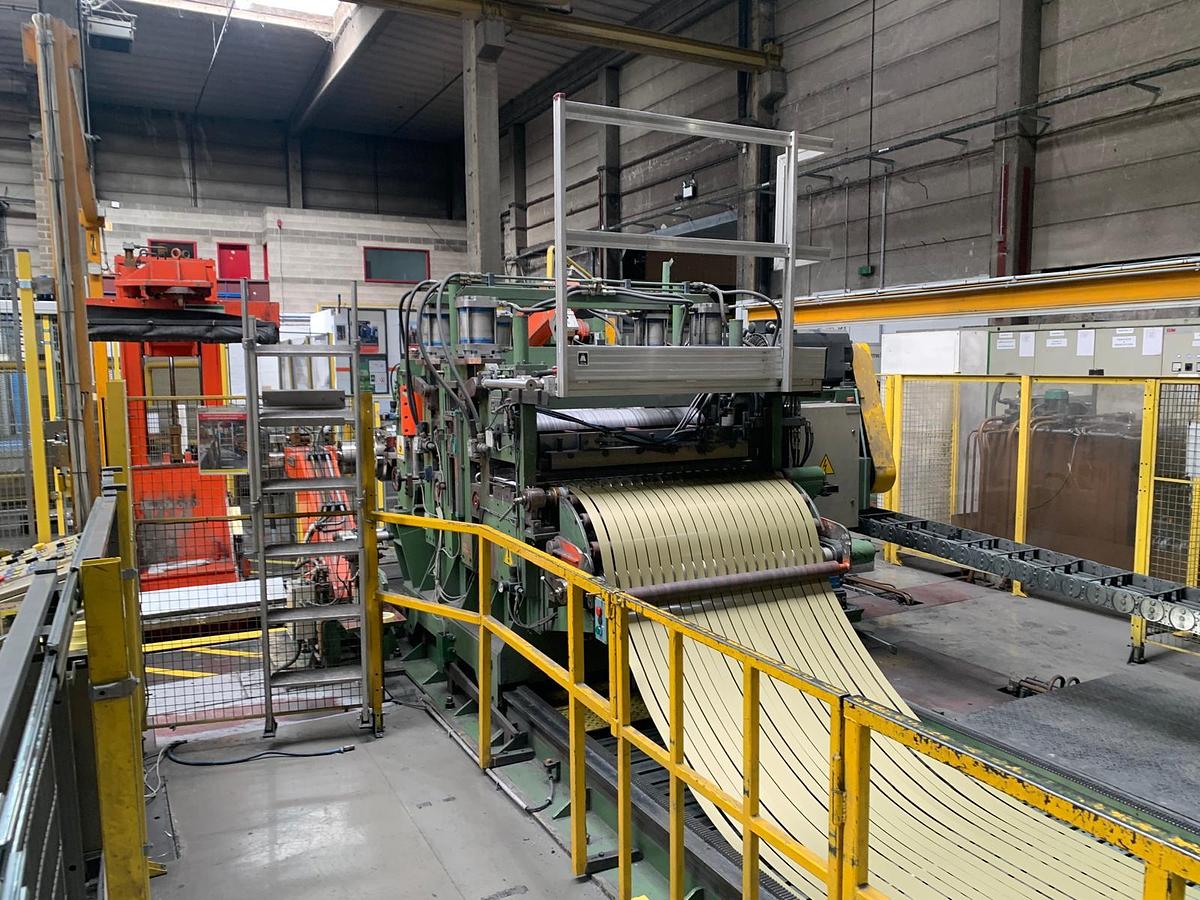

Slitting line 1150x2, manufactured by GUIDA

Main characteritics

Coil width: 200 - 1150 mm

Coil weight: 17 Tn

Coil thickness: 0.17 - 2 mm (produced) | 0.2 - 1.5 mm (theorical)

Pit depth: 12 m (with double loop)

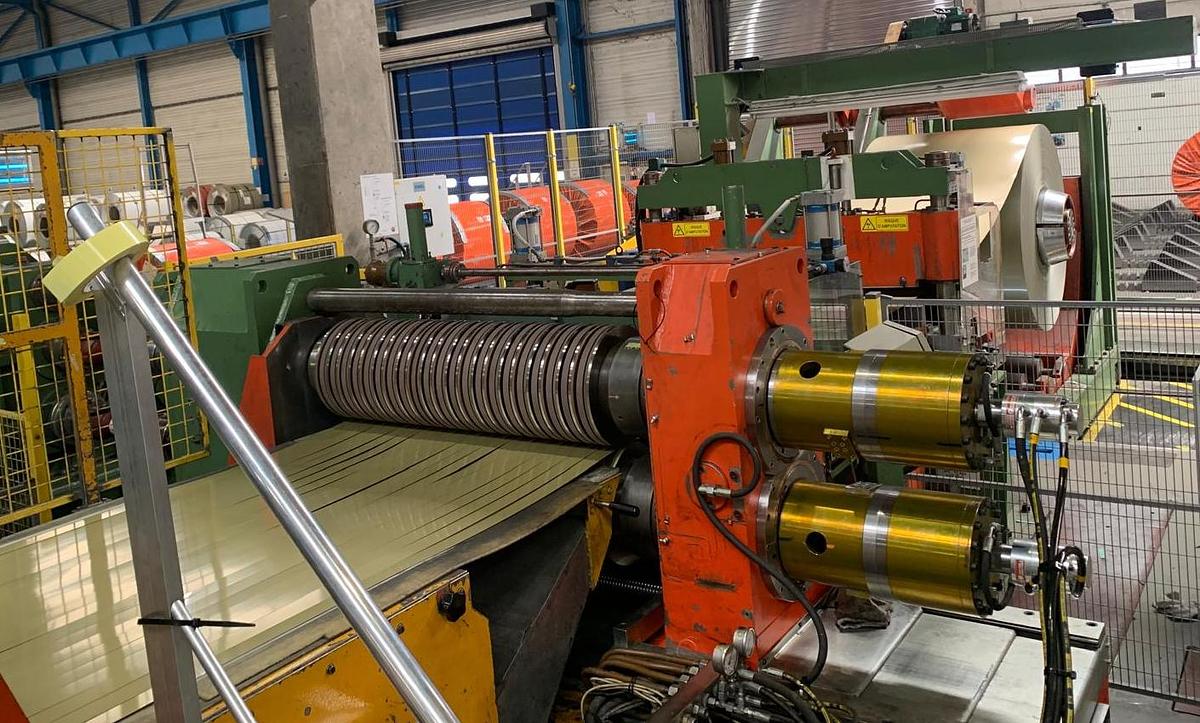

Speed: 370 m/min

Quick change system with 4 arms turnstile for off-line tools preparation

Complete packaging line with: PLC Allen Bradley 1747 + Drives Siemens Micromaster + Radial strapping machine Delonca / plastic

Number of cuts according to thickness

40 for minimum thickness

28 for transition thickness

20 for maximum thickness

Scope of supply

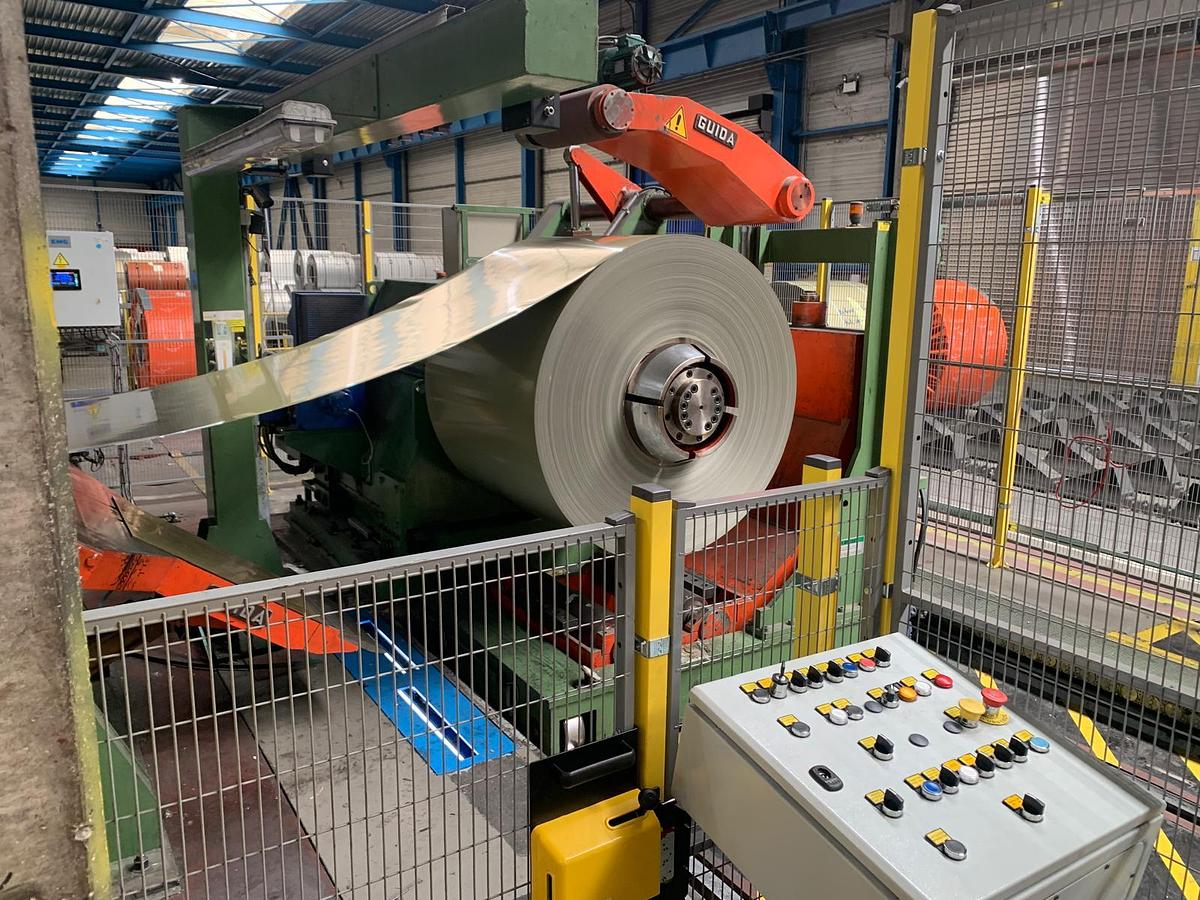

1. 4 arms coil loading turnstile

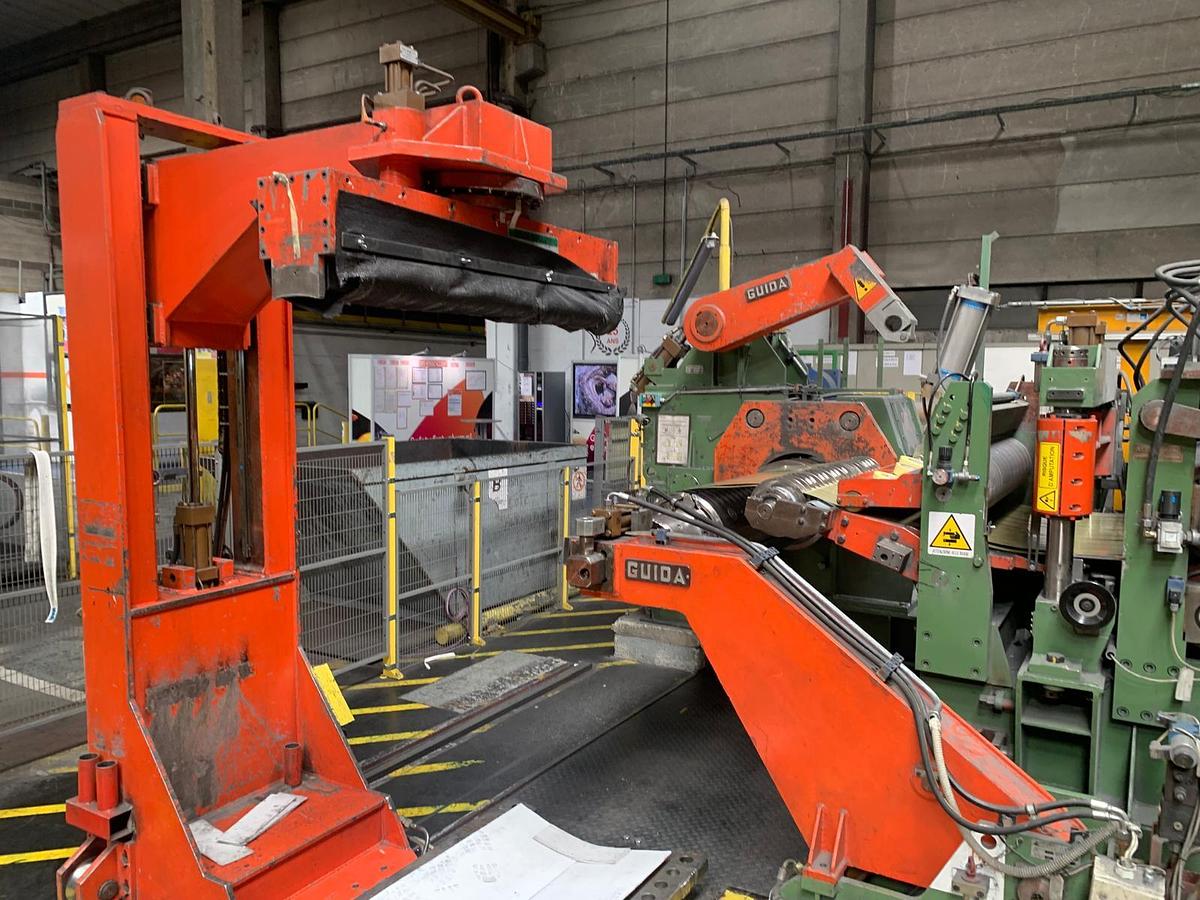

2. Coil car

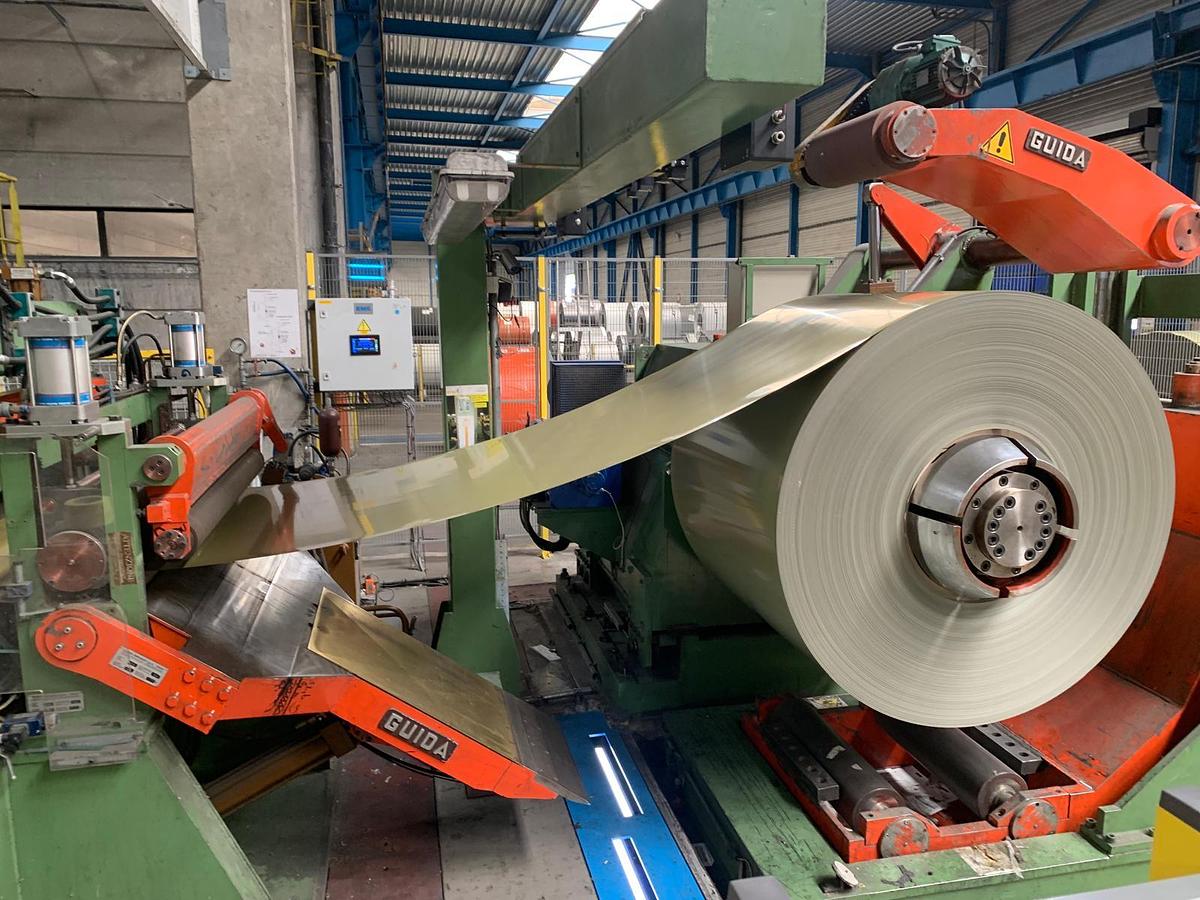

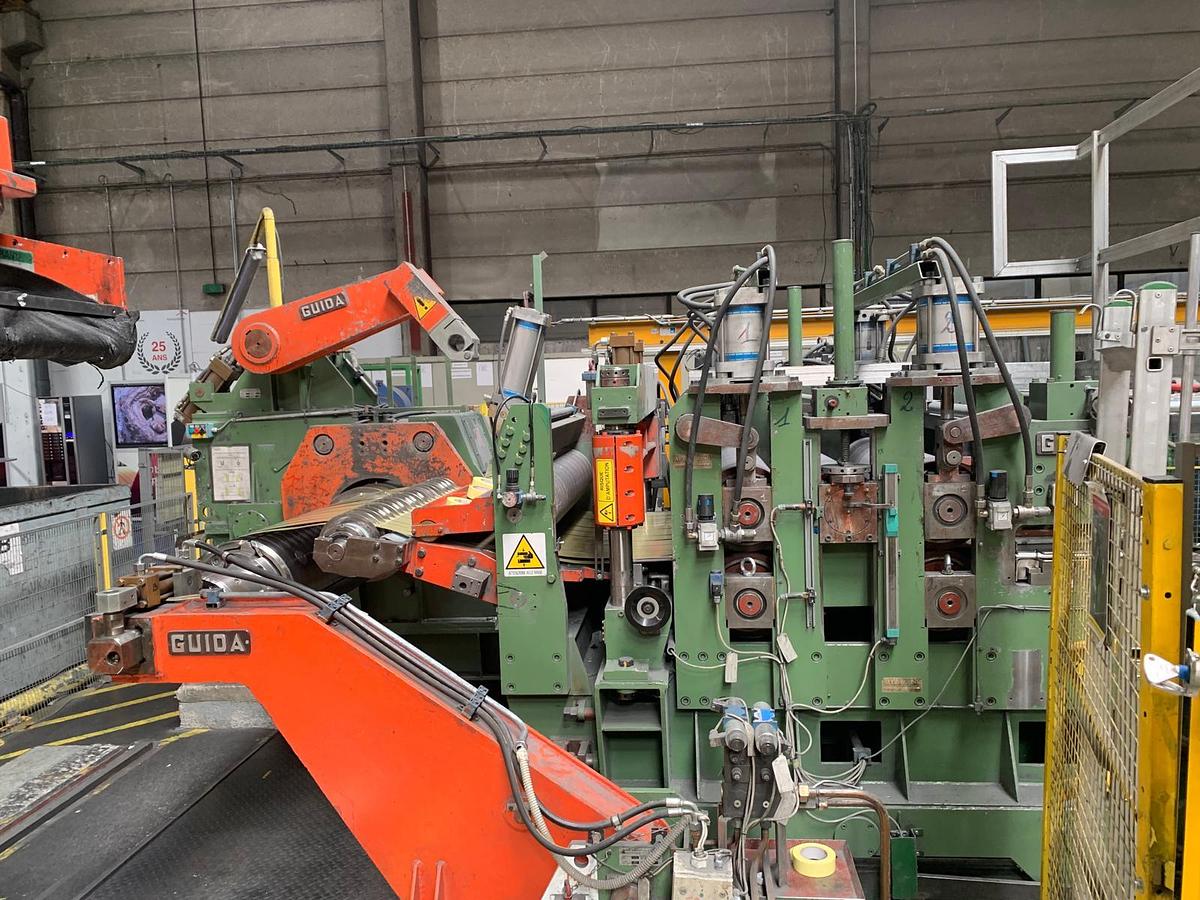

3. Motorized cantilevered uncoiler with snubber roll

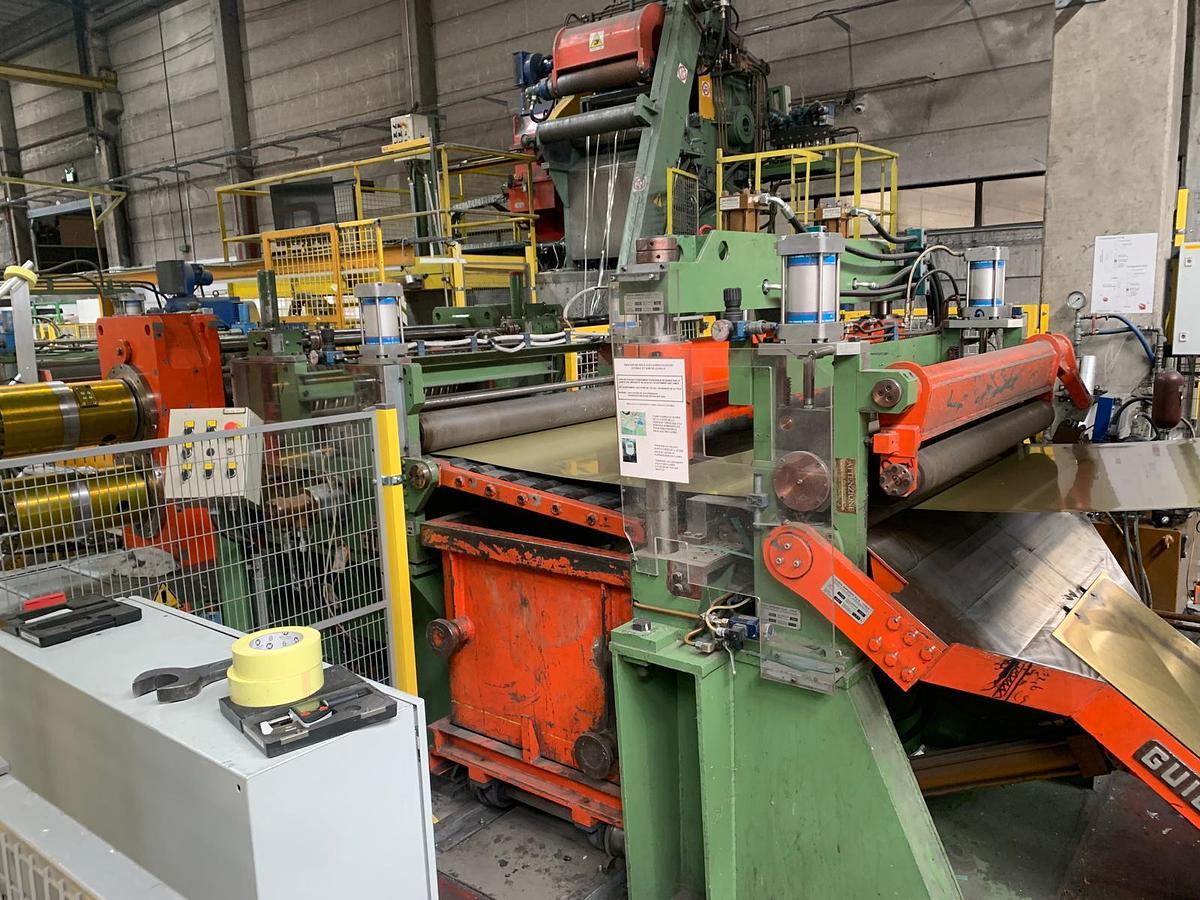

4. Threading and levelling Pinch roll

5. Lateral guiding/centering guides

6. Crop shear

7. Supporting arm for protective film roll

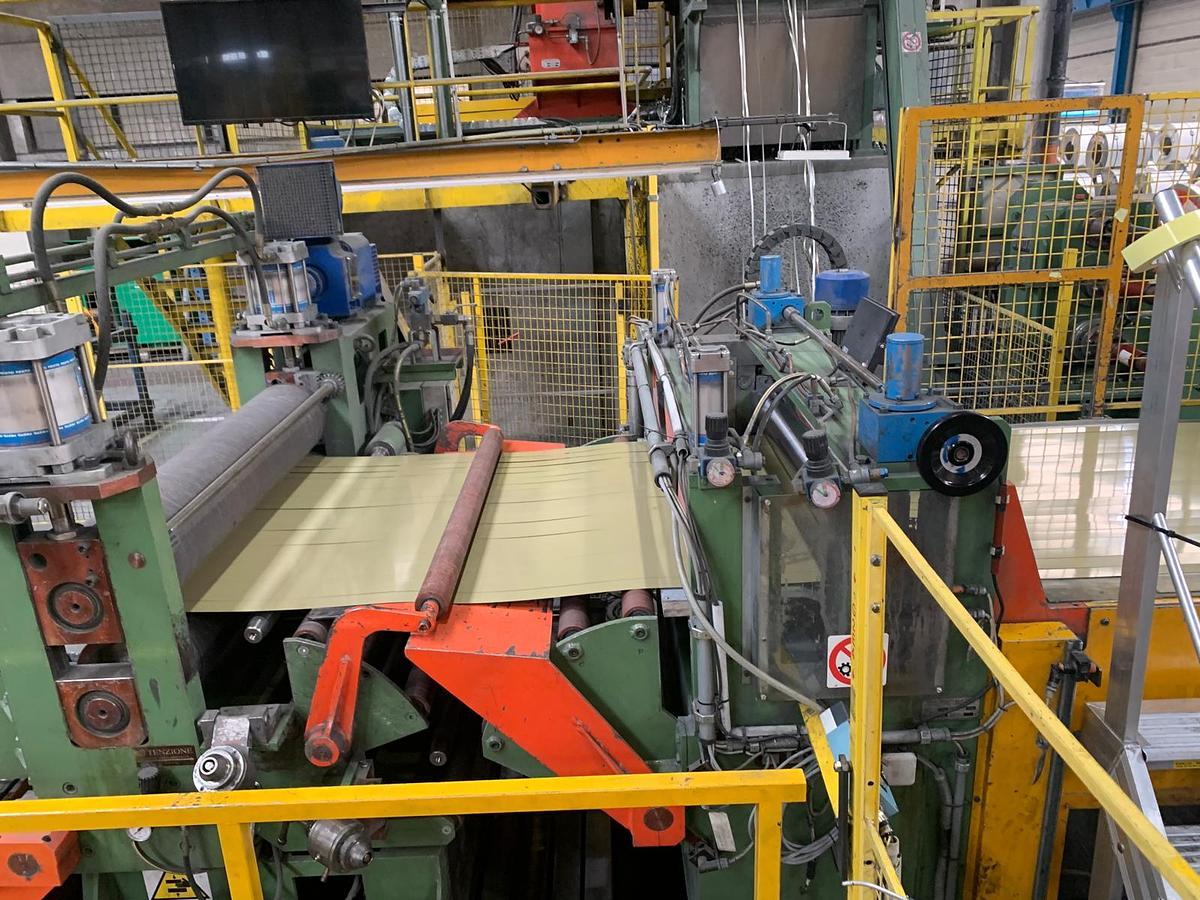

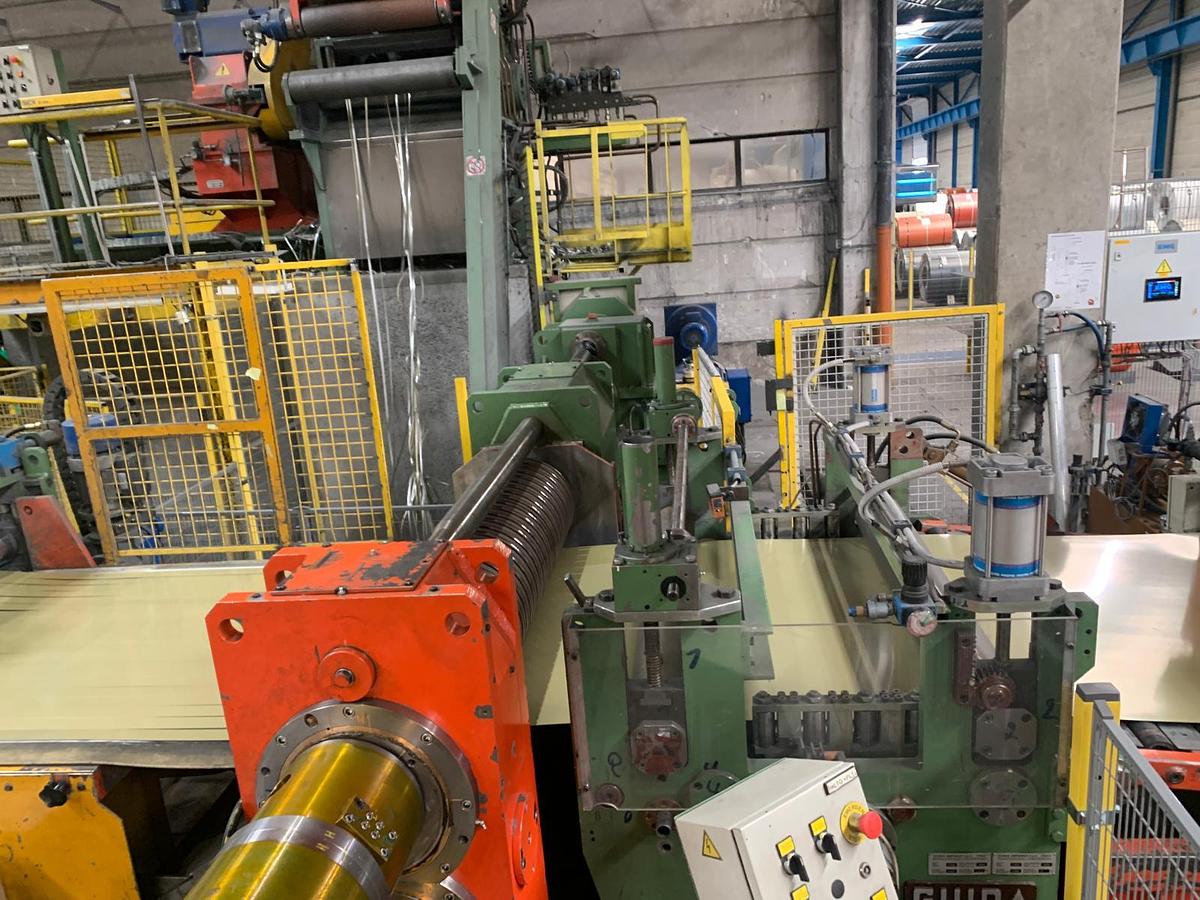

8. Slitting shear

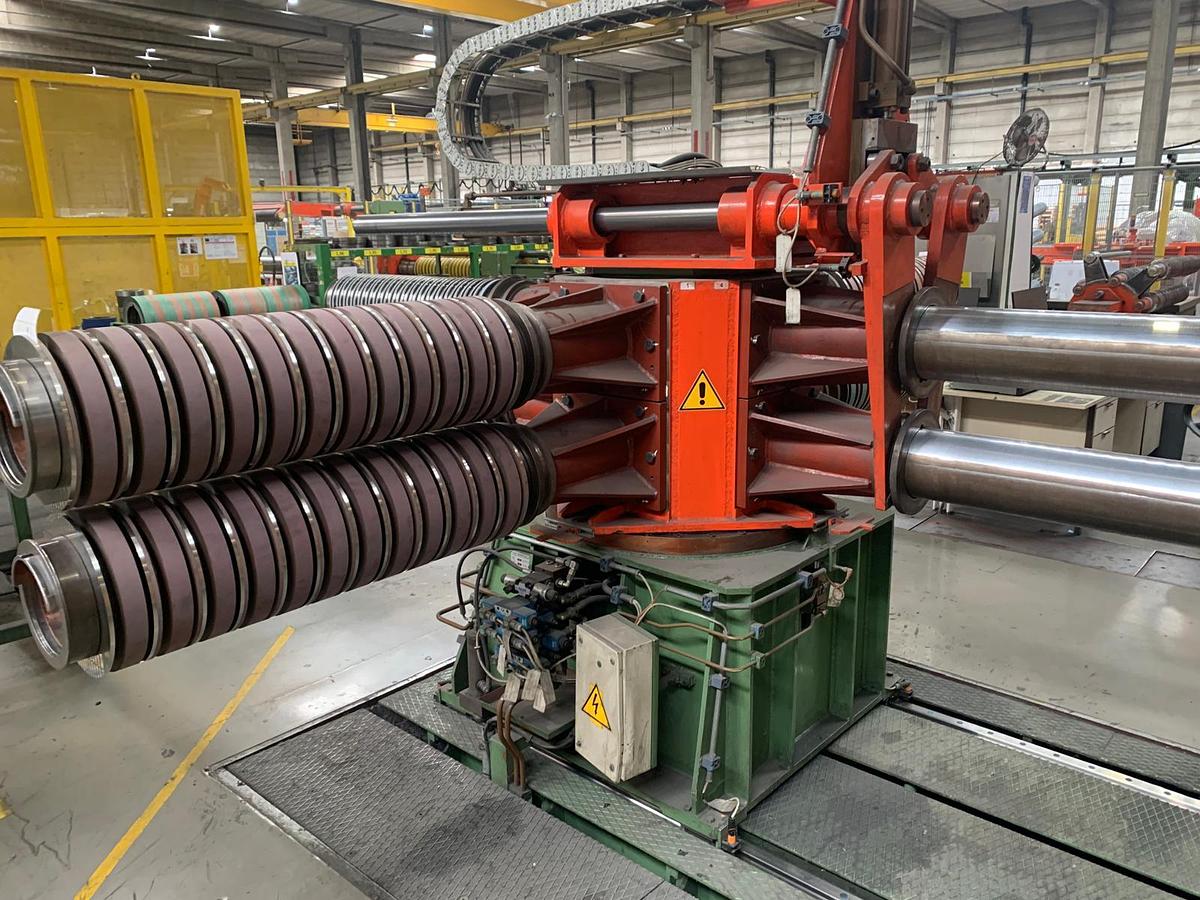

9. Quick change system with 4 arms turnstile for off-line tools preparation

10. Scrap press and conveyor

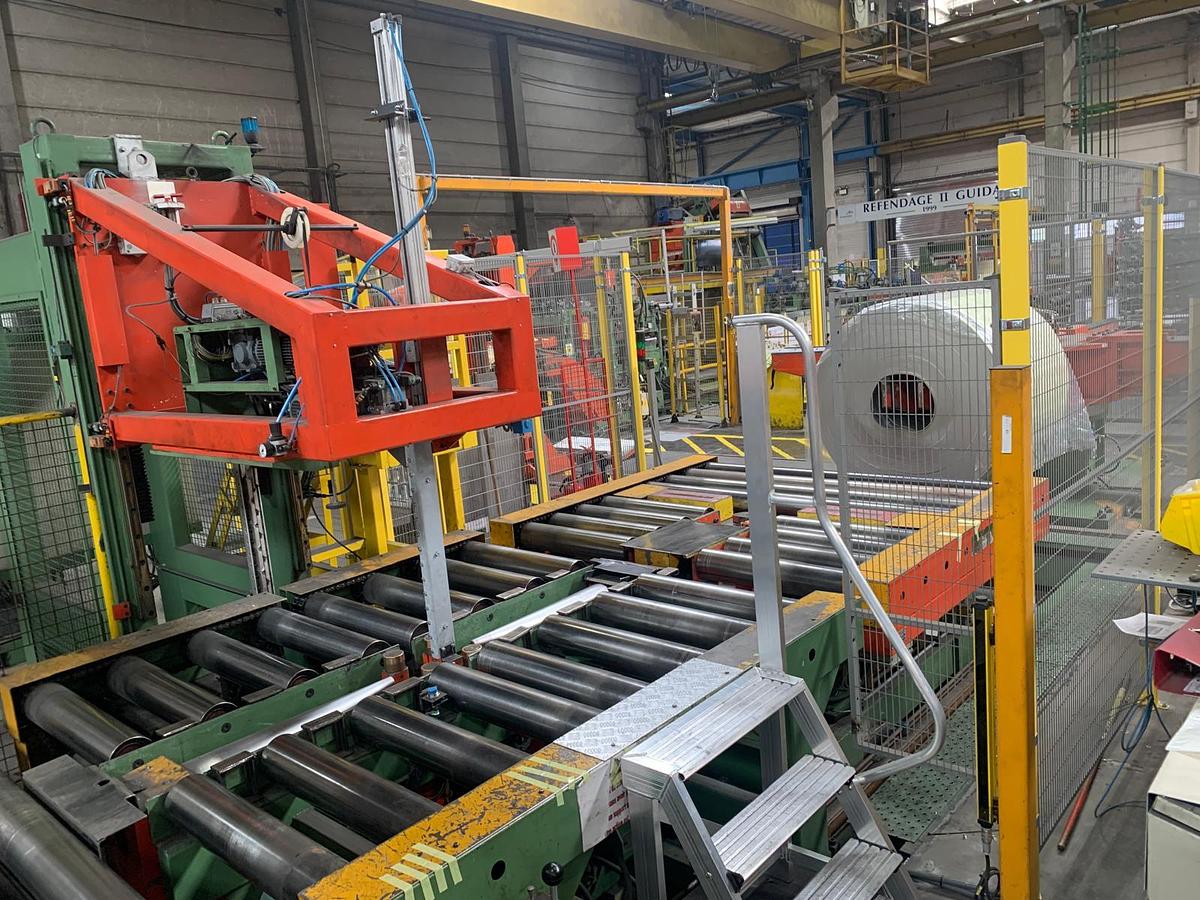

11. Intermediate coil table

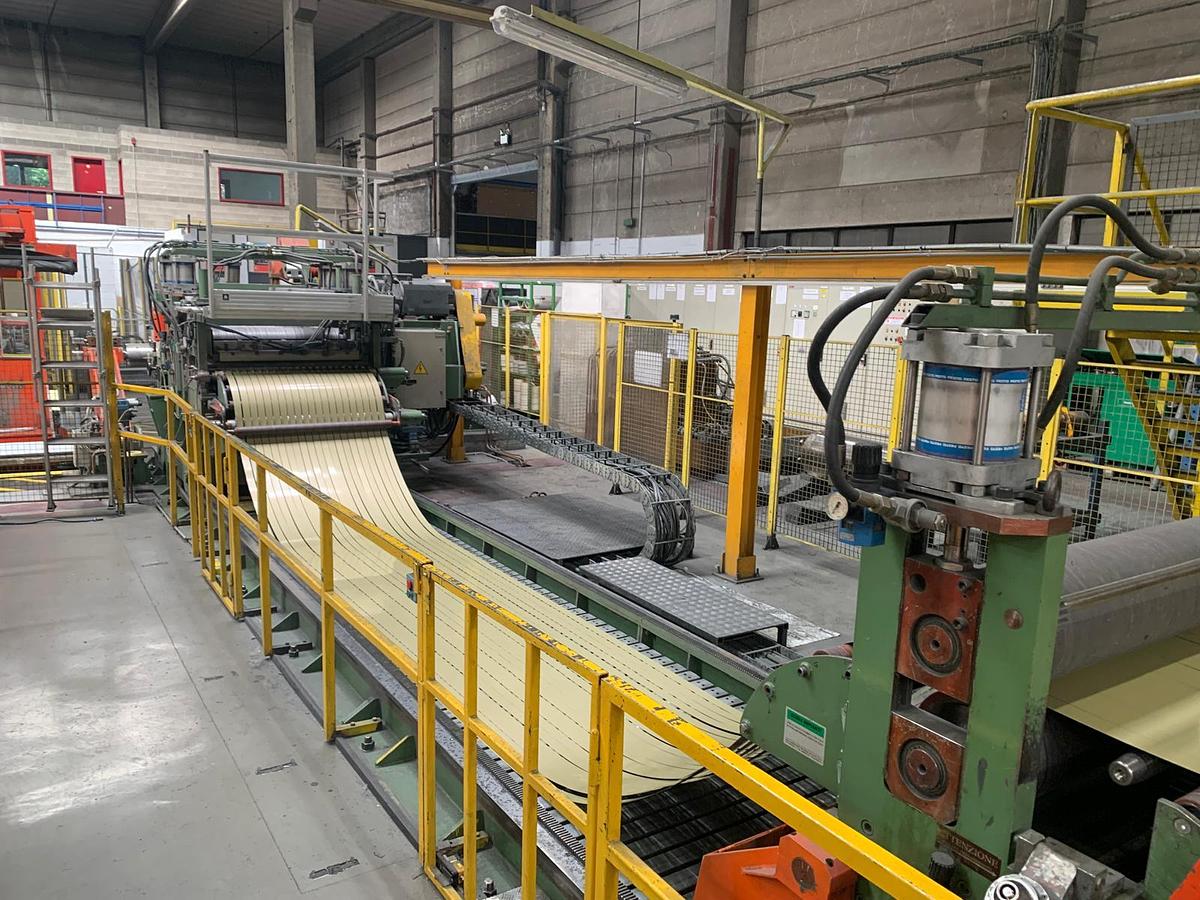

12. Loop Pit and covering tables

13. Strips Braking Unit

14. Motorised recoiler with hold down arm

15. Unloading Coil Car

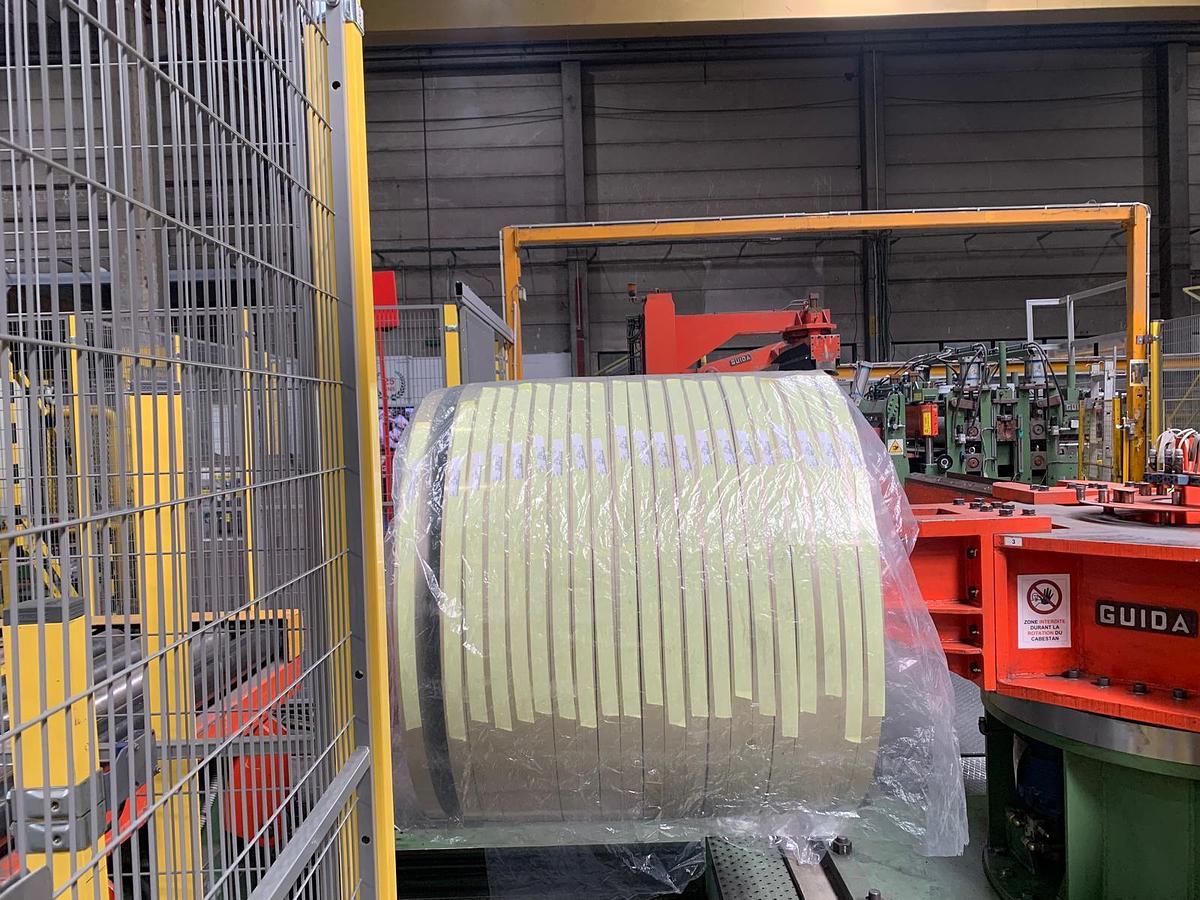

16. 4 arms unloading turnstile

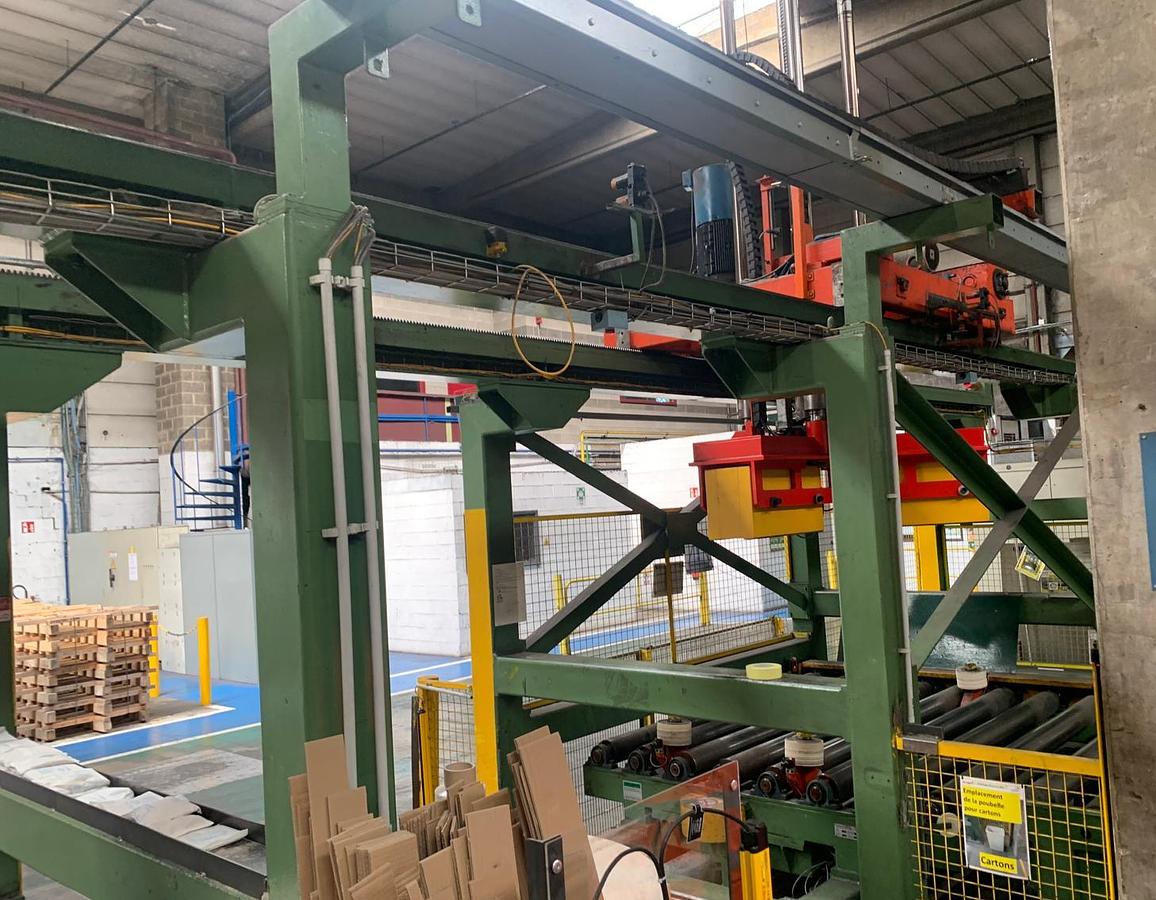

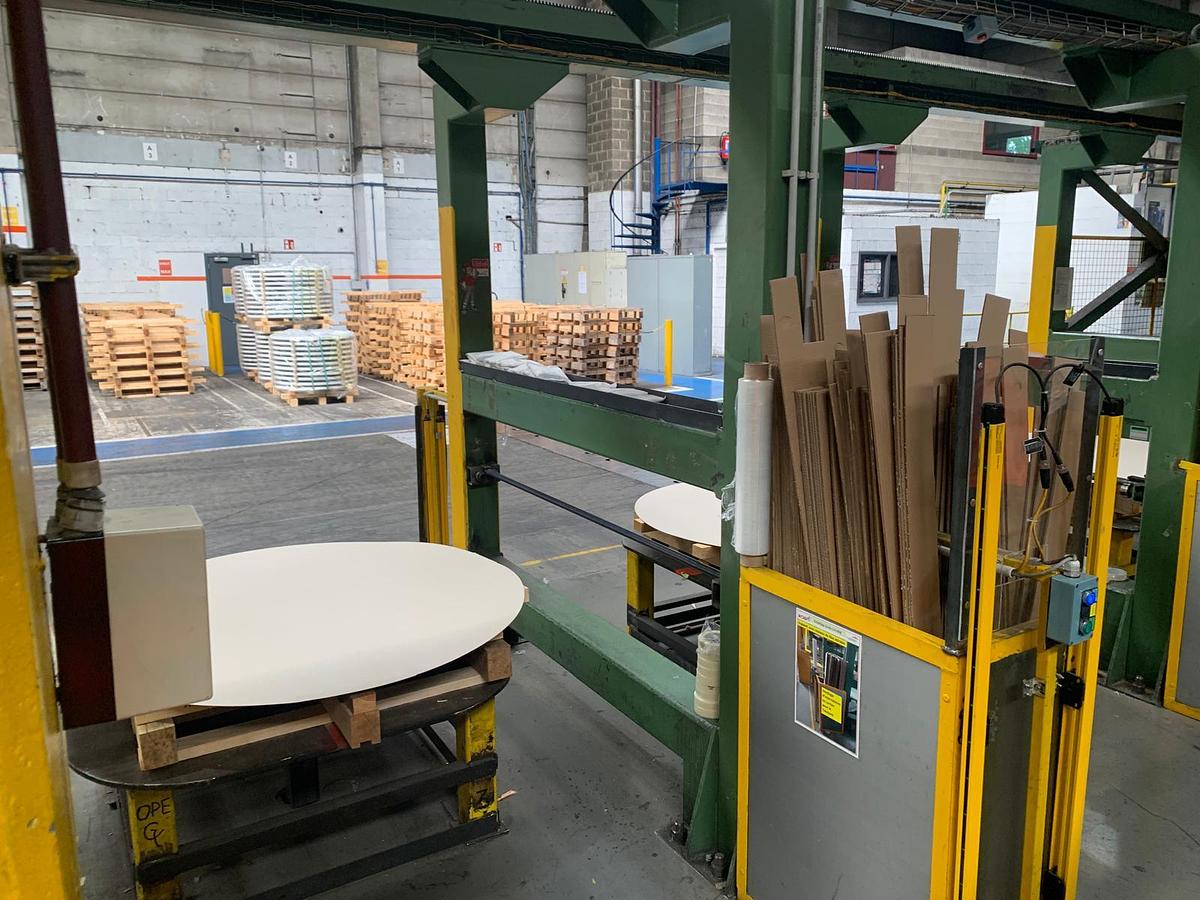

17. Complete packaging line with PLC Allen Bradley 1747 + Drives Siemens Micromaster + Radial strapping machine Delonca / plastic

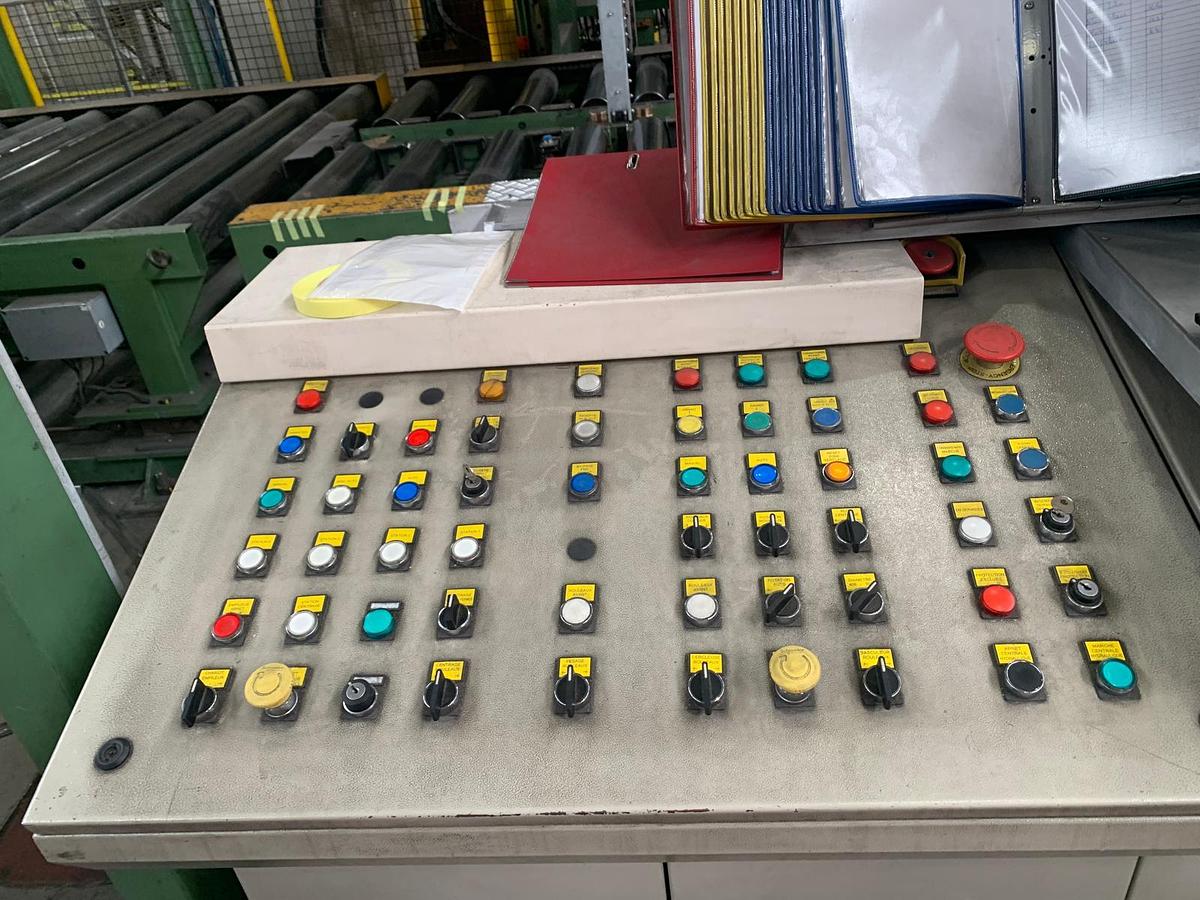

18. Electrical cabinets & Control panels

19. Existing tooling

20. Existing documentation

Main revampings & modifications

2024: Compliance with entry line safety

2023: Replacement of monitoring software

2023: Increase in coil weight

2023: Installation of EMG

2021: Replacement of motors and drives for tensioners

2020: Siemens 6RA80 + Simoreg + Rockwell drives

2019: Replacement of the shear speed inverter

2017: Allen Bradley 1747 PLC

2017: Replacement of the shear head locking system
