Description

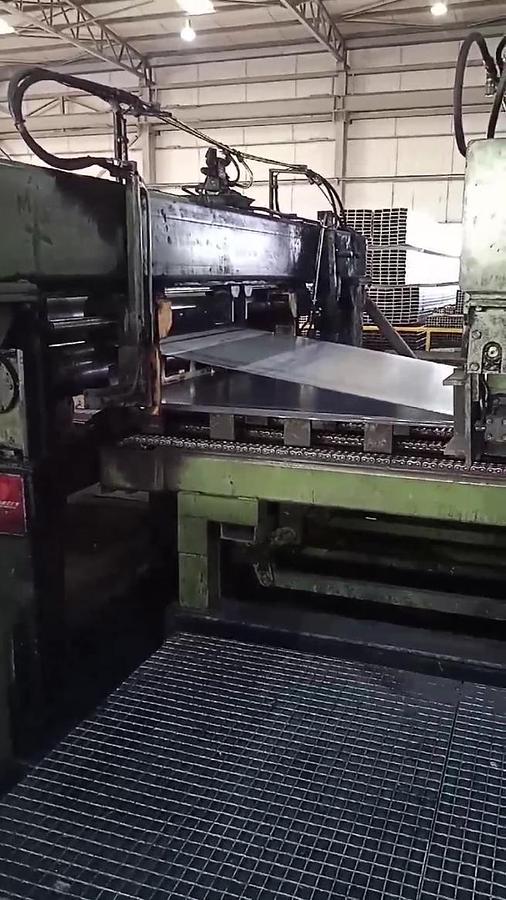

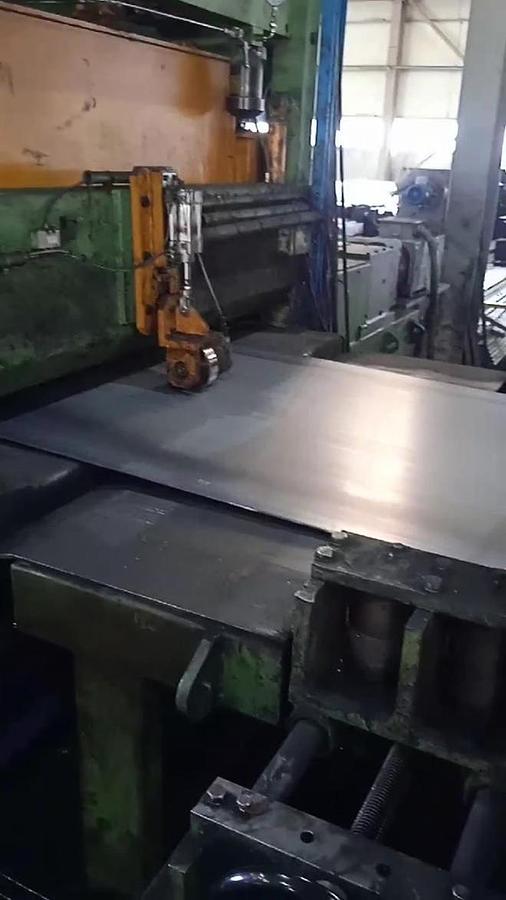

CUT-TO-LENGTH LINE FIMI 2000x10x30
TECHNICAL DATA
Strip width: 750 - 2000 mm.
Thickness: 2,5 - 10 mm.
Coils
- Max coil weight: 30.000 Kg
- Inside diameter: 600 - 810 mm
- Outside diameter: 1000 - 2000 mm
Exit
- Adjustable width: 700 - 2000 mm
- Stackable length: 1.000 to 12.000 mm
- Height of package: Maximum 300 mm
- Weight of package: maximum 7 Tons
SCOPE OF SUPPLY
- Entry coil car
- Uncoiler
- Guiding plate
- Input pinch-roll group
- Coil opener
- Centring unit
- Pressure roll

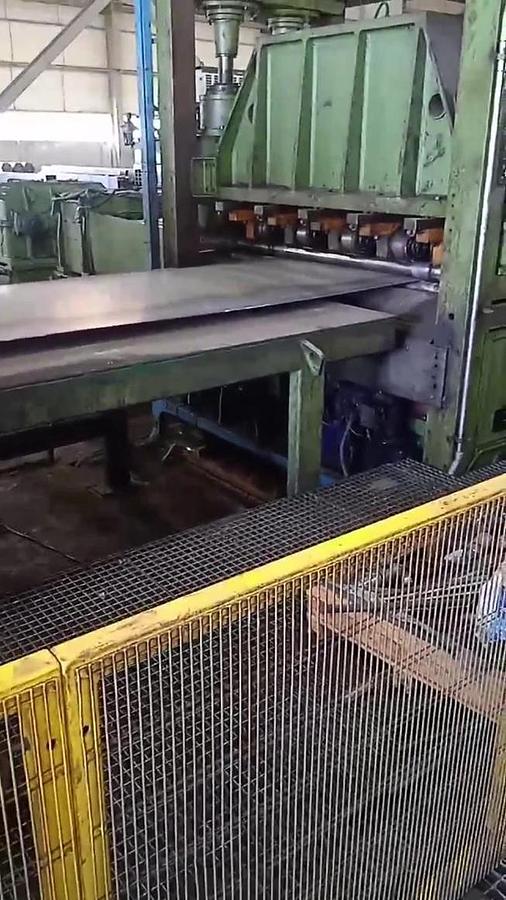

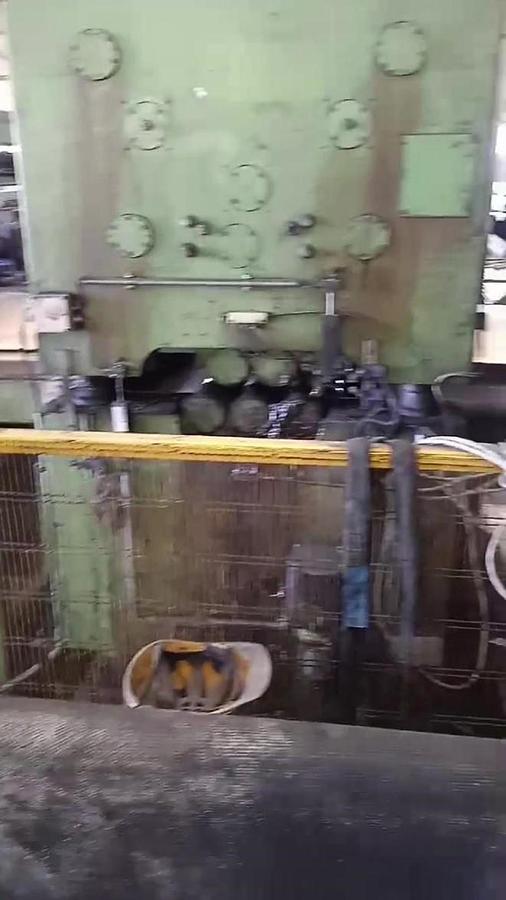

- 6-HI Leveller

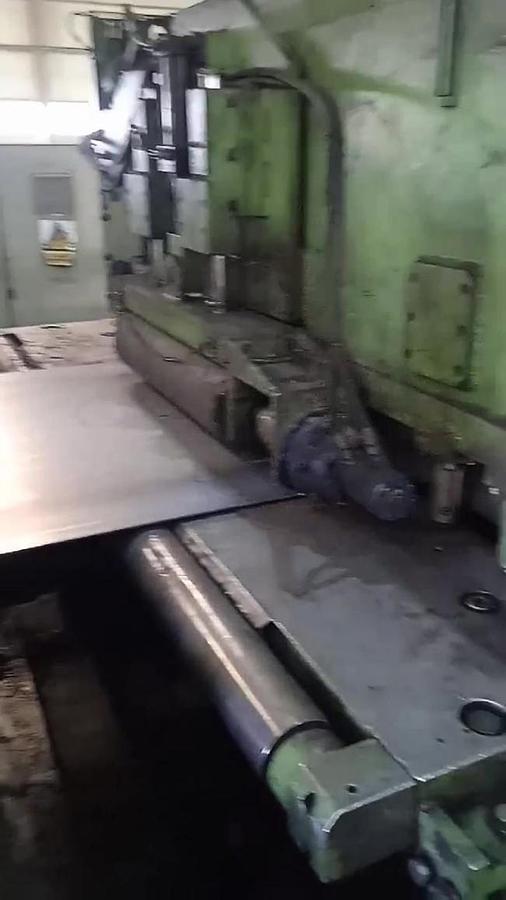

- Flying shear

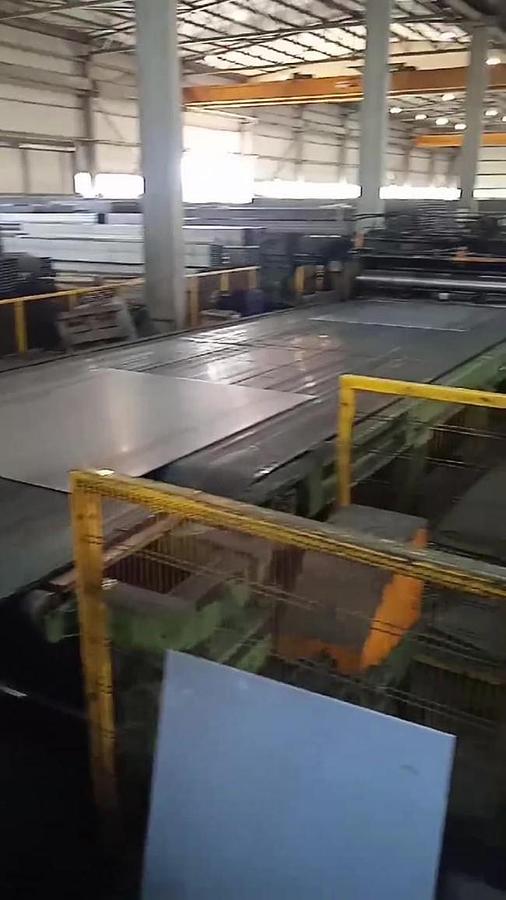

- Inspection conveyor
- Exit pinch roll
- Stacker
- Hydraulic System
- Pneumatic System
- Lubricating System
- Electrical Equipment
- Existing documentation
Specifications
| Manufacturer | FIMI |
| Model | CTL 2000x10 |
| Condition | Used |
| Stock Number | 4083 |
| Strip width | 750 - 2000 mm. |
| Thickness | 2,5 - 10 mm. |
| Max coil weight | 30.000 Kg |
| Inside diameter | 600 - 810 mm |
| Outside diameter | 1000 - 2000 mm |
| Adjustable width | 700 - 2000 mm |
| Stackable length | 1.000 to 12.000 mm |
| Height of package | Maximum 300 mm |
| Weight of package | maximum 7 Tons |
