IPM CTL 1250x1.5

IPM CTL 1250x1.5

Description

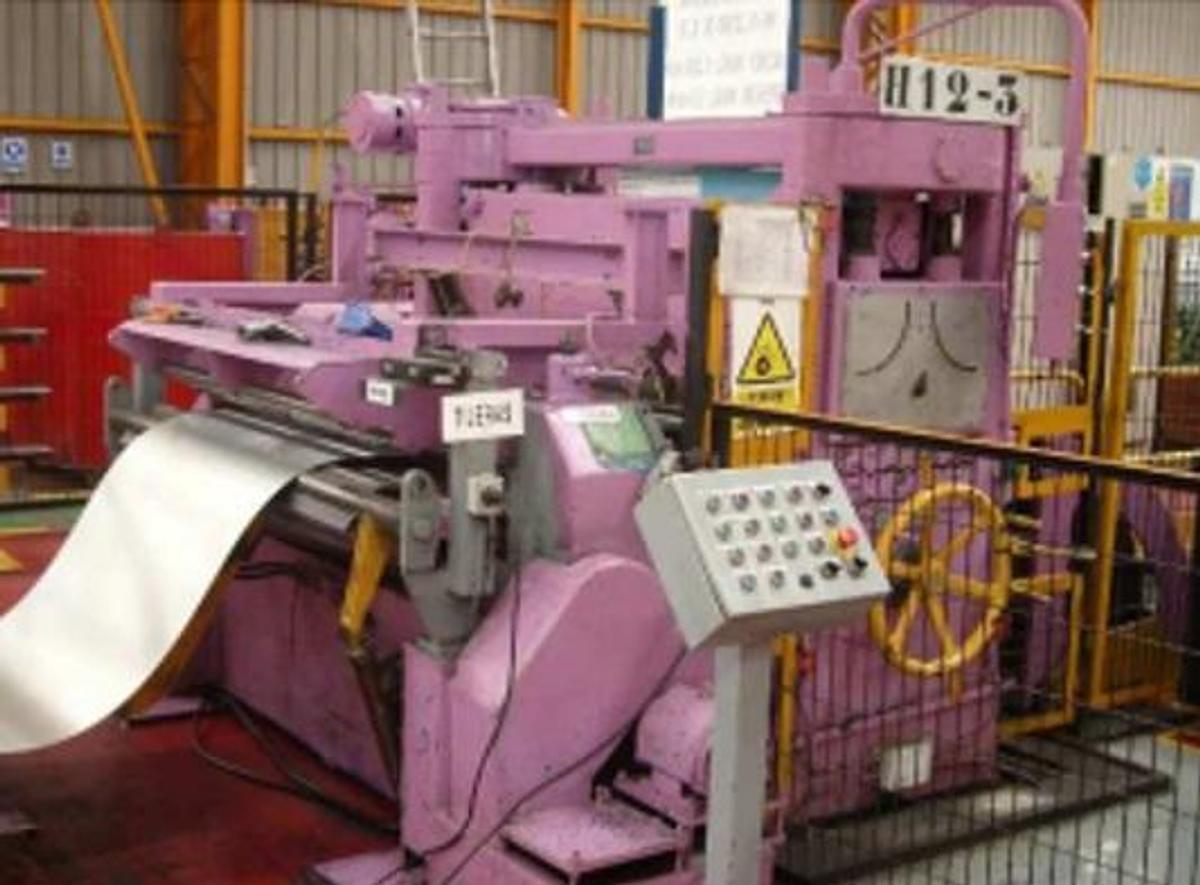

CUT-TO-LENGTH LINE IPM 1250x1.5x15


Technical data

Thickness range: 0.4 – 1.5 mm

Coil Width: 350 - 1250 mm

Coil weight: 15 Tn

Coil outer diameter: max. 1580 mm

Coil inner diameter: 508 - 610 mm

End sheet length: 400 - 5000 mm


Scope of supply

1. Uncoiling cantilevered mandrel with hold down roll

2. Guiding table

3. Levelling machine

4. Loop pit with tiltable covers

5. Start-stop shear

6. Band conveyor

7. Stacker for 400 – 5000 length bundles

8. Switch cabinets & control desks

9. Hydraulics

10. Existing documentation

11. Hydraulics


Specifications

ManufacturerIPM
ModelCTL 1250x1.5
ConditionUsed
Stock Number4069
Thickness range0.4 – 1.5 mm
Coil Width350 - 1250 mm
Coil weight15 Tn
Coil outer diametermax. 1580 mm
Coil inner diameter508 - 610 mm
End sheet length400 - 5000 mm
