INMASA Slitter 1100x3

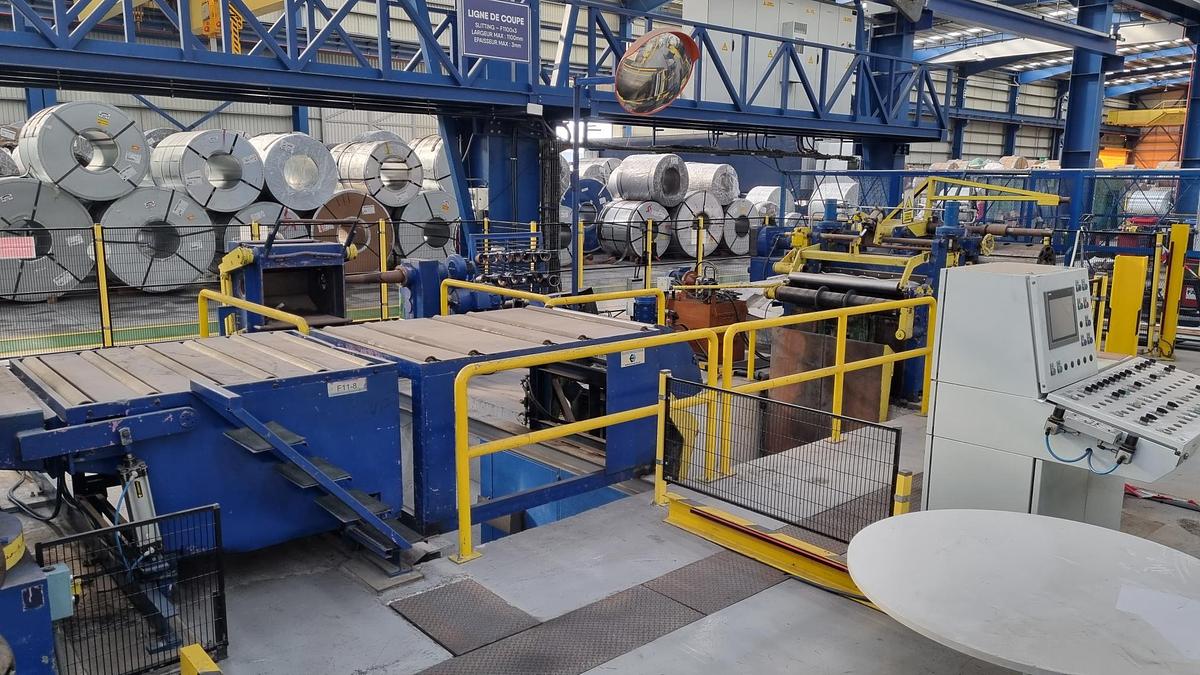

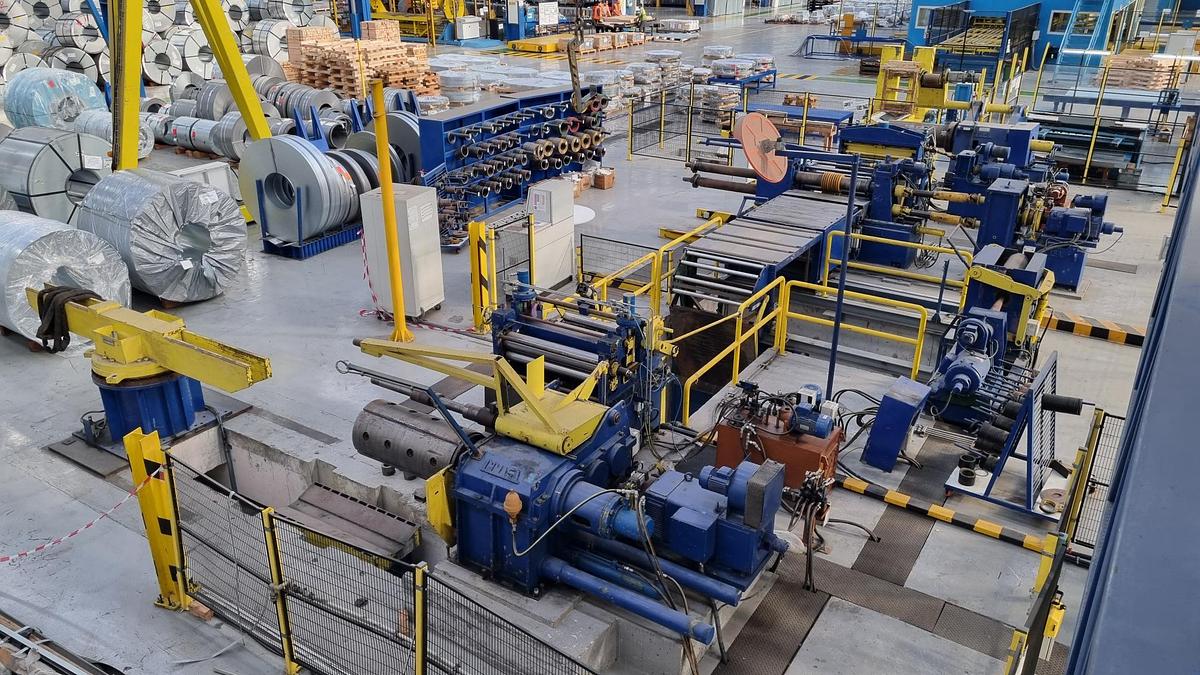

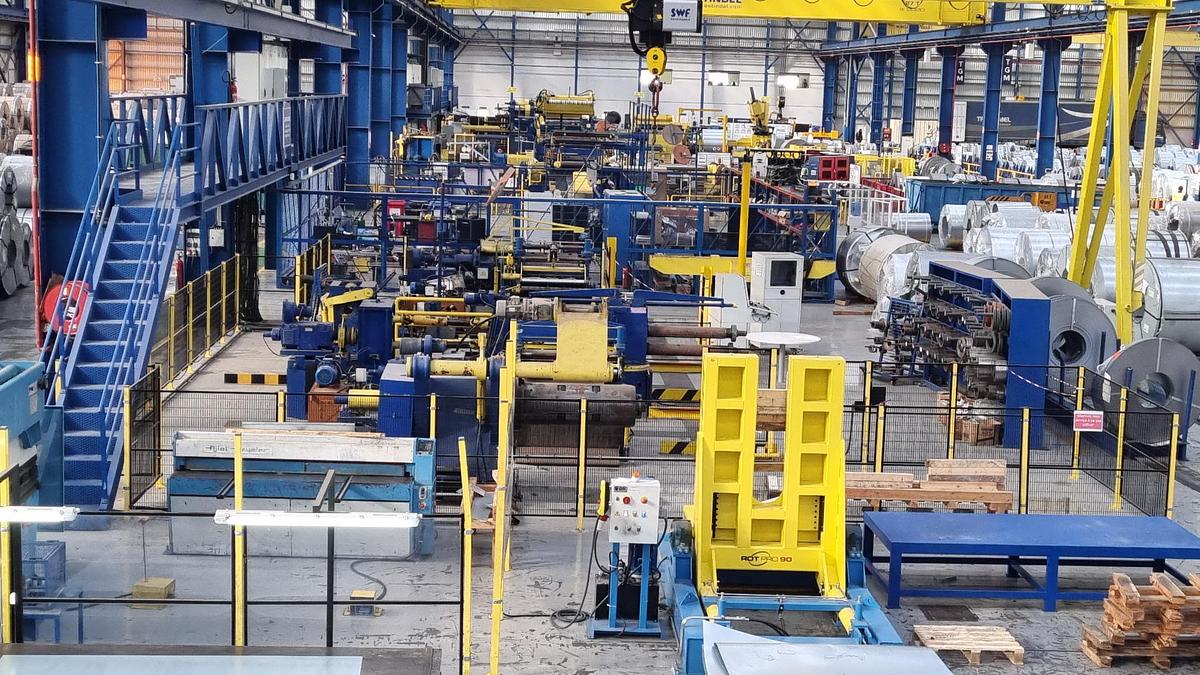

SLITTING LINE INMASA 1100x3

Revamped in 2019

Scope of supply

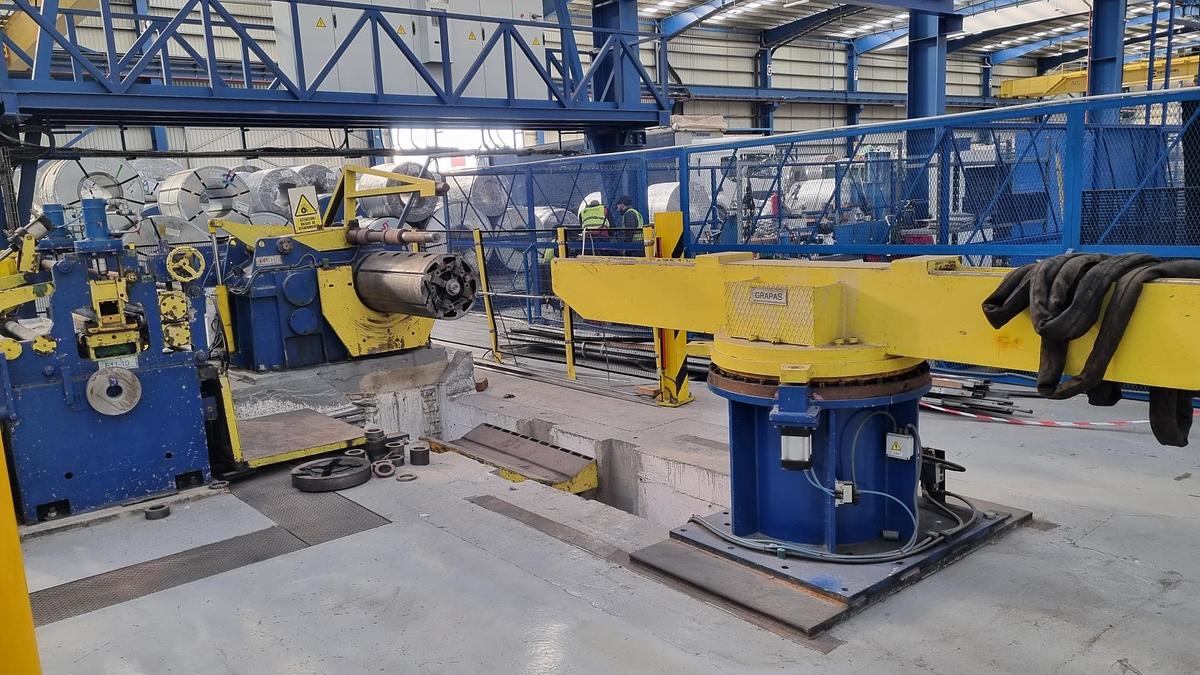

1. Loading carriage for coil up to 15000 Kg

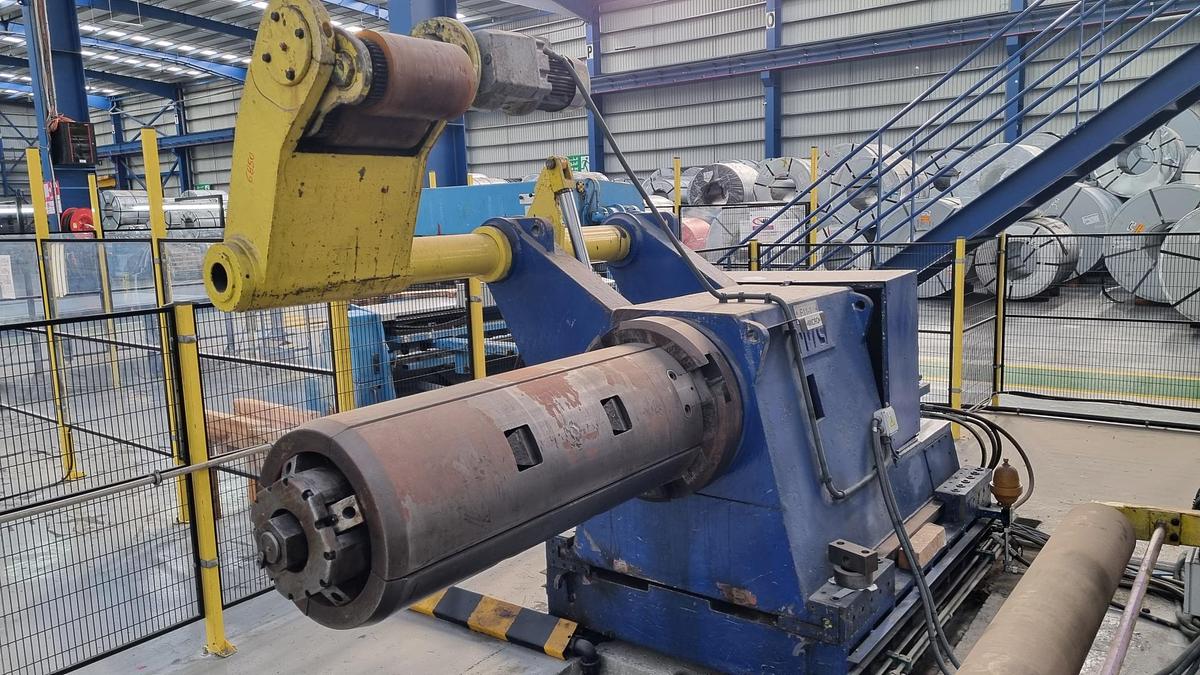

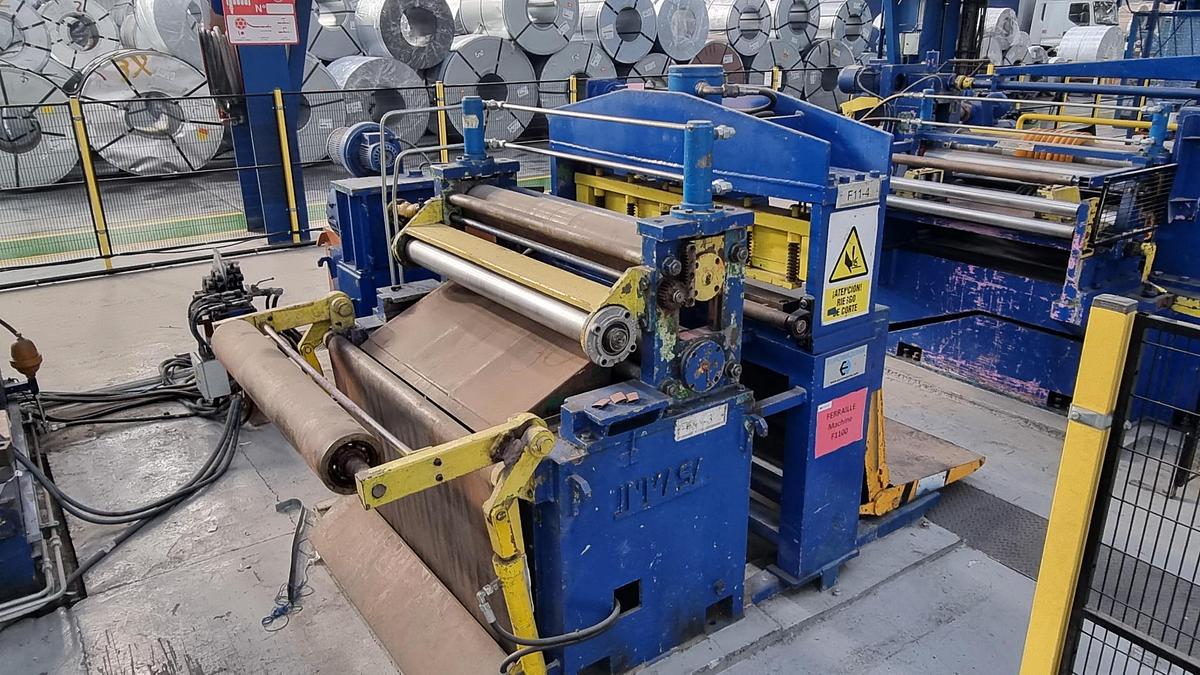

2. Cantilever Uncoiler with hold down roll

3. Threading group with supporting roll + Pinch roll

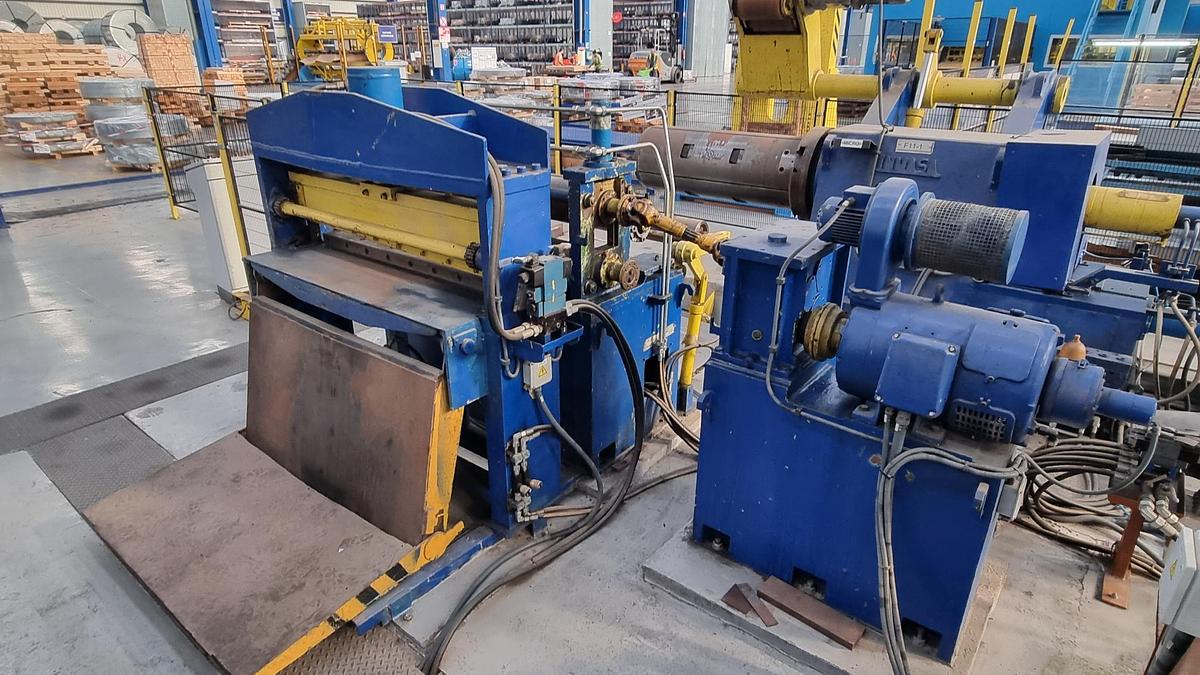

4. Crop shear

5. Intermediate table

6. Pinch-roll

7. Circular shear (turning unit with 2 pairs of arms, one in-line + one off line for preparation)

8. Exit roll table

9. Scrap recoiler

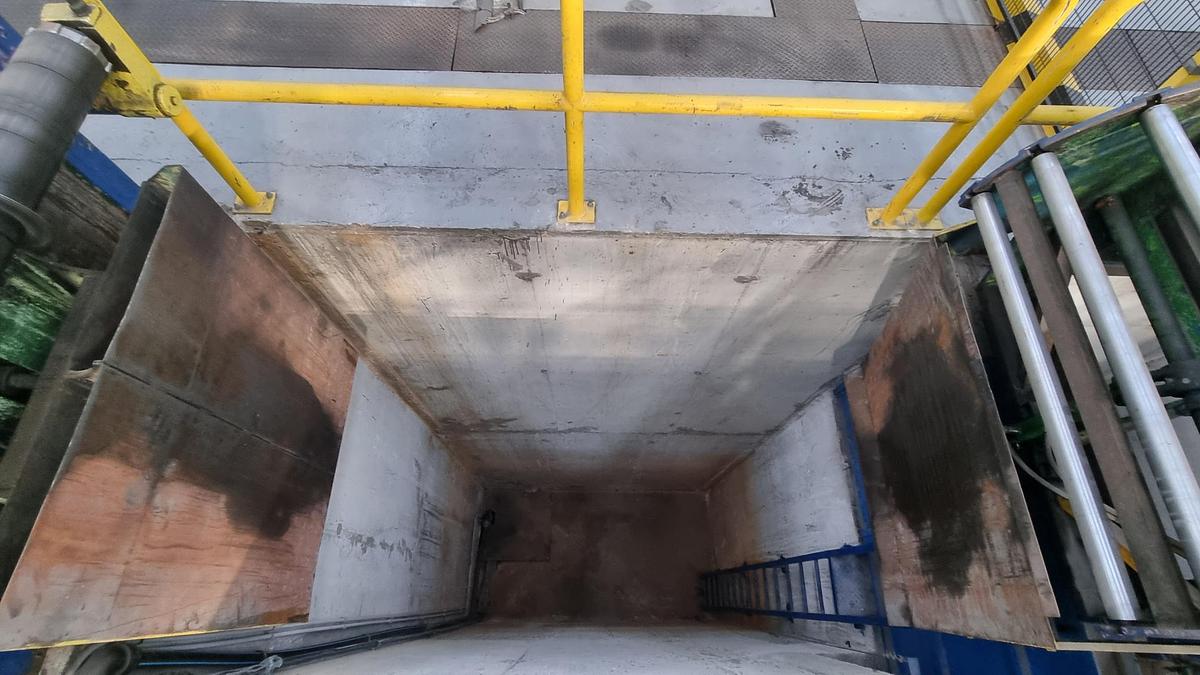

10. Accumulator pit + Tiltable cover

11. Tensioning device with Strip guiding arm

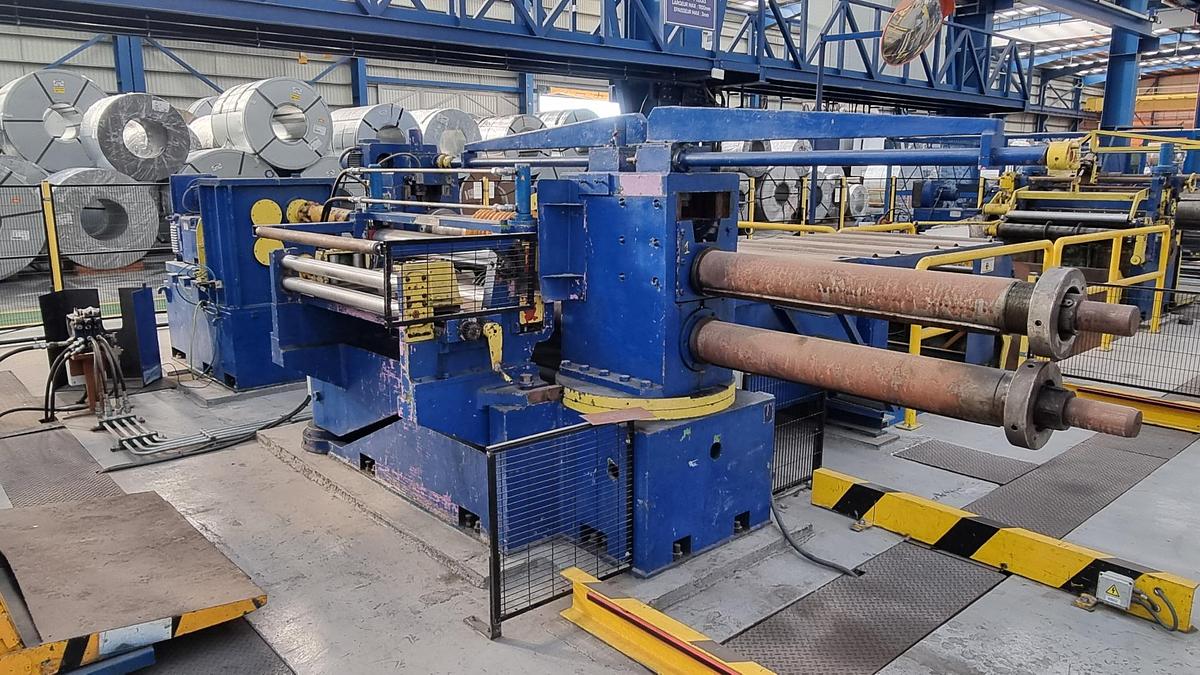

12. Recoiler

13. Unloading carriage

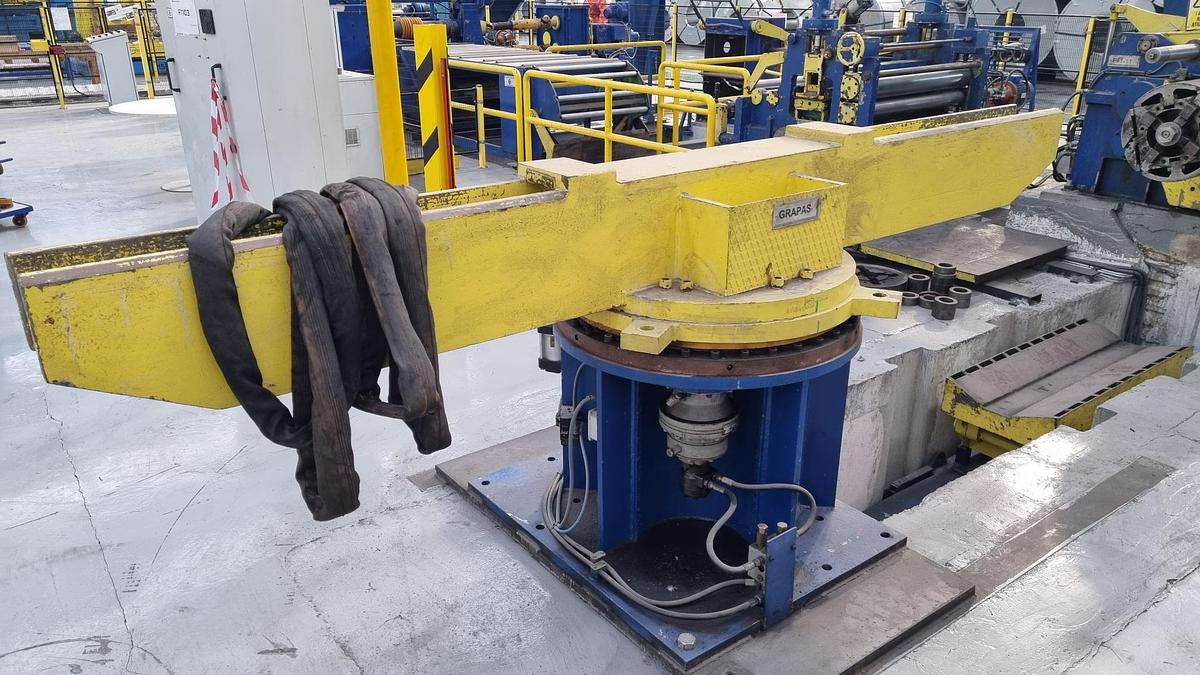

14. 2-arms turnstile

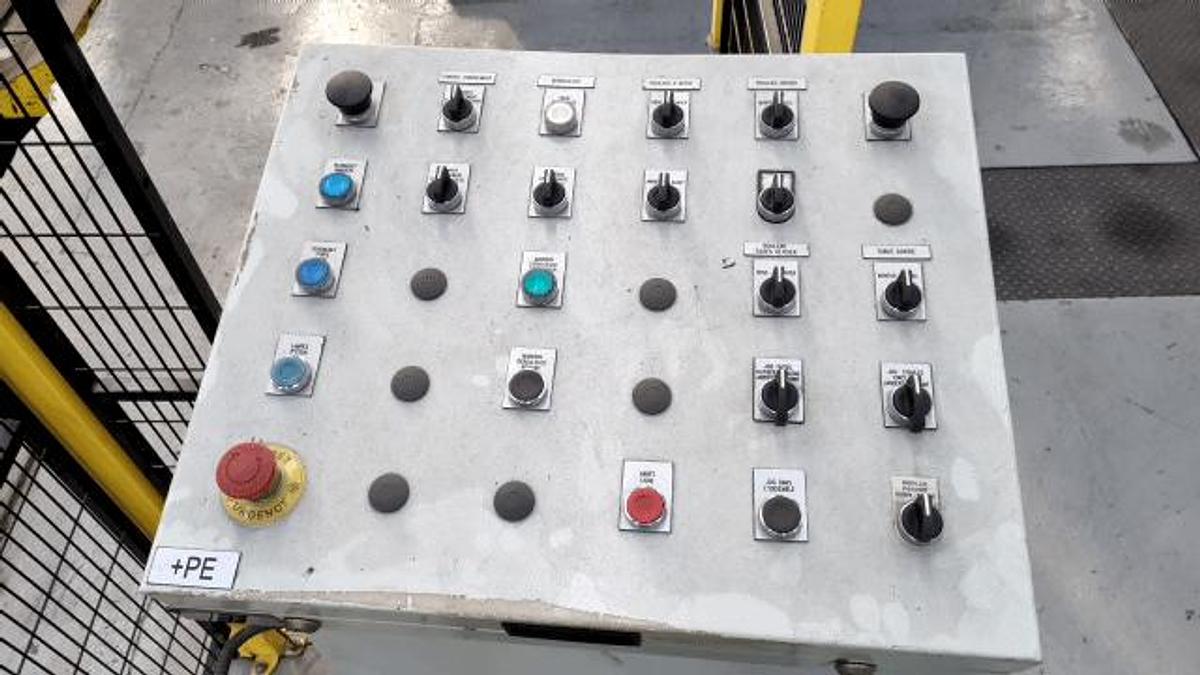

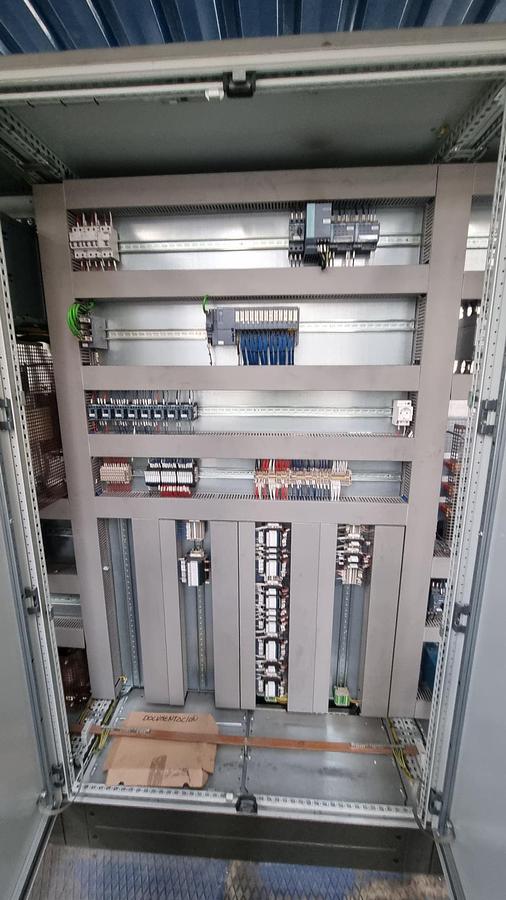

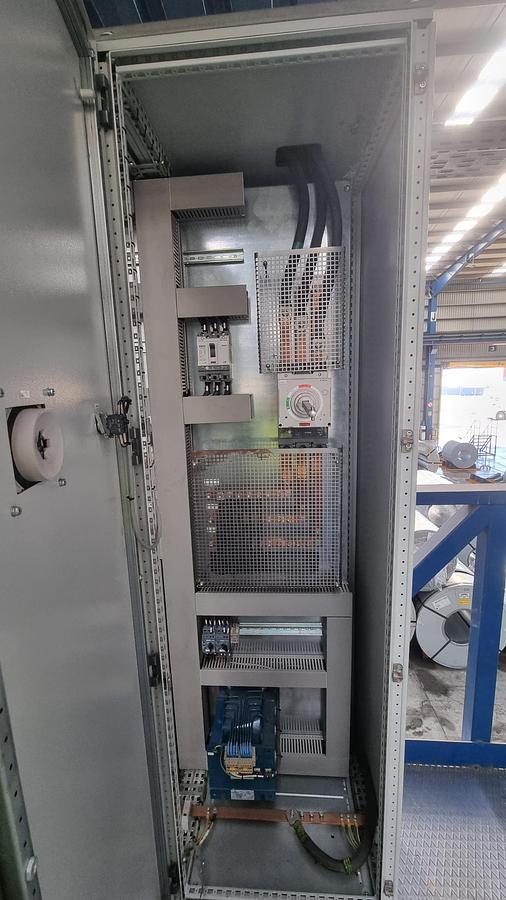

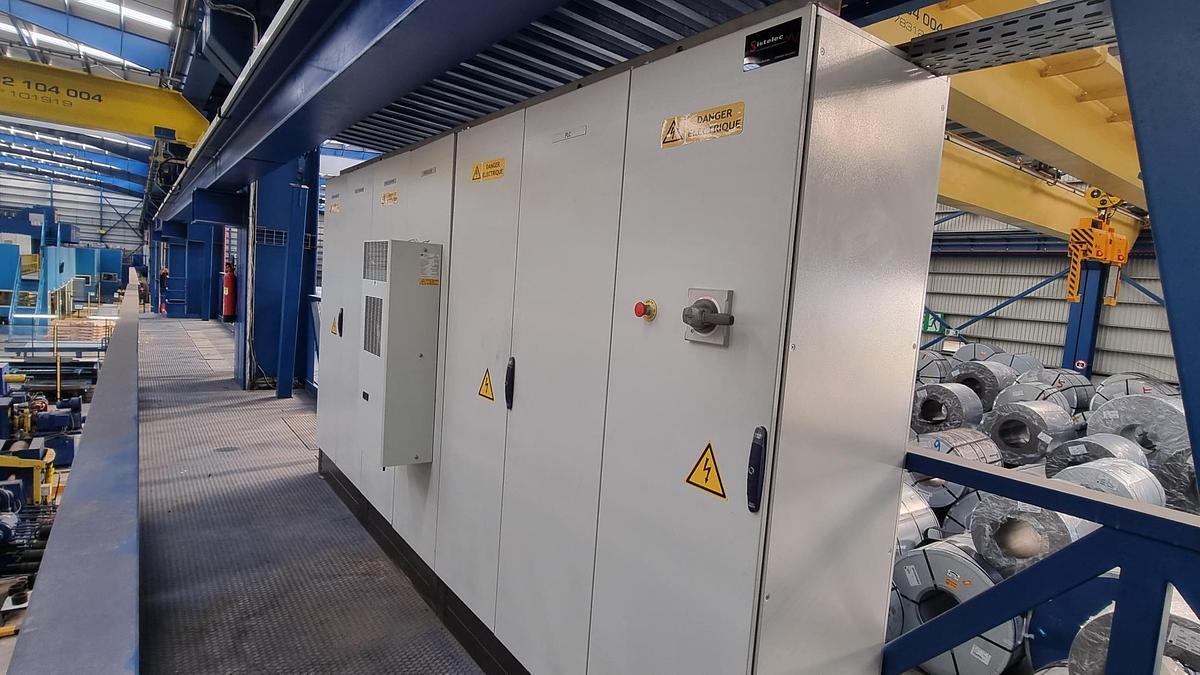

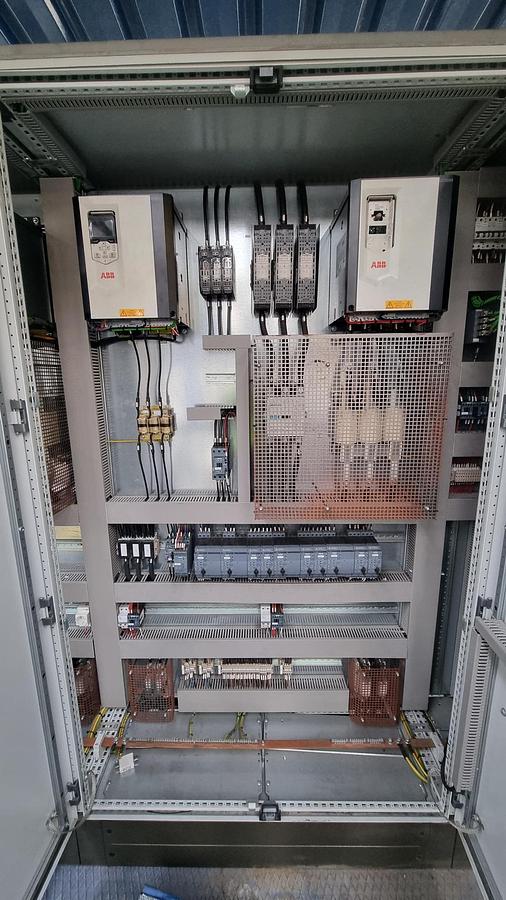

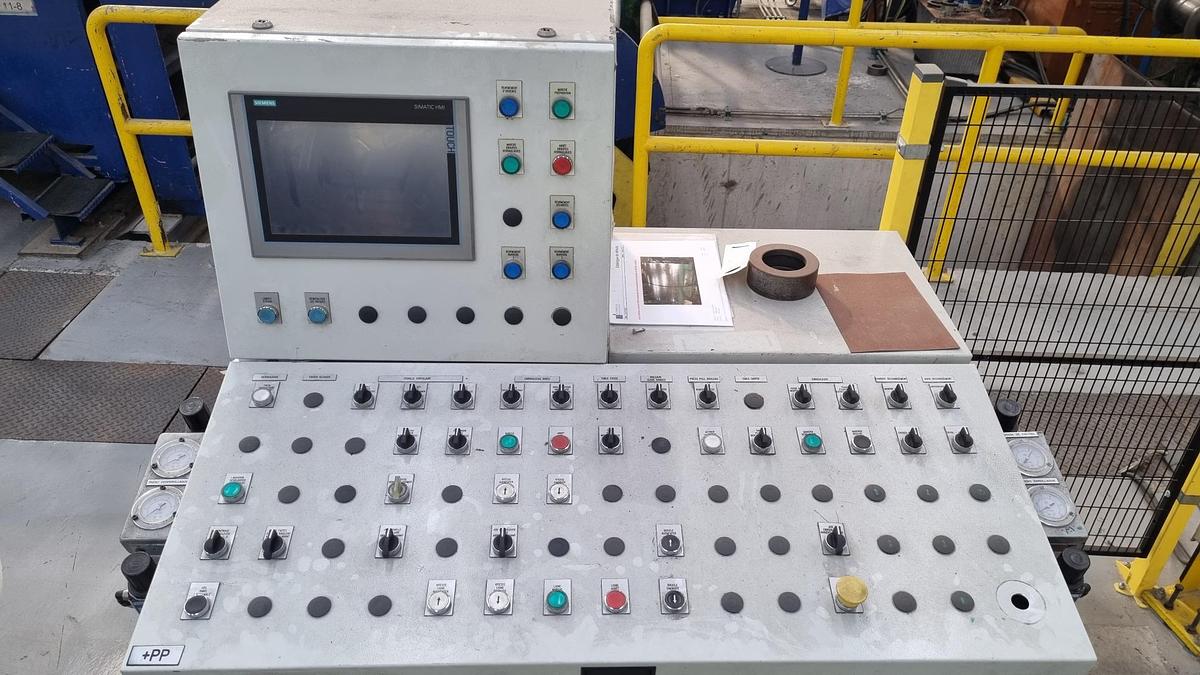

15. Switch cabinets & control panels (New in 2019)

16. Pneumatics & Hydraulics

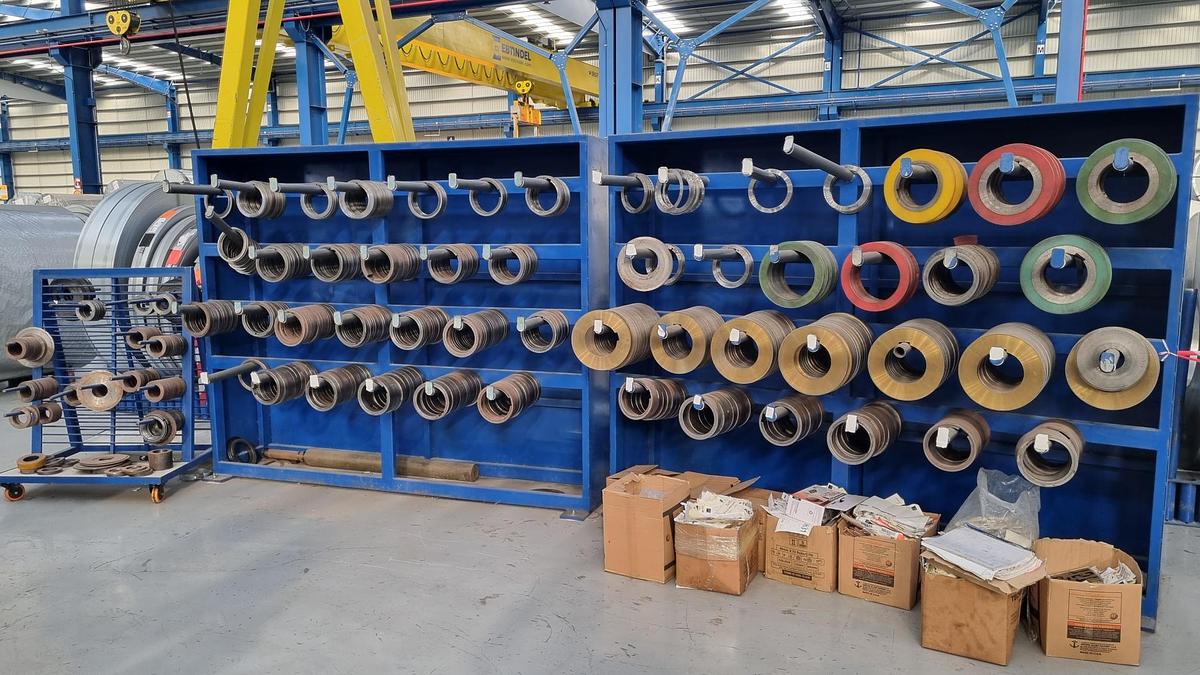

17. Existing tooling

SCOPE OF THE WORKS CARRIED OUT DURING THE REVAMPING OF THE LINE MADE BY EUROMAQUINA IN 2019

· Complete disassembly for overhaul and cleaning of each line component

· Final paint touch up.

· Electrical disassembly of each component.

· Checking of the elements for defects.

· Overhaul of motors.

· Conductivity, brush cleaning in DC motors, etc. were checked. Not repairable motors were replaced.

· Mechanical assembly of the line components.

· Assembly of components to be replaced due to defective parts.

· Revision of hydraulic cylinders with change of seals. Cleaning and painting.

· Overhaul hydraulic motors. Cleaning and painting.

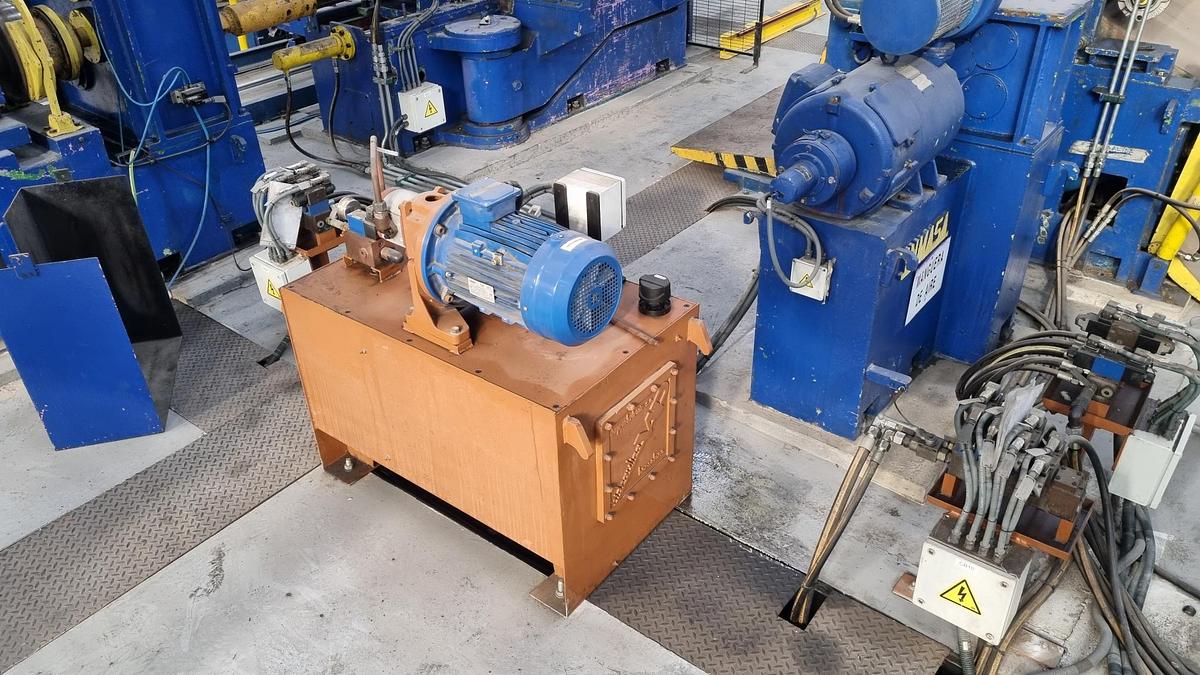

· Overhaul hydraulic power units. Cleaning and painting.

· Overhaul of pneumatic cylinders and electro-valves.

· Replacement of defective hydraulic piping and hoses.

· Replacement of pneumatic piping.

· Change all wiring on board machine.

· Replace defective boxes on board the machine or paint them.
