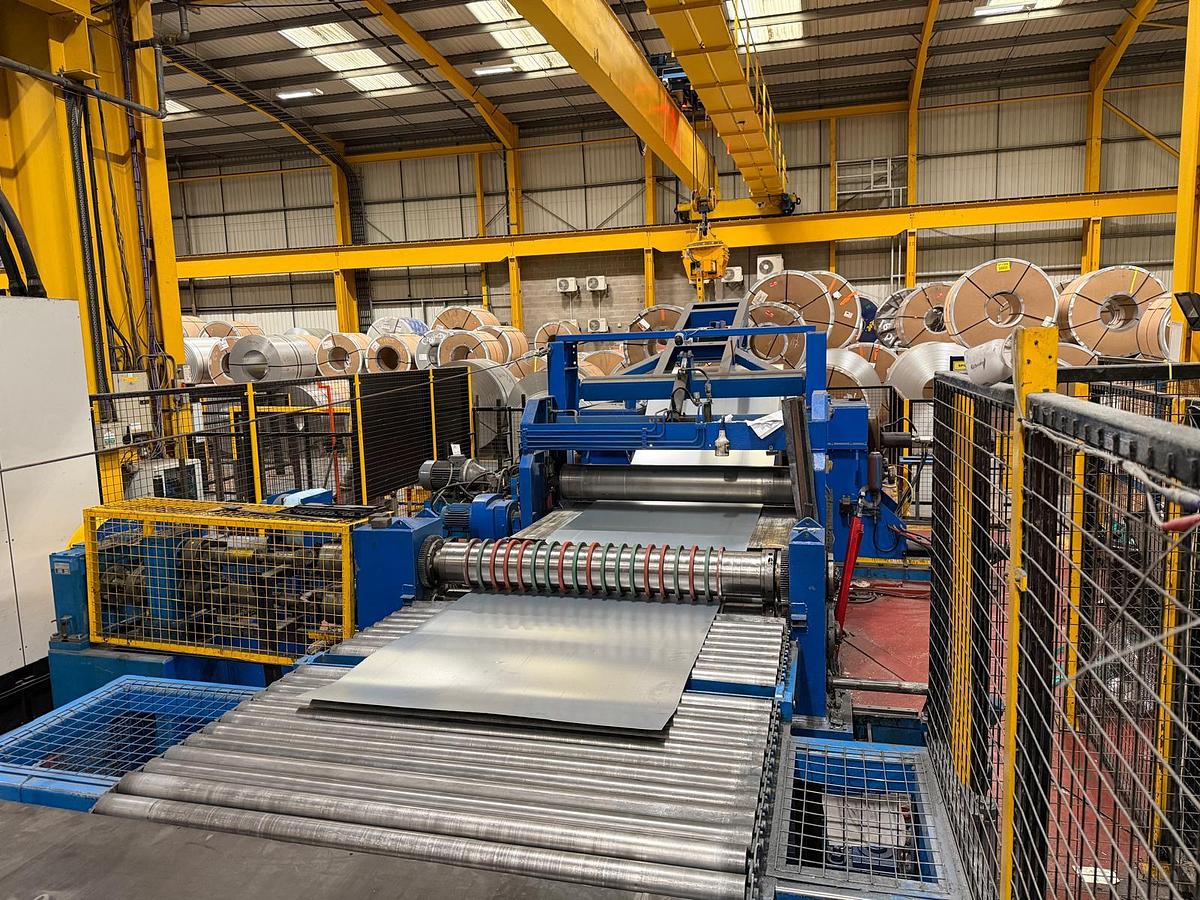

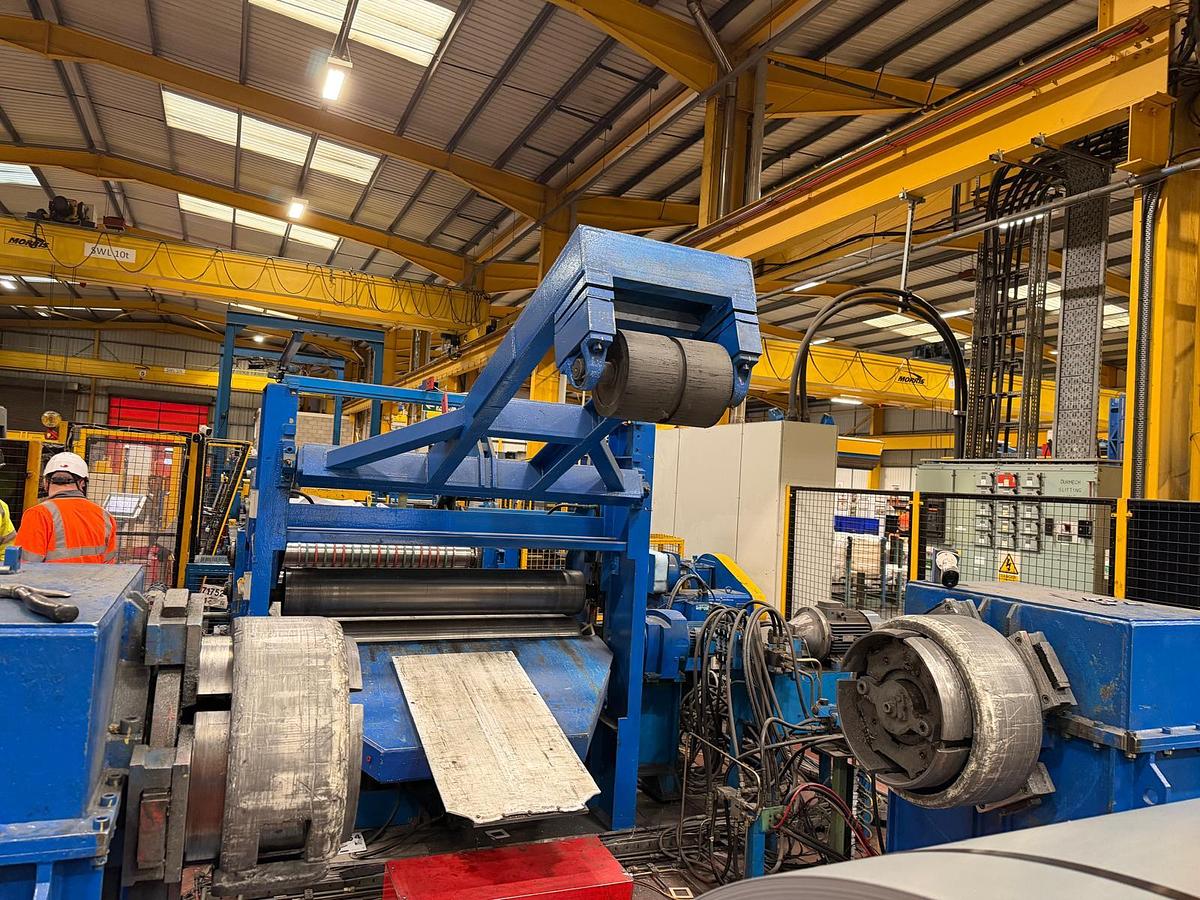

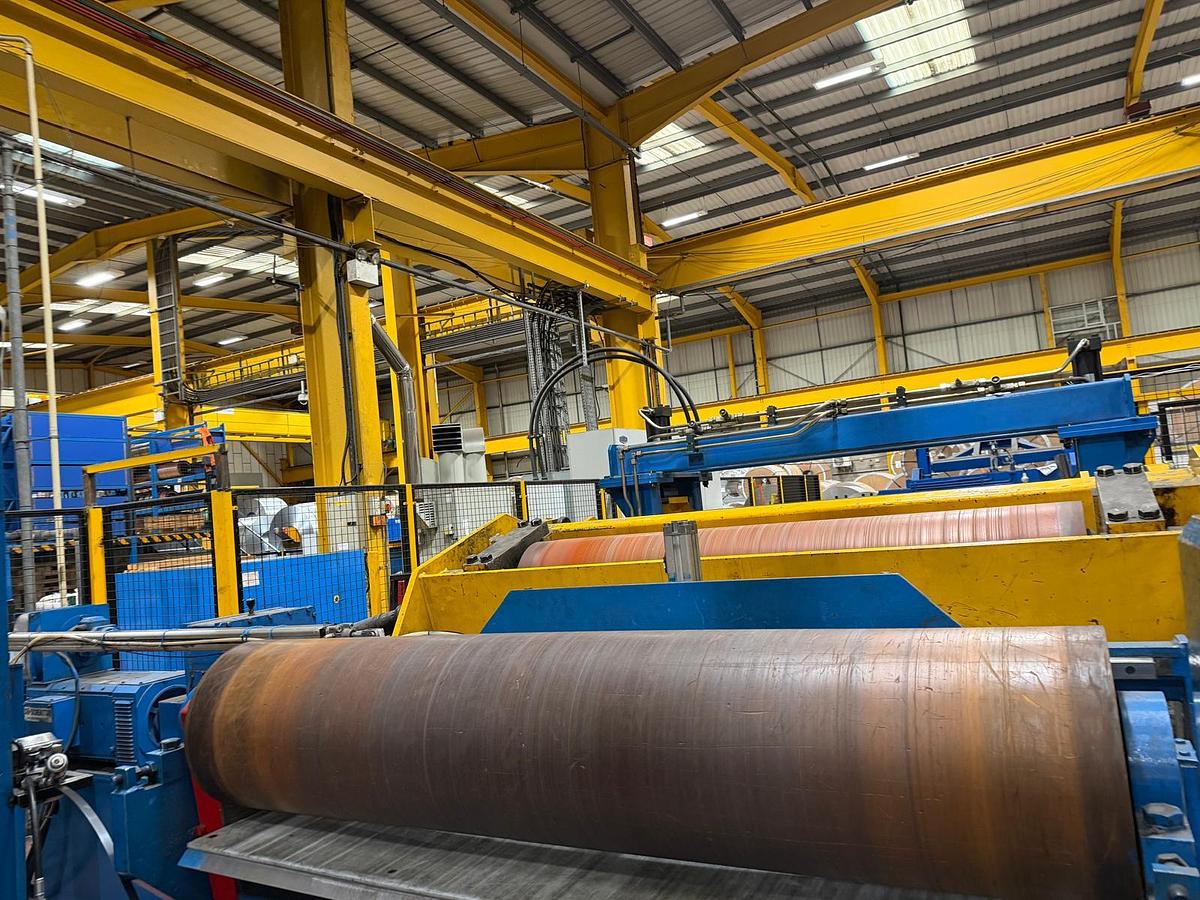

GEORG Slitter 1500x1,5

SLITTING LINE GEORG 1500x1.5x25

Main technical data

Coil thickness: 0.25 – 1.5 mm

Coil weight: 25 Tn

Coil width: 300 - 1500 mm

Coil outer diameter: 508 - 2000 mm

Coil inner diameter: 508 - 609.6

Edges width: 16 - 20 mm

Working speed: 150 - 250 m/min

Line direction: Right to left

Recoiler coil weight: max. 16 Tn

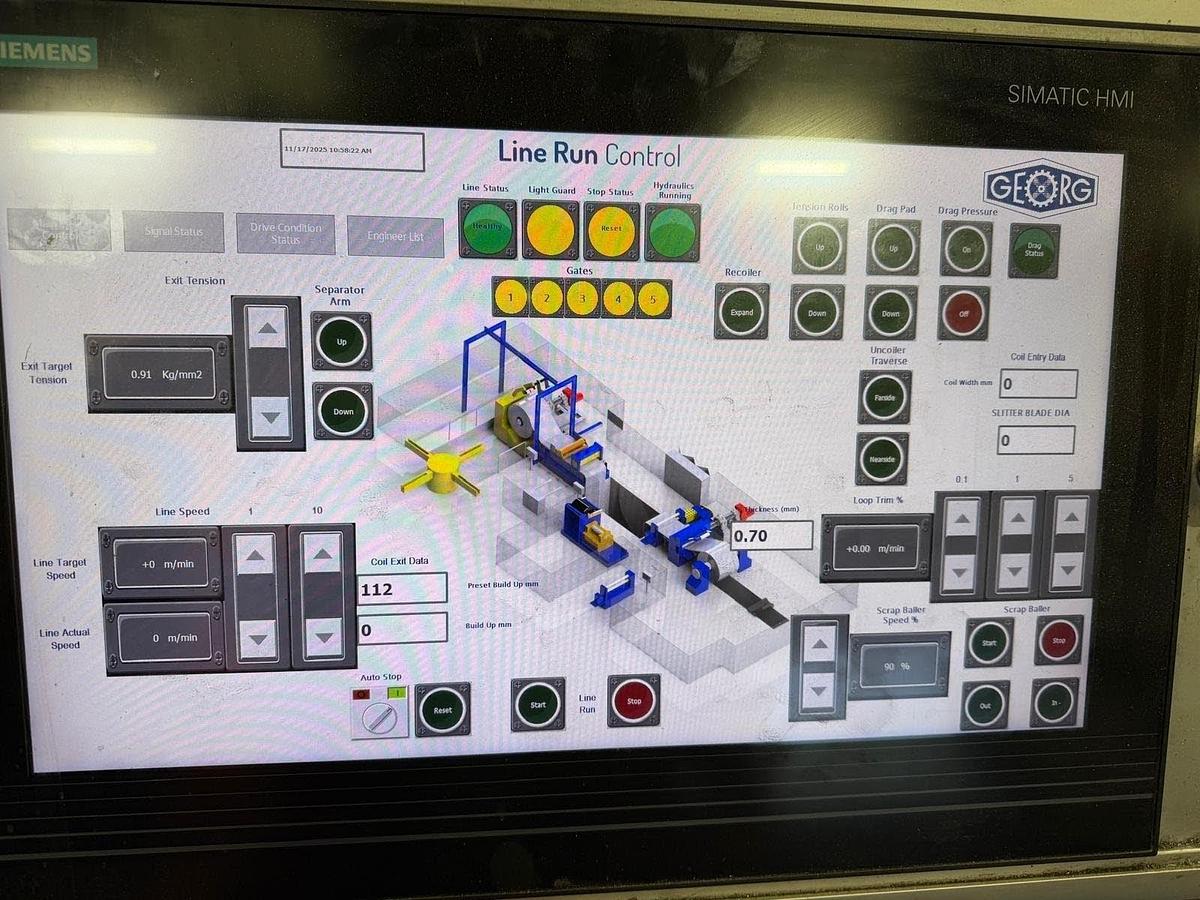

PLC: Siemens S7 1200

Scope of supply

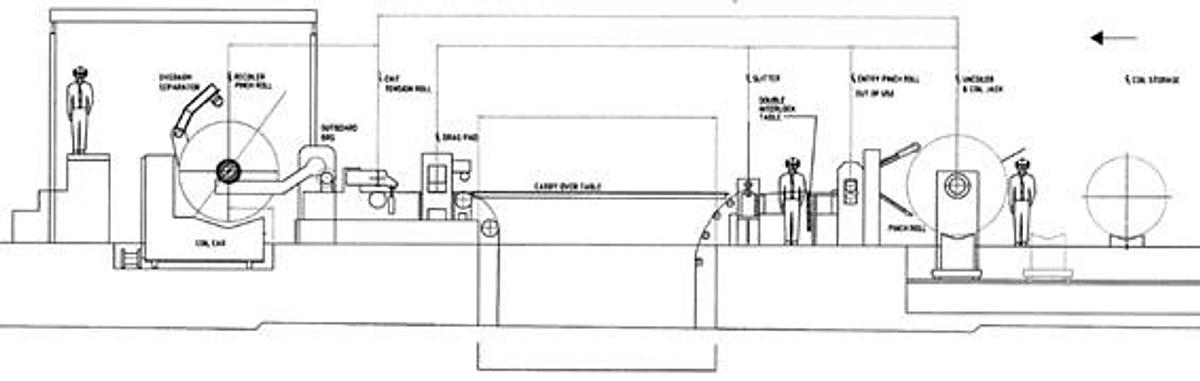

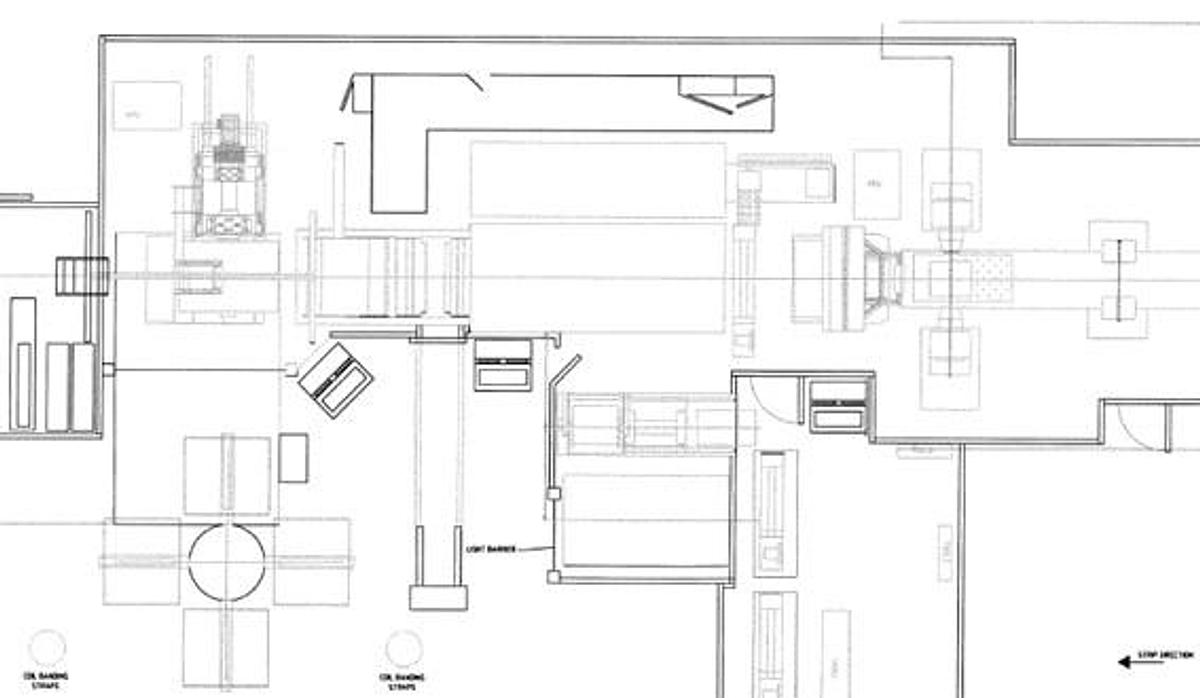

1. Coil Carriage

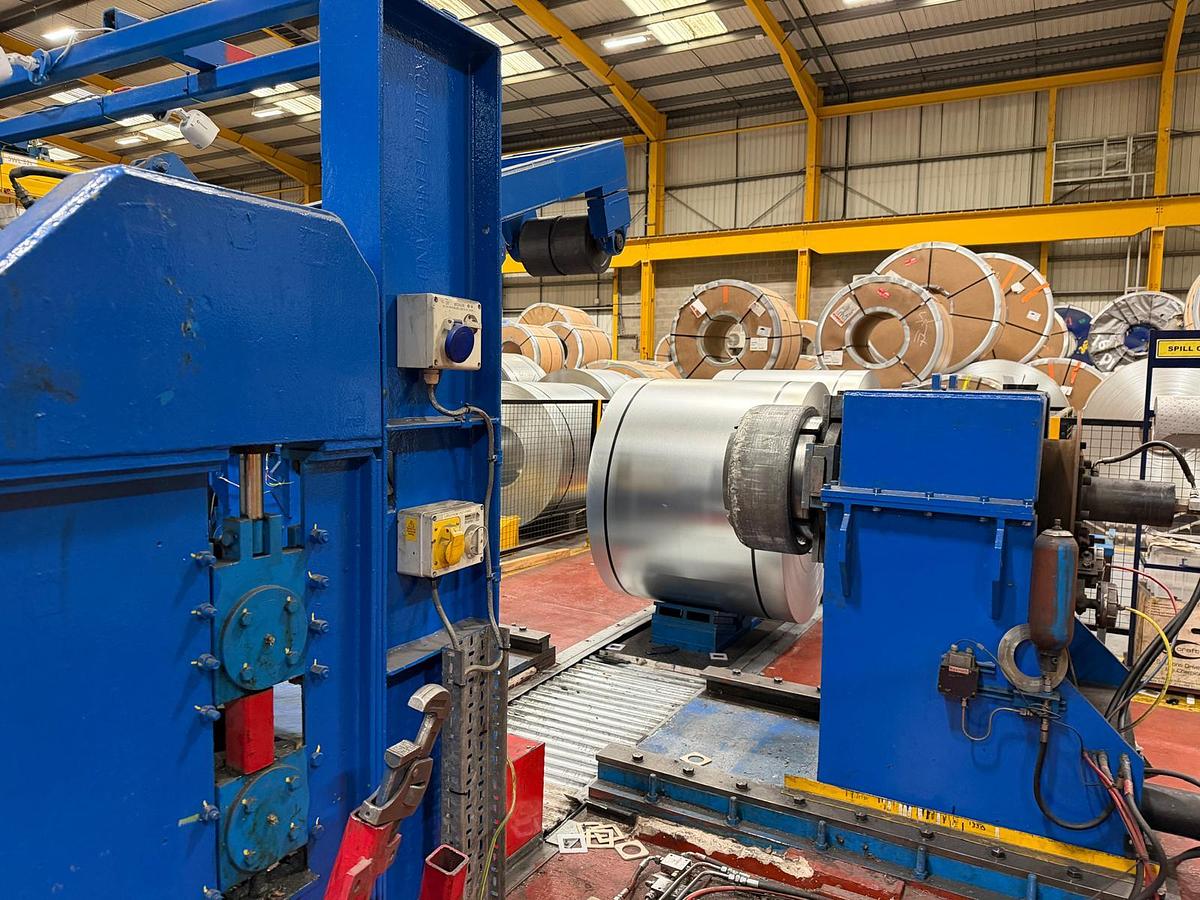

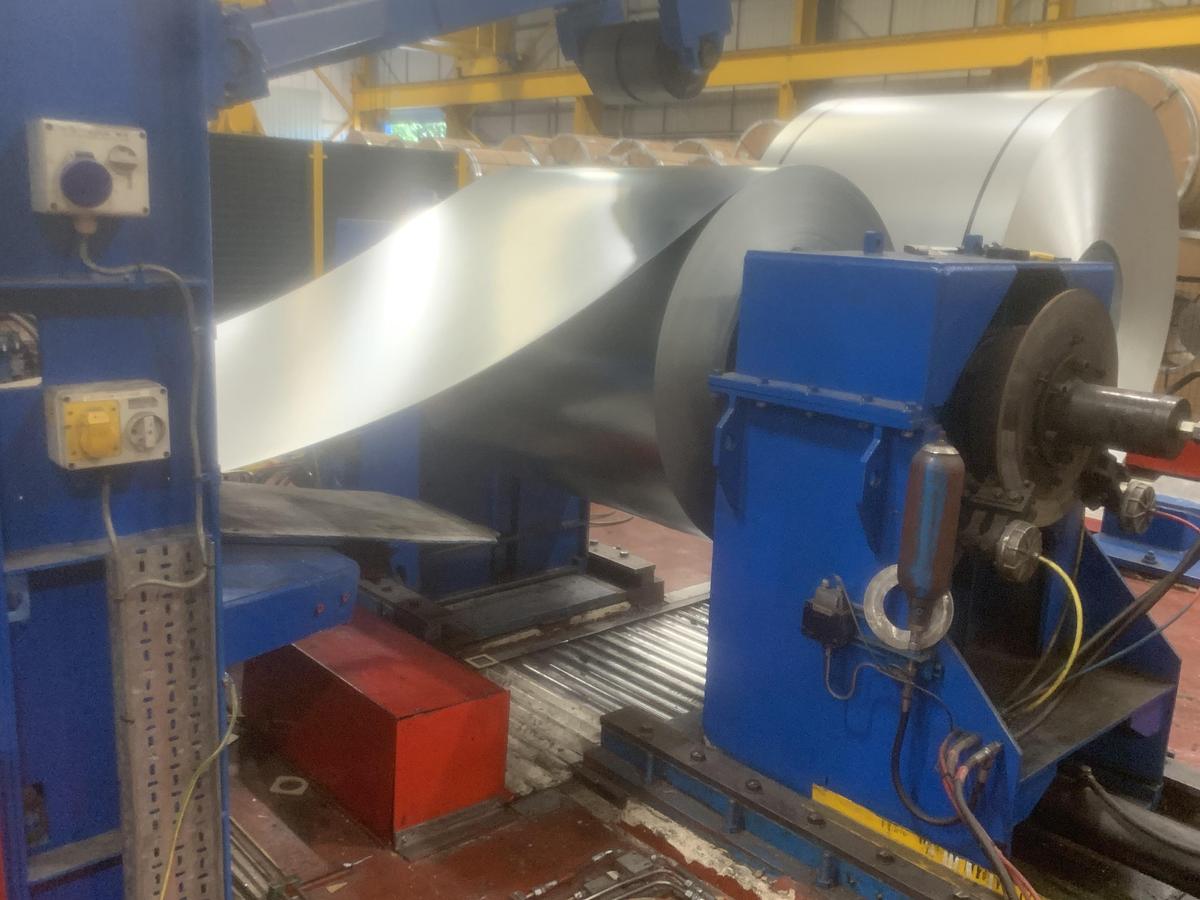

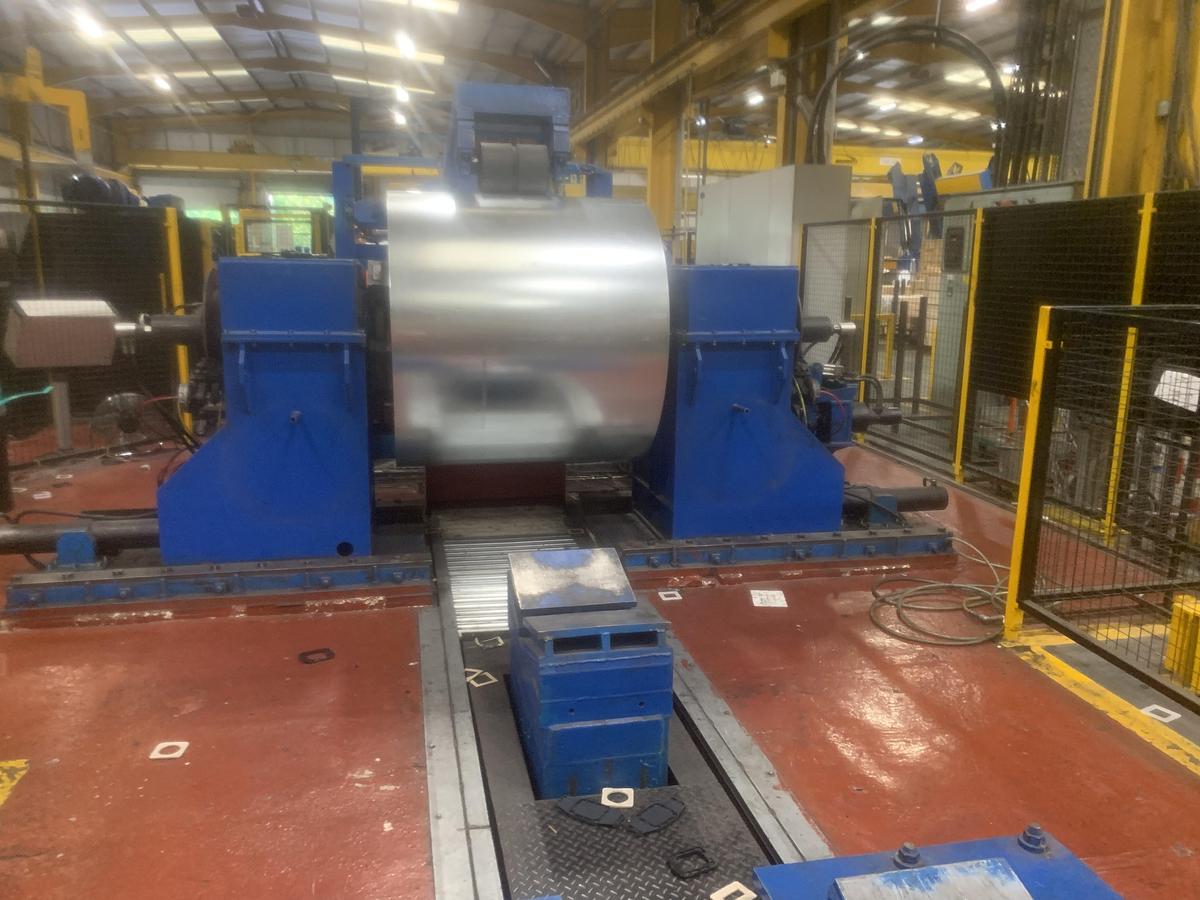

2. Uncoiler

3. Guiding system with 2 measured edges

4. 203.2 diam. Pinch roll before shear

5. Double interlock table

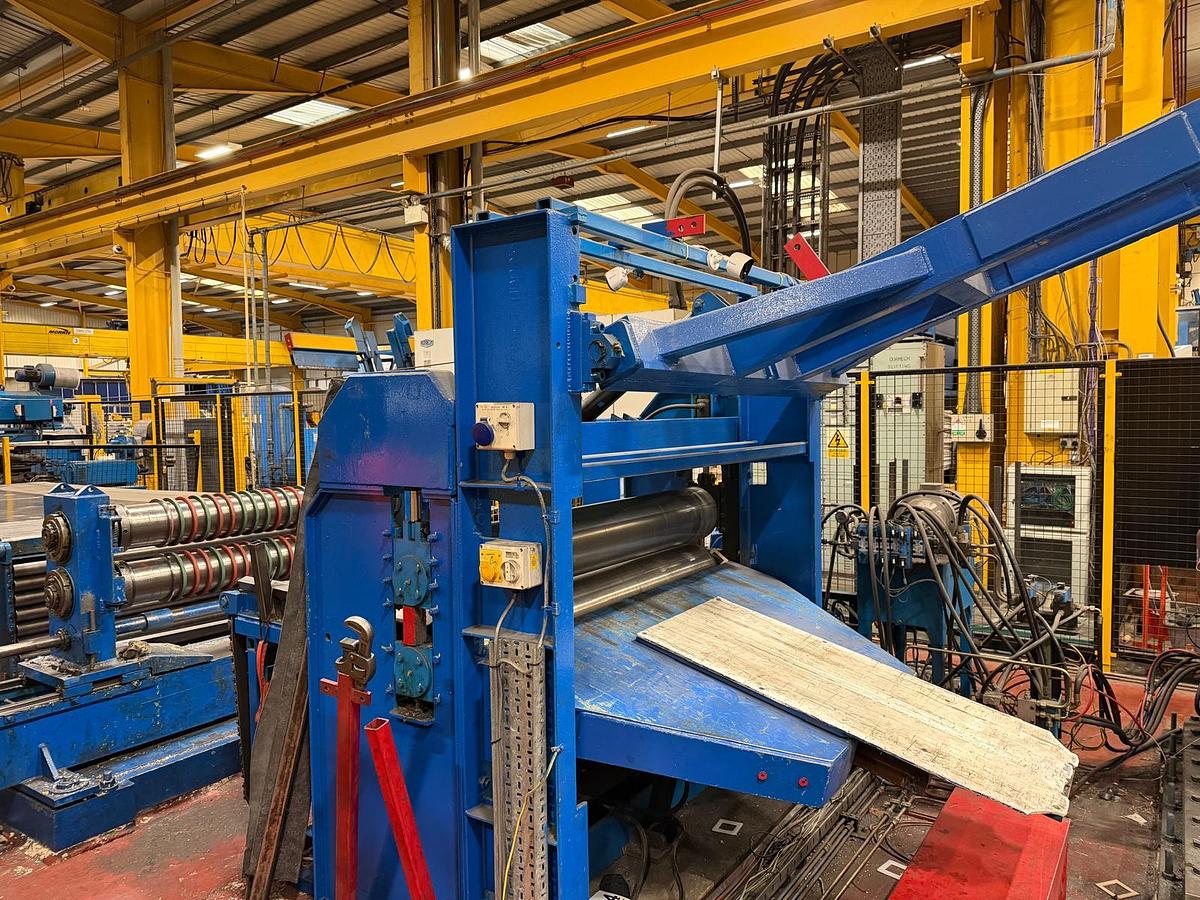

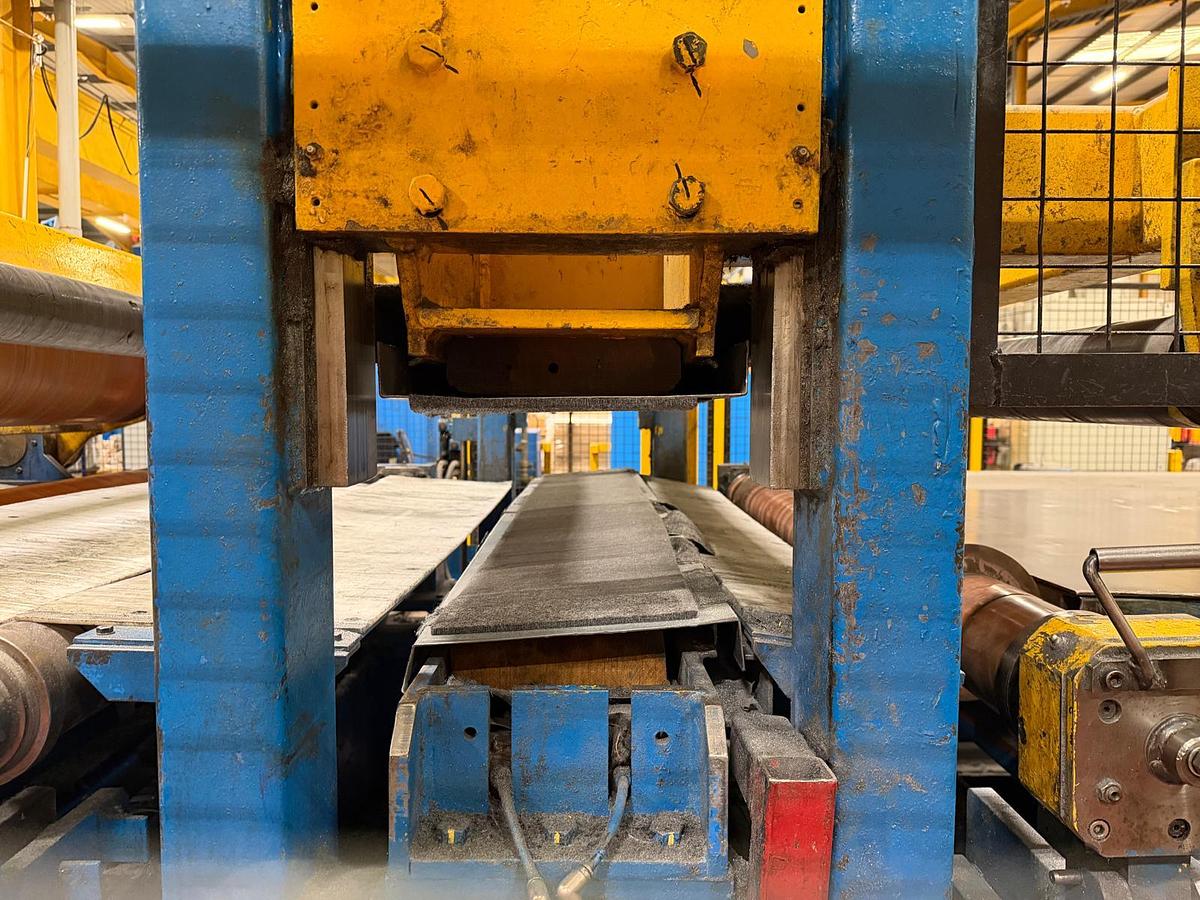

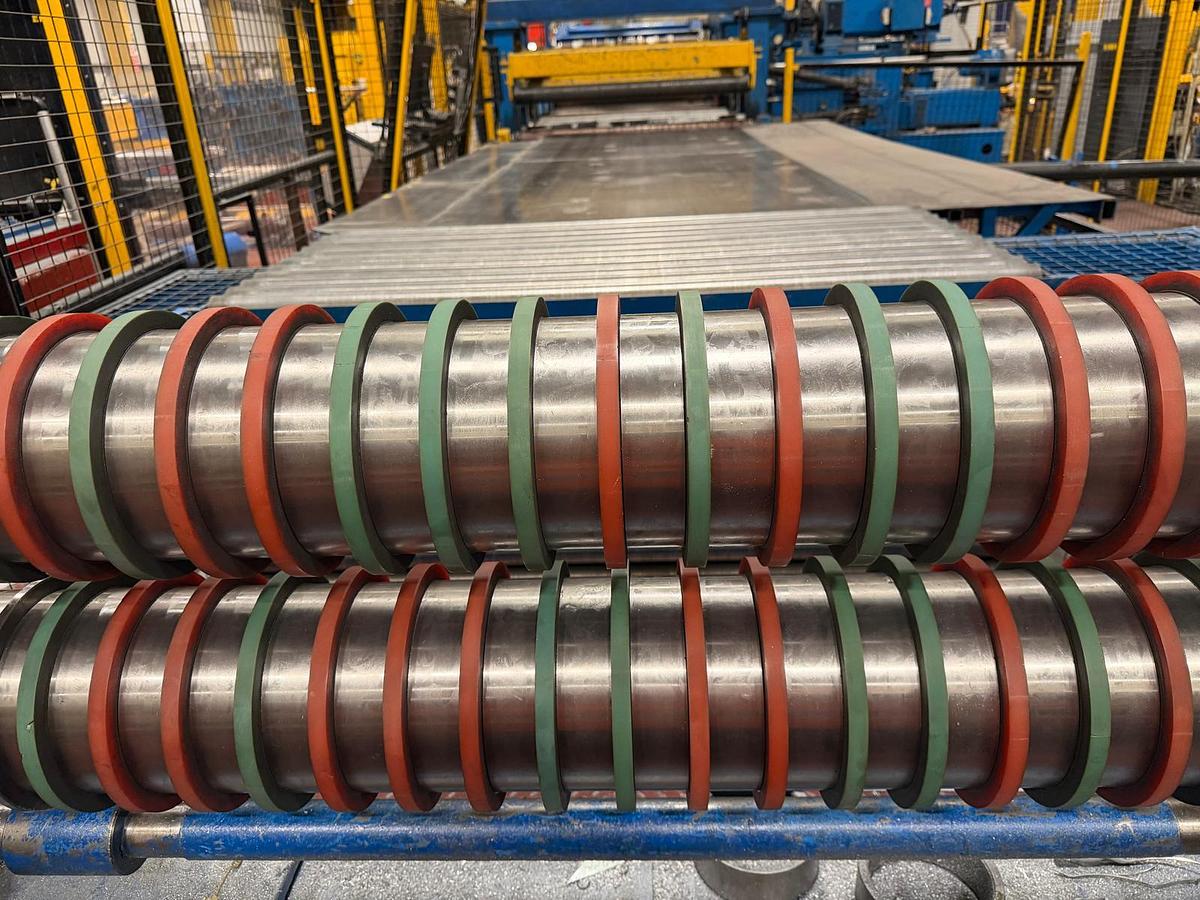

6. Slitting shear:

• Shaft diameter: 275 mm
• Blade diameter (new): 400 mm

7. 1 off line quick change slitting head available

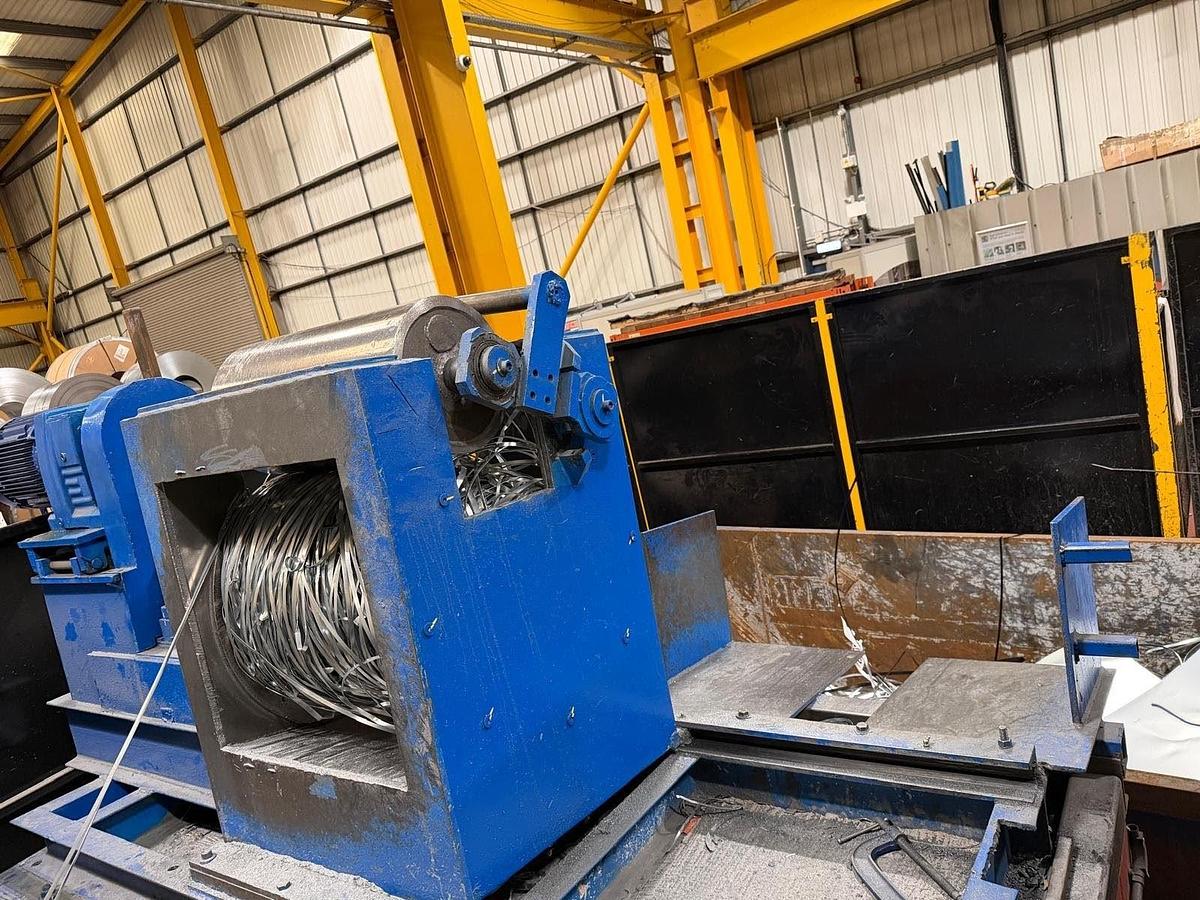

8. Scrap press and conveyor

9. Intermediate coil table

10. Loop Pit and covering tables

11. Strips Braking Unit

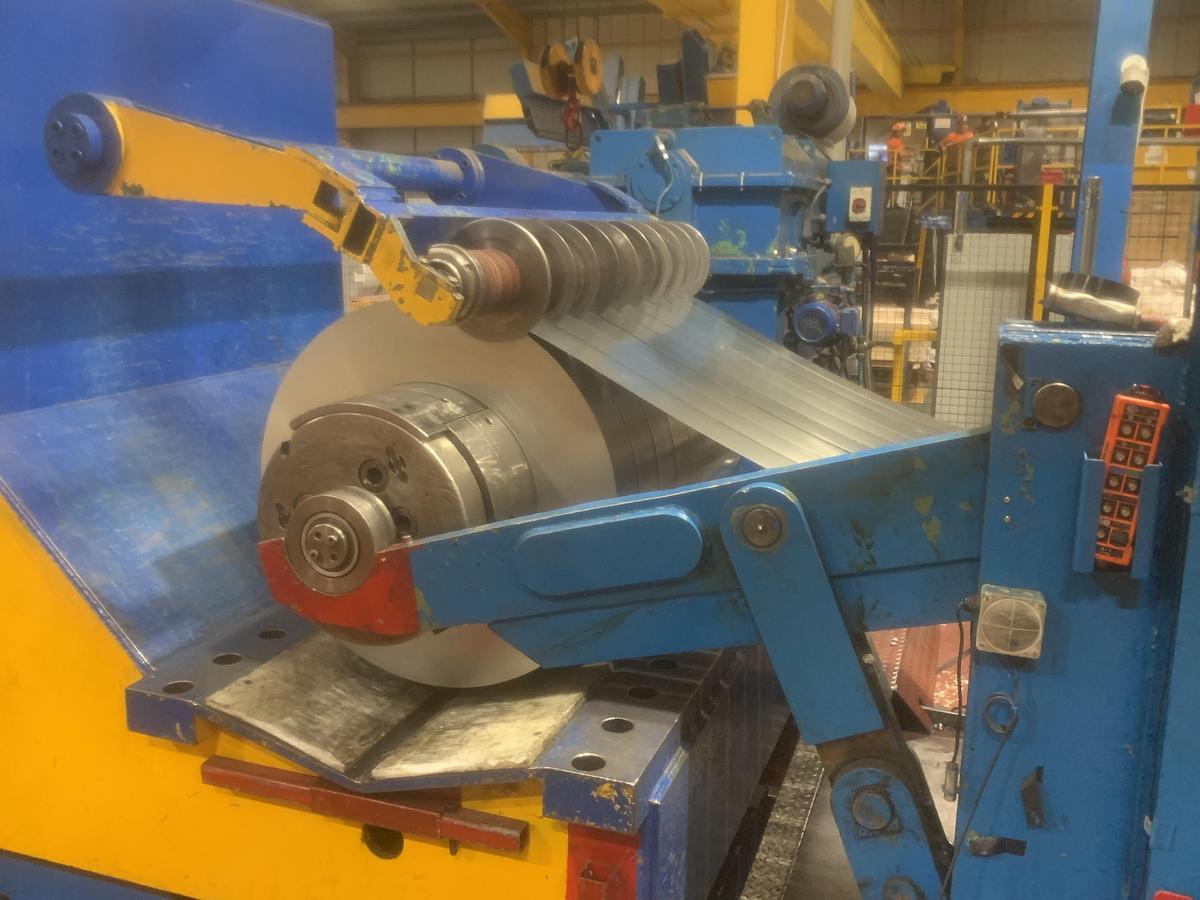

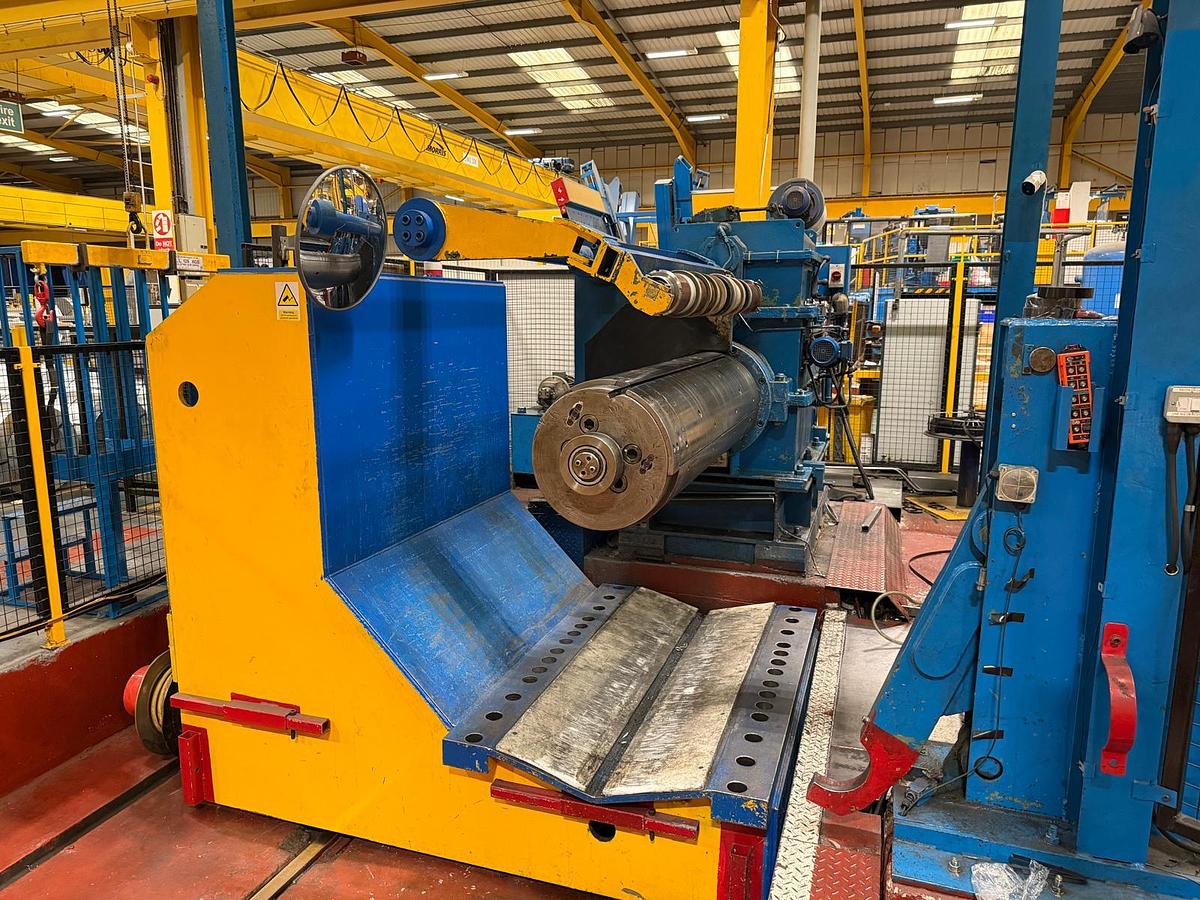

12. Motorised recoiler with hold down separator arm

13. Unloading Coil Car

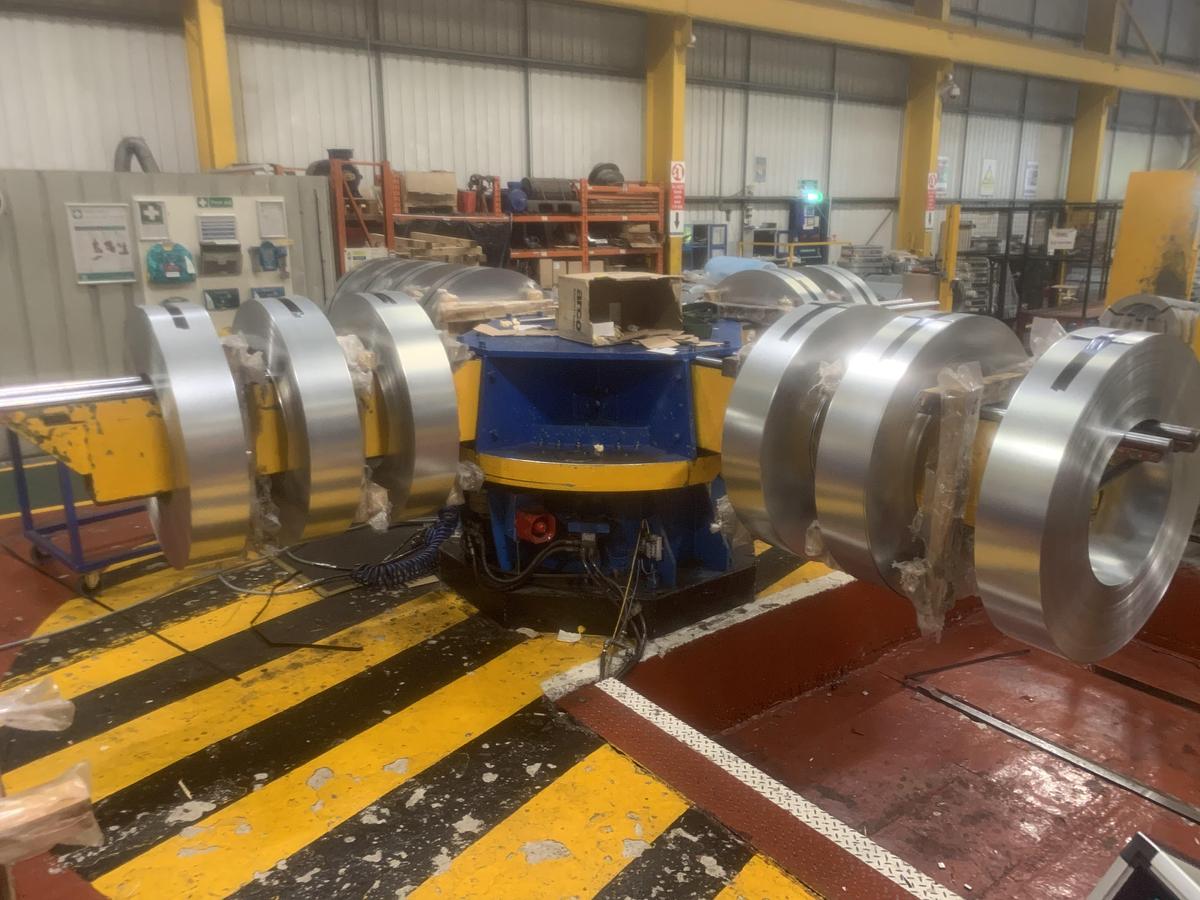

14. 4 arms turnstile

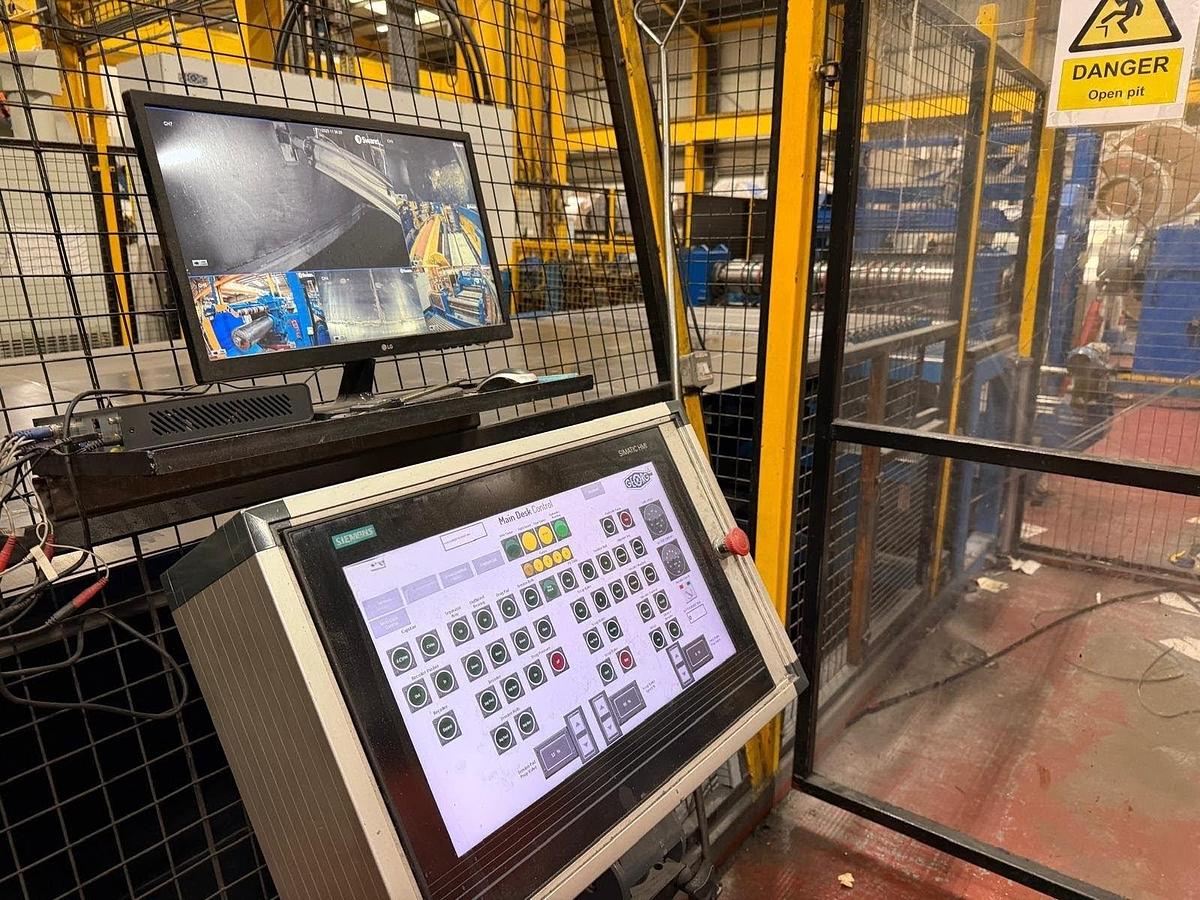

15. Electrical cabinets & Control panels

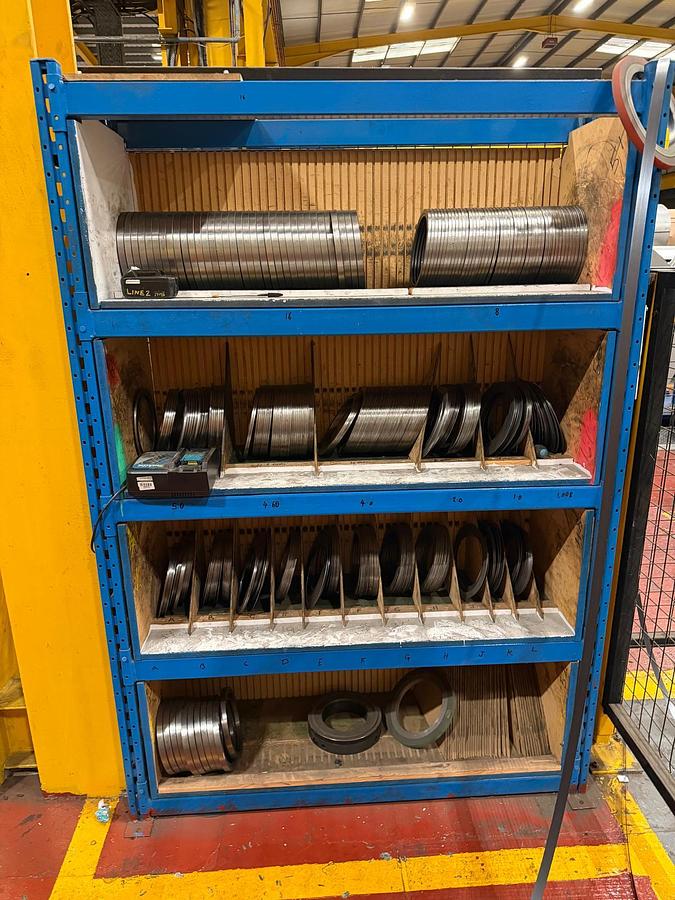

16. Existing tooling

17. Existing documentation
