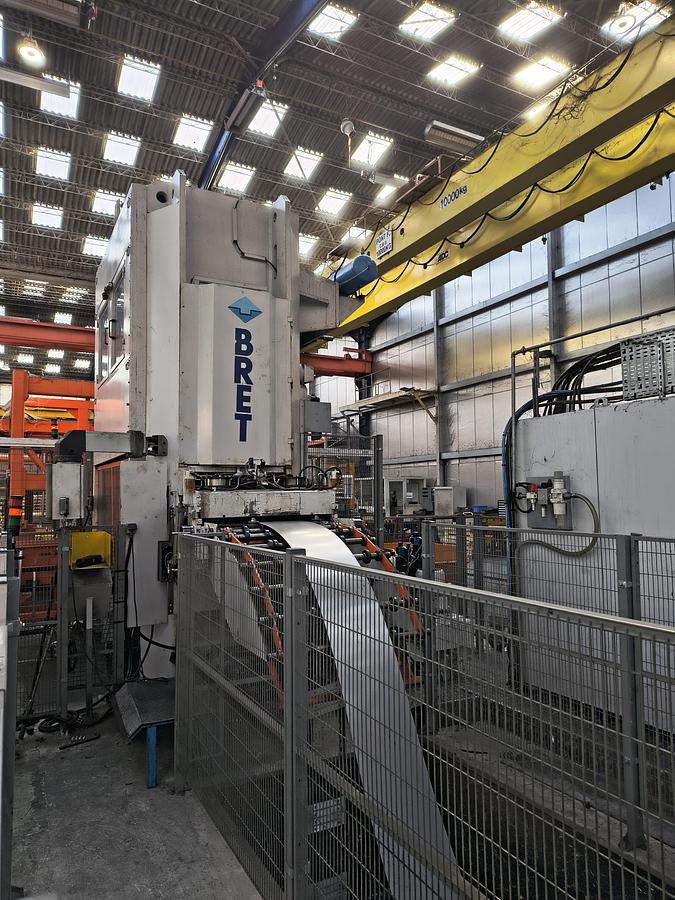

BRET PRESS BLANKING LINE 830x4

BRET Press blanking line 830x4

Technical characteristics

Width: 100 - 830 mm

Thickness: 1 - 4 mm

Max. weight: 20 Tn

Exterior diameter: 900 - 2100 mm

Interior diameter with segments: 610 mm

Interior diameter without segments: 508 mm

Decoiling: from top or from bottom

Engine power: 55 kW

Elastic yield (for max. thickness): 650 Rm (Mpa)

Tensile strength (for max thickness): 900 Rm (Mpa)

Scope of supply

1. 4 arms coil loader turnstile

2. Coil carriage

3. Single cantilevered decoiler with hold down roll

4. Opener & centring unit

5. 17 rolls leveller

6. Pit accumulator entry basket

7. Exit basket and pulling unit

8. A 700 tons Press

9. Press side exit (2 bands)

10. Double traverse conveyor with deviation and tilting unit

11. Main stacker

12. Side tacker #1

13. Rollway at stacker’s exit #1

14. Side stacker #2

15. Rollway at stacker’s exit #2

16. Video inspection camera system

17. Pallet introduction rollways for side stackers

18. Magnetic scrap conveyor

19. Operator desks

20. Switch cabinets

21. Hydraulics

22. Existing documentation (to be checked)

23. Available spare parts

DELTA Measuring system

· Number of measured edges: 2

· Width capacity: 100 - 800 mm

BRET Leveller

· First level rolls: Ø 55 mm

· Number: 17

· Thickness: 0,8 - 4 mm

· Driving Power: 110 kW

Press

· Size of press: 800 mm

· Blank length: 100 - 1790 mm

· Length tolerances: +/- 0,25 mm

· Pressure: 320 Tn

· Maximum speed: 100 m/min

Cuts/min with tensile strength = 500 Mpa

· 130 cuts/min for minimum length

· 80 cuts/min for 500 mm

· 52 cuts/min for 1.000 mm

· 38 cuts/min for 1.500 mm

Engine power: 55 kW

Stacker by gravity

· Number of tables: 1

· Length: 1750 mm

· Chain conveyor

· Positions per table: Length 5 & Width 3

· Maximum stacking height (including wood): 650 mm

· Kind of pallets: Wood spacers / Square + plank / Square + square

· In-line weighing

Side stackers by gravity

· Number of exits: 2 bands

· Length 100-800

· Tilting device

· Stacker height 650

· Buffer system while changing stacking column

· Pallet input front the back side

· Scale In both exits

Magnetic scrap conveyor

Video inspection system
