ILKWANG METAL SHEET PROFILING LINE FOR TILE ROOF PANELS

METAL SHEET PROFILING LINE FOR TILE ROOF PANELS

Reduced price due to urgent sale

Scope of supply

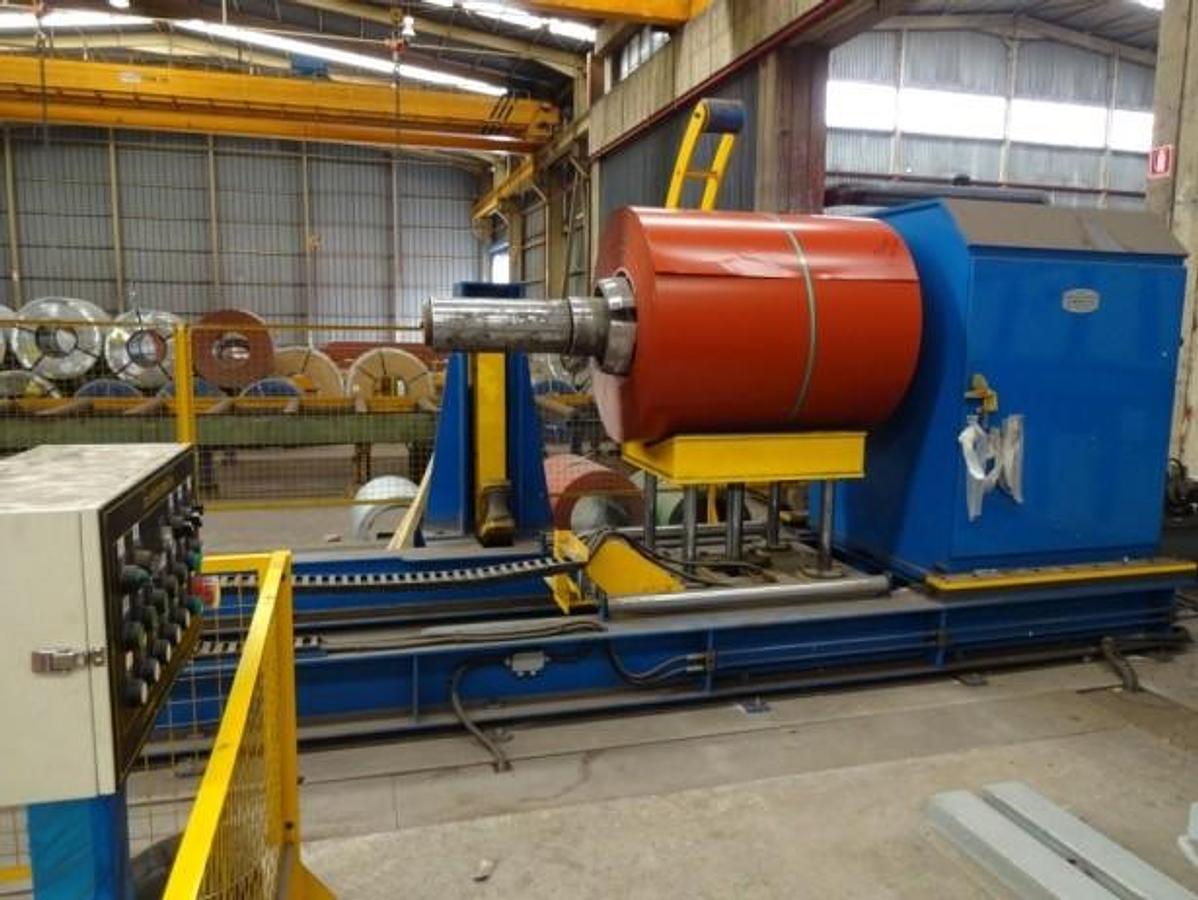

1 Uncoiler

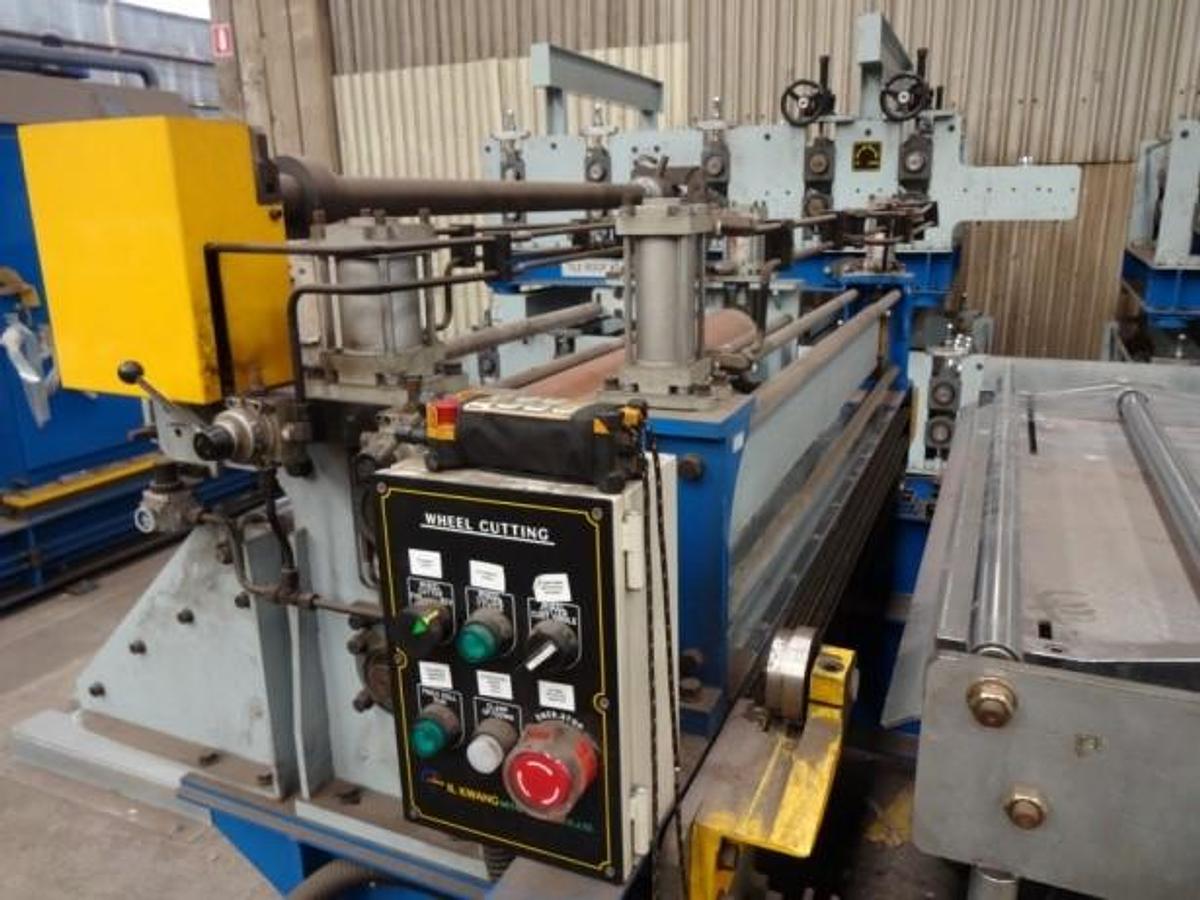

2 Front shear + coil guide table

3 Film applicator

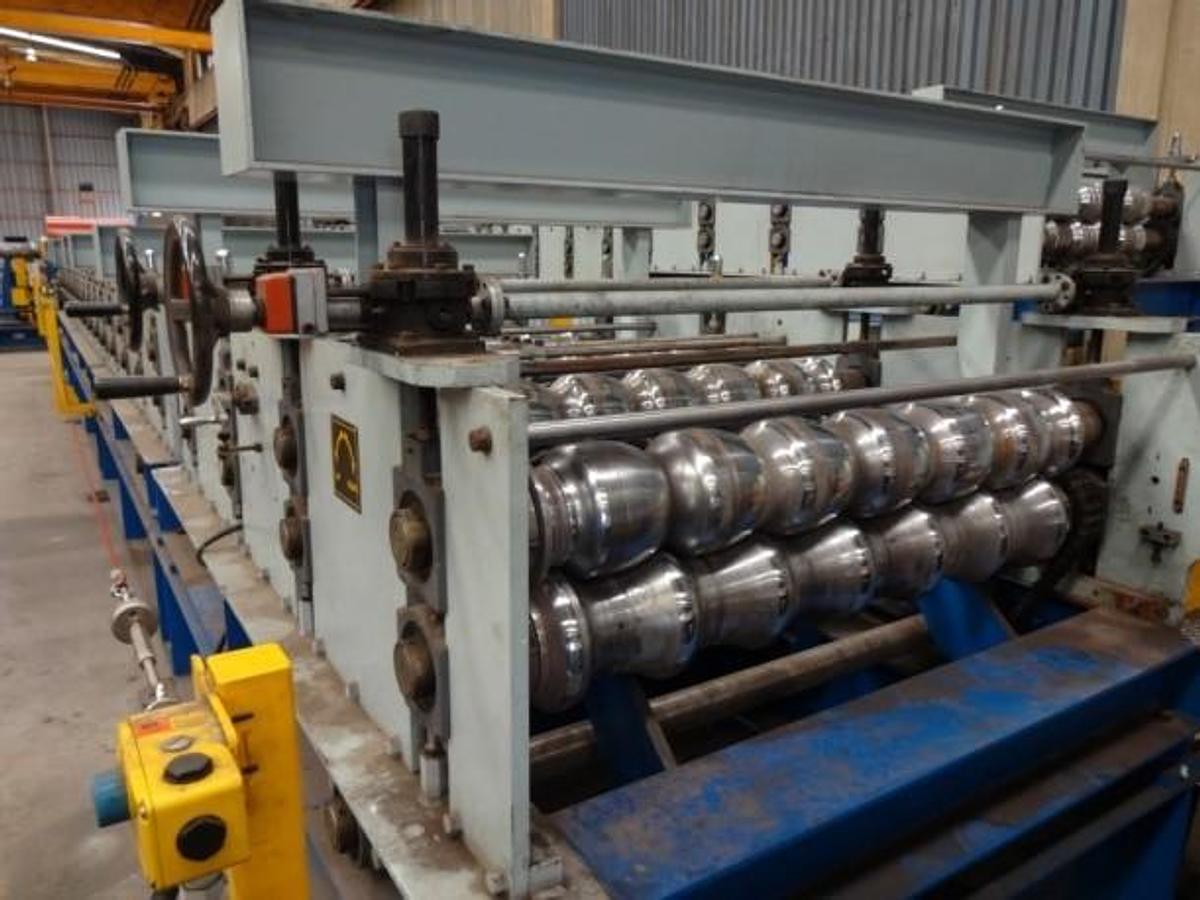

4 Base parts of cassette type forming machine

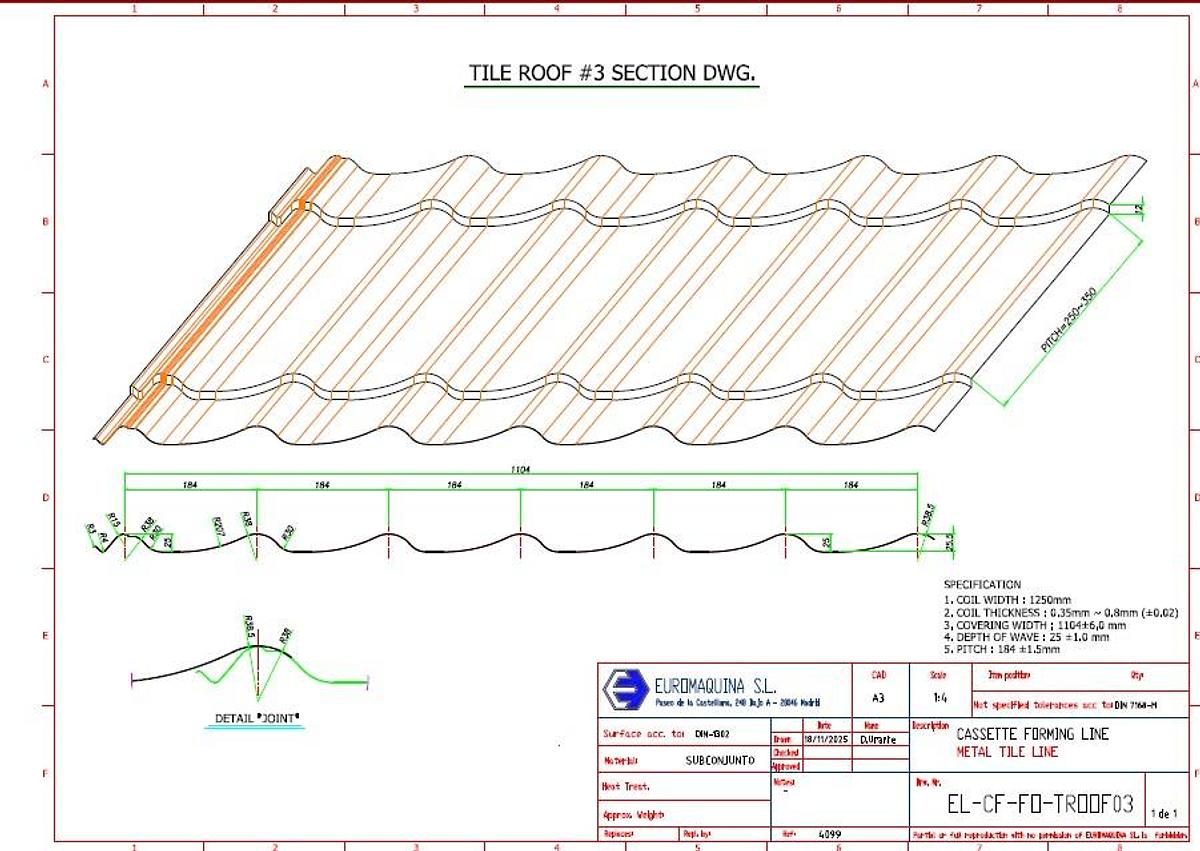

5 Roll forming machine for roof tile for "COPPO"

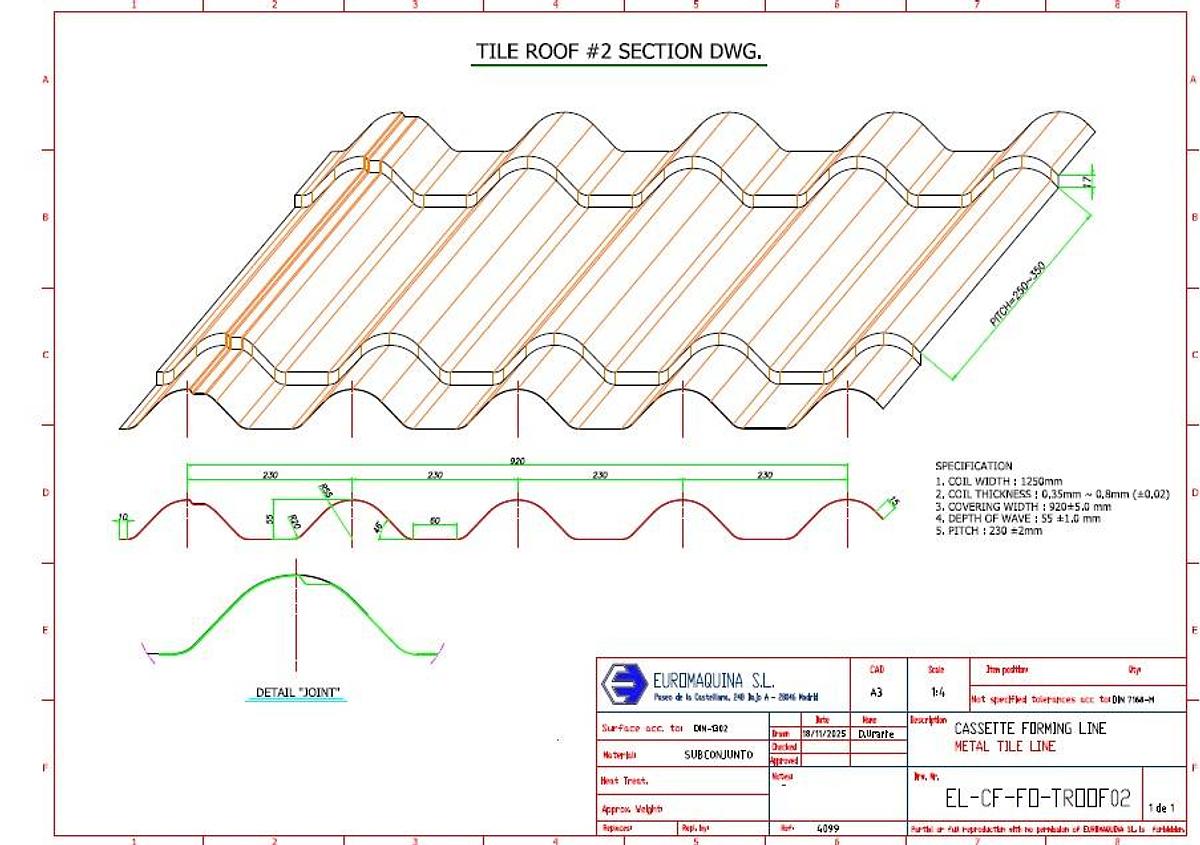

6 Roll forming machine for rooftile for "ATIIKA"

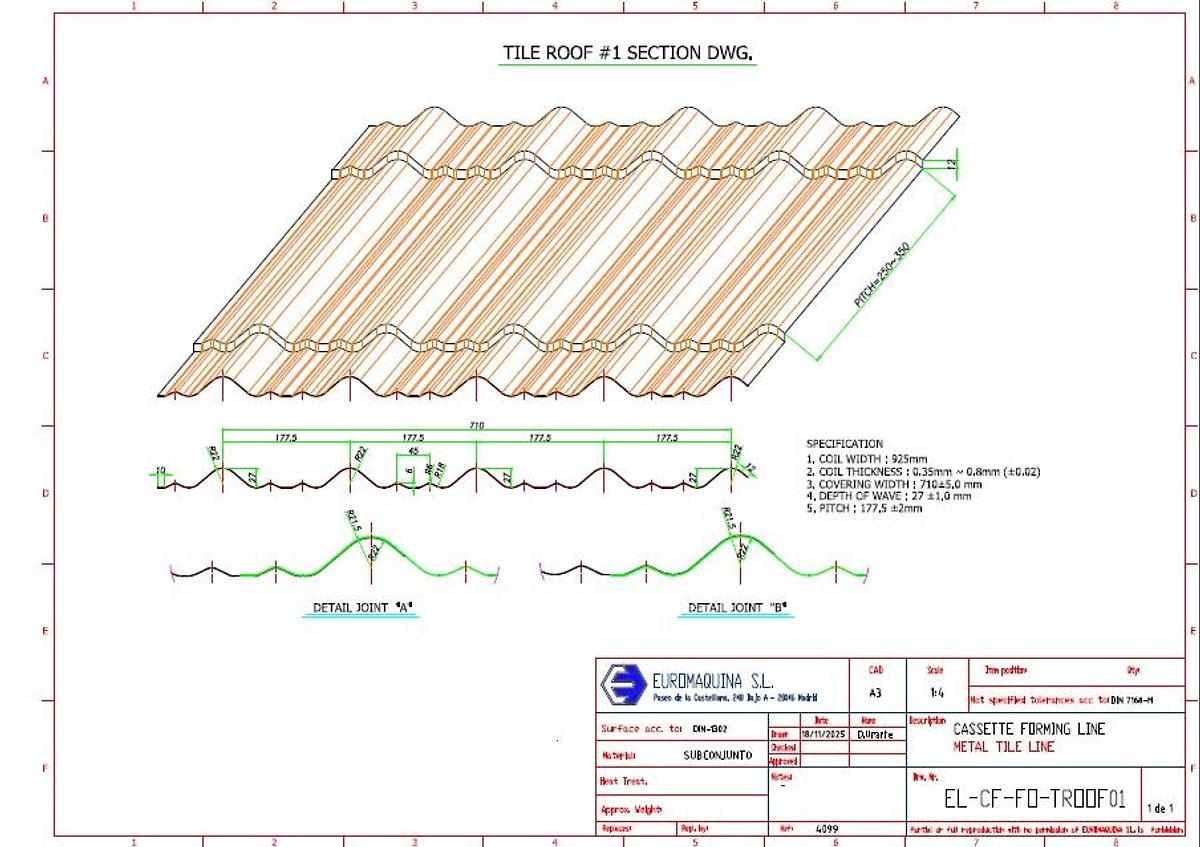

7 Roll forming machine for rooftile for "T177.5"

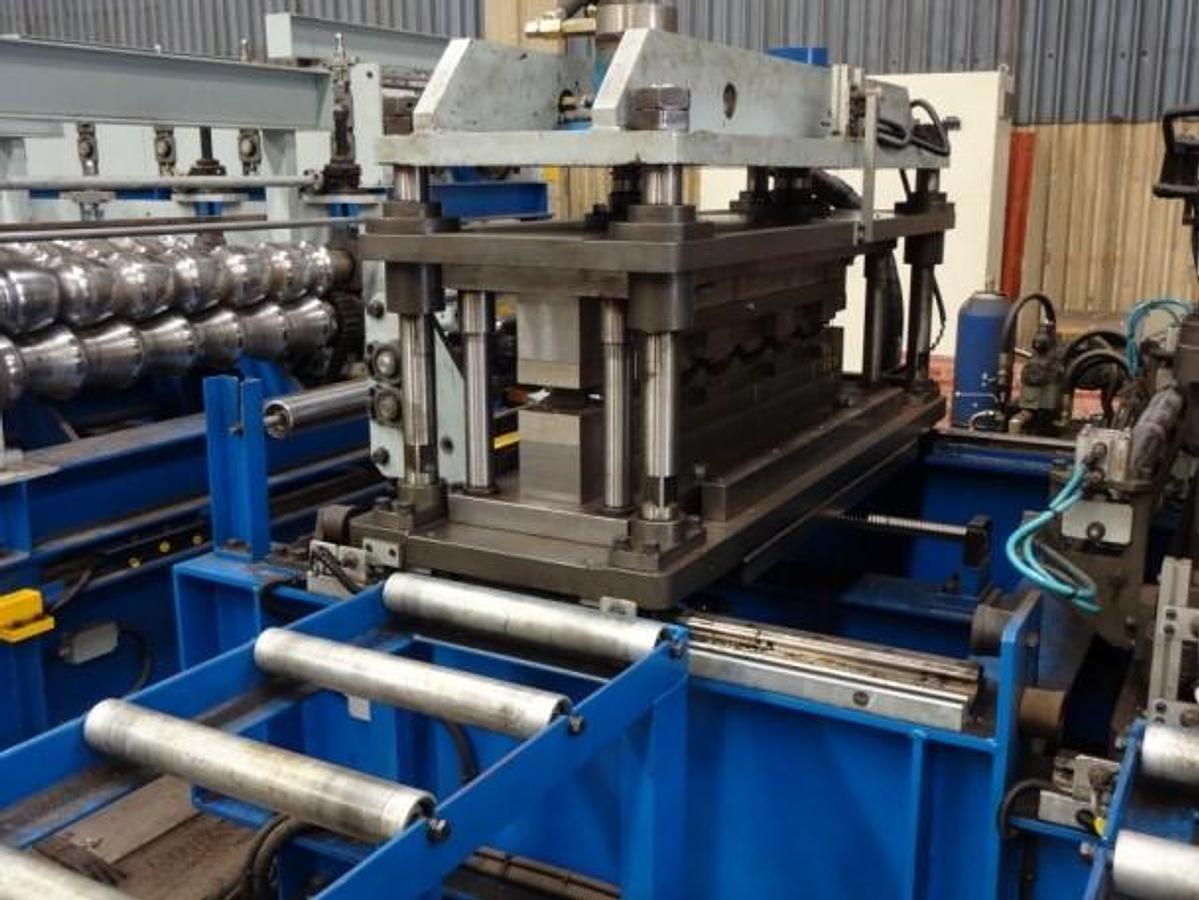

8 Shearing (Cut-off) machine: Flying type

9 Drawing part

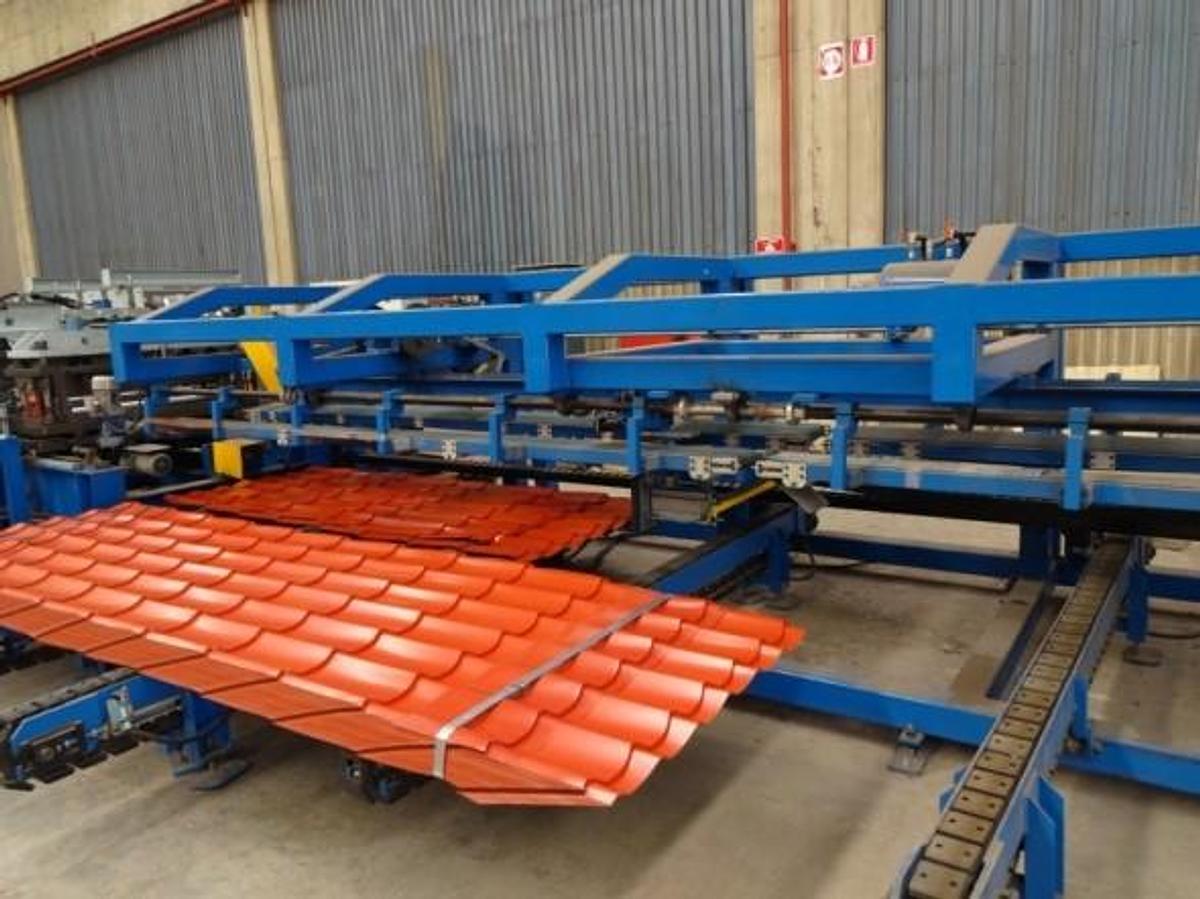

10 Auto stacker

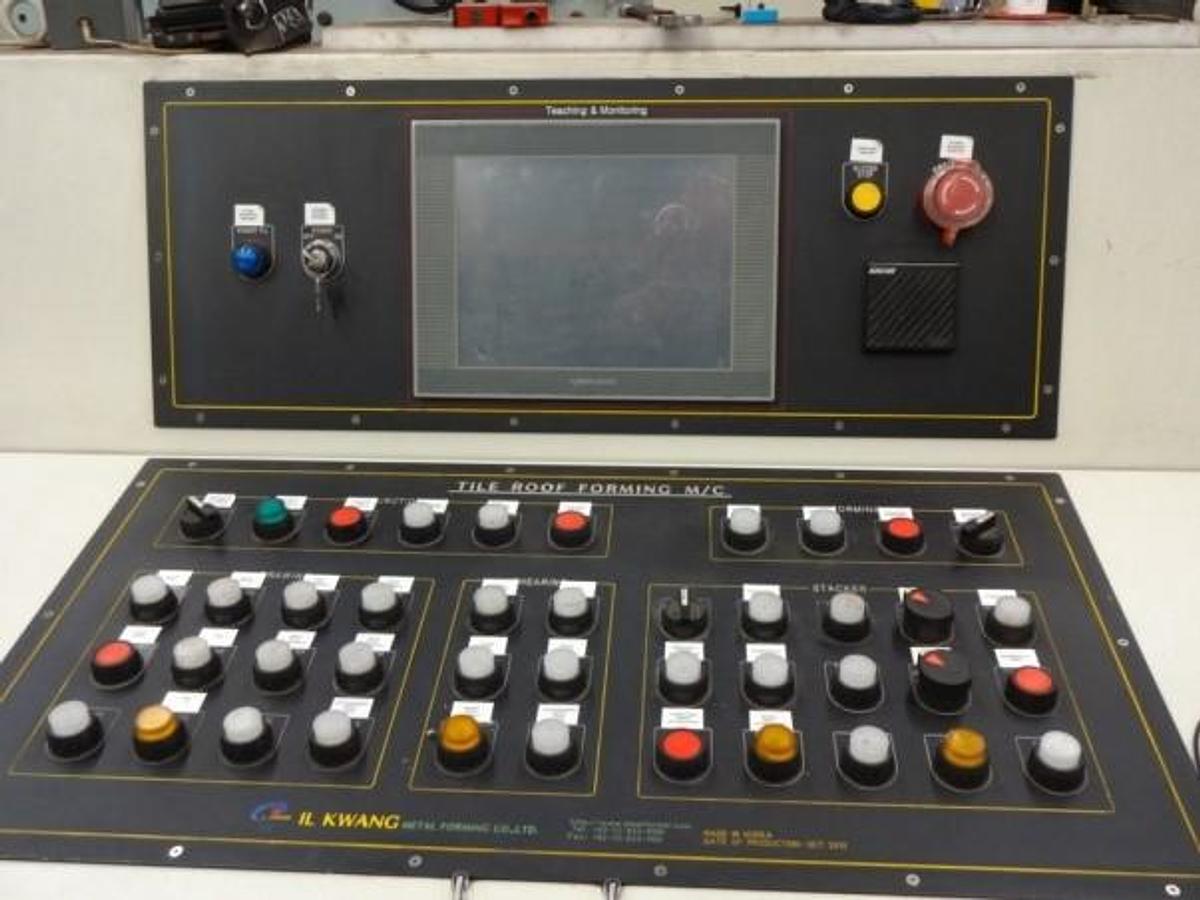

11 Electric control panel

Technical specifications

• Manufacturer: IL Kwang (Korea)
• Manufacturing: Year 2010
• Material: Pre-painted, galvanized steel sheet (ASTM A 526/ JIS G 3302 SGCC)
• Tensile strength: 250 ~ 320 MPA
• Max. coil width: 1250 mm
• Coil thickness: 0.35 – 0.8 mm
• Max. coil weight: 15 ton
• Outer coil diameter: Max. 1300 mm
• Inner coil diameter: 508 mm
• Line speed (length > 5 m): Max. 8 m/min
• Speed control: Frequency control by inverter
• Commercial voltage: 380 / 50 V/Hz 3 Phases
• Surface (LxWxH): Approx. 30 x 8 x 5 m

Brand of components

• Motor: Siemens (ICE. type)
• PLC + Inverter: Siemens 7
• Servo: Mitsubishi (with C.E )
• Touch screen: Pro-face (with C.E.)
• Electric components: L.G (with C.E.)
