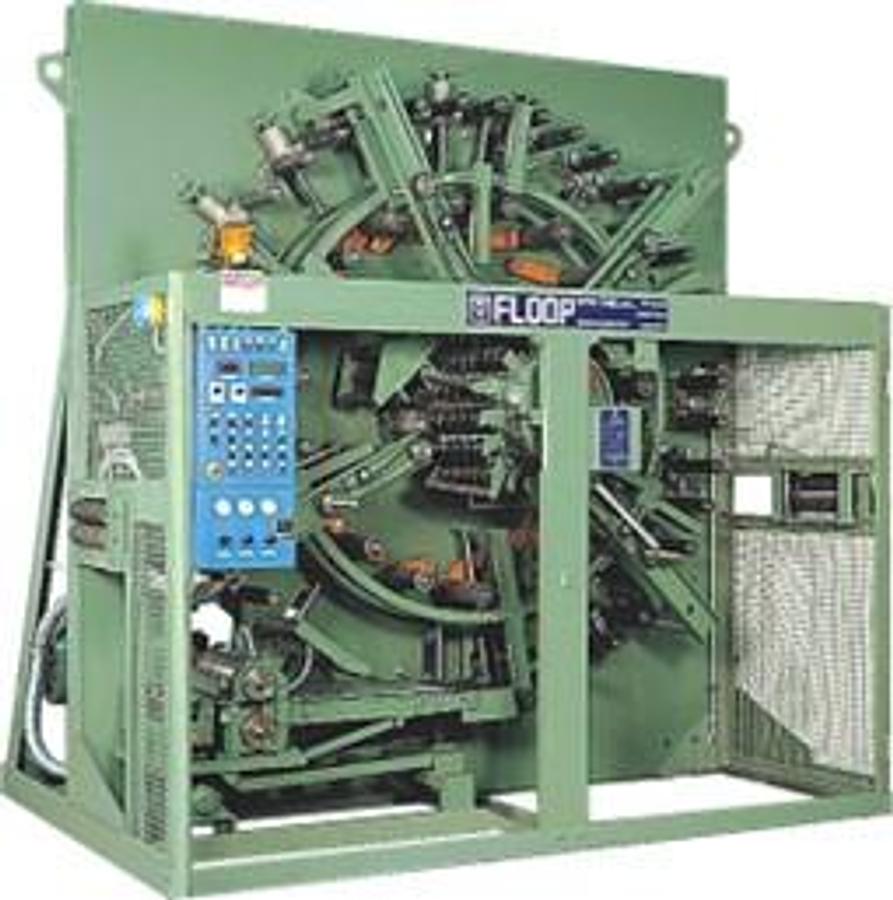

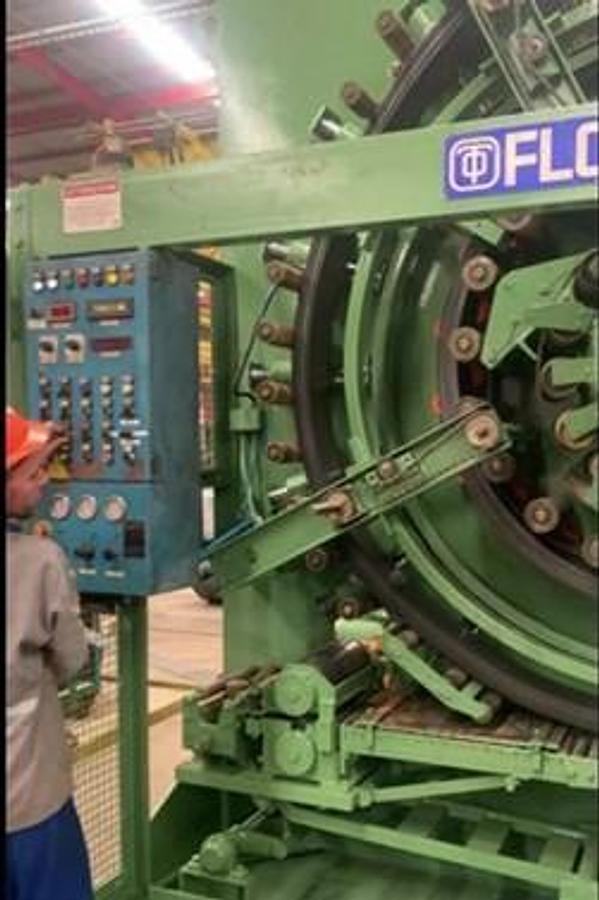

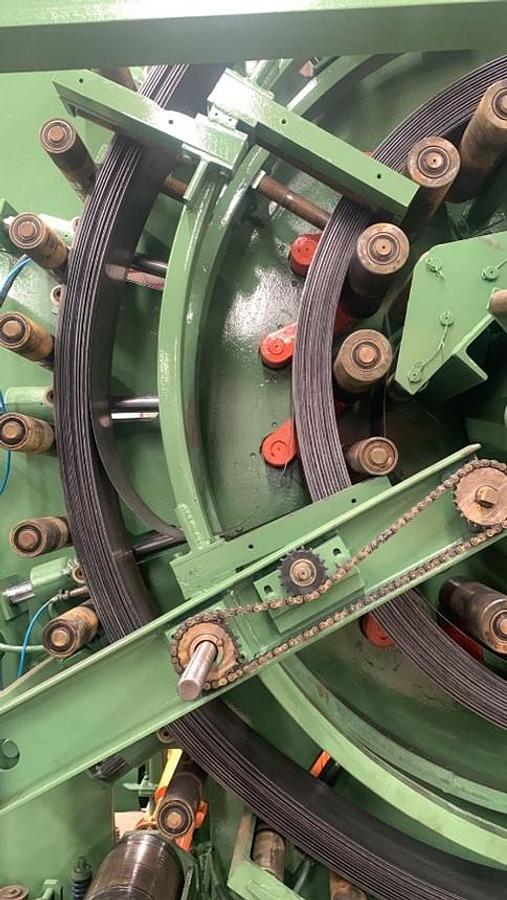

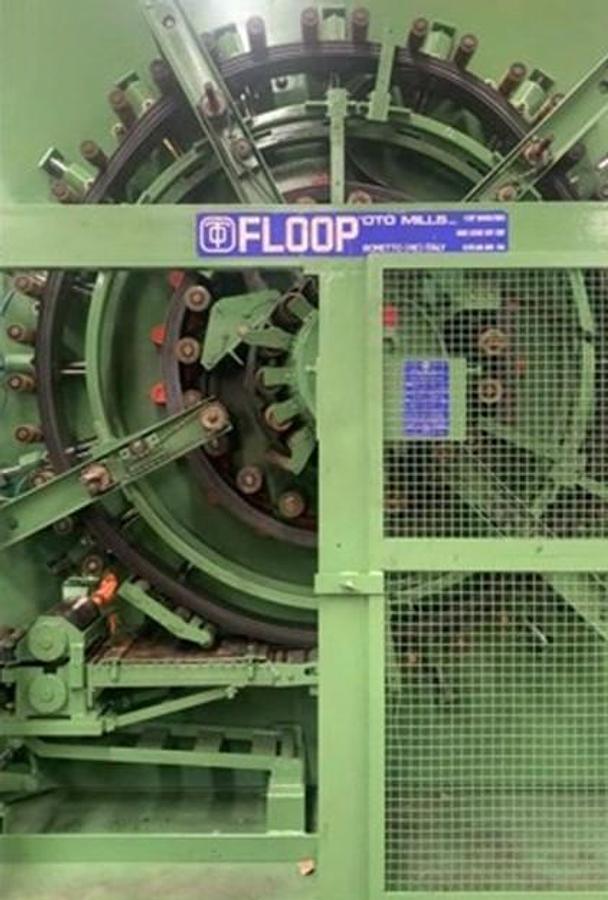

OTO MILLS FLOOP FR321 VERTICAL ACUMULATOR

OTO MILLS Vertical accumulator FLOOP FR321

The FLOOP OTO FR321 is a vertical strip accumulator designed to ensure a continuous and stable strip feeding process in welded tube mills and roll-forming lines. Its system allows the accumulator to be filled both while the line is running and while it is stopped, significantly reducing coil change time. It is a robust and reliable solution for high-speed production environments.

Technical specifications

Manufacturer: OTO MILLS

Model: OTO FR 321

Strip thickness: 1.0 – 4.0 mm

Strip width: 38 – 325 mm

Yield strength: 270 – 400 N/mm²

Maximum line speed: 160 m/min

Maximum loading speed: 500 m/min

Accumulation capacity (depending on thickness): up to 600 m

Maximum strip elongation: 15 %

Pinch-roll drive power: 75 kW

Scope of Supply

Complete OTO MILLS FLOOP FR321 vertical accumulator

Existing mechanical spare parts

Set of spare parts for conversion to AC drive (currently operating on DC)
