SEUTHE HIGH PRECISION TUBE MILL 76x3

High Precision Tube Mill SEUTHE / ABBEY / MAIR RS65 – 76.2 x 3.25 mm

High-quality precision HF welded tube mill designed to manufacture tubes with excellent surface quality and tight dimensional tolerances, specifically engineered for demanding applications in automotive, furniture, and high-quality tube production.

Technical specifications

• Tube mill: High precision
• Model: RS65 & MPS150/4/F
• Tube OD range: 25 – 76.2 mm
• Wall thickness range: 0.7 – 3.25 mm
• HF welder: 250 kW
• Maximum speed: 100 m/min

Special features

· Strip washing tunnel: cleaning tunnel to remove oils and dirt from strip

· Inline cold rolling with Vollmer thickness control

• Perfect thickness control of strip
• Strip thickness reduction: 0.03 mm to 0.3 mm

· Reinforced forming stands for high tensile strength

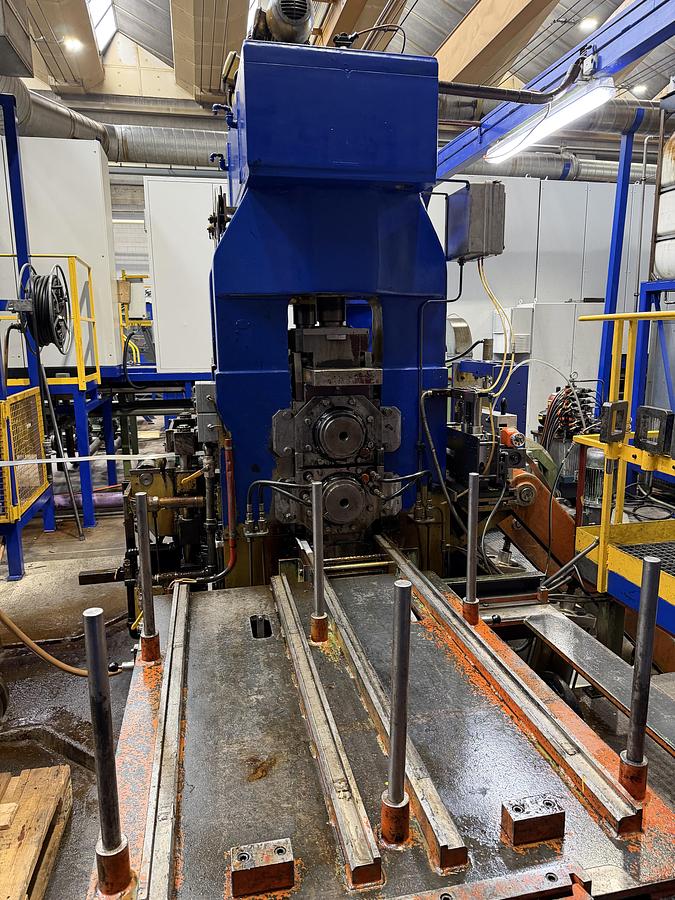

· 6 sizing-reducing stands

· All contact parts are non-marking

SEUTHE / ABBEY / MAIR HF welded tube line 76x3,25 mm

Consistent tolerances and superior surface finish

RS65 line integrates strip washing tunnel and inline cold rolling unit (Carl Wetzel KG) with Vollmer thickness control for precise strip management (0.03–0.3 mm reduction).

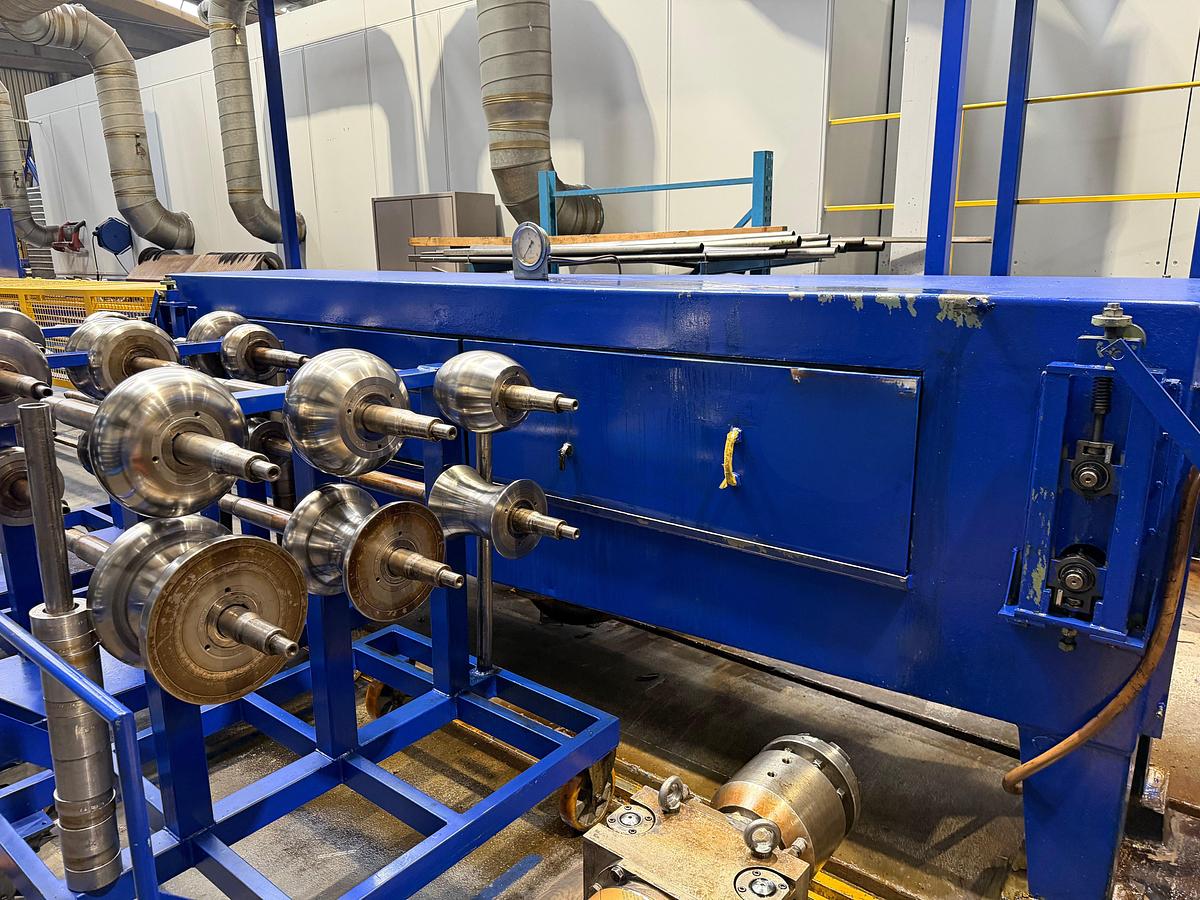

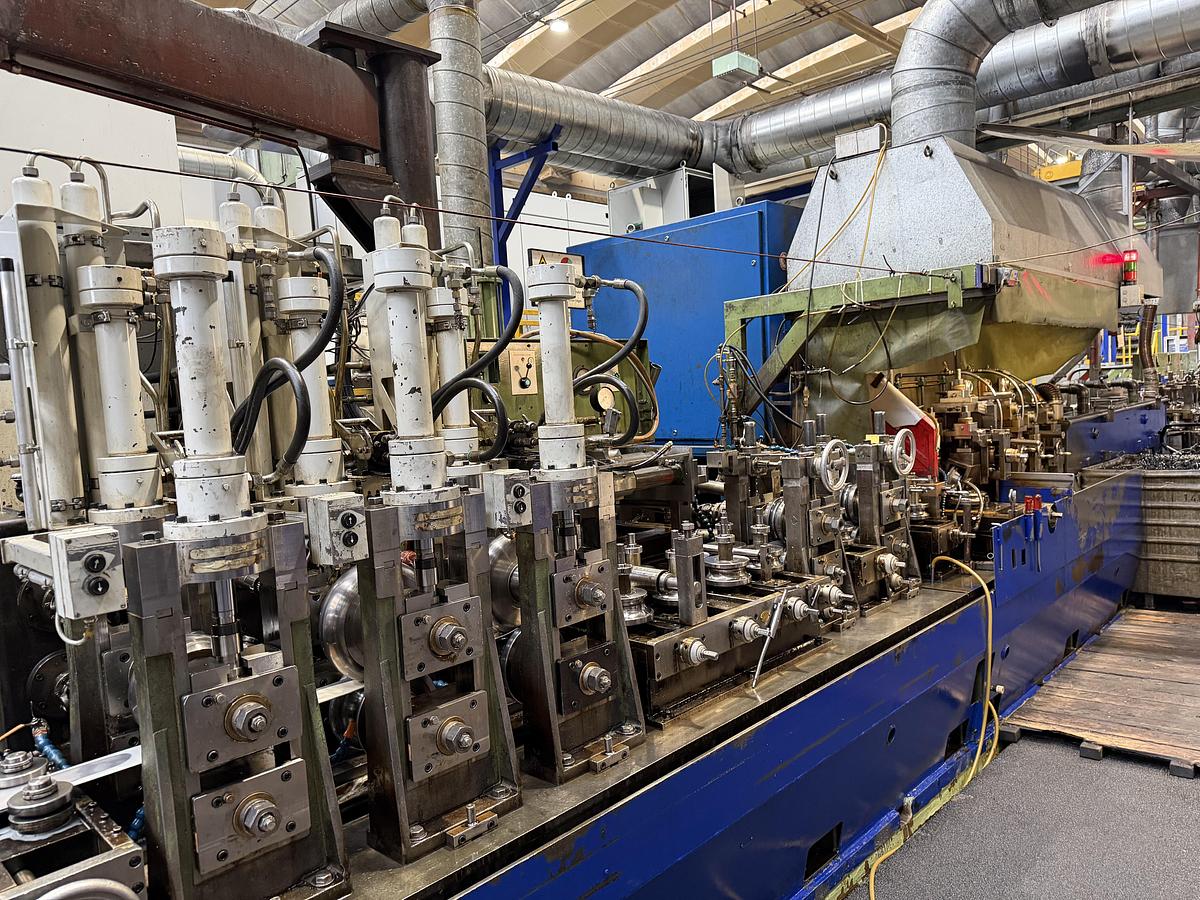

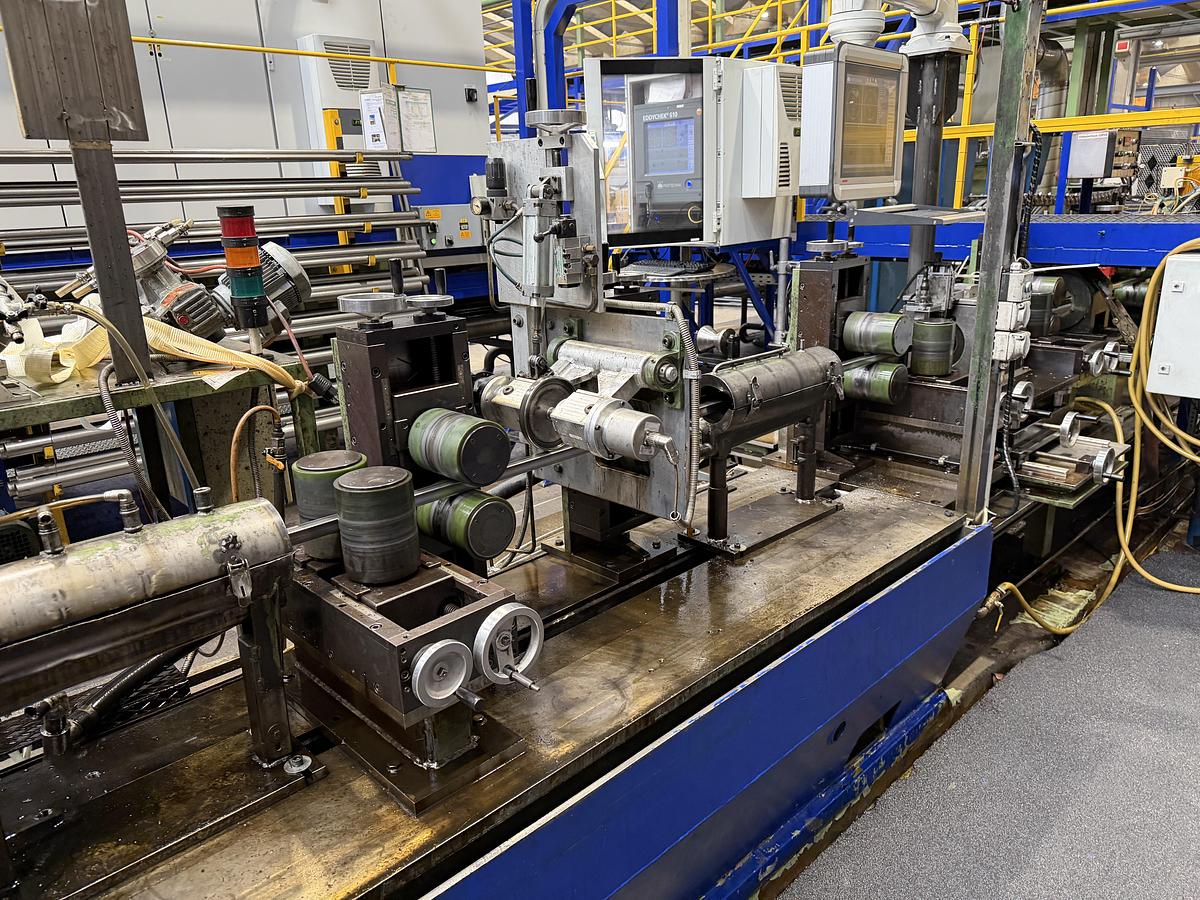

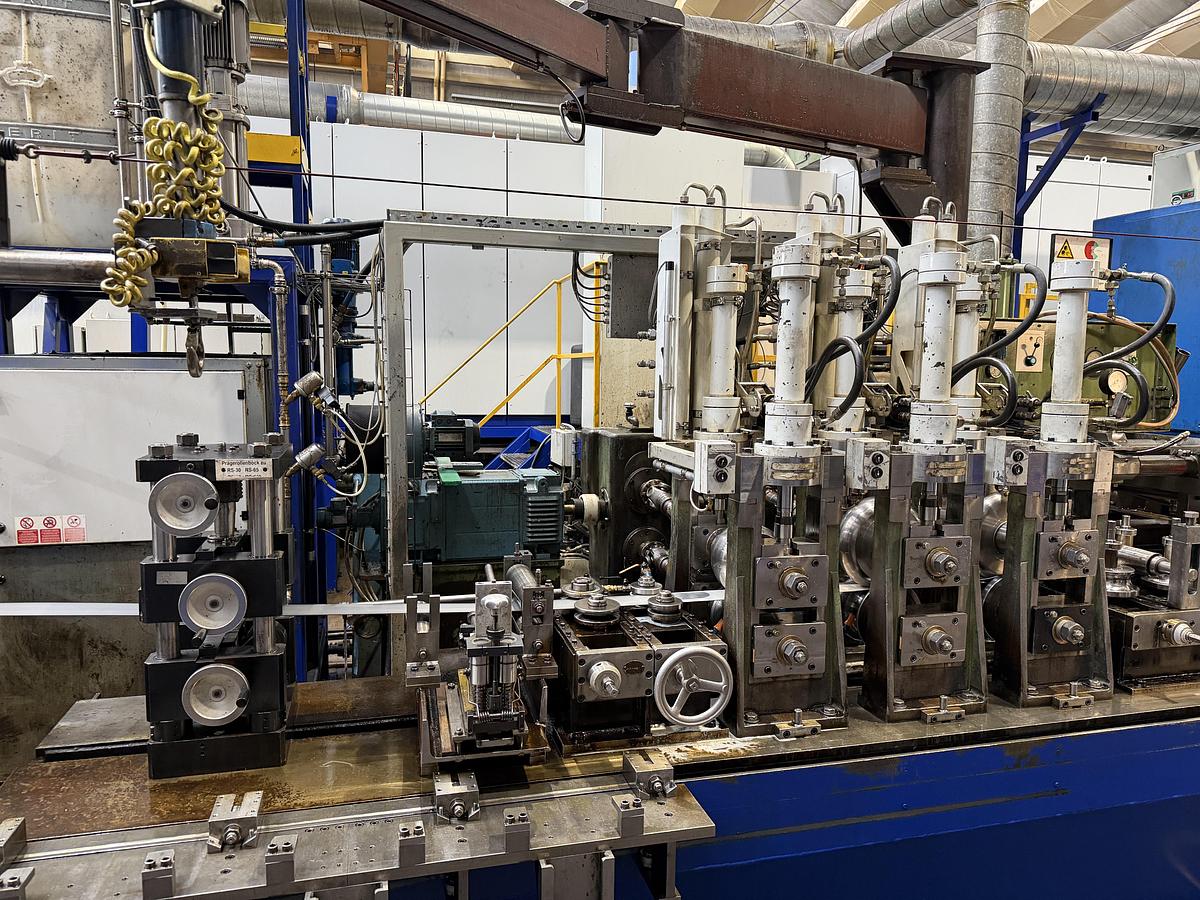

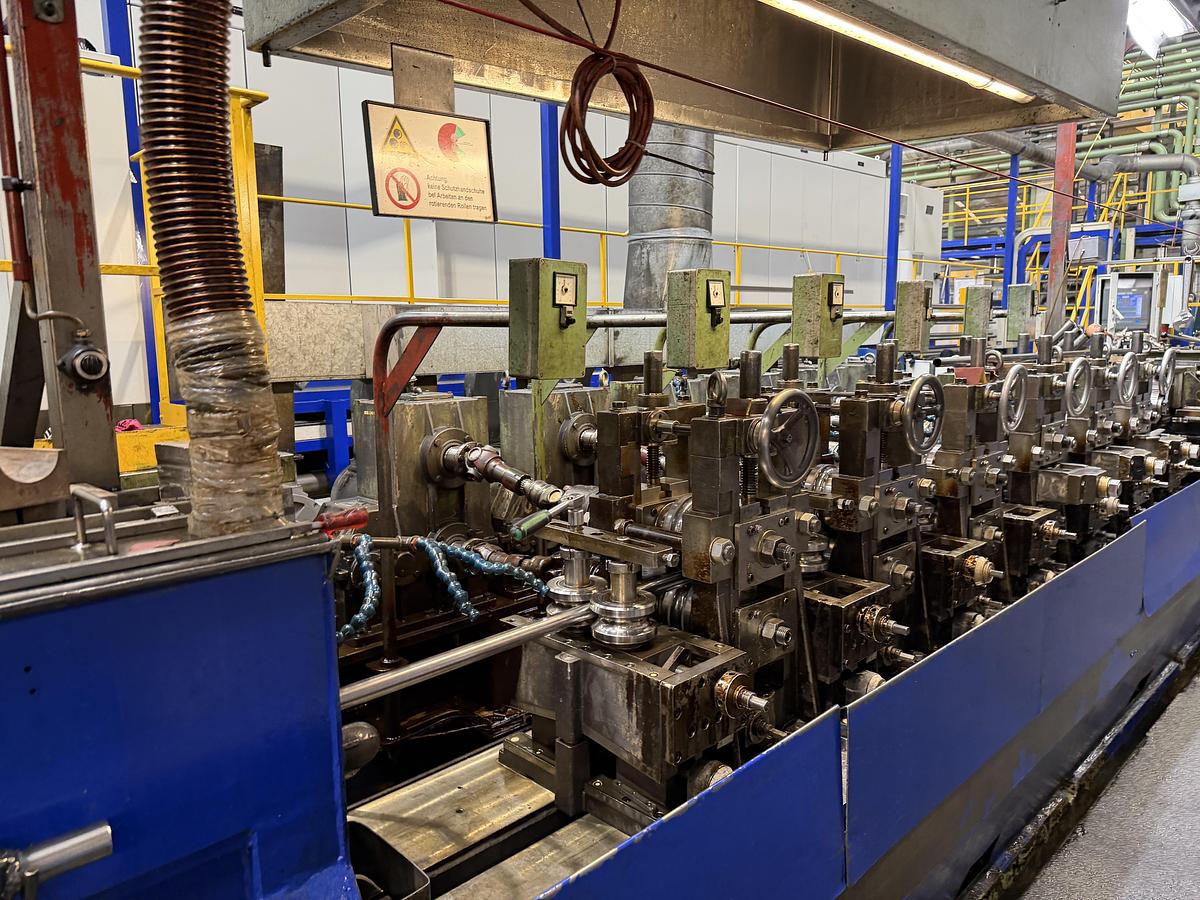

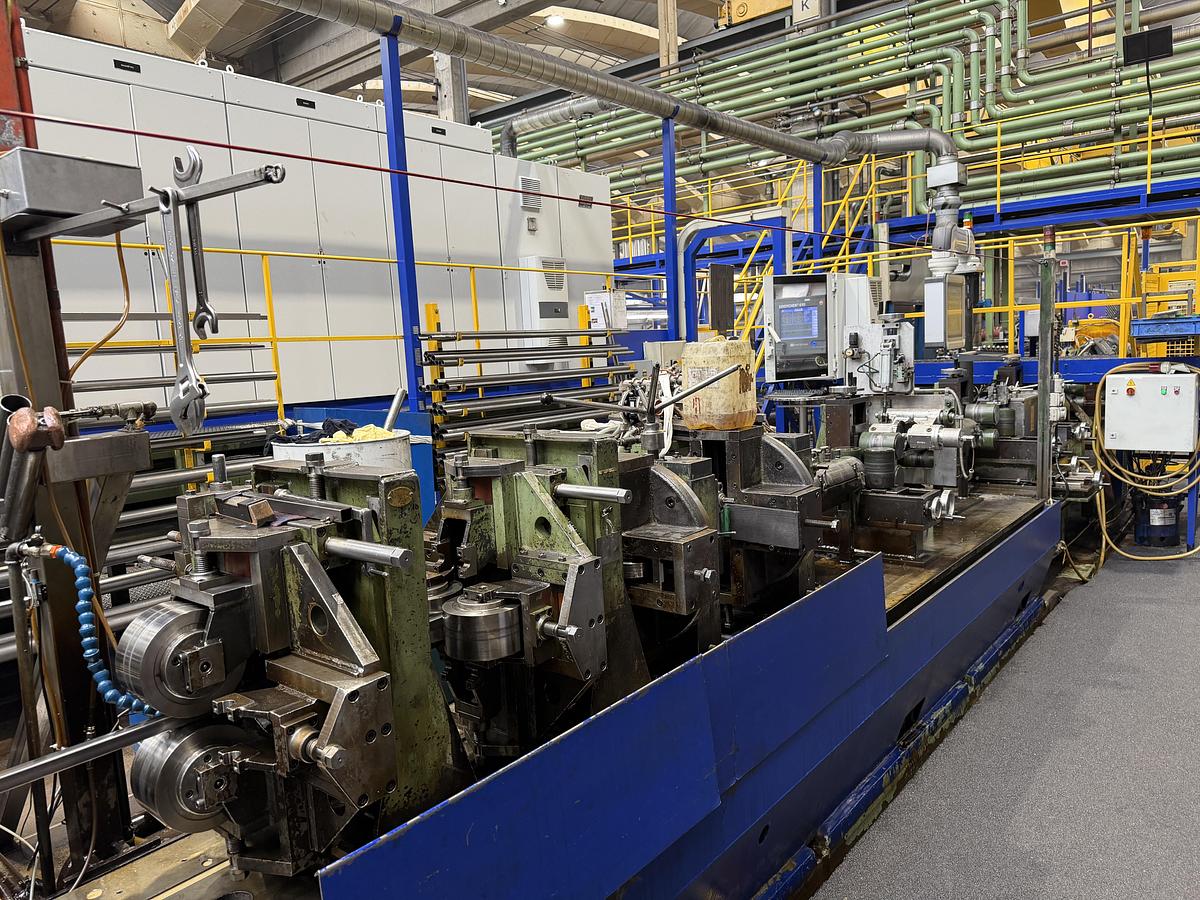

ABBEY ETNA forming section features motorized breakdown stands, finpass stands, 250 kW HF welder, complete inside scarfing and triple OD scarfing, plus 6-stand sizing with individual motors.

Inline Quality Control & Finishing

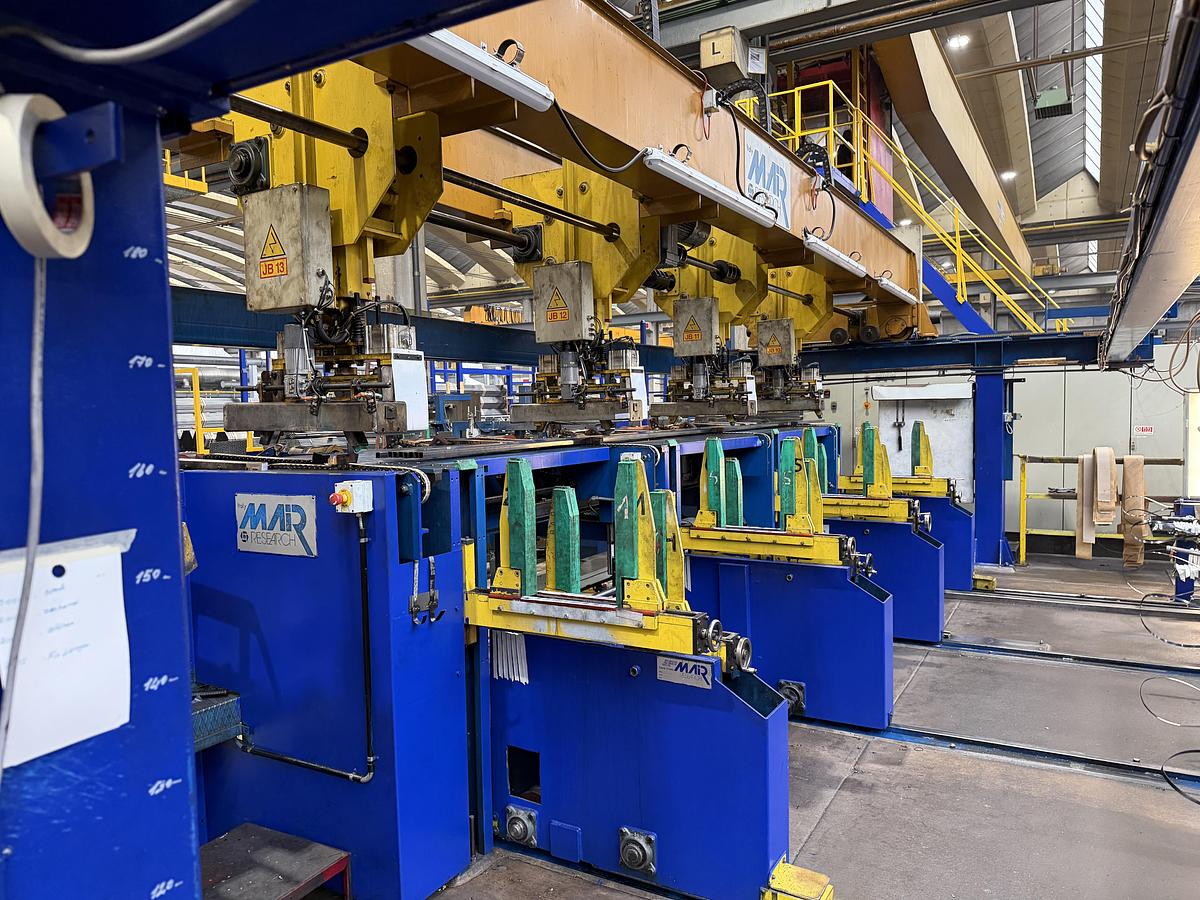

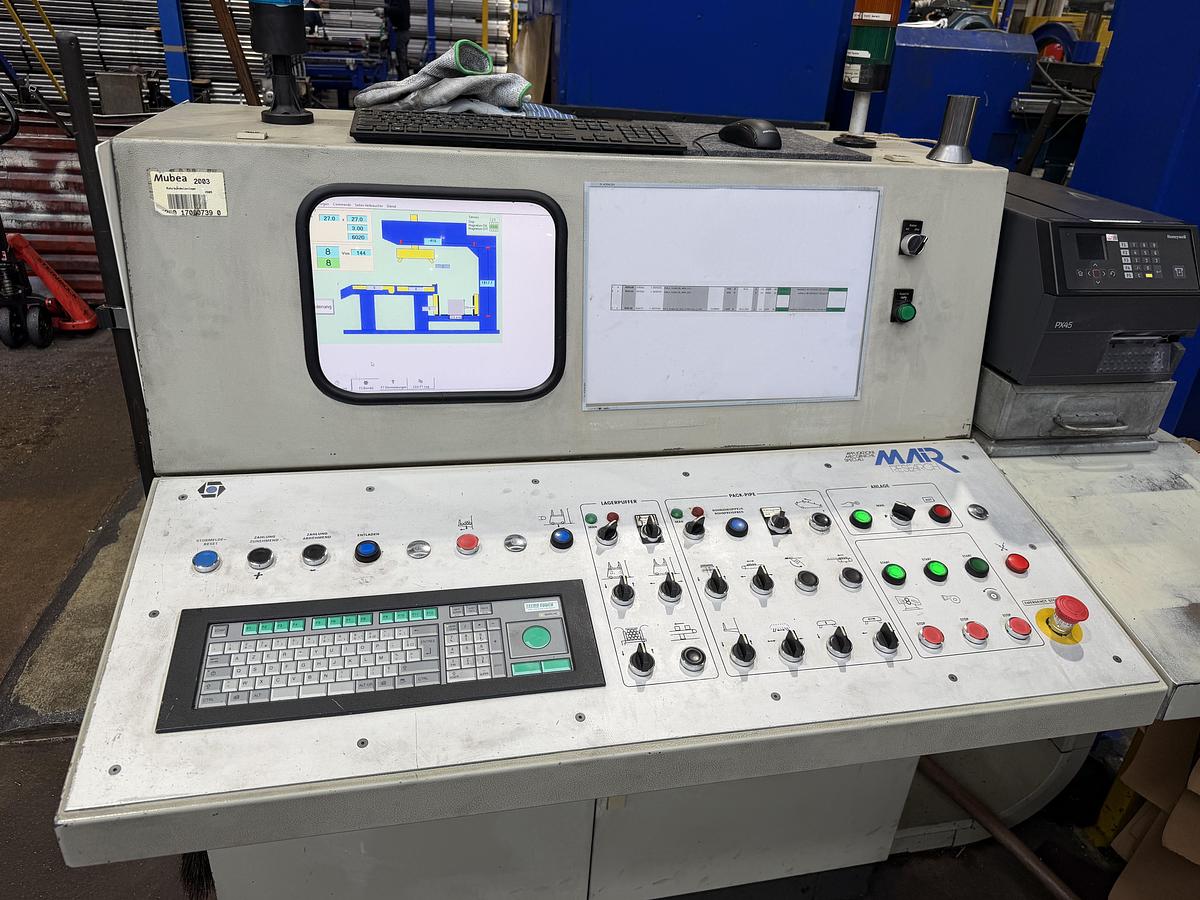

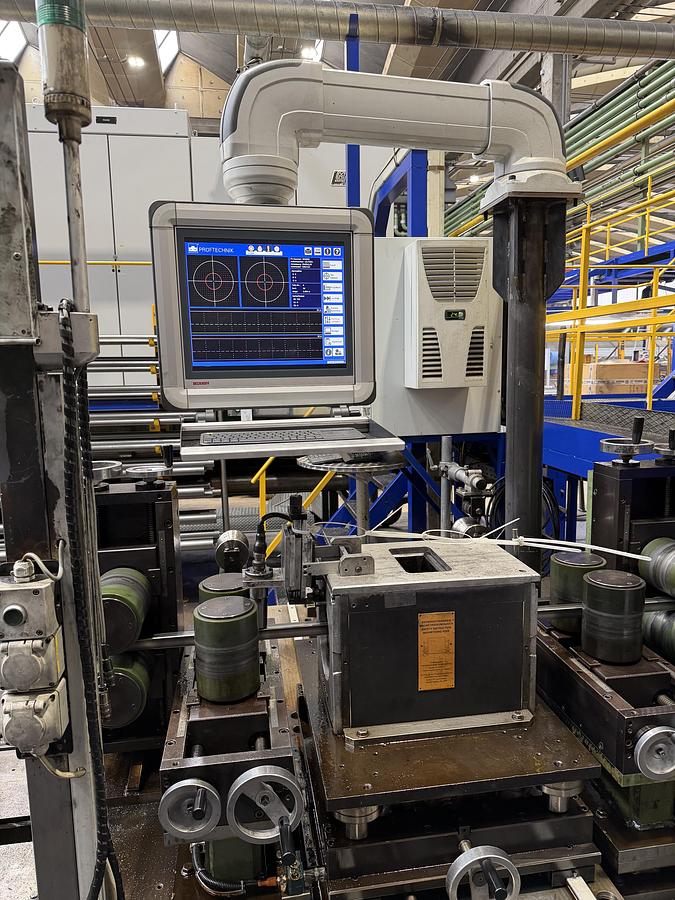

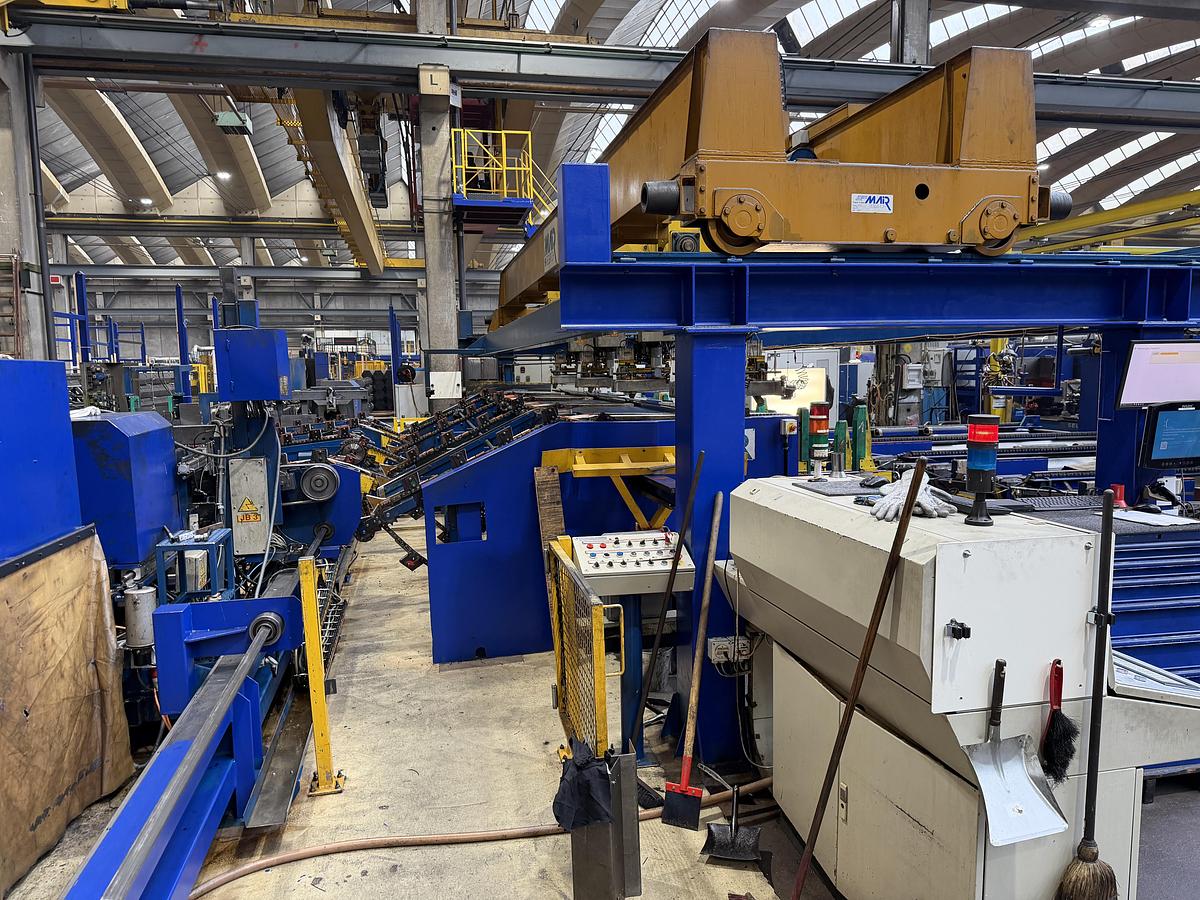

Prüftechnik Eddycheck 610 eddy current testing, demagnetisation, defect marking, anti-rust oiling, and MAIR automatic magnetic packing system ensure production-ready output.

High-Speed Cutting

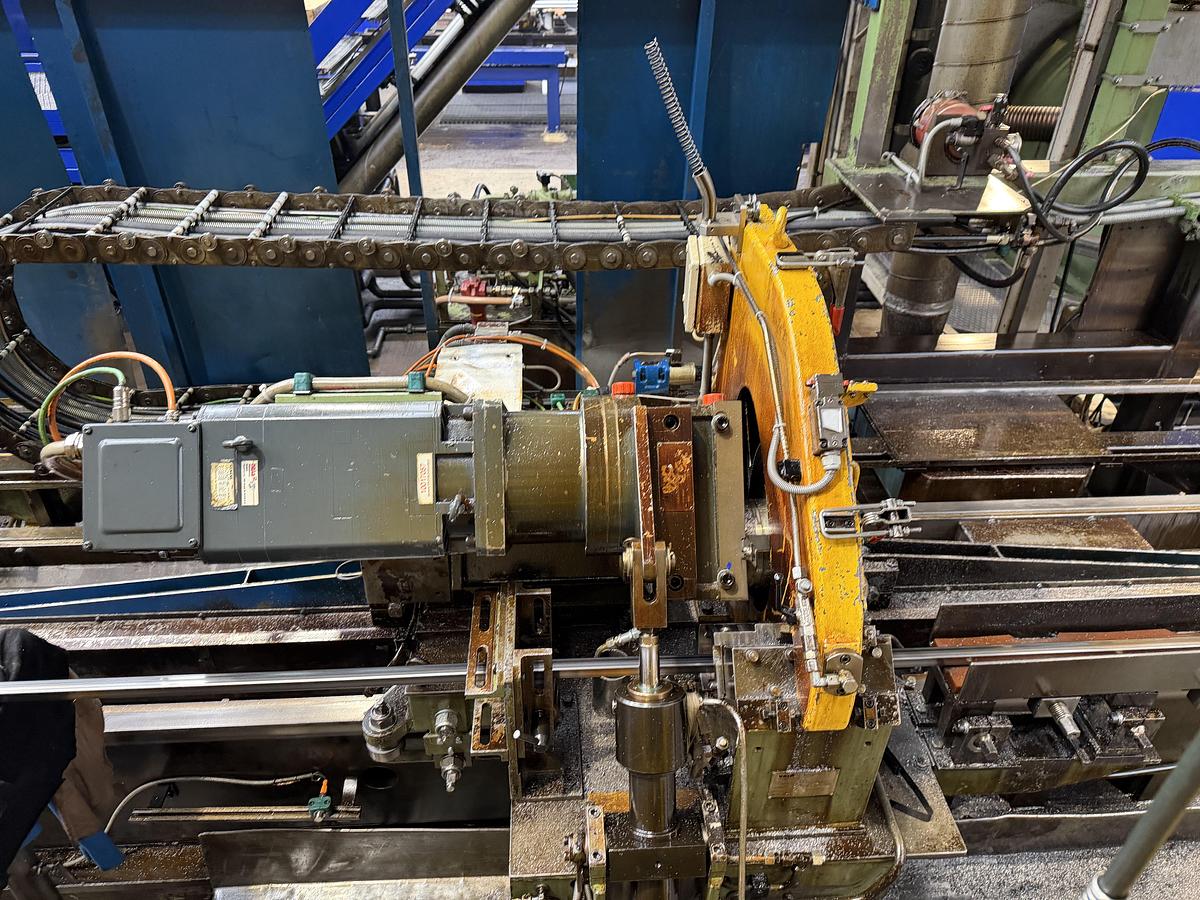

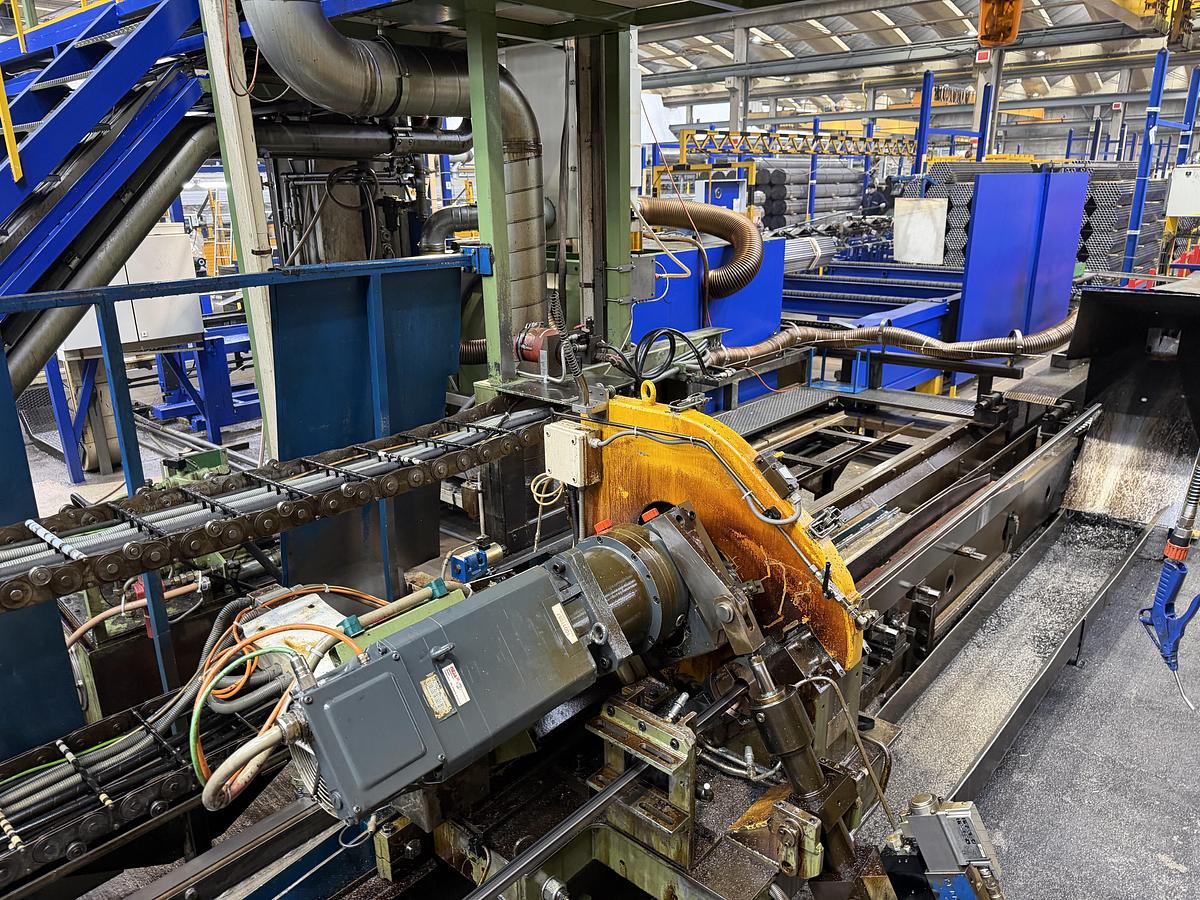

SEUTHE TS90 flying saw with linear OPTRONIC CNC control and non-marking jaws supports production speeds up to 100 m/min.

Delivers consistent high-quality tubes with integrated thickness control and comprehensive inline testing—optimized for demanding industrial applications.

Current status

Offered in very good condition, currently connected and in production in Europe, this complete tube mill is an excellent opportunity for manufacturers seeking a high-end, turnkey solution for precision welded tube production.
