2002 MTM STAINLESS TUBE MILL 70C

MTM 70/C stainless steel tube mill for Ø 76 x 4 mm

This high-performance MTM 70/C tube mill, specially designed for the production of stainless steel welded tubes with excellent forming and welding quality. Equipped with a powerful TRUMPF laser welding system, this line provides reliable and efficient production for a wide range of stainless steel tube applications.

Main technical specifications

Manufacturer: MTM SpA

Model: MTM 70/C

Tube diameter range: 18 – 76 mm

Tube thickness range: 1 – 4 mm

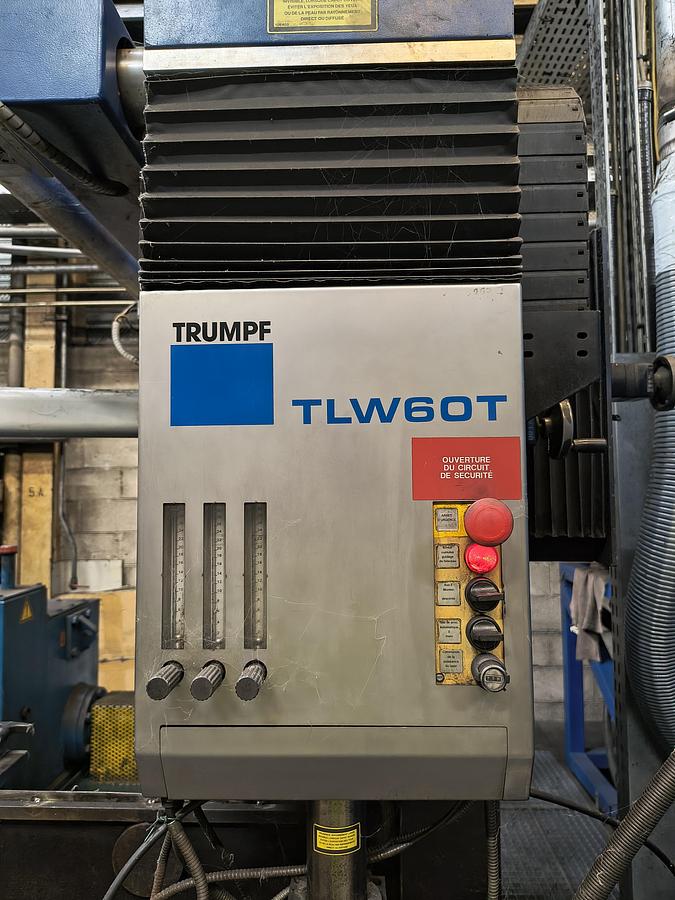

Welding system: TRUMPF TWL60 – 12,000 W Laser Welder

Maximum line speed: 25 m/min

Production speed:

• Up to 20 m/min at 1 mm thickness
•  Up to 6 m/min at 4 mm thickness

Scope of Supply

The complete line includes:

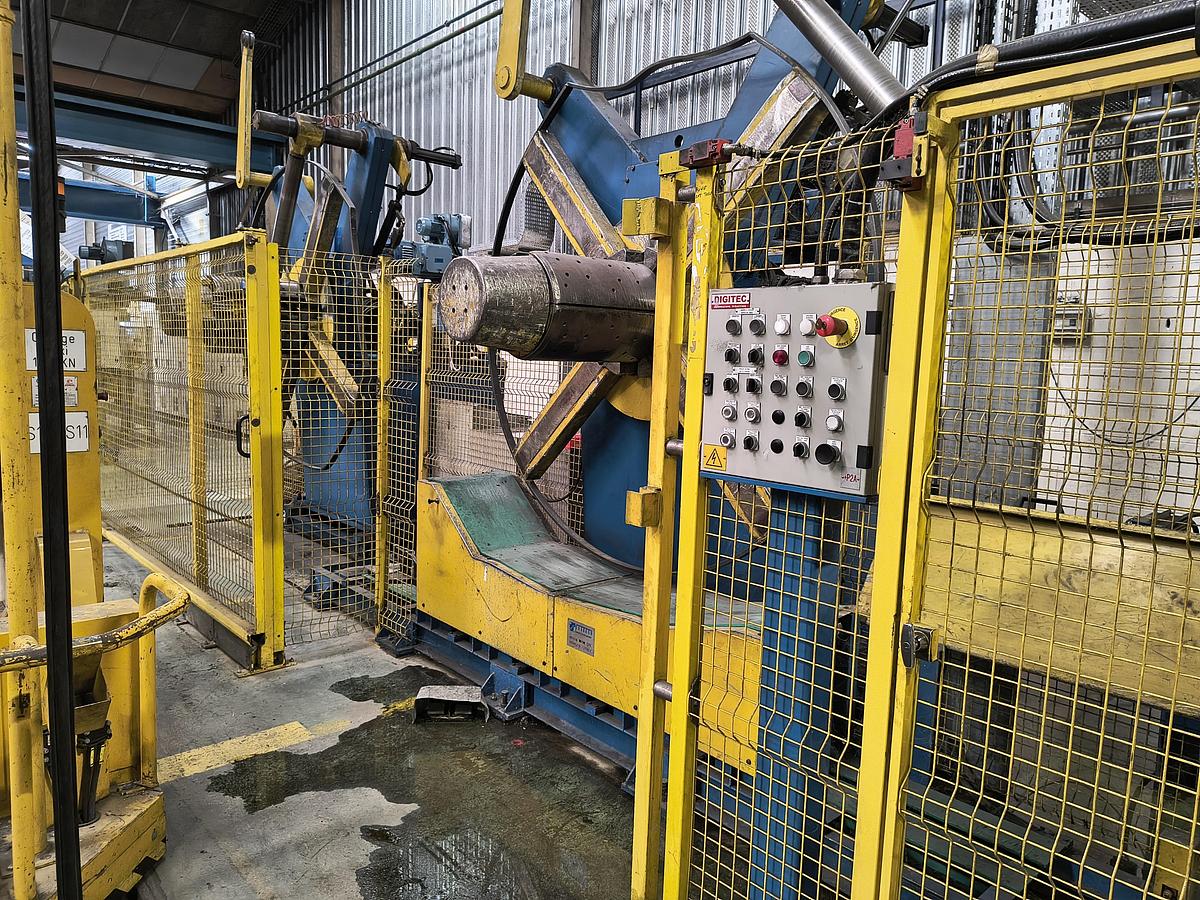

• Single motorized uncoiler. (x2)
• Strip threading pinch roll.
• Strip joiner with pinch roll and straightener.
• Strip accumulator with inlet and outlet pinch rolls.
• Pull control device.
• Edge preparation unit (edge scarfing).

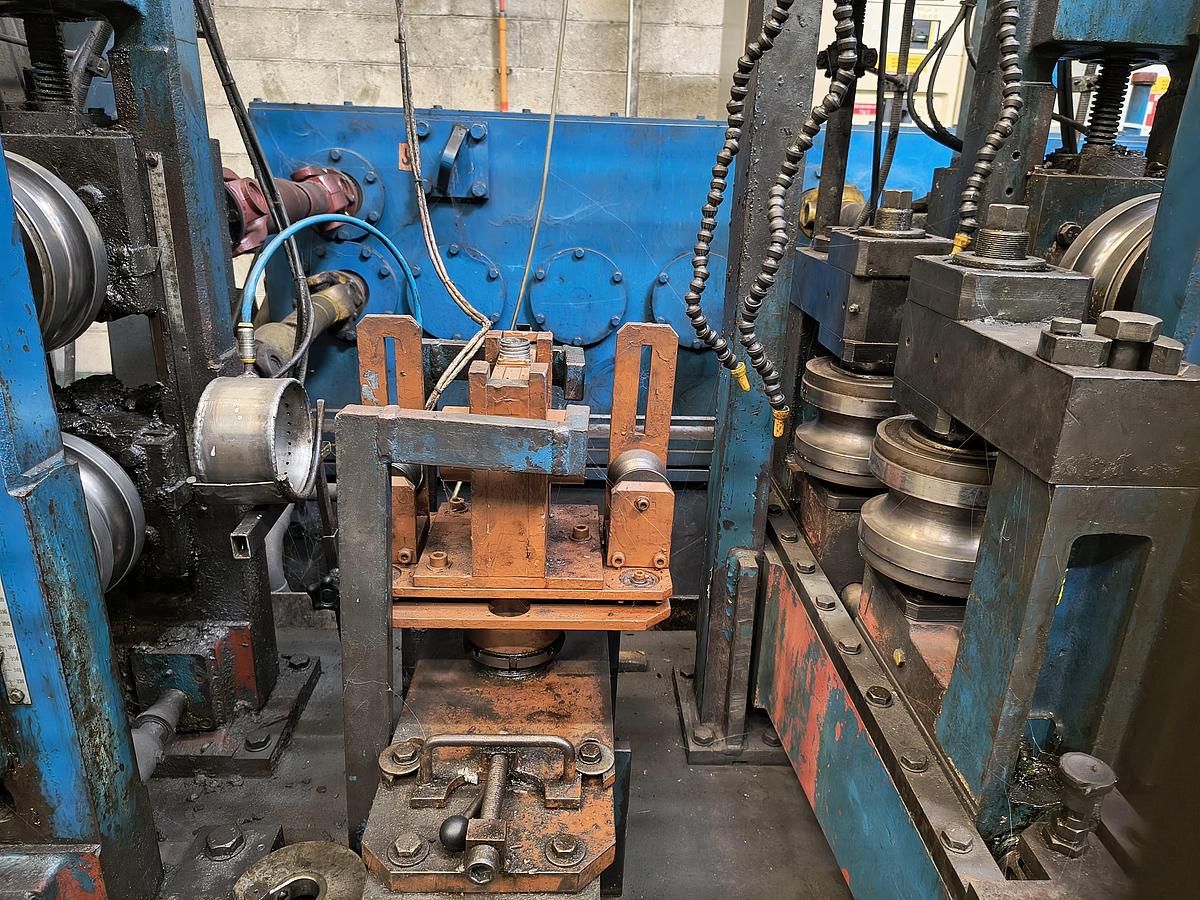

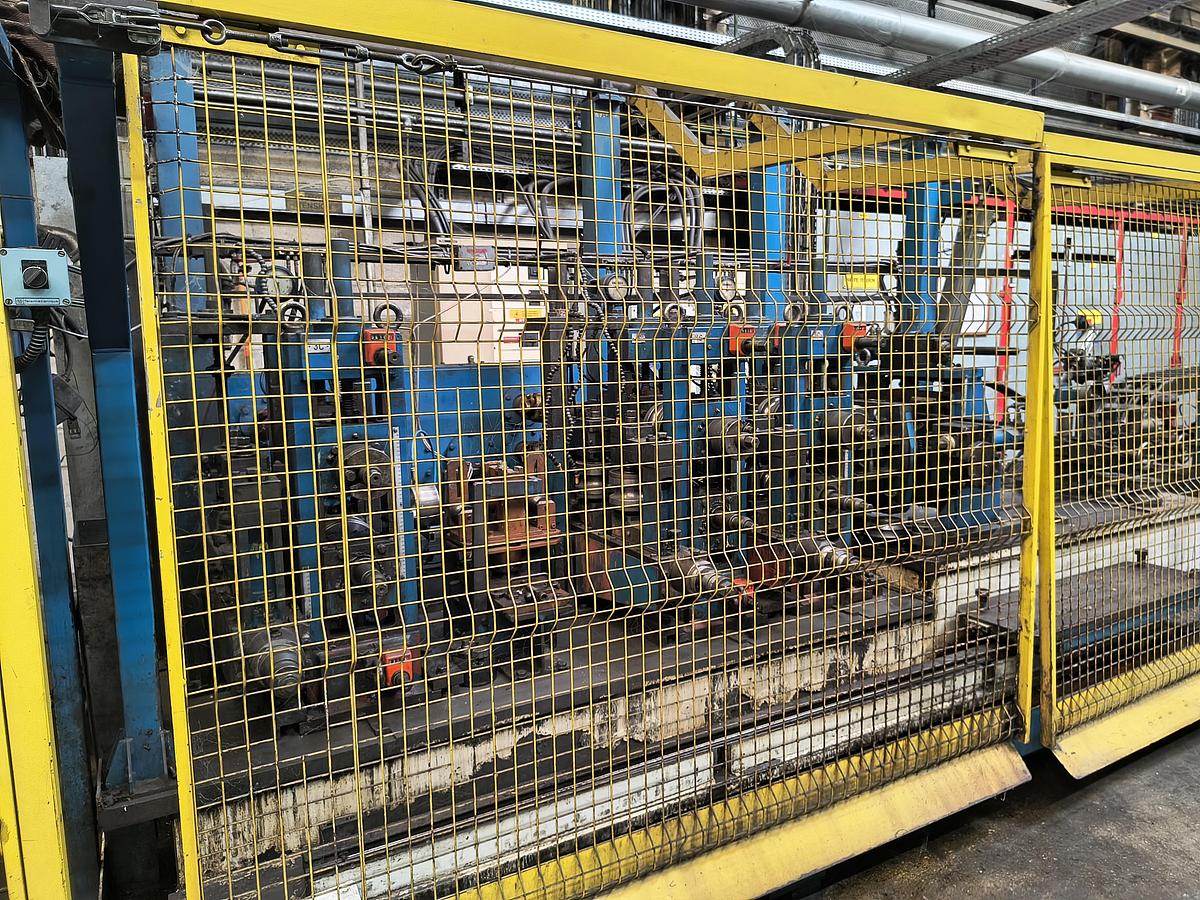

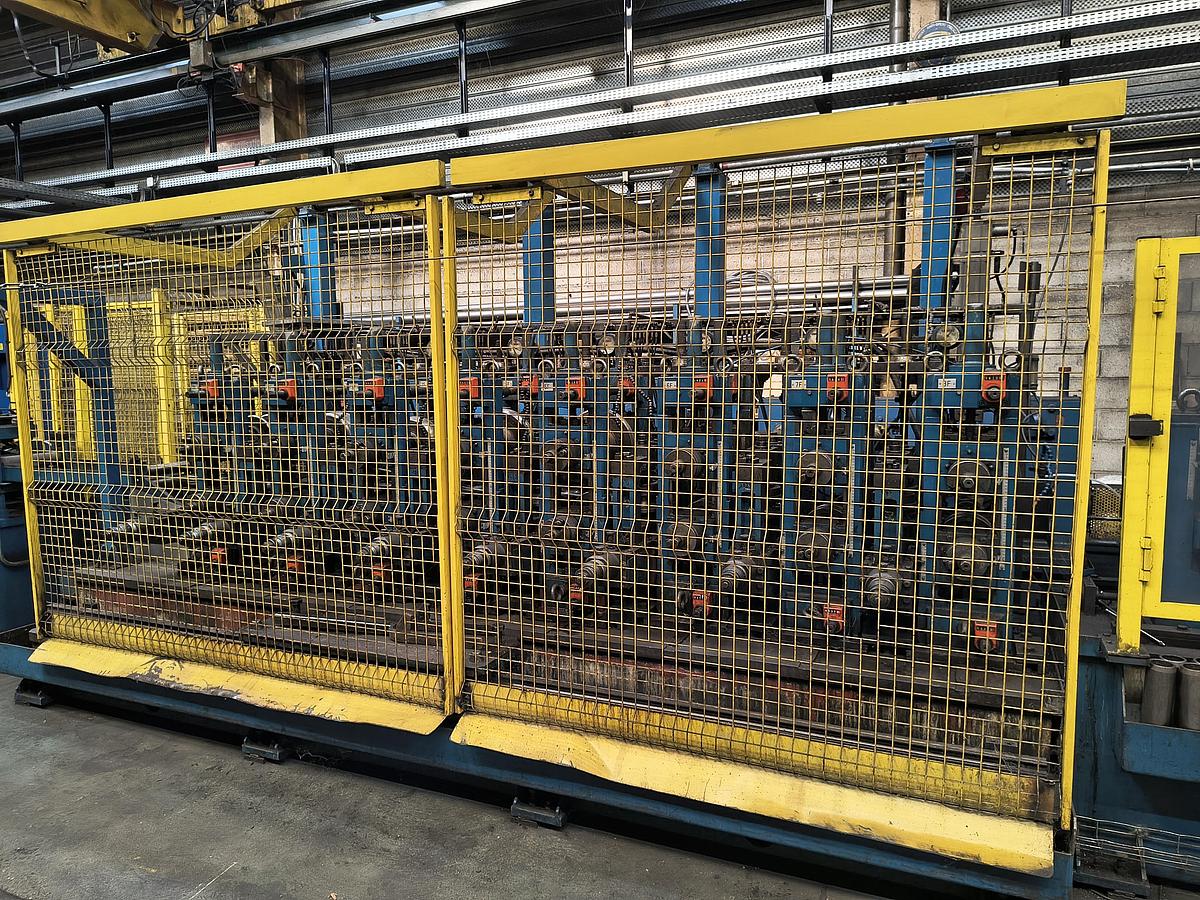

• Tube forming machine (forming – laser welding – sizing).

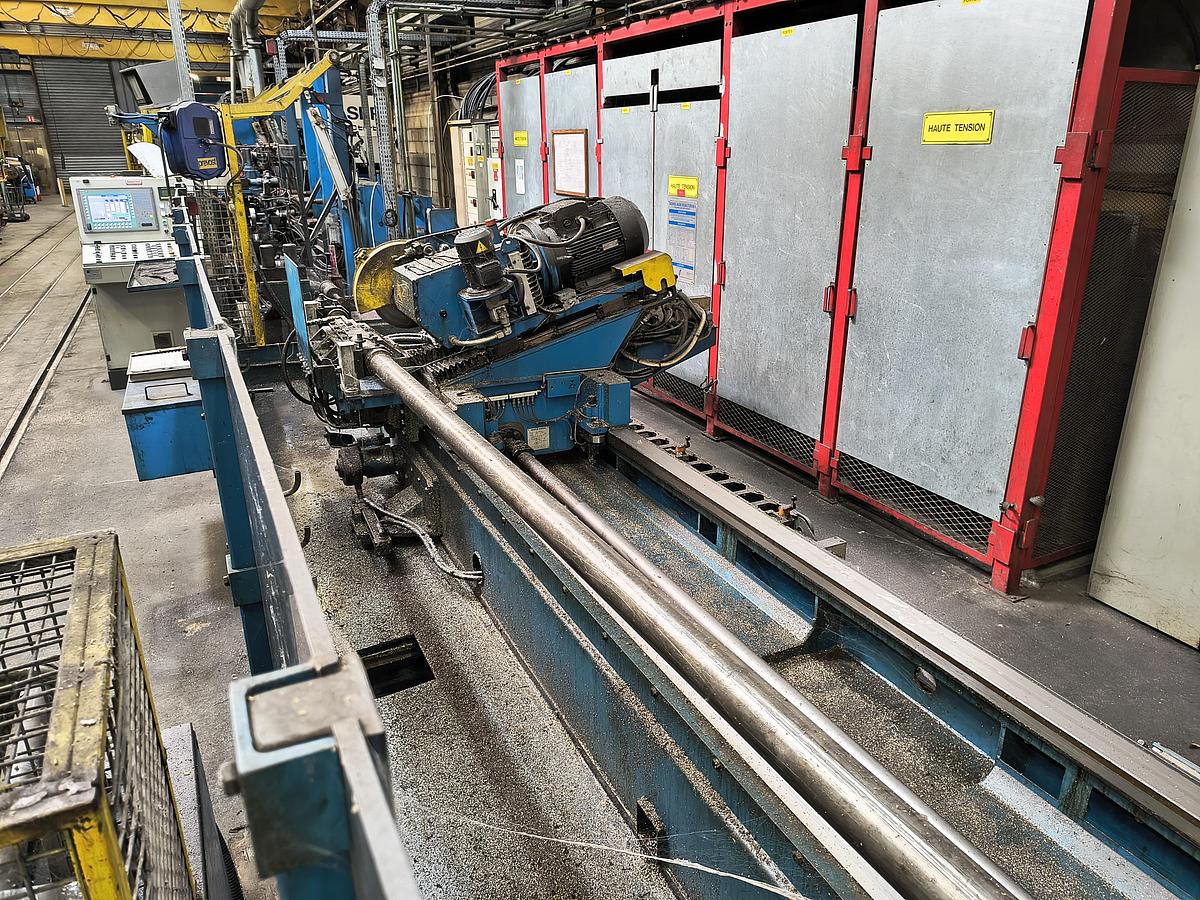

• Single blade flying cut-off.

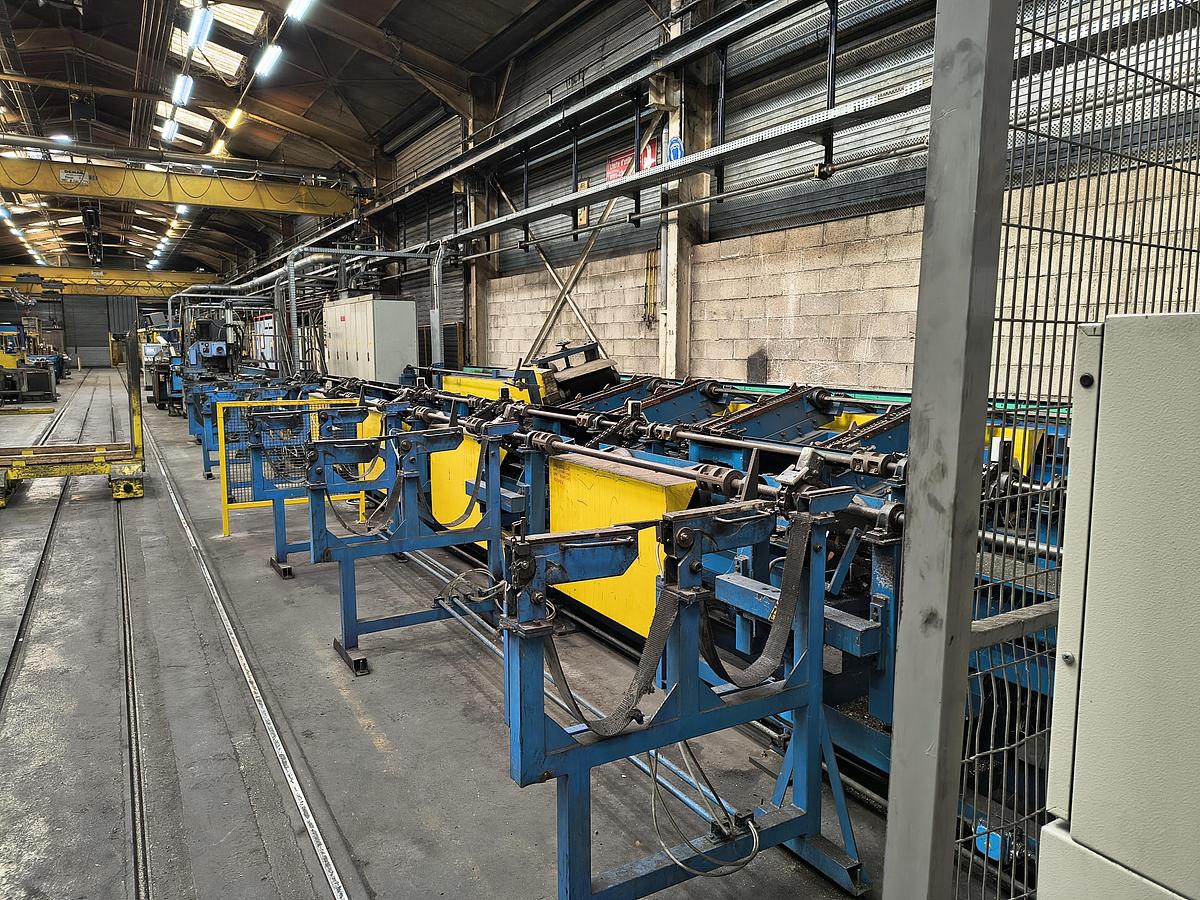

• Output conveyors and tube ejection system.

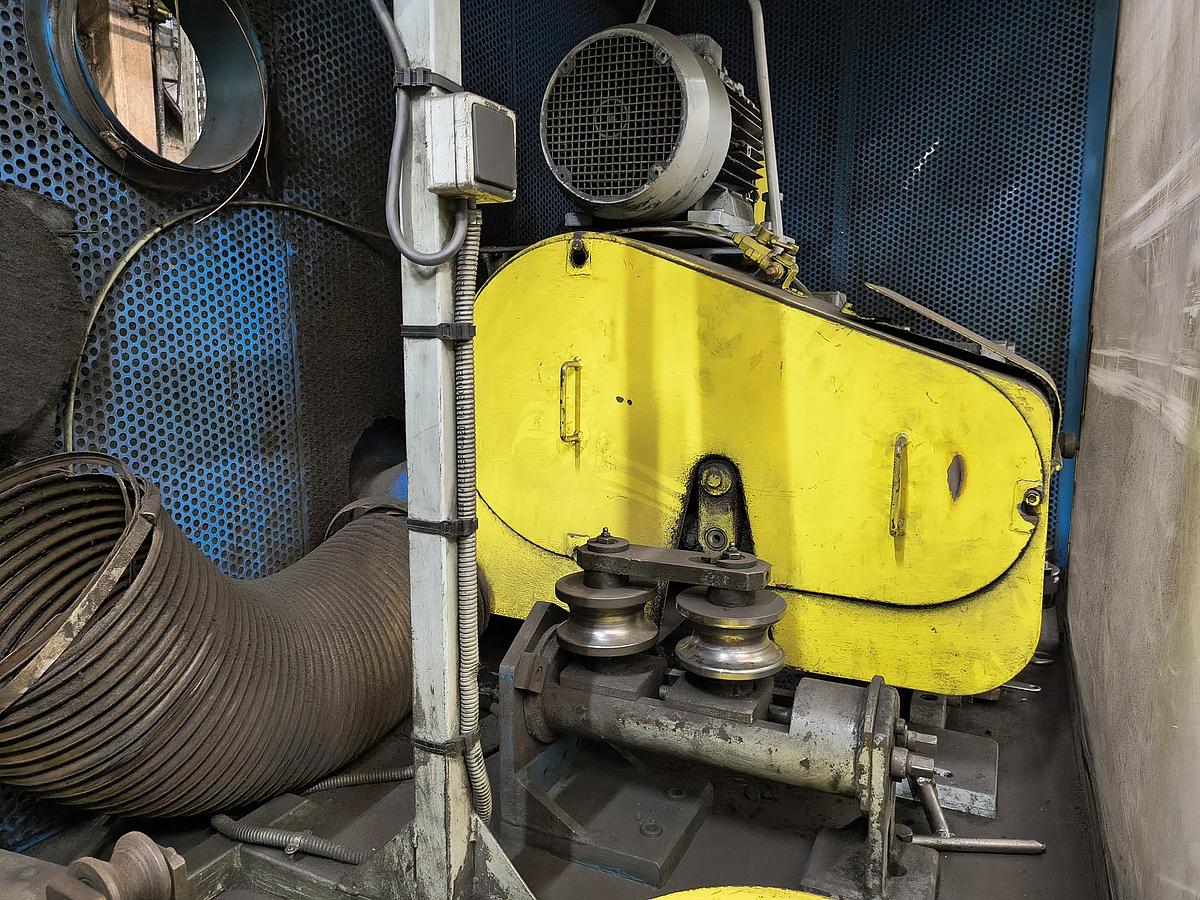

• Tube ends polishing.

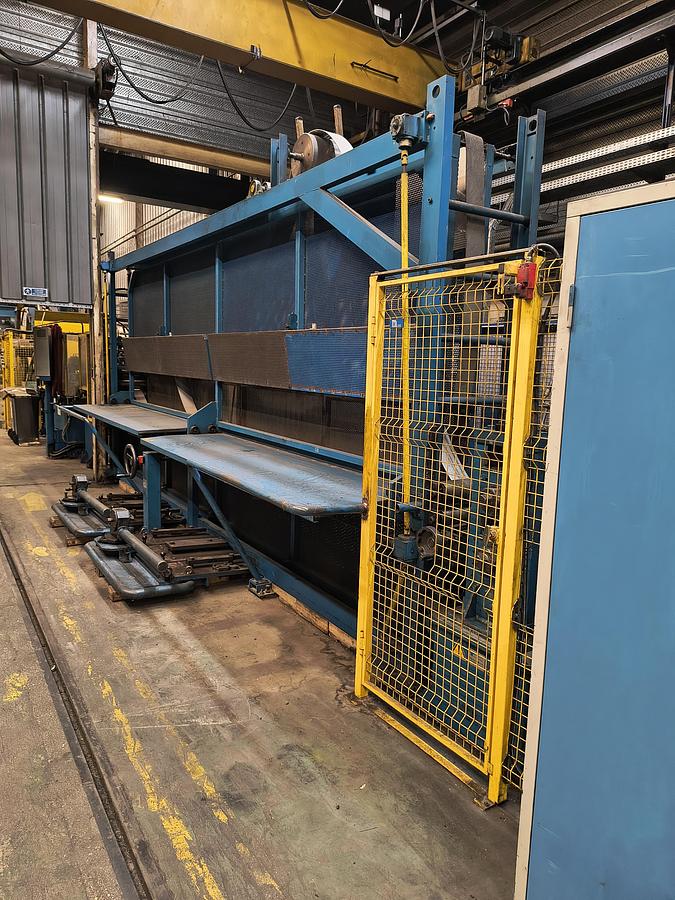

• Automatic tube packaging system for square bundles.
• Output conveyor for bundles.

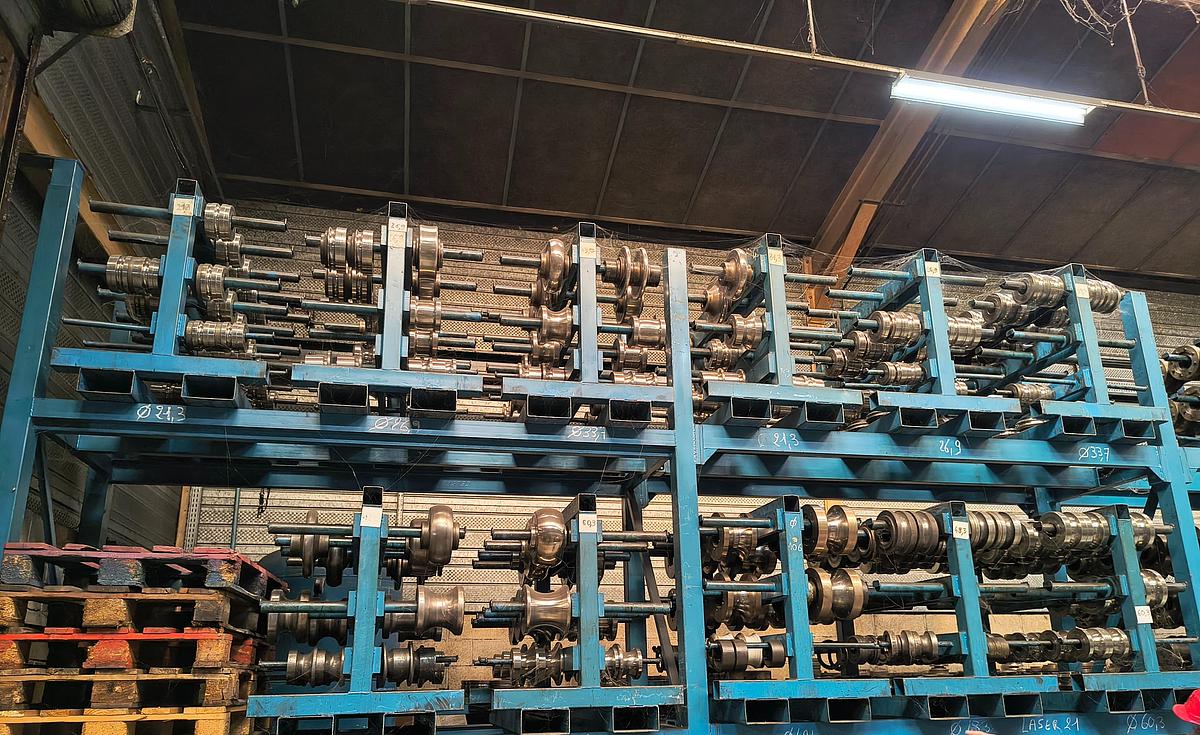

• Available tooling sets for: 21.3 / 26.9 / 33.7 / 35 / 42.4 / 48.3 / 60.3
• Cooling unit make KLH (Germany)

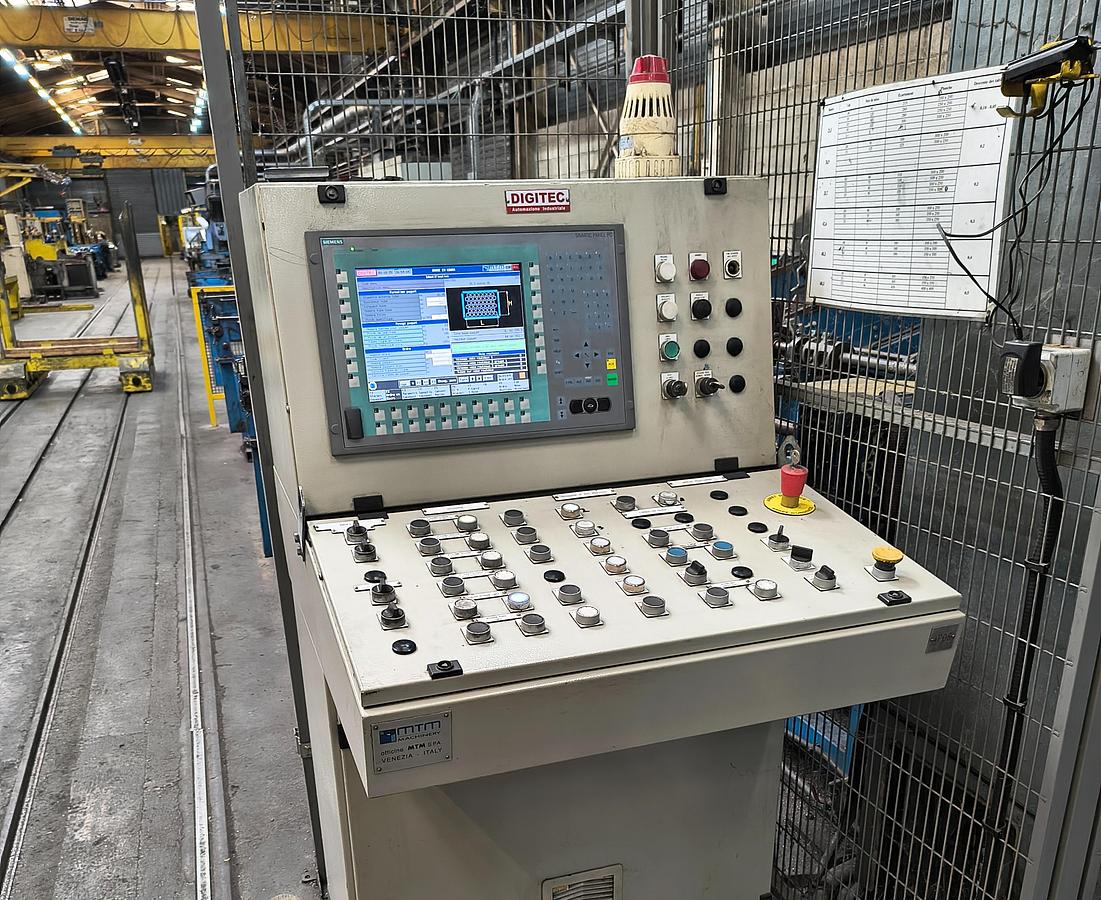

• Complete electrics, pneumatics and hydraulics.

Advantages of this tube mill

✓ Ideal for stainless steel precision tube production

✓ High-quality laser welding technology

✓ Robust European construction by MTM

✓ Complete automated packaging solution

✓ Wide dimensional production range

✓ Suitable for industrial, automotive, construction and process industry applications

Machine available subject to prior sale. Inspection can be arranged upon request.
