BONAK CTL 2000x12

BONAK 2000 x 12 mm Cut to length line

This heavy-duty BONAK Cut-to-length line is designed for processing hot-rolled steel coils with high reliability and precision. Built for demanding industrial applications, this CTL line is capable of handling material up to 12 mm thickness and widths up to 2060 mm.

Manufactured by the well-known Spanish builder BONAK, the line is currently in operation.

Main technical specifications

• Manufacturer: BONAK (Spain)
• Model: 2000 x 12 mm
• Material: Hot-rolled steel
• Material tensile strength: 40 – 45 Kg/mm²
• Strip width range: 650 – 2060 mm
• Thickness range: 3 – 12 mm
• Maximum coil weight: 20 tons
• Maximum working speed: 25 m/min
• Working direction: Left to right

Scope of supply

The complete line includes:

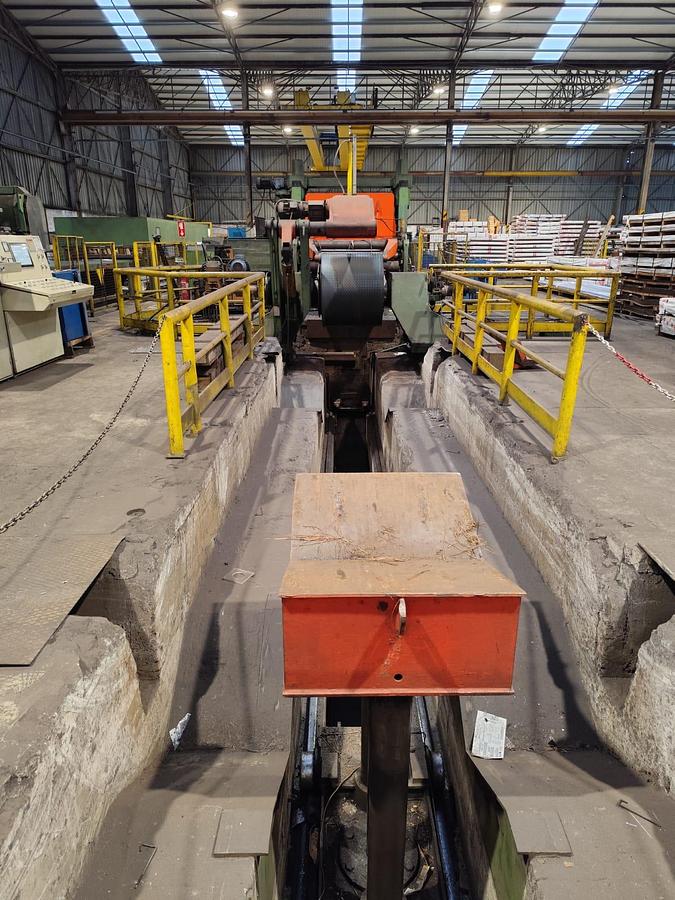

• 20-ton loading carriage

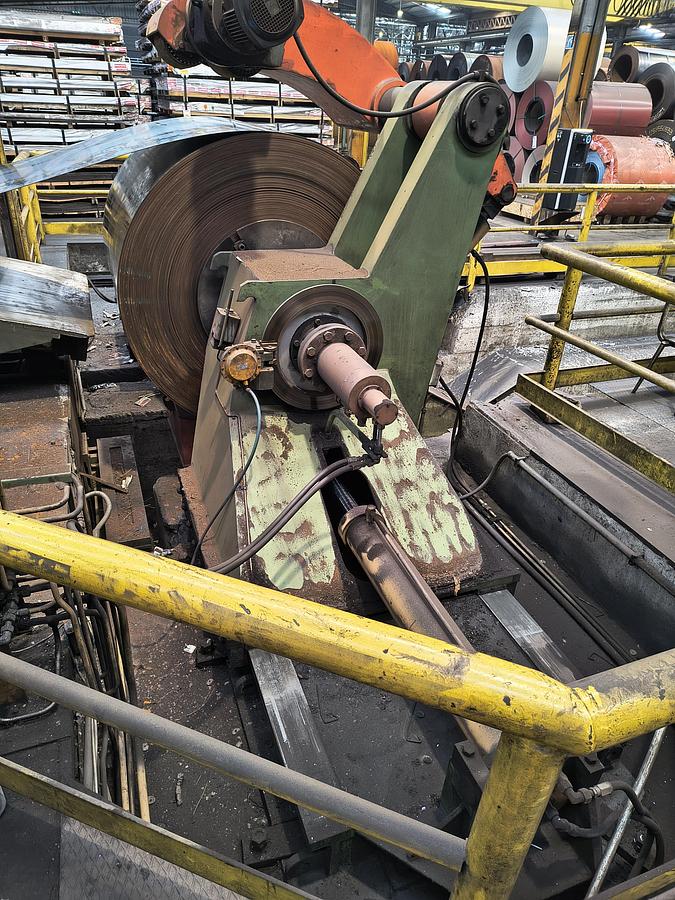

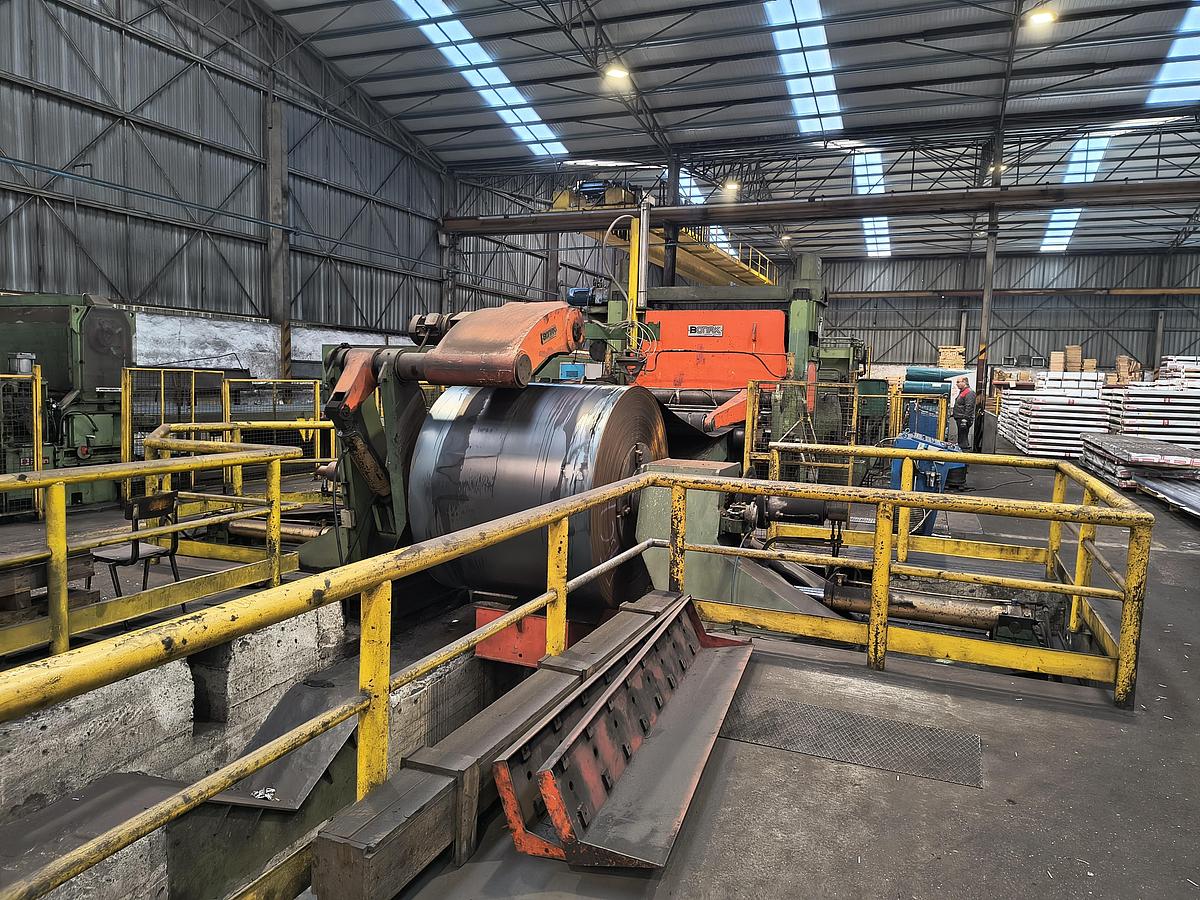

• Double cone decoiler
• Automatic centring device

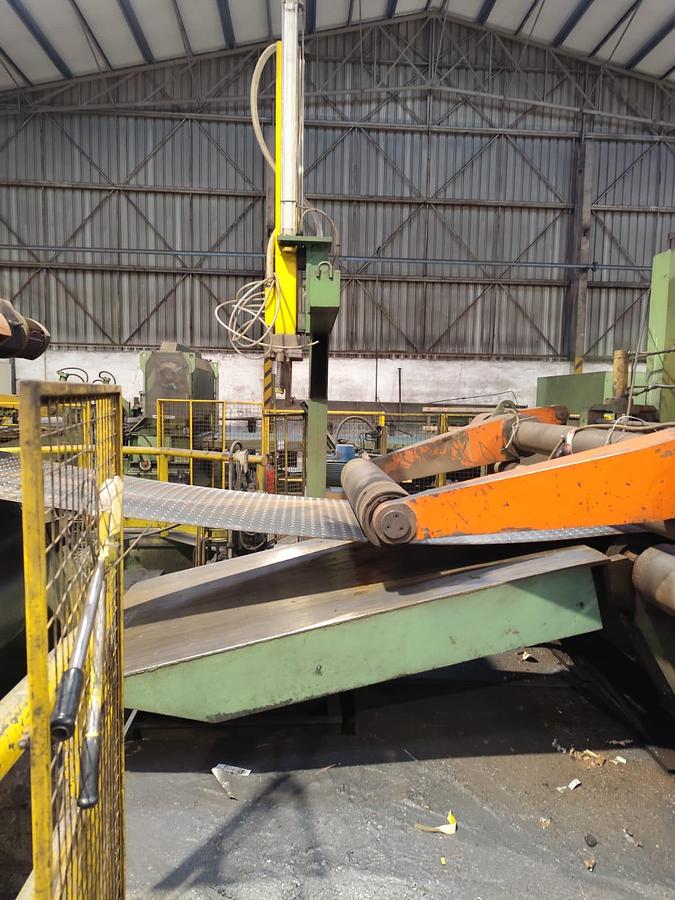

• Coil opener and pulling rolls
• Leveller with driving unit: 11 rolls, Ø 110 mm
• Measuring wheel

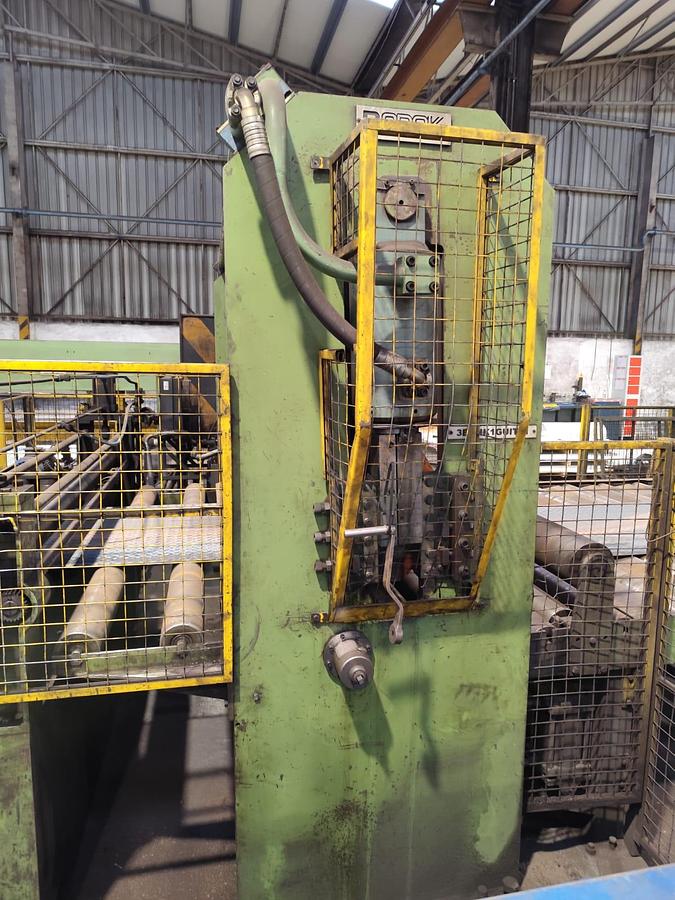

• Edge trimmers
• Edge guiding system
• Scrap recoiler

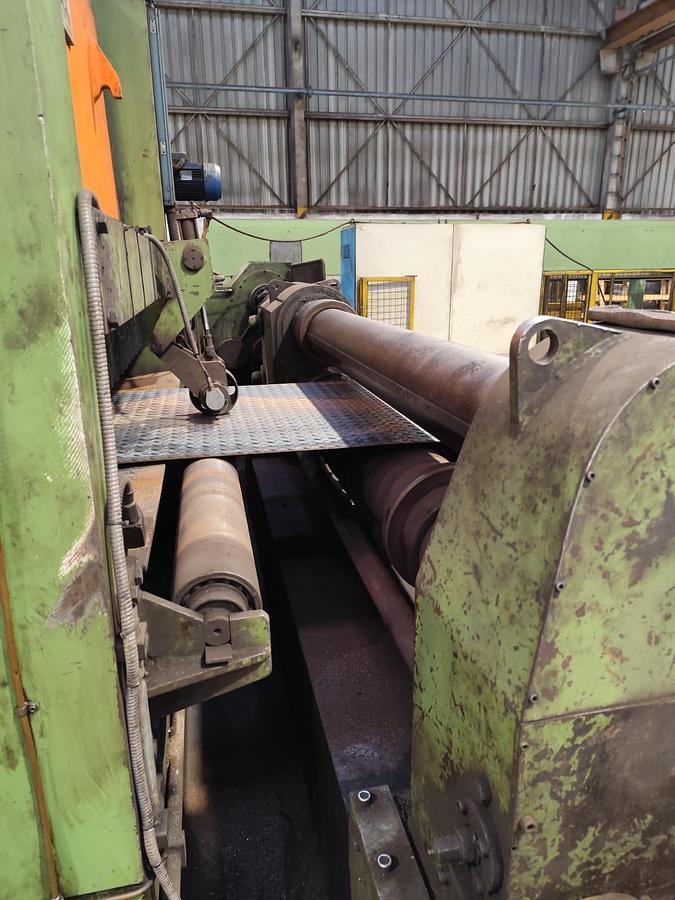

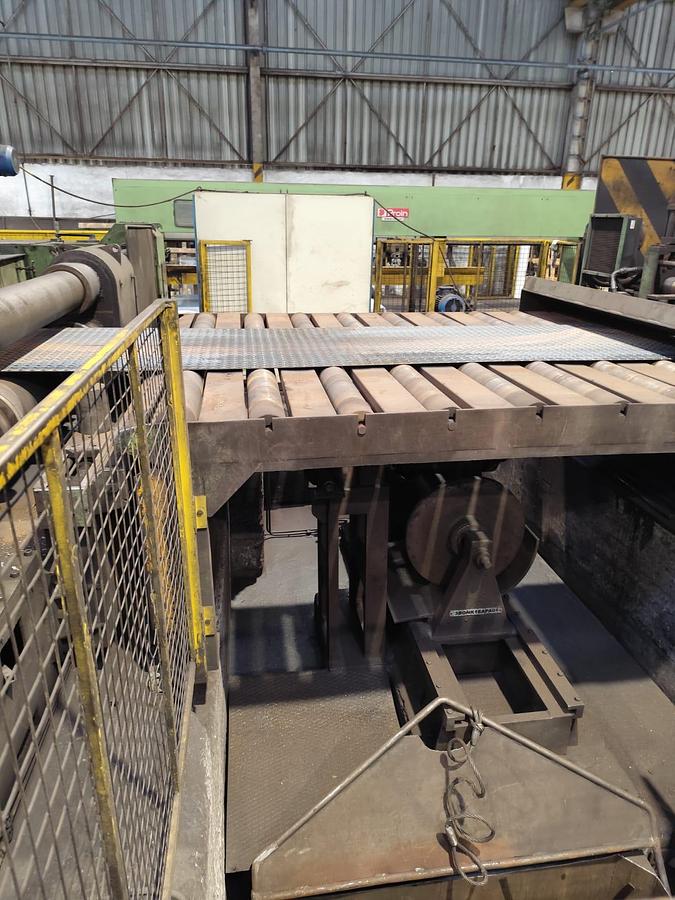

• Intermediate rolls table
• Pulling rolls

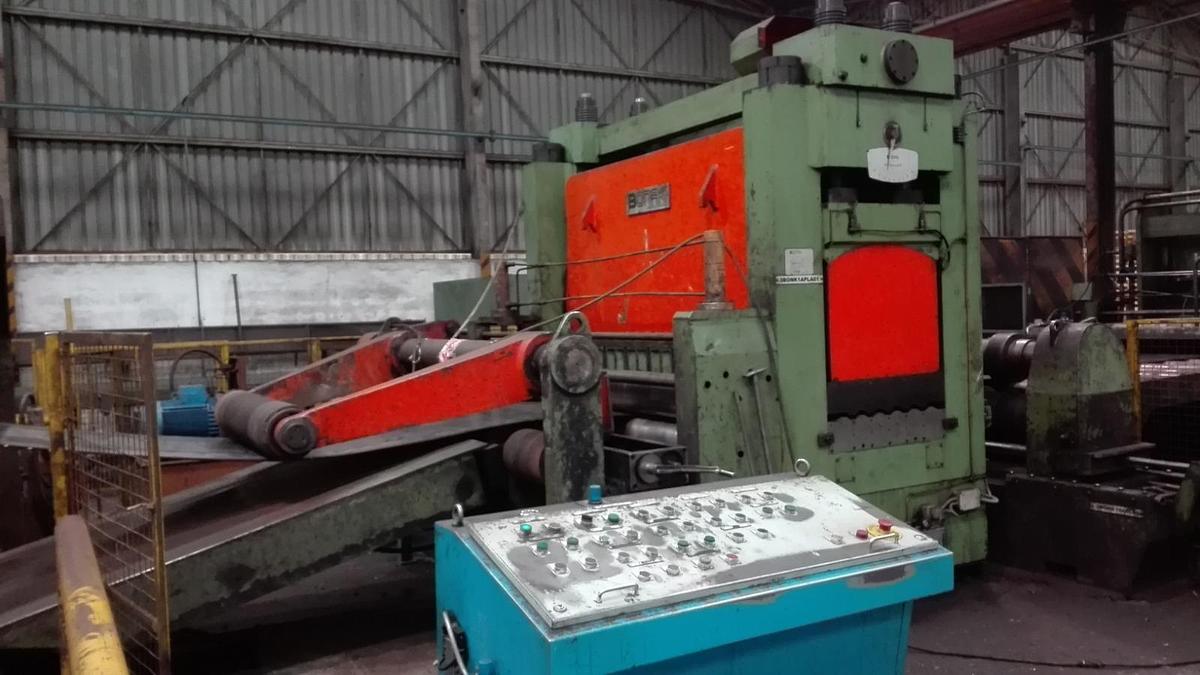

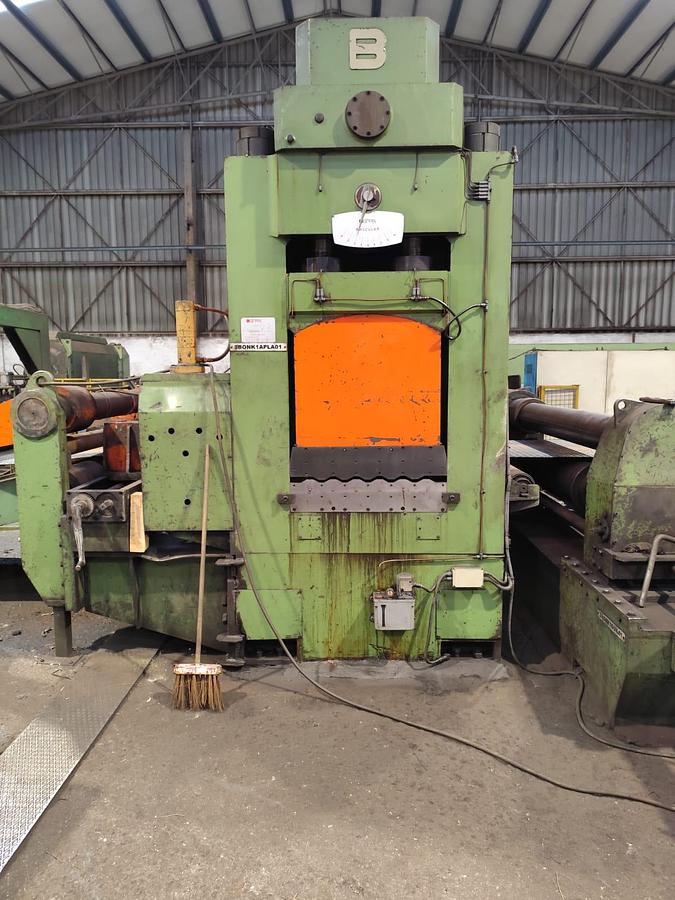

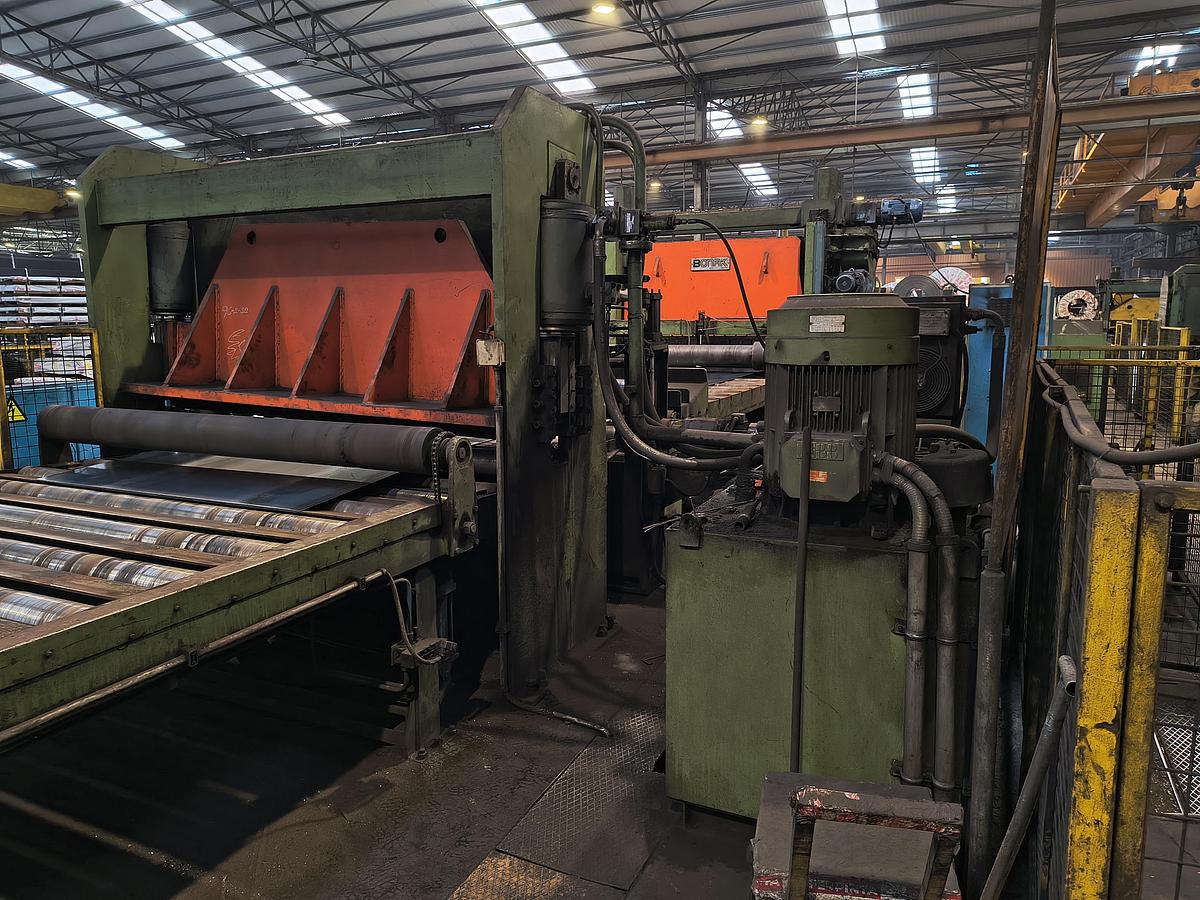

• Hydraulic start/stop shear
• Measuring table

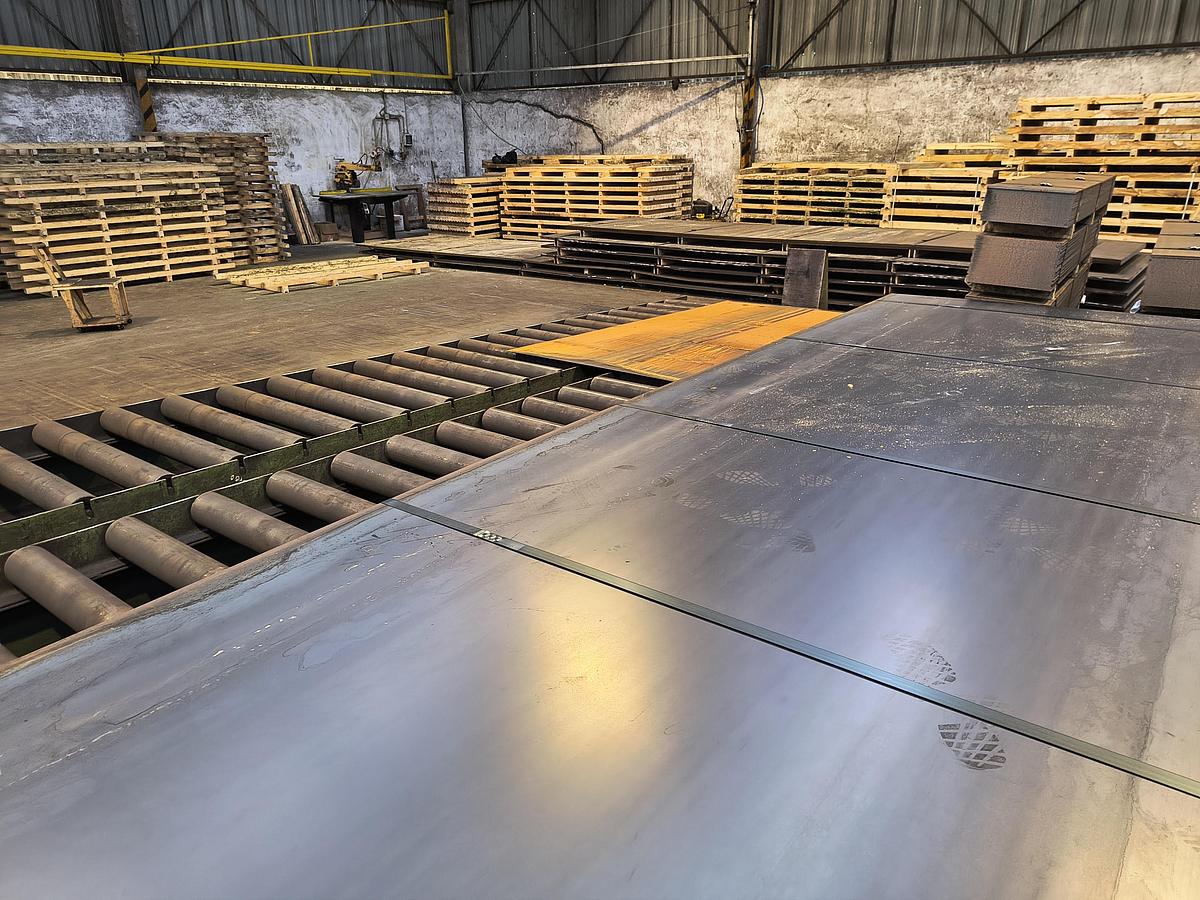

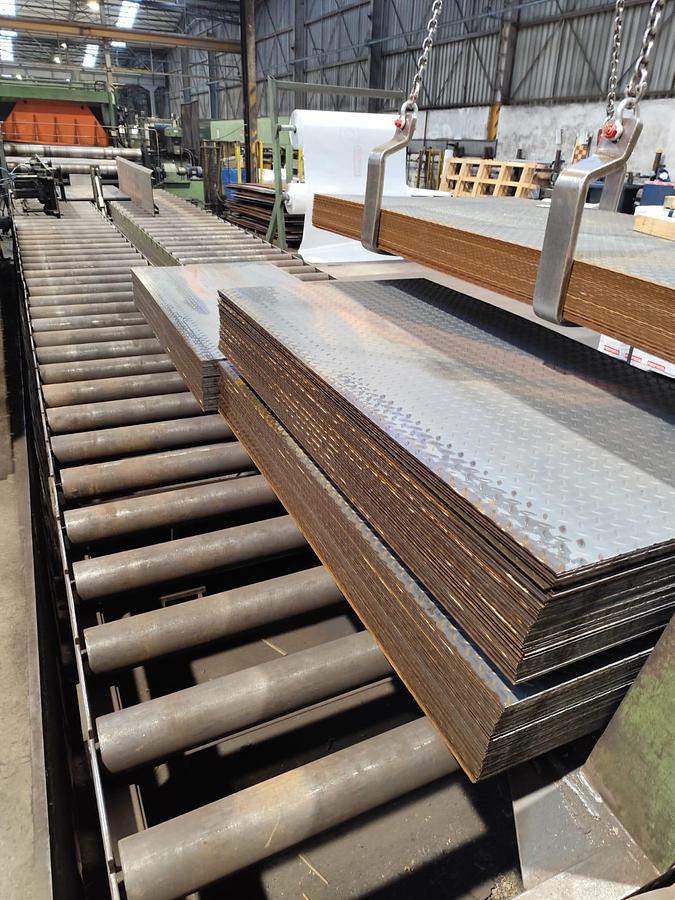

• Stacker

Advantages of this CTL

✓ Suitable for heavy-gauge hot-rolled steel processing

✓ Robust and reliable BONAK construction

✓ Complete levelling and shearing solution

✓ Integrated edge trimming and scrap recoiling system

✓ High-capacity 20-ton coil handling

✓ Ideal for steel service centres and plate processing operations

✓ Line currently installed and operational

This machine offers an excellent opportunity for companies looking for a cost-effective and dependable cut-to-length solution for thick hot-rolled material processing.

Machine available subject to prior sale. Inspection can be arranged upon request.
