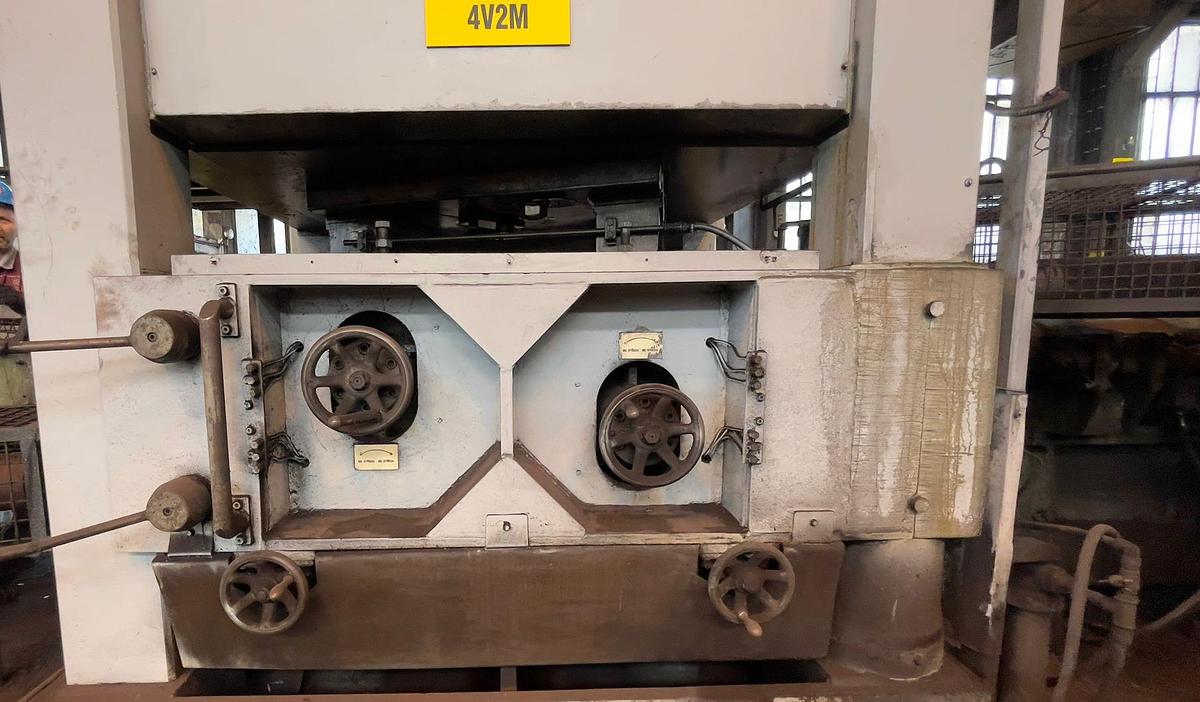

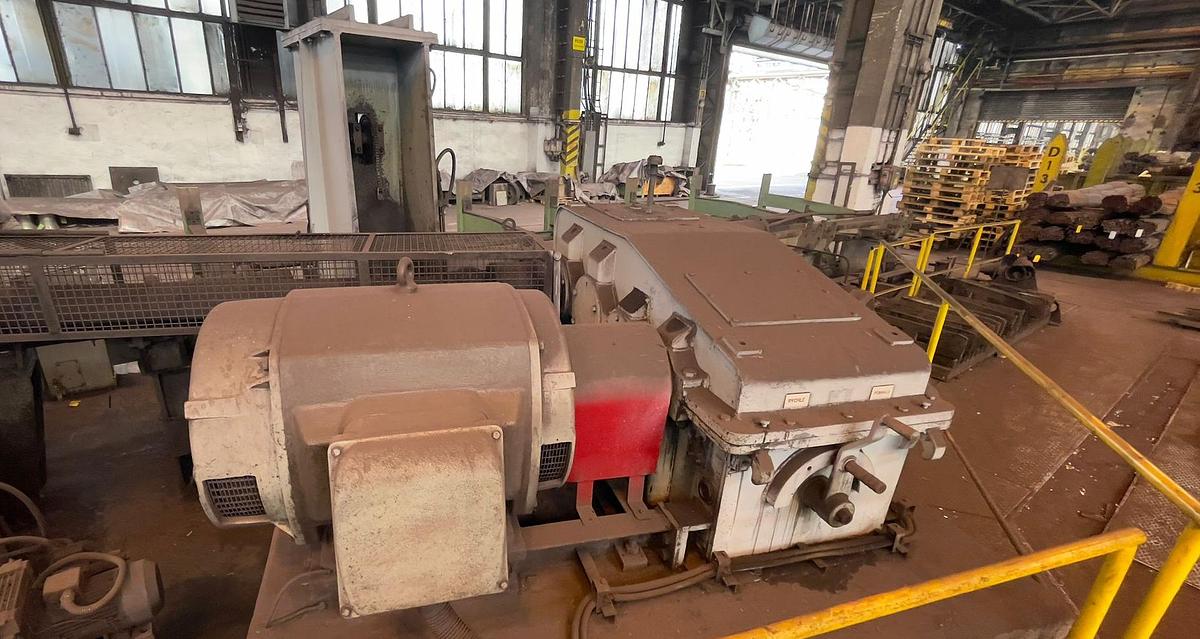

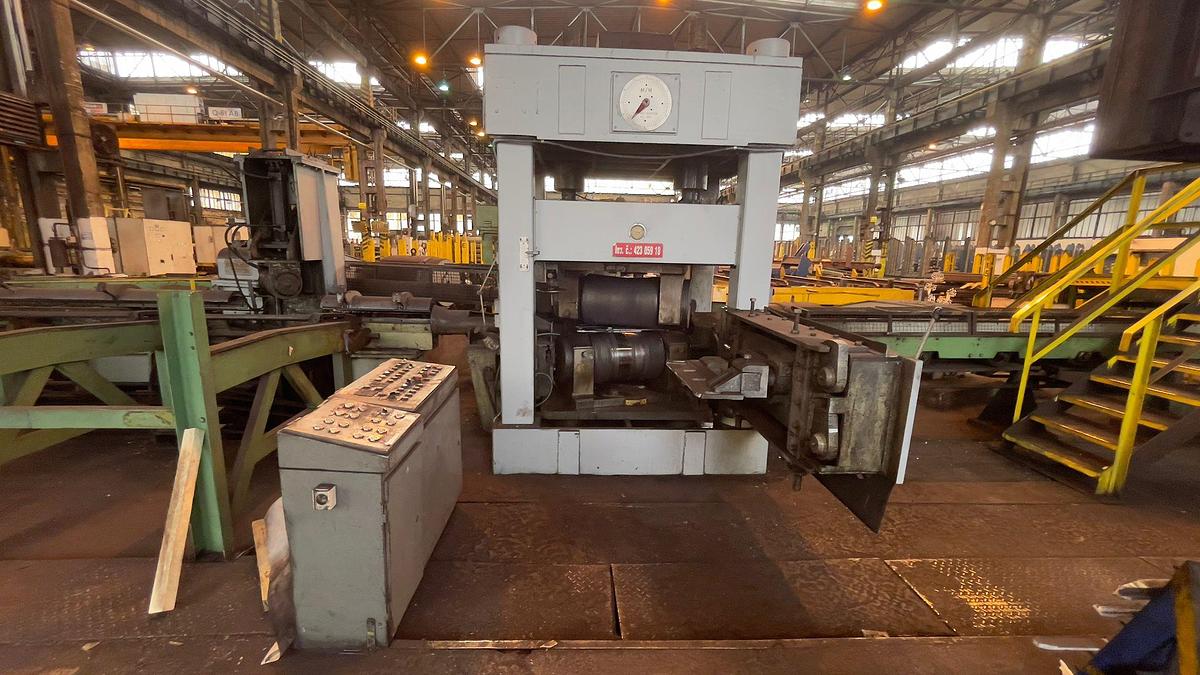

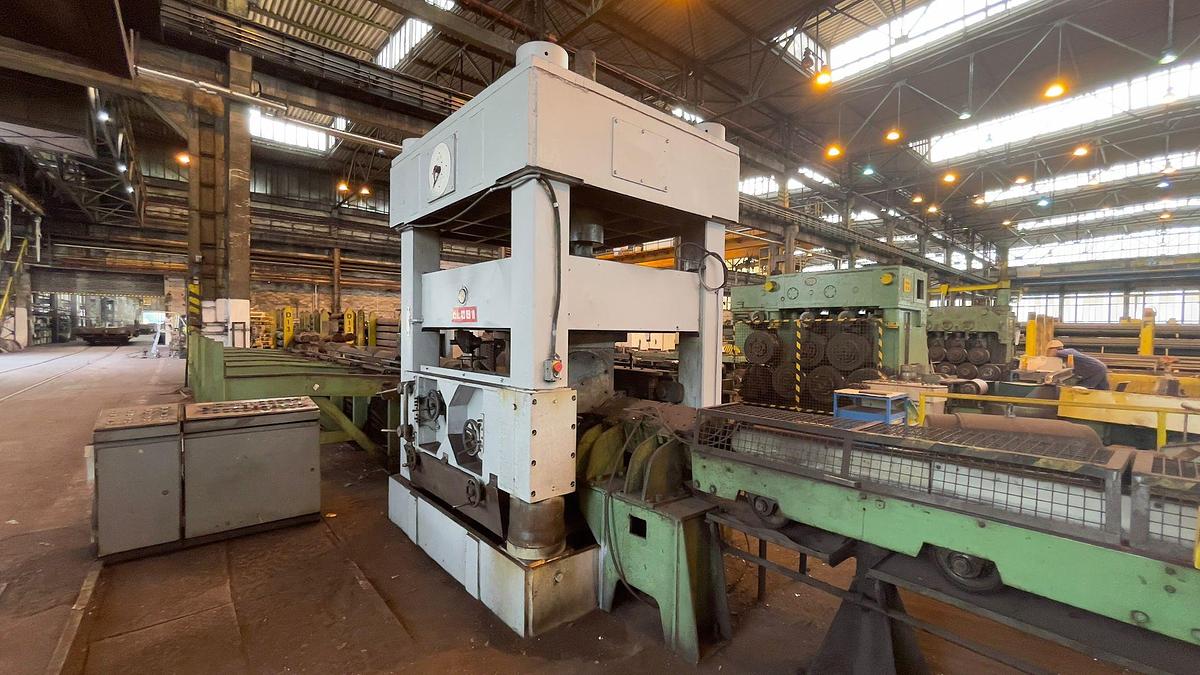

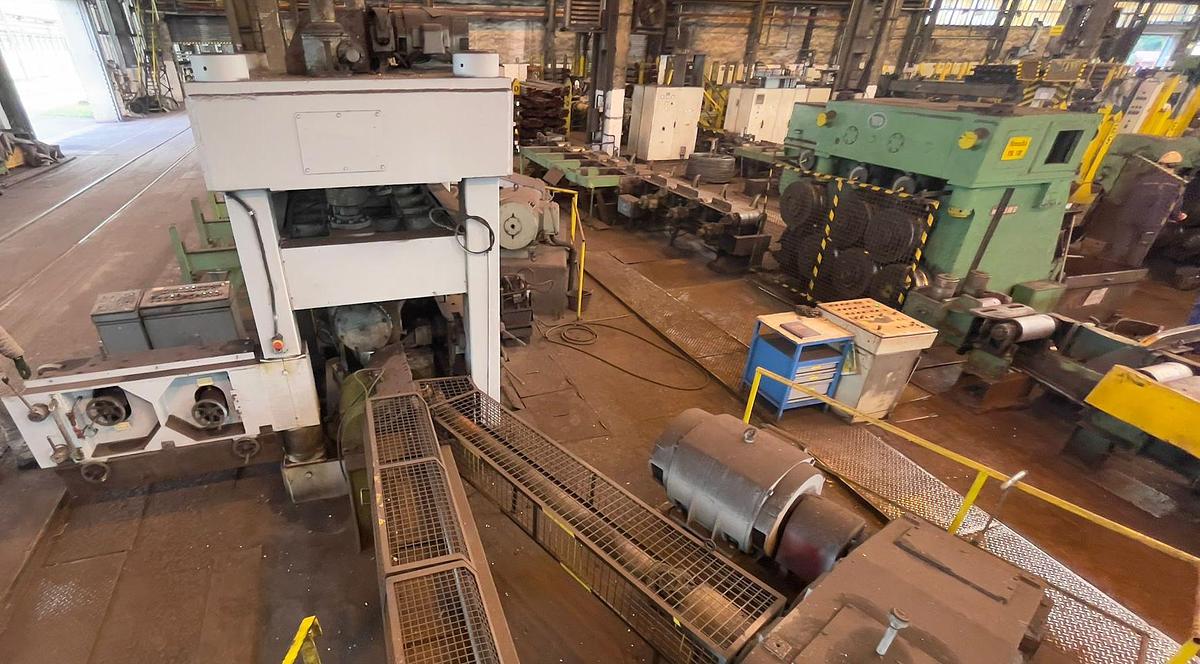

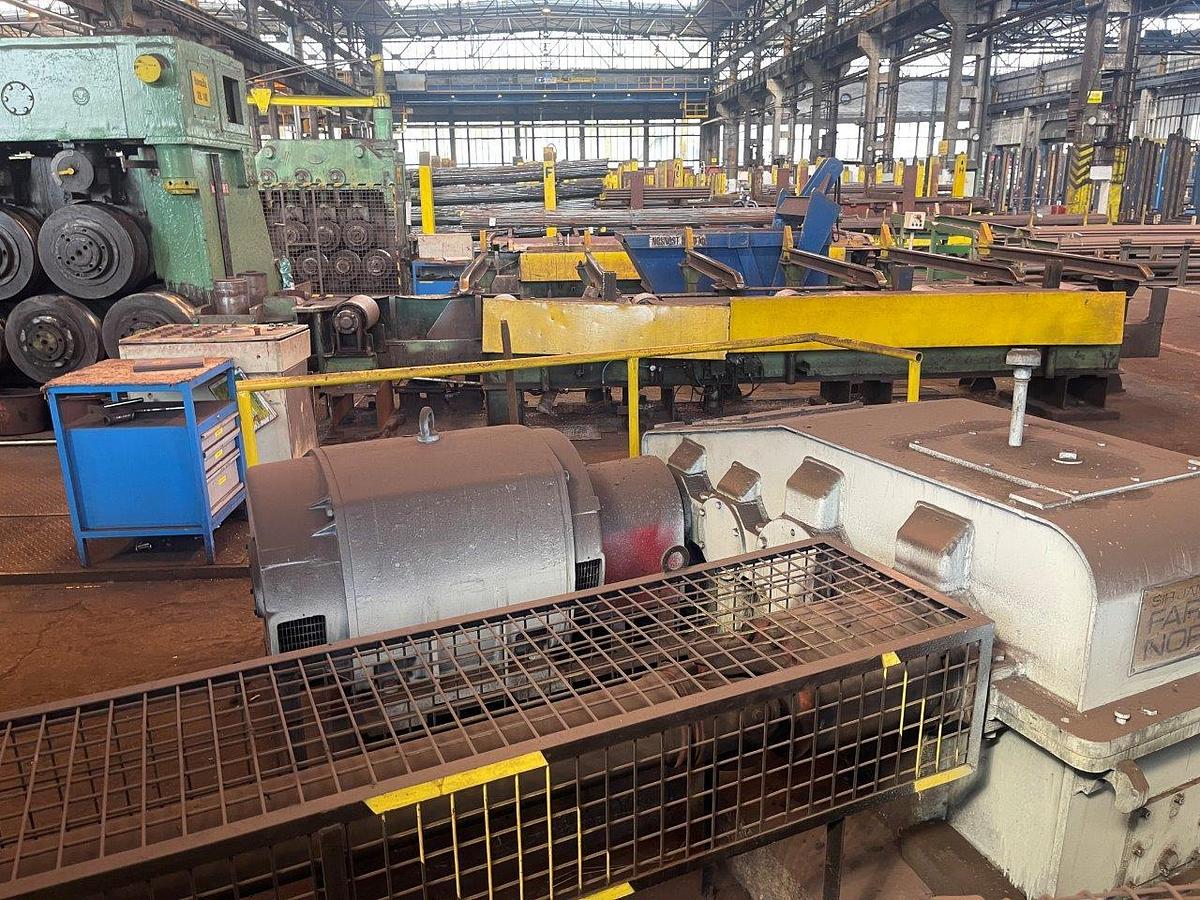

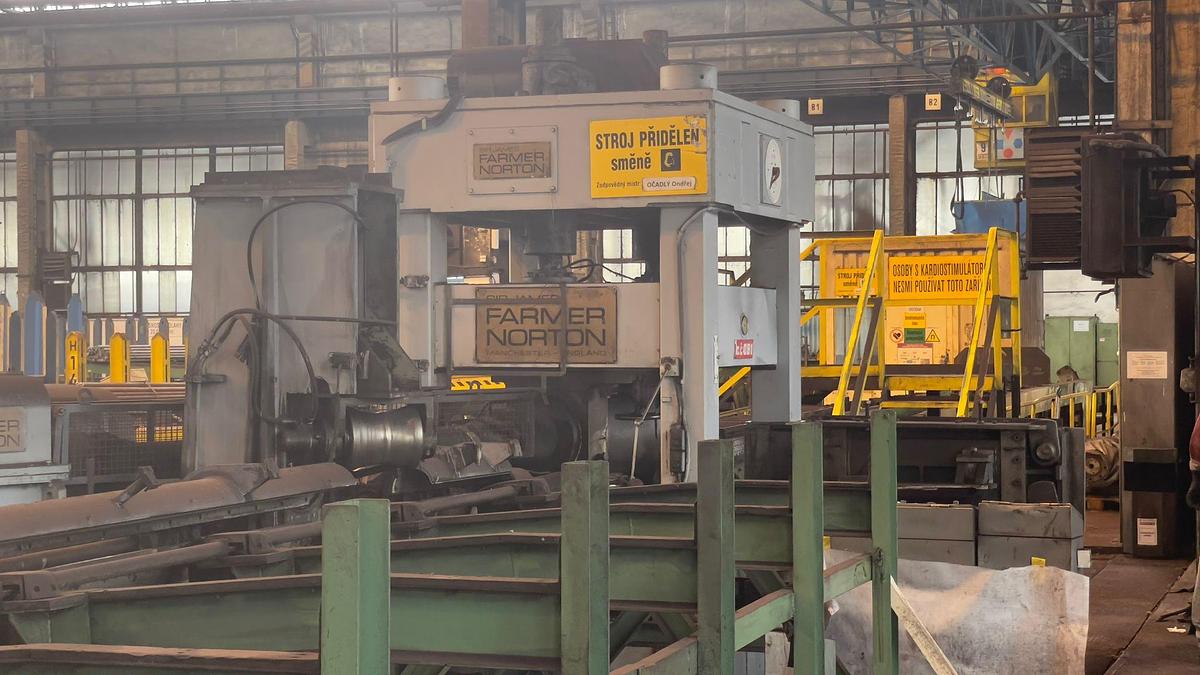

FARMER NORTON BAR STRAIGHTENER 4V-2M

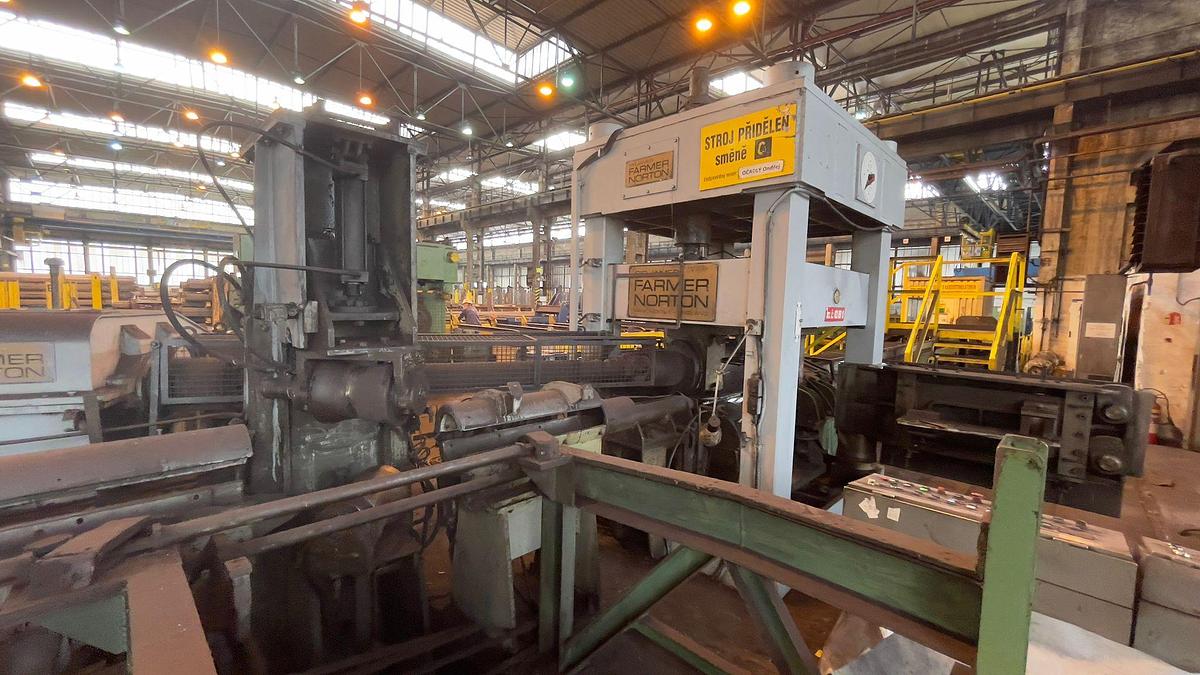

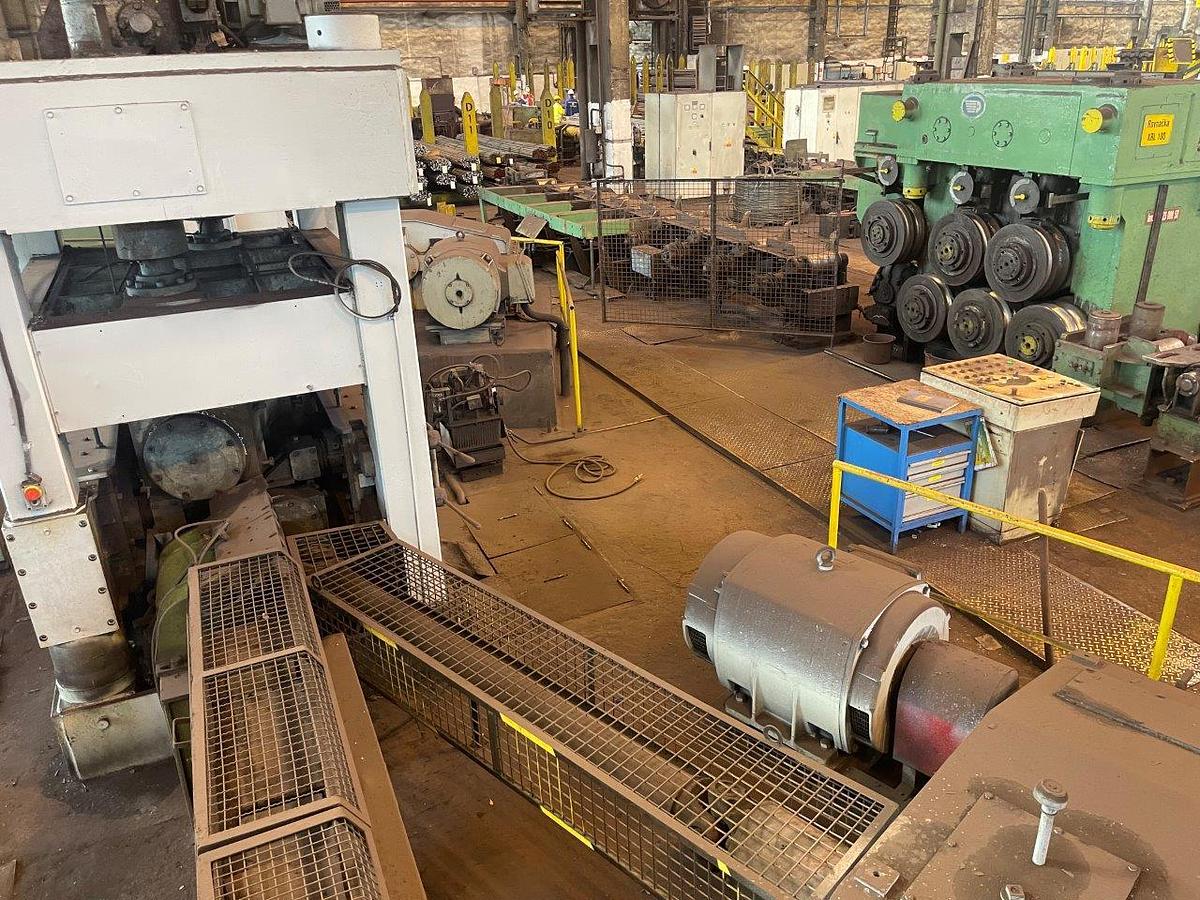

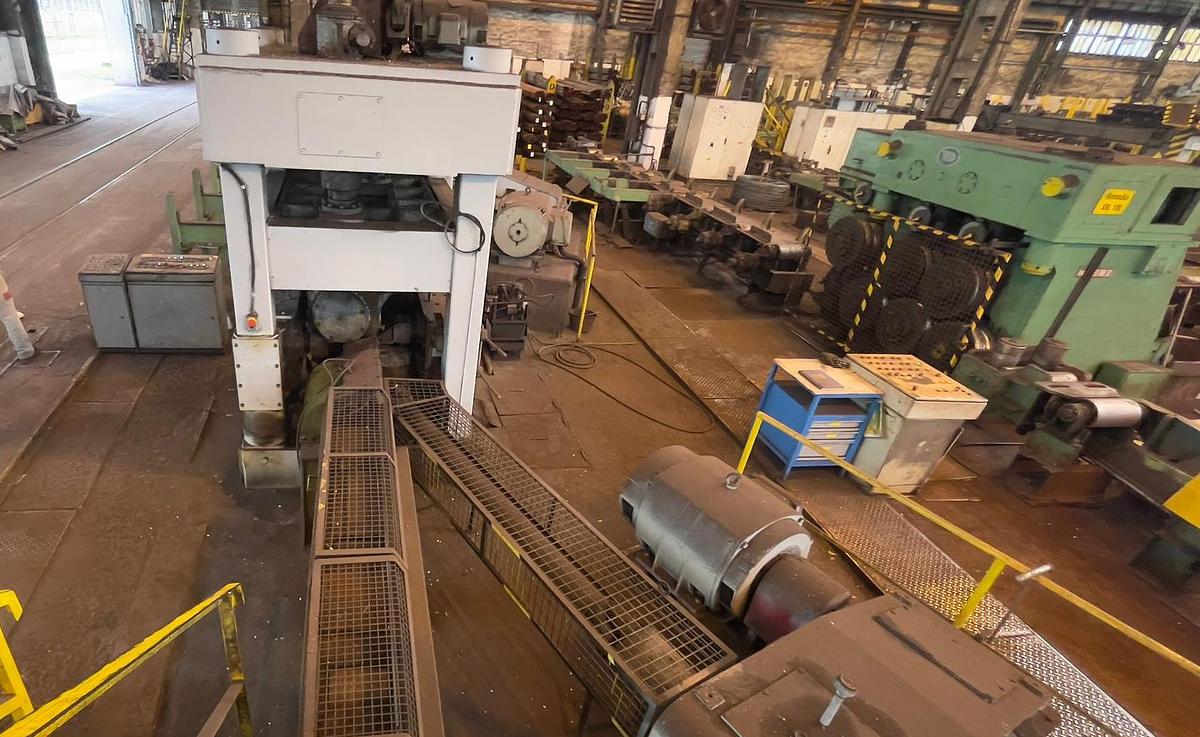

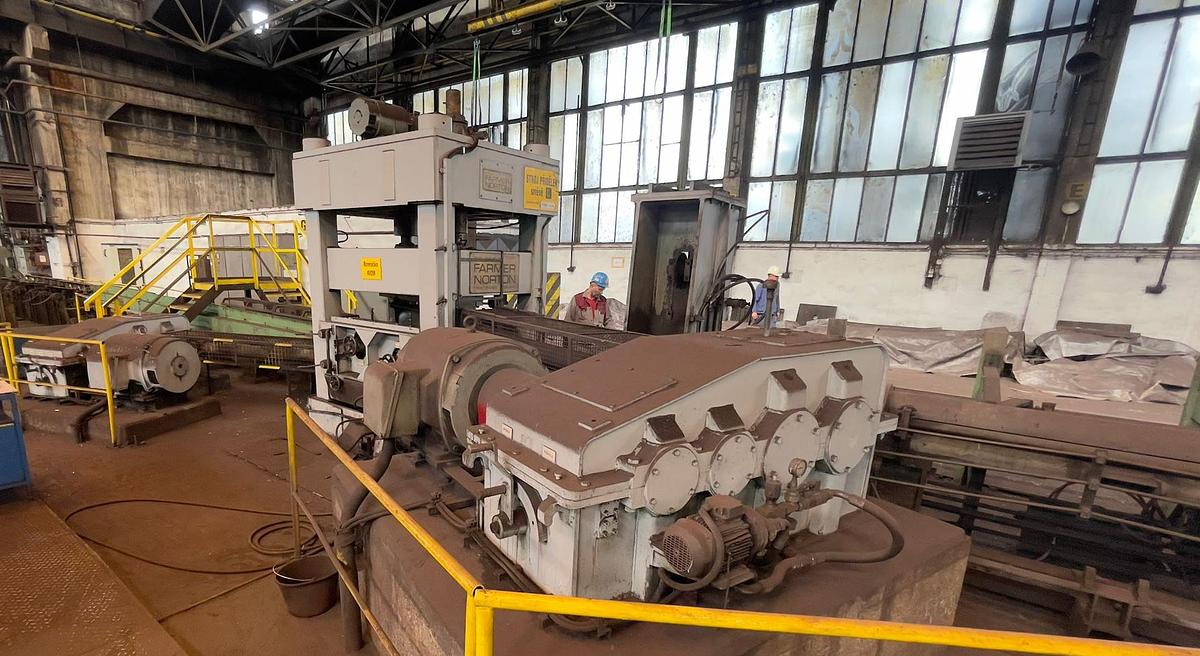

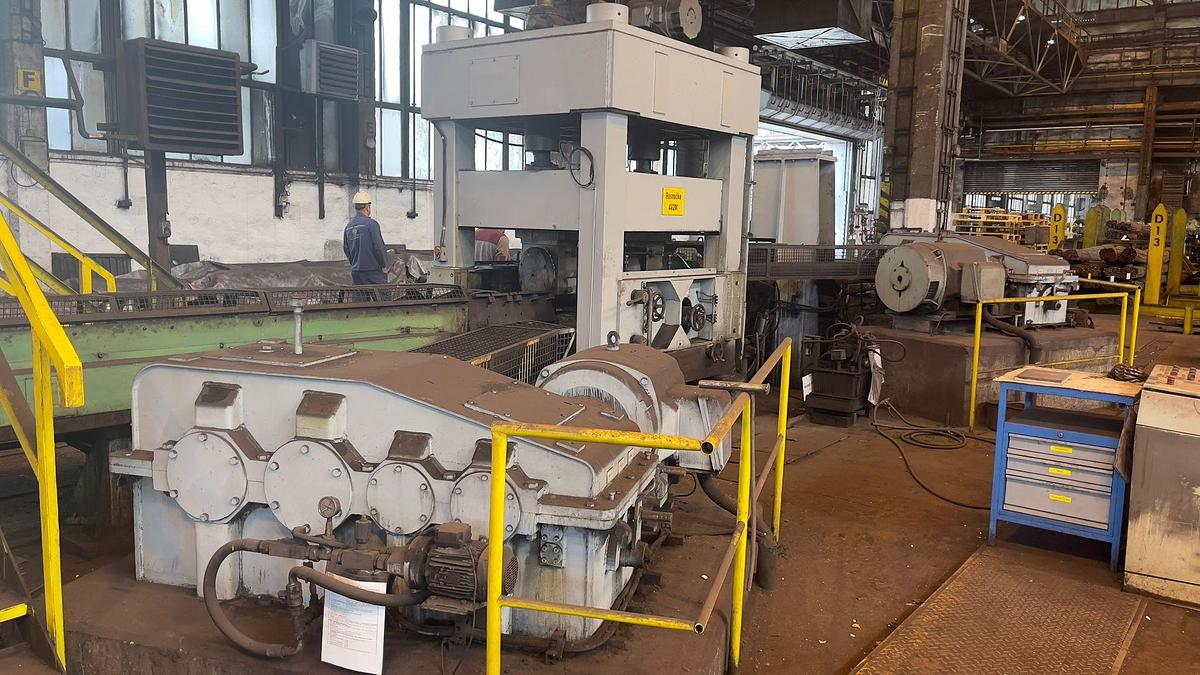

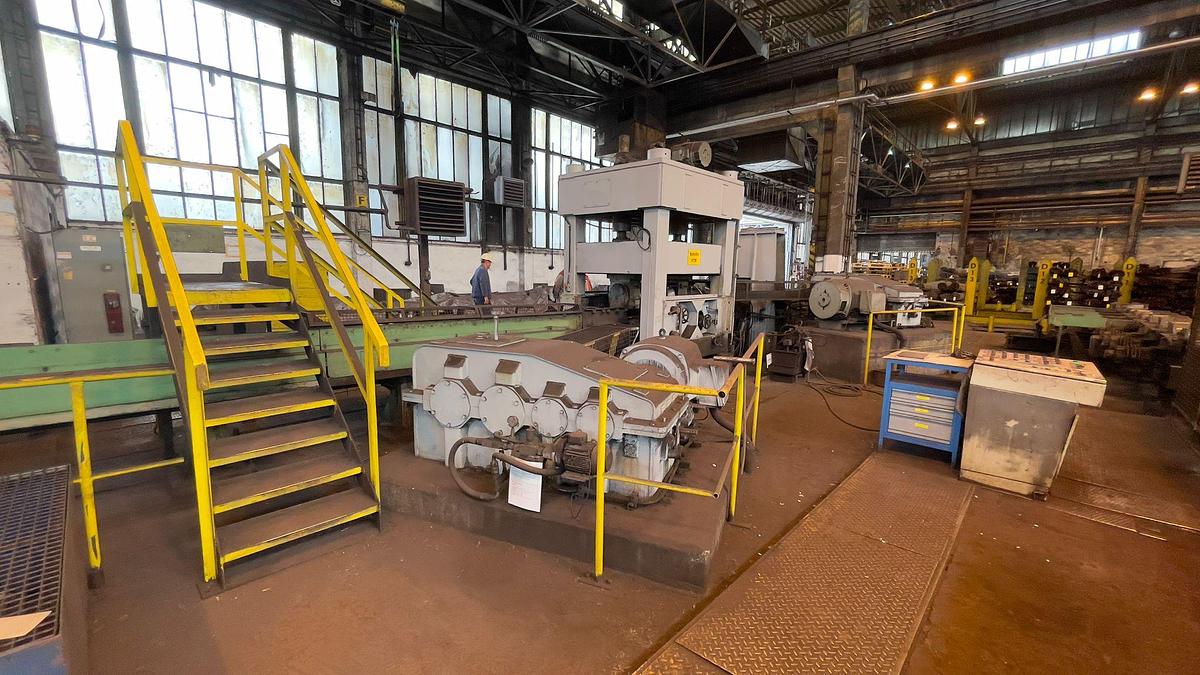

Complete FARMER NORTON 4V-2M Bar straightening line for sale

The FARMER NORTON 4V-2M bar straightening line is designed for straightening steel bars with diameters from 25 mm to 100 mm. This complete line is suitable for processing materials with a tensile strength of up to 1,000 N/mm² and offers a maximum straightening speed of 30 m/min.The machine is equipped with a 2-roll straightening system featuring large-diameter rolls for efficient straightening of heavy steel bars.

Technical Specifications

· Manufacturer: FARMER NORTON (UK)

· Model: 4V-2M

· Bar diameter range: 25–100 mm

· Material tensile strength: Up to 1,000 N/mm²

· Maximum straightening speed: 30 m/min

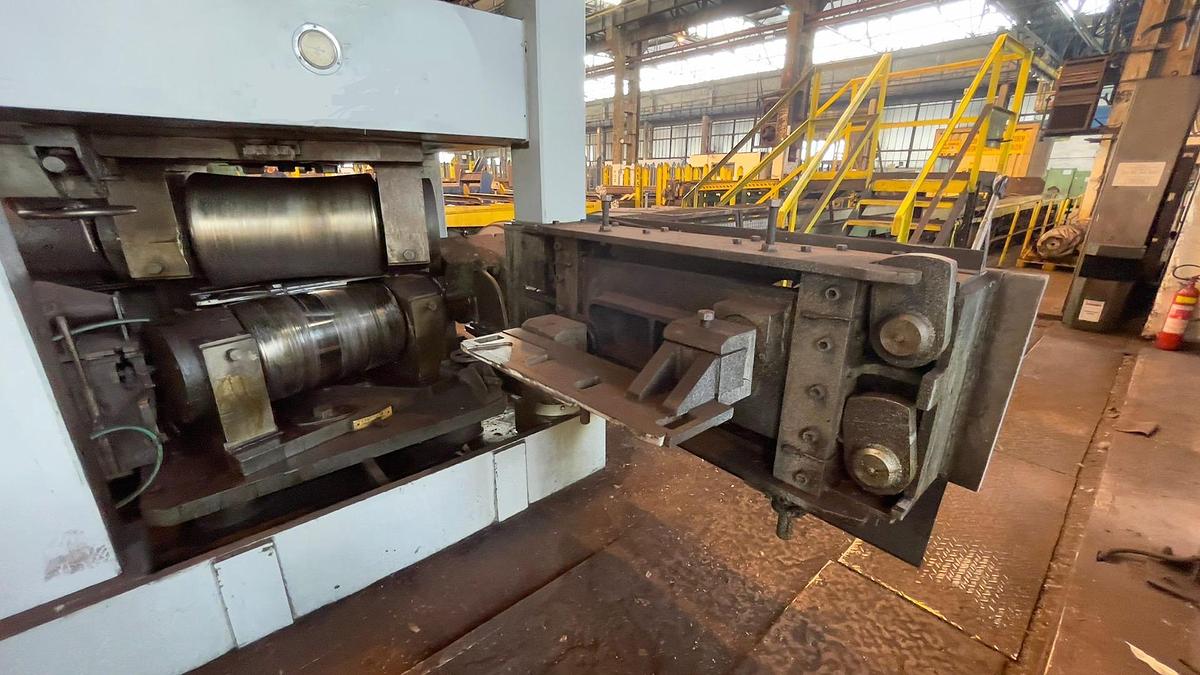

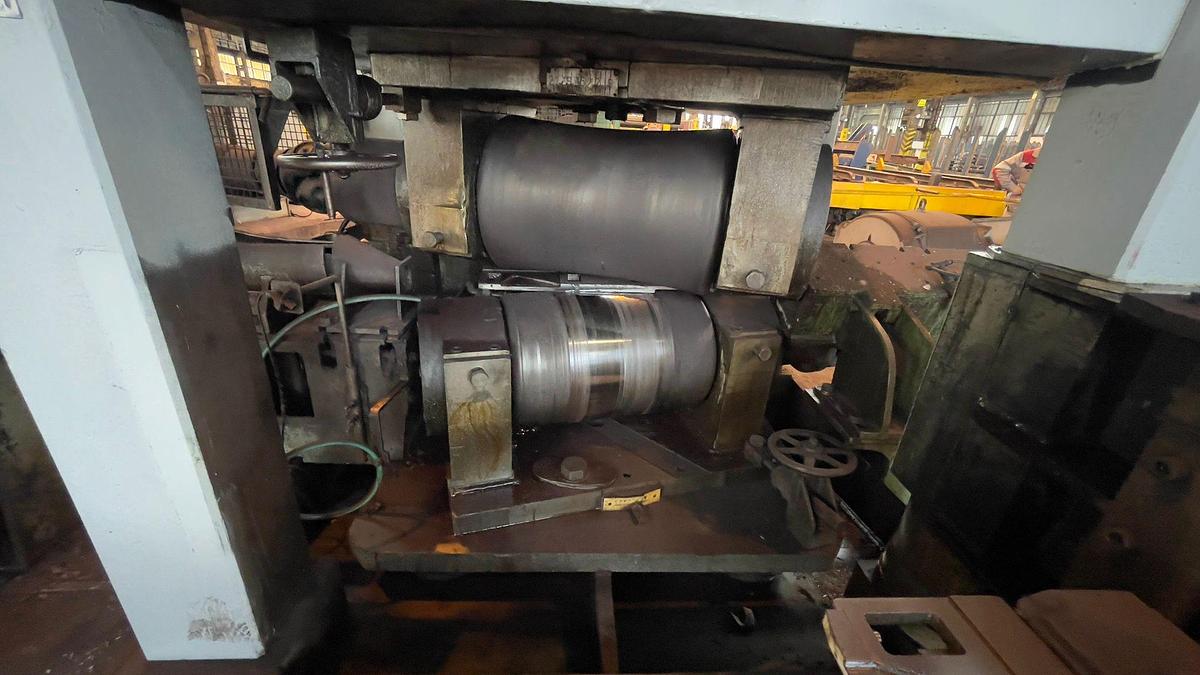

· Straightening rolls: Ø457 × 686 mm

· Straightening system: 2-roll

Scope of Supply

1. Loading table

2. Entry conveyor with pinch roll

3. Complete 2-roll bar straightening machine

4. Exit conveyor

5. Collecting table

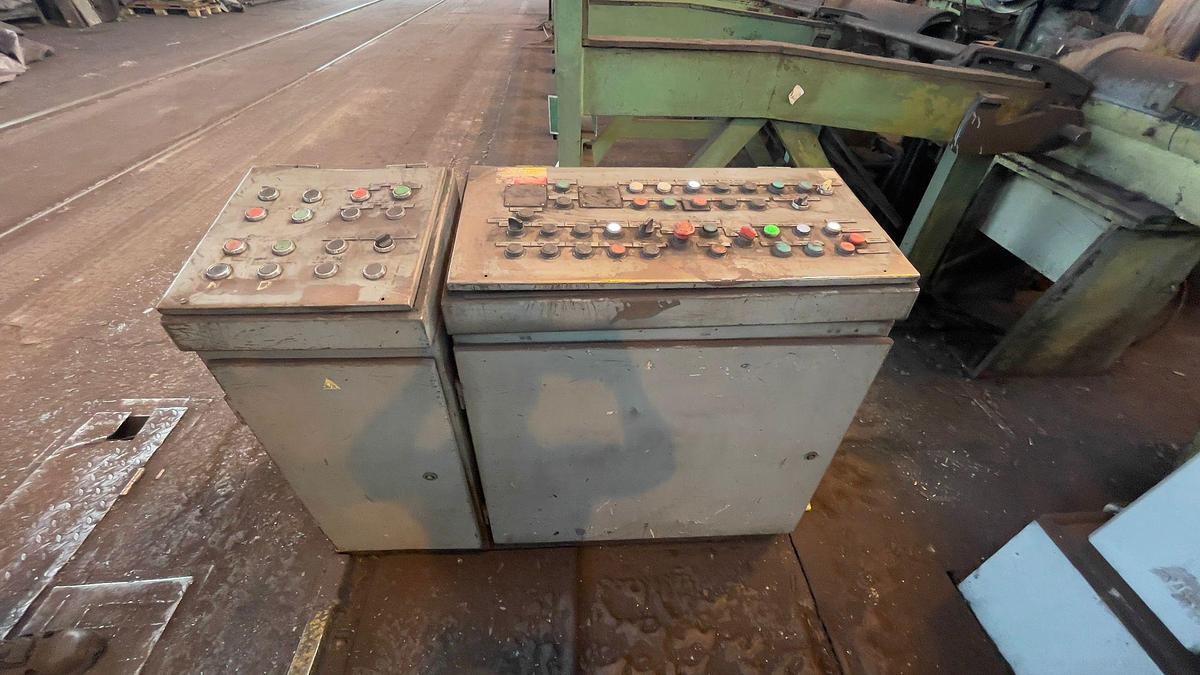

6. Electrical equipment

7. Available documentation

Benefits

✔ Complete straightening line ready for installation

✔ Wide working range from 25 to 100 mm

✔ Suitable for high-strength steel materials

✔ Robust British industrial construction

If you are looking for a robust European bar straightening machine, this complete line offers an efficient solution for heavy bar straightening operations.
