OTO MILLS / SEUTHE / THERMATOOL Tube Mill OTO 101.3

OTO MILLS / SEUTHE / THERMATOOL Tube Mill OTO 101.3

Description

Tube mill OTO 101.3

Manufacturers: OTO MILLS, SEUTHE & THERMATOOL


The line is in operation and inspection during production is possible.


The line is complete with:

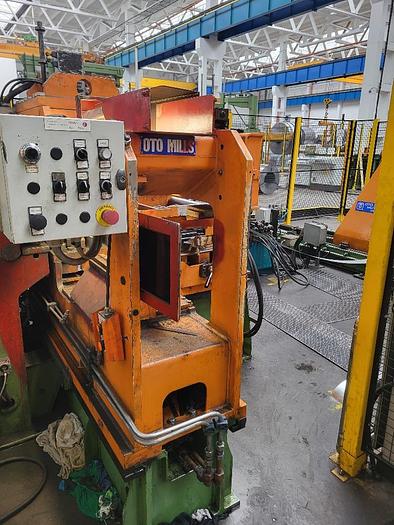

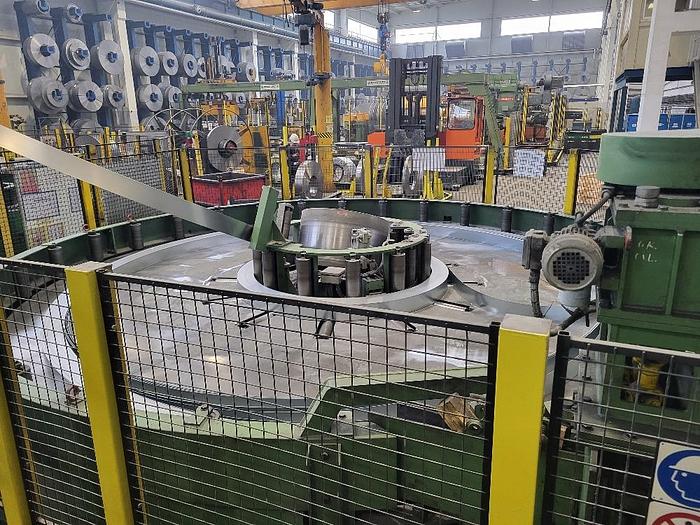

  • OTO MILLS Entry line with Double uncoiler, Strip joiner & Strip accumulator

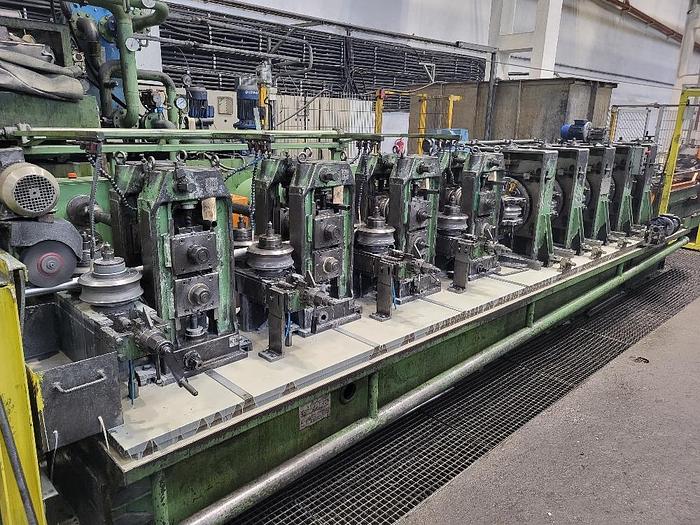

  • CANTI-SAG Forming, Sizing line & Turks heads TWL RS90
  • THERMATOOL HF welder CFI 300kW

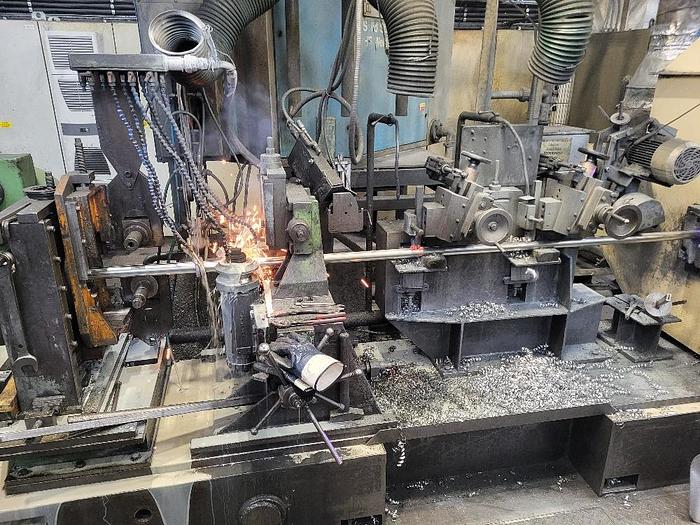

  • SEUTHE Flying saw TS90

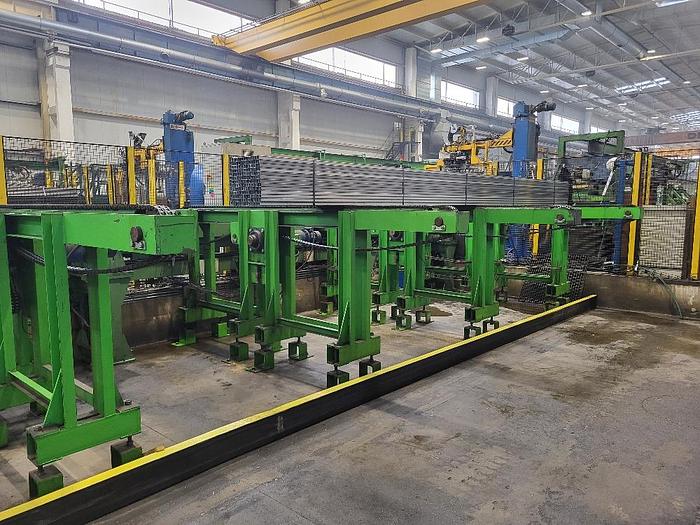

  • ATTL Automatic packaging unit

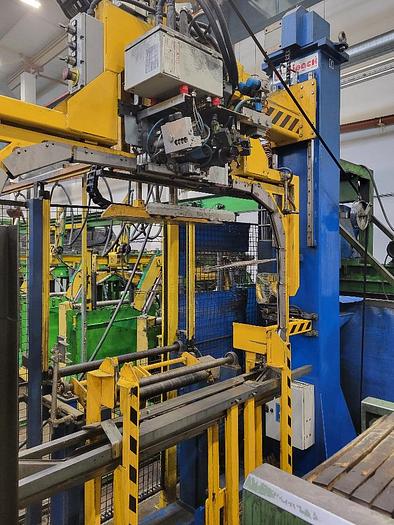

  • ITIPACK Strapping unit

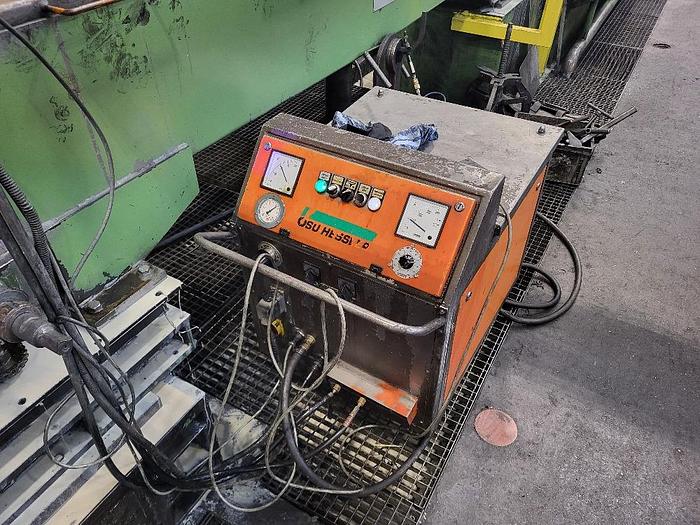

  • OSU Metallization


Technical data:

  • Diameter range: 32 – 101 mm
  • Squares: 20 x 20 - 70 x 70 mm
  • Rectangular: 40 x 20 - 80 x 50 mm
  • Thickness: 0.8 – 3.0 mm
  • Tube Length: 4 – 10 m
  • Cutoff Speed: 130 m/min
  • Voltage: 380 / 50 VAC / Hz
  • Direction: Left - Right
  • Material: Carbon steel – Hot rolled, pickled, galvanised, cold rolled
  • Tensile: 330 – 520 N/mm2
  • Coil Weight: 2x6.000 Kg
  • Coil Width: 50 – 250 mm
  • Coil ID: 508 – 610 mm
  • Coil OD: 1100 – 2000 mm


Scope of supply:

1. Entry line OTO MILLS with Double uncoiler, Strip joiner & Strip accumulator

2. Forming, Sizing line & Turks heads

3. THERMATOOL 300kW welder

4. Fume exhaust system

5. Cooling tunnel

6. Detwister unit

7. Flying saw Seuthe

8. Roll way

9. Automatic packaging machine

10. Itipack strapping machine

11. Electrical System

12. Pneumatic System

13. Hydraulic Systems


Specifications

ManufacturerOTO MILLS / SEUTHE / THERMATOOL
ModelTube Mill OTO 101.3
ConditionUsed
Stock Number4030
Tube diameter32 - 101 mm
Squares20 x 20 - 70 x 70 mm
Rectangular40 x 20 - 80 x 50 mm
Thickness0,8 - 3,0 mm
Tube Length4 – 10 m
Cutoff Speed130 m/min
DirectionLeft - Right
MaterialCarbon steel – Hot rolled, pickled, galvanized, cold rolled
Tensile330 – 520 N/mm2
Coil Weight2x6.000 Kg
Coil Width50 – 250 mm
Coil ID508 – 610 mm
Coil OD1100 – 2000 mm
